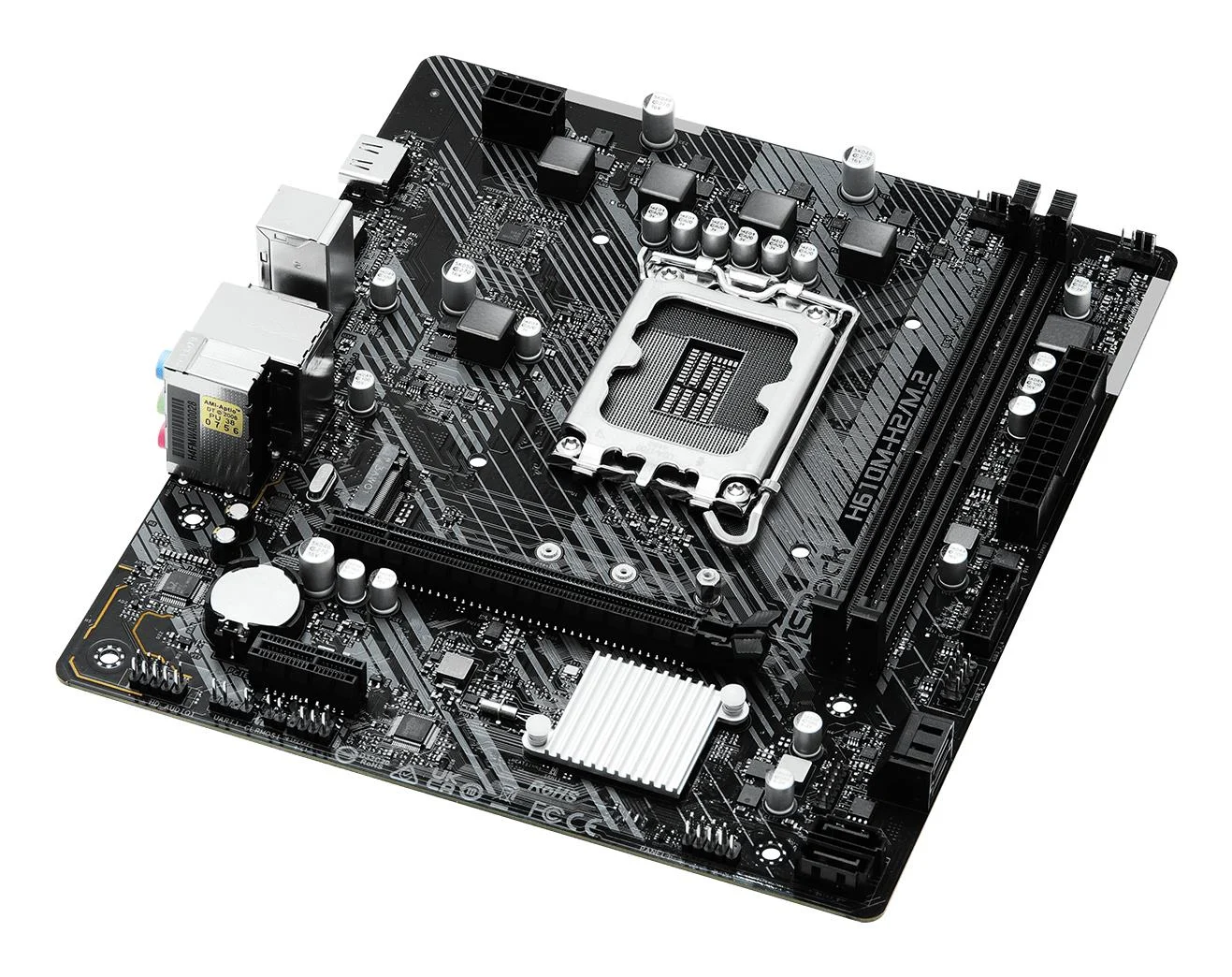

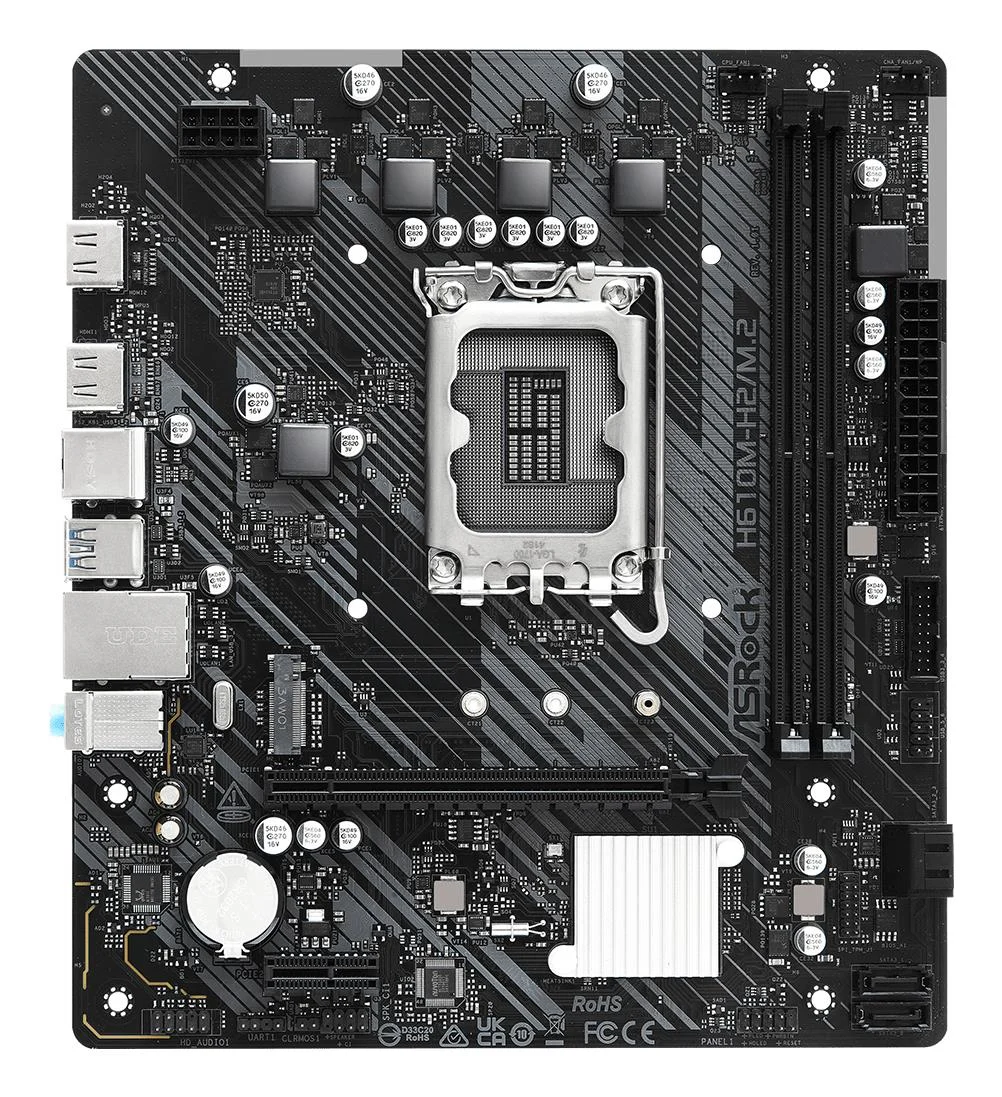

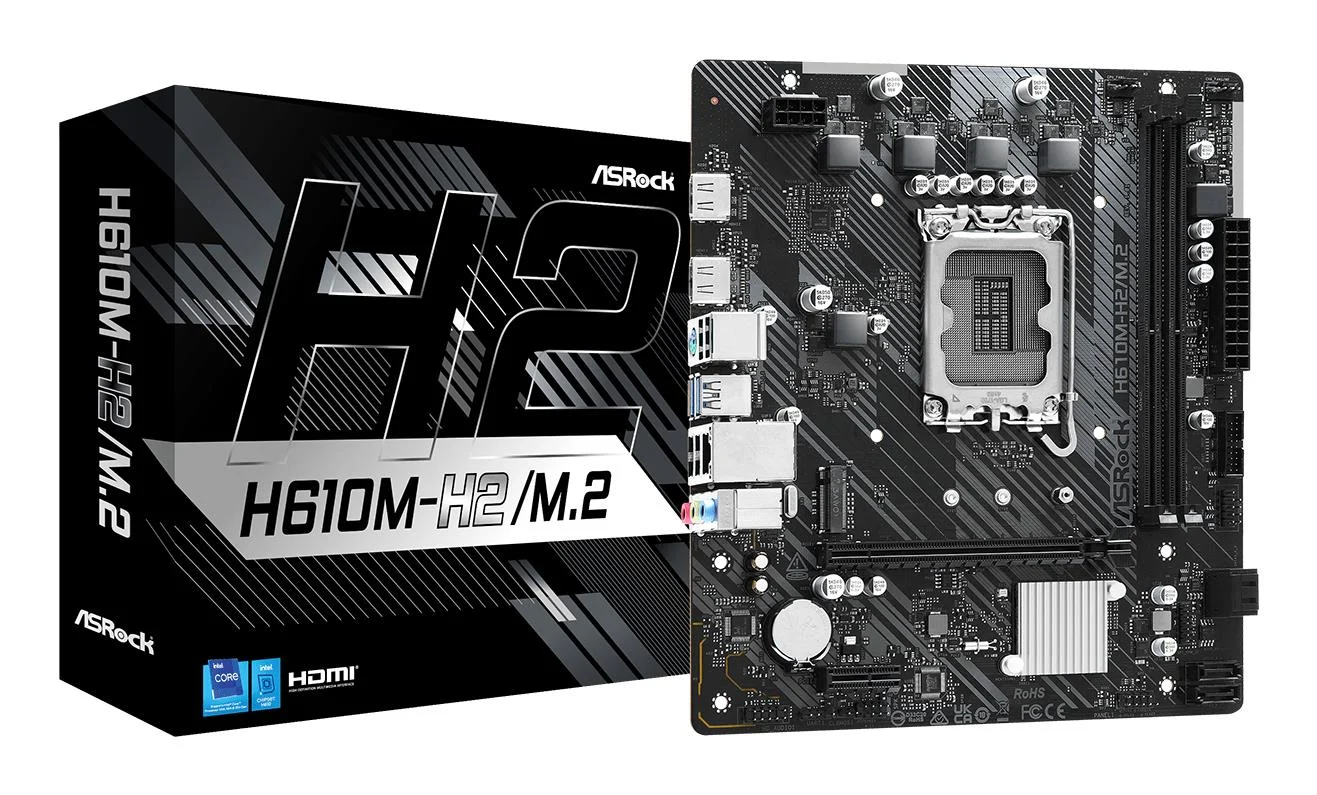

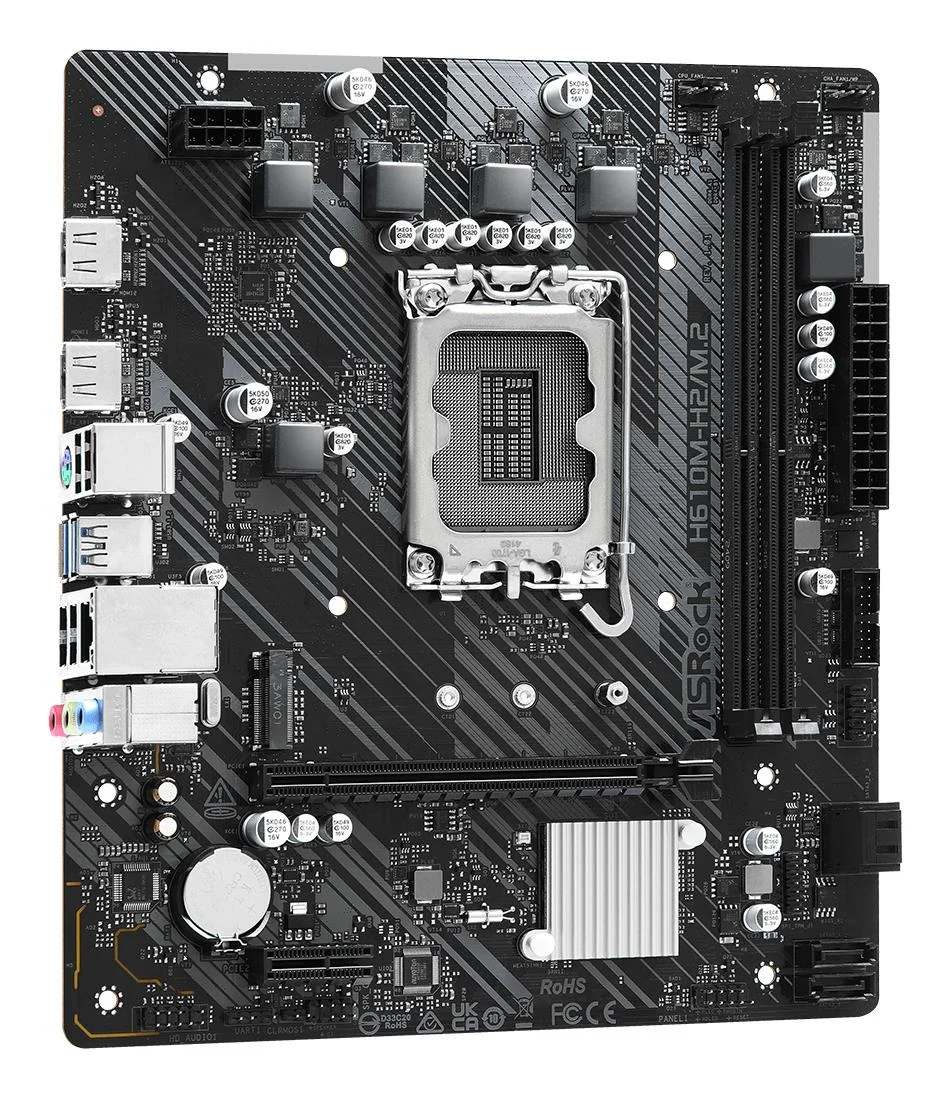

ASRock H610M-H2/M.2 on kompaktne mikro-ATX emaplaat, mis on mõeldud Intel 12. ja 13. põlvkonna protsessorite jaoks LGA1700 soklis. See mudel pakub taluperemehele ja büroorakenduste kasutajale vajalikke funktsionaalsusi mõistliku hinnaga.
Emaplaat toetab DDR4-SDRAM mälu kuni 64GB mahuni kahel DIMM paigas. Salvestusseadmete ühendamiseks on olemas üks M.2 pesa ja SATA III liidesed. Helisüsteem põhineb Realtek ALC897 kiibil, mis pakub 7.1 kanali helitugevust. Kahe HDMI väljundi abil saab ühendada kahe monitori, ja 4 USB 2.0 pordi ning 2 USB 3.2 Gen 1 pordi tagavad piisavad ühenduspossibiluursed.
Emaplaat on sertifitseeritud FCC ja CE standardite ning ErP/EuP juhiste järgi, mis tagavad energiatõhususe. See toetab Windows 10 ja Windows 11 operatsioonisüsteeme.
- Chipset: Intel H610
- Protsessori sokkel: LGA 1700
- Mälu: DDR4-SDRAM, 2 pesa, kuni 64GB, 3200MHz
- Salvestus: 1x M.2, SATA III
- Heli: Realtek ALC897, 7.1 kanalit
- Väljundid: 2x HDMI, 4x USB 2.0, 2x USB 3.2, 1x RJ45
- Vorm: Mikro-ATX
- Toiteplokid: 24-pin ATX, 8-pin EPS
Tehnilised andmed
Üldine
| Tootja |
ASRock |
| Mudel |
H610M-H2/M.2 |
Features
| Audio chip |
Realtek ALC897 |
| Audio output channels |
7.1 channels channels |
| Certification |
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required) |
| Component for |
PC |
| Motherboard chipset |
Intel H610 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
micro ATX |
| Product colour |
Multicolour |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
Processor
| Compatible processor series |
Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 1 |
| Processor manufacturer |
Intel |
| Processor socket |
LGA 1700 |
Memory
| ECC сompatibility |
ECC & Non-ECC |
| Maximum internal memory |
64 GB GB |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Supported memory clock speed (max) |
3200 MHz MHz |
| Supported memory types |
DDR4-SDRAM |
| Unbuffered memory |
Yes |
Storage controllers
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
Graphics
Internal I/O
| 12V power connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Chassis intrusion connector |
Yes |
| CPU fan connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Front panel audio connector |
Yes |
| Number of chassis fan connectors |
1 |
| Number of CPU fan connectors |
1 |
| Number of SATA III connectors |
4 |
| TPM connector |
Yes |
| USB 2.0 connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |

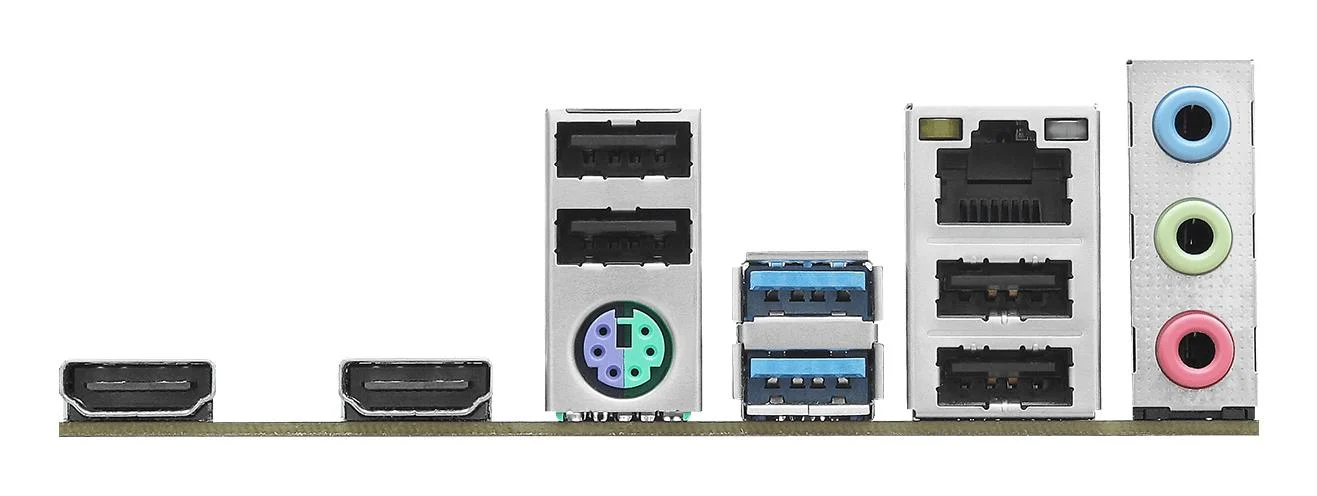

Rear panel I/O ports
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
2 |
| Line-in |
Yes |
| Microphone in |
Yes |
| PS/2 ports quantity |
1 |
| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
Network
| Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN |
Yes |
| LAN controller |
Realtek RTL8111H |
| Wi-Fi |
No |
Expansion slots
| Number of M.2 (M) slots |
1 |
| PCI Express x1 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
BIOS
| BIOS memory size |
128 Mbit Mbit |
| BIOS type |
UEFI AMI |
Weight & dimensions
| Depth |
193 mm mm |
| Width |
220 mm mm |
