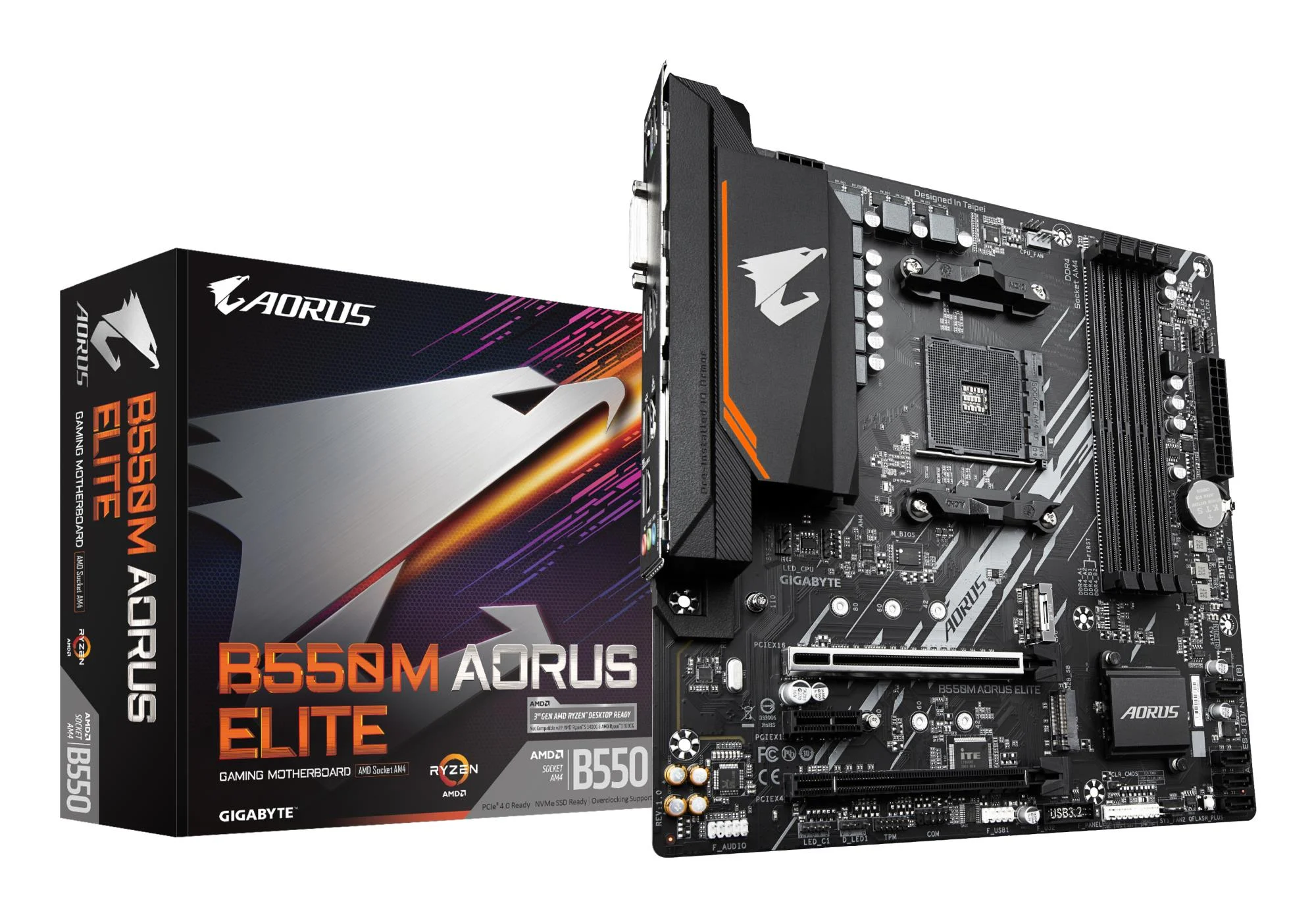

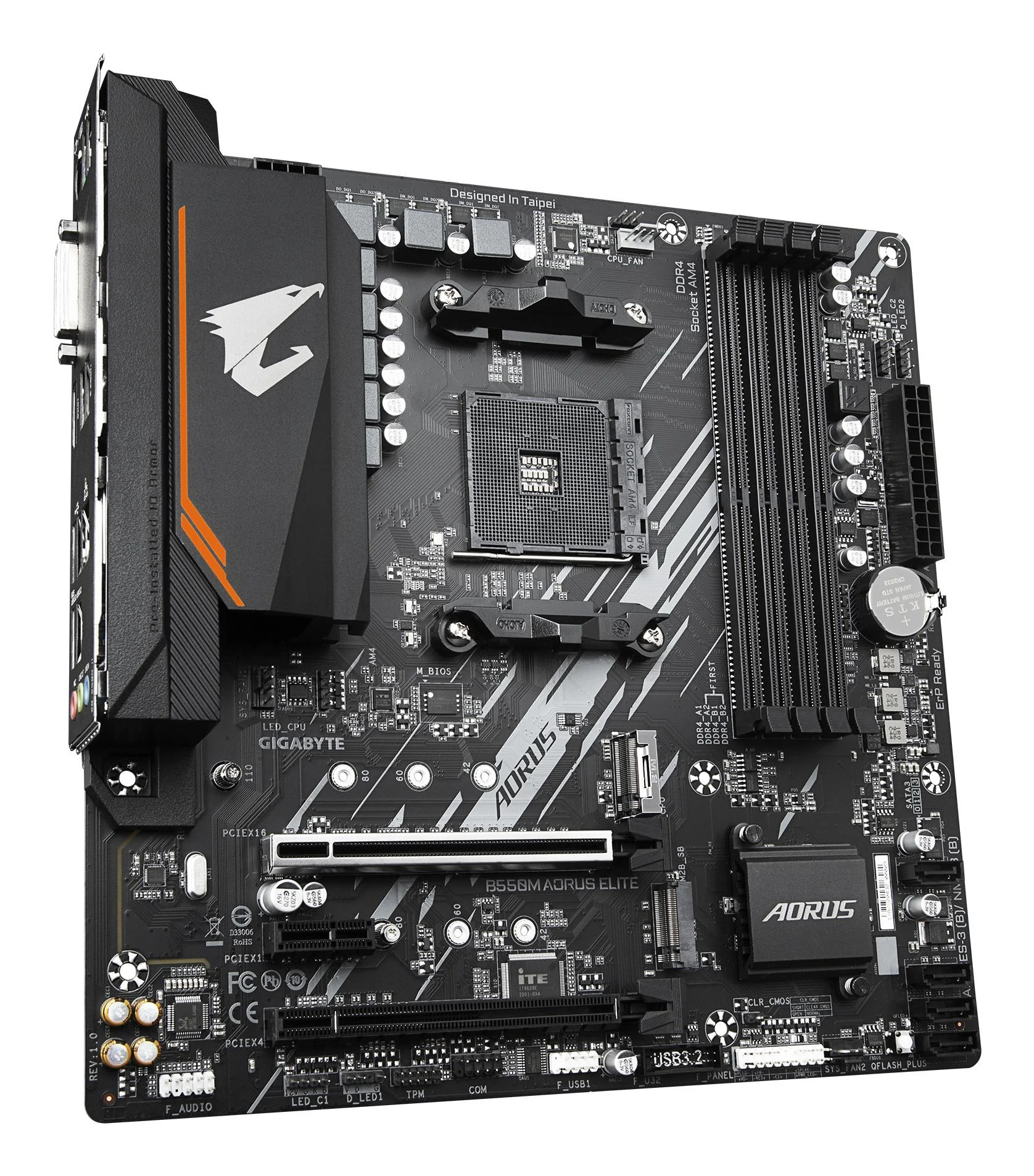

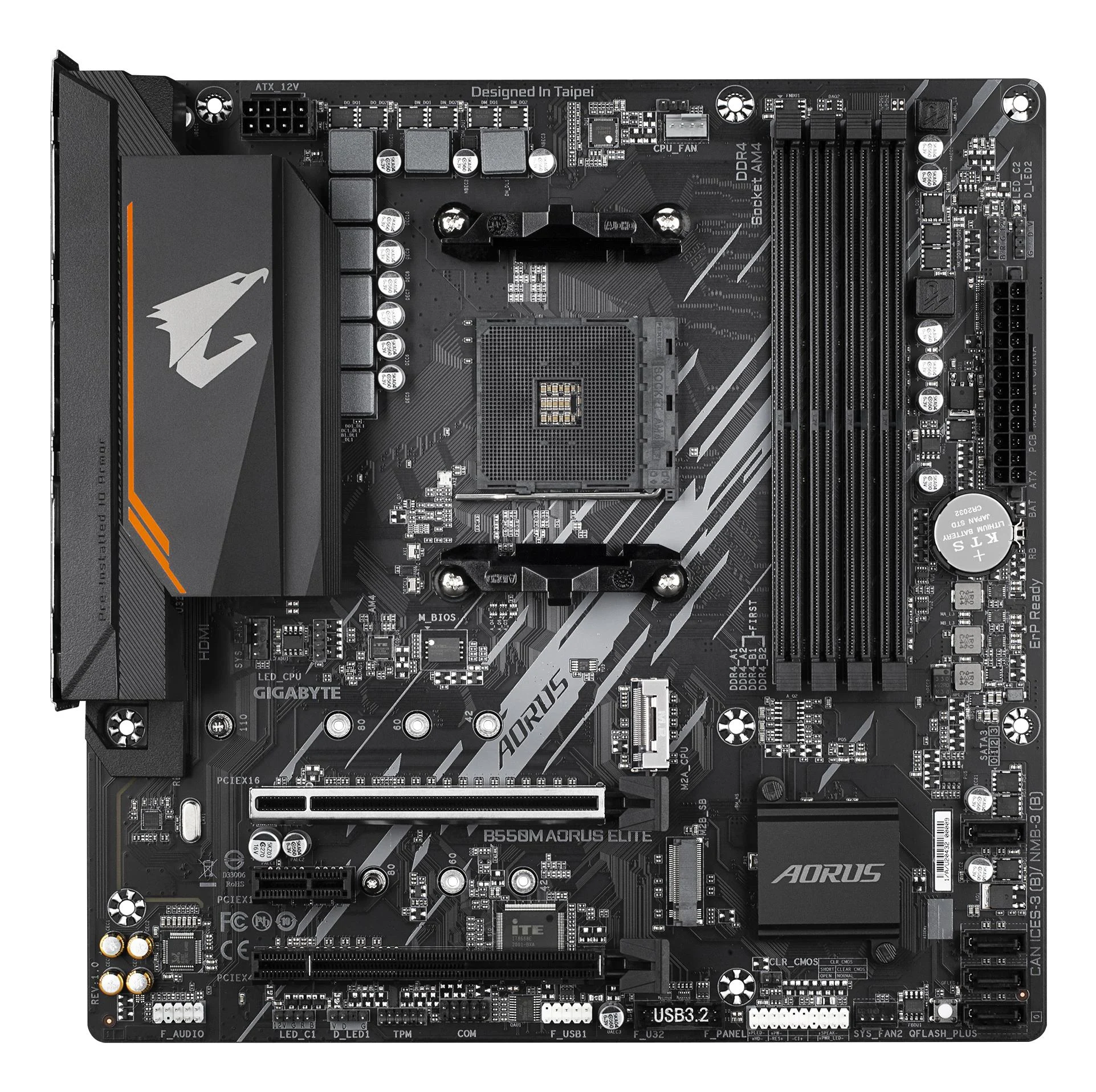

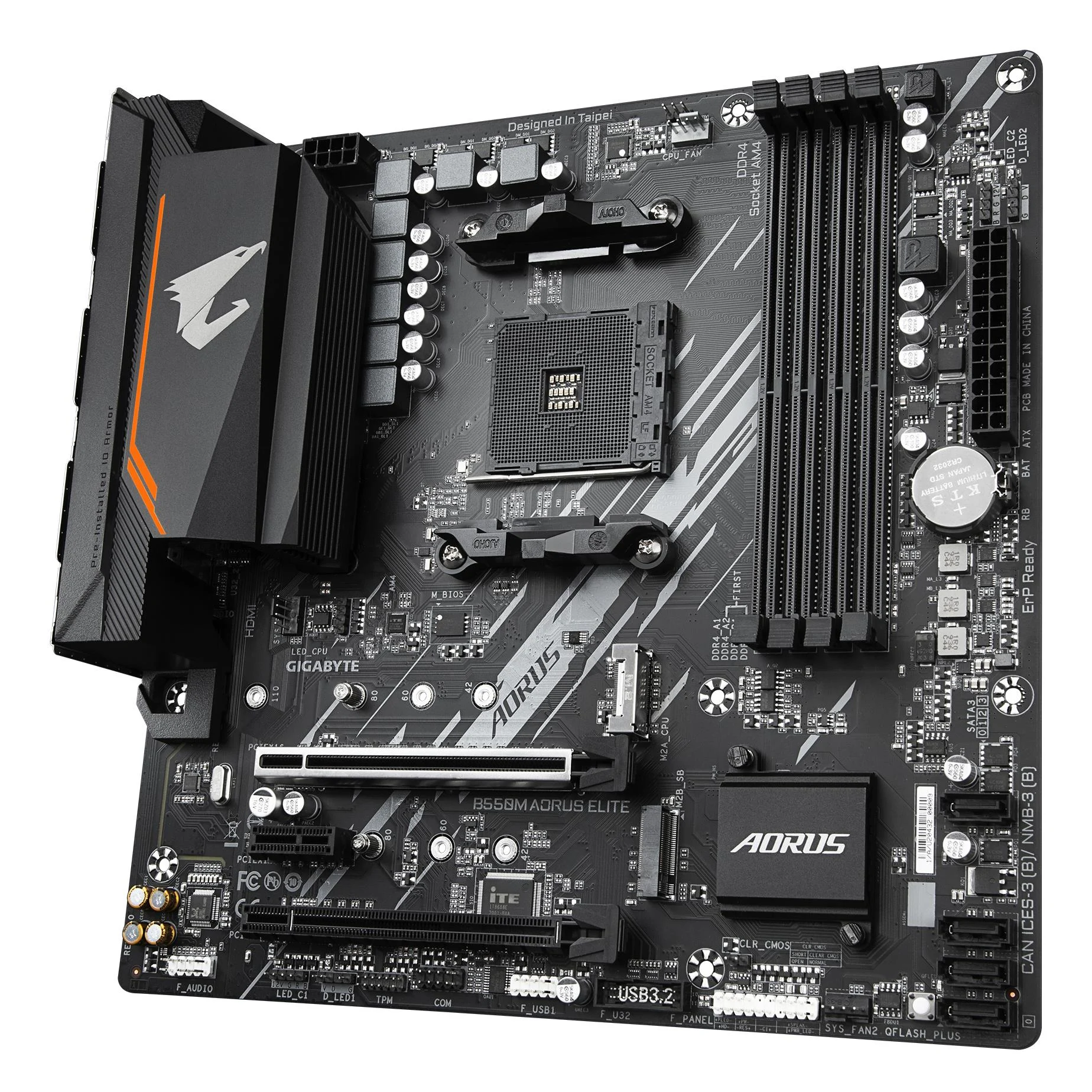

Gigabyte B550M AORUS ELITE 1.3 on usaldusväärseks valik väiksematele arvutikonfiguratsioonidele. See micro-ATX emaplaadi on ideaalne mängijatele ja sisuga tegijatele, kes vajavad kompaktsust ilma jõudluse ohverdamiseta.
Emaplaadi kasutab AMD B550 chipsetit ja on ühilduv AMD Ryzen protsessoritega Socket AM4 kaudu. See toetab kuni 4 DDR4-SDRAM mälumoodulit, võimaldades sul tekitada võimsat süsteemi suuremahuliste rakenduste jaoks. Kaasaegne PCIe 4.0 16x pesa tagab kiire graafika- ja arvutuskaardi toetuse.
Andmesalvestuse valikud on paindlikud: kahe M.2 ühendusega saad kiirendada SSD-sid, ning SATA III liideste kaudu saad ühendada traditsionaalsemaid kõvakette. Ühenduvuse valikud hõlmavad Gigabiti Etherneti ja mitmeid USB-porte, sealhulgas USB 3.2 Gen 1 kiiri ühendusi.
- Chipset: AMD B550
- Vorm: Micro-ATX
- Processor tugi: AMD Ryzen Socket AM4
- Mälu: 4 x DDR4-SDRAM DIMM pesa
- Salvesti: 2 x M.2, SATA III
- PCIe pesad: 1x PCIe 4.0 16x, 1x PCIe 3.0 4x, 1x PCIe 3.0 1x
- Video väljundid: HDMI, DVI-D
- Audio: 7.1 kanal, 2x sisend, 1x väljund
- USB: 4x USB 2.0, 4x USB 3.2 Gen 1
- Võrk: 1x RJ-45 Gigabit LAN
- Muud: 1x PS/2 port
Tehnilised andmed
Üldine
| Tootja | Gigabyte |
|---|---|
| Mudel | B550M AORUS ELITE 1.3 |
Features
| Audio chip | Realtek ALC897 |
|---|---|
| Audio output channels | 7.1 channels channels |
| Component for | PC |
| Cooling type | Passive |
| Motherboard chipset | AMD B550 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| PC health monitoring | Fan, Temperature, Voltage |
| Power source type | ATX |
| Product colour | Brown |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Processor
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
|---|---|
| Maximum number of SMP processors | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Supported processor sockets | Socket AM4 |
Memory
| ECC сompatibility | ECC & Non-ECC |
|---|---|
| Maximum internal memory | 128 GB GB |
| Maximum internal memory per slot | 32 GB GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 4733 MHz MHz |
| Supported memory clock speeds | 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz MHz |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
Storage controllers
| Number of HDDs supported | 4 |
|---|---|
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 10 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
Graphics
| DirectX version | 12.0 |
|---|---|
| HDCP | Yes |
| Maximum resolution | 4096 x 2160 pixels pixels |
| Parallel processing technology support | Not supported |
Internal I/O
| 12V power connector | Yes |
|---|---|
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of chassis fan connectors | 2 |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 5 |
| Number of SATA III connectors | 4 |
| Number of water pump connectors | 2 |
| RGB LED pin header | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |

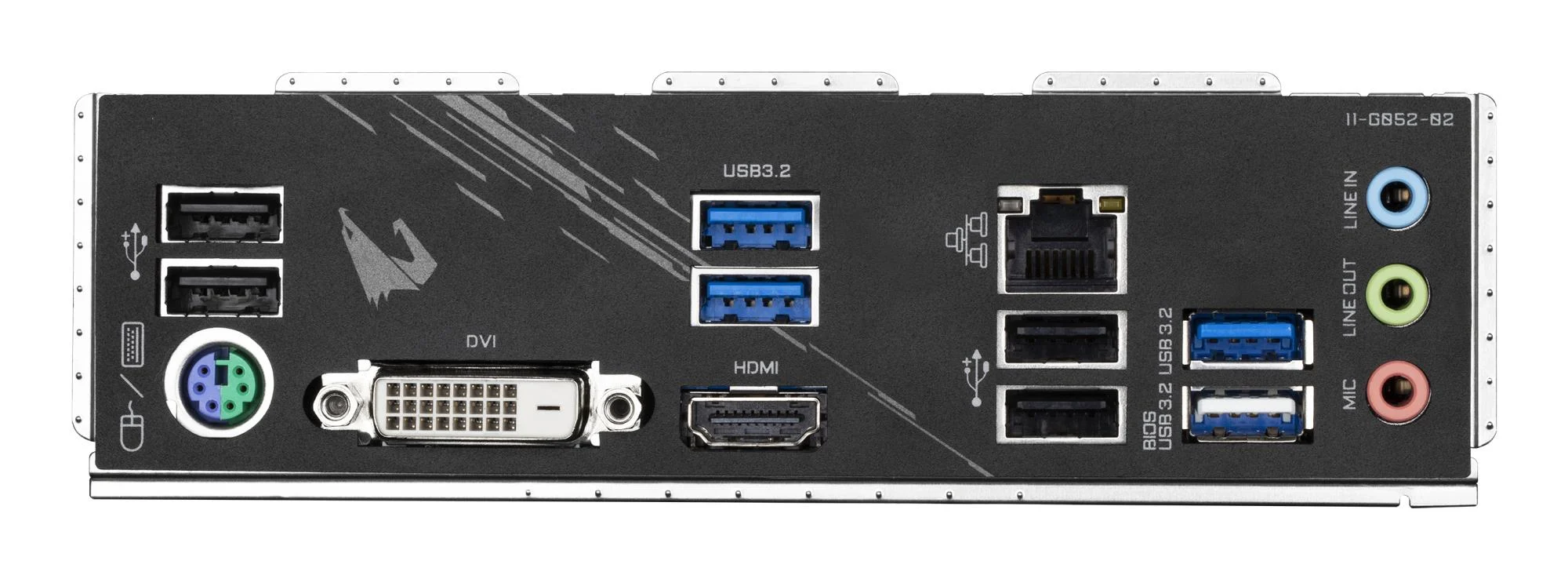

Rear panel I/O ports
| DVI-D ports quantity | 1 |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
Network
| Ethernet interface type | Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
Expansion slots
| 1st M.2 highest PCI Express generation | 4.0 |
|---|---|
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| 2nd M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
BIOS
| ACPI version | 5.0 |
|---|---|
| BIOS memory size | 128 Mbit Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Battery
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
|---|---|
| Battery type | CR2032 |
| Battery weight | 3 g g |
| Lithium weight per battery | 0.07 g g |
| Number of battery cells | 1 |
Weight & dimensions
| Depth | 244 mm mm |
|---|---|
| Height | 35 mm mm |
| Width | 244 mm mm |
Technical details
| Warranty period | 3 year(s) year(s) |
|---|
