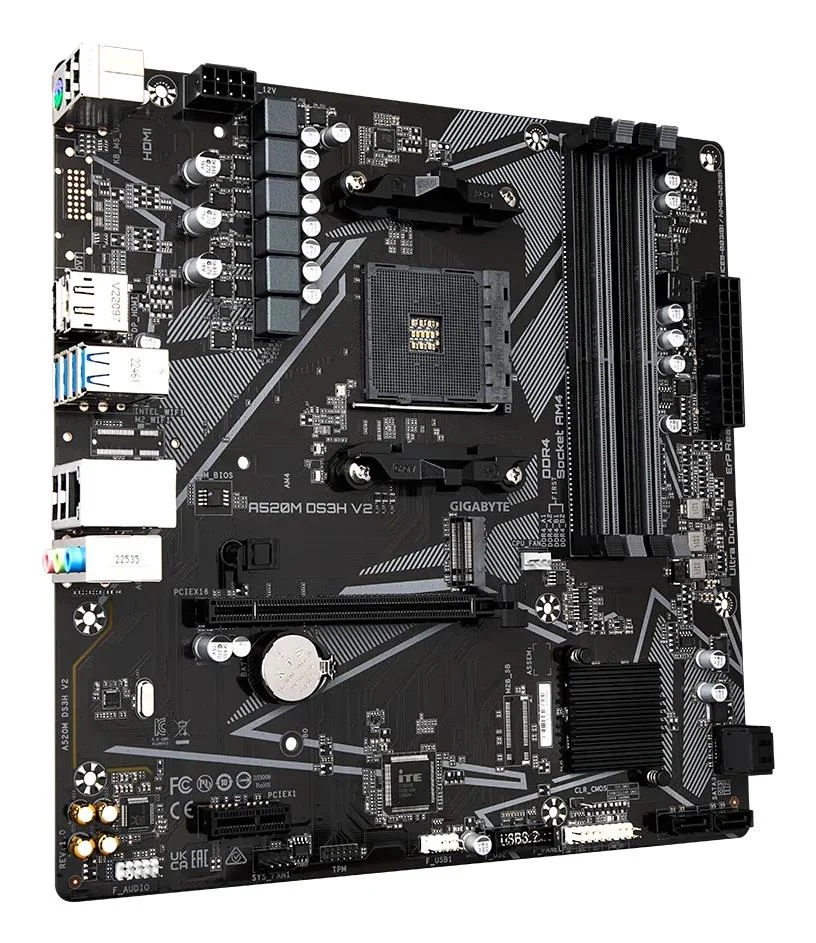

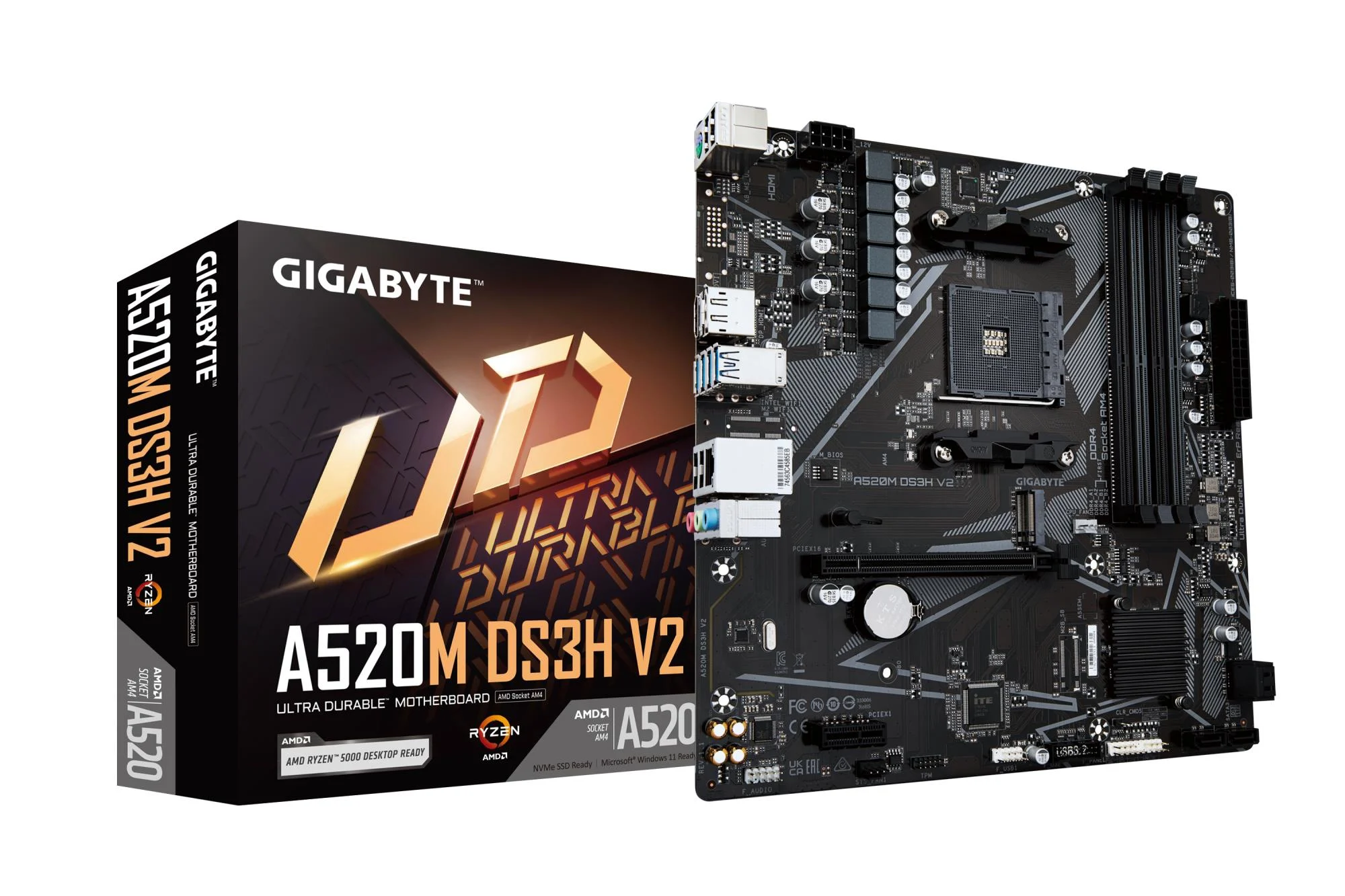

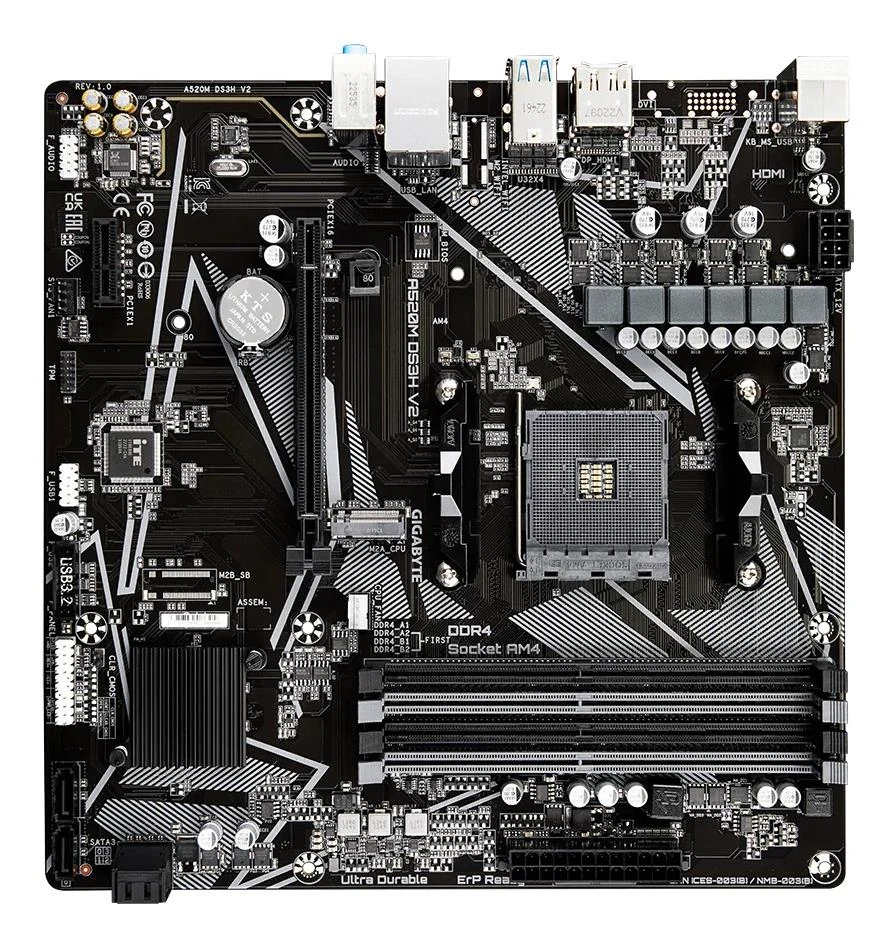

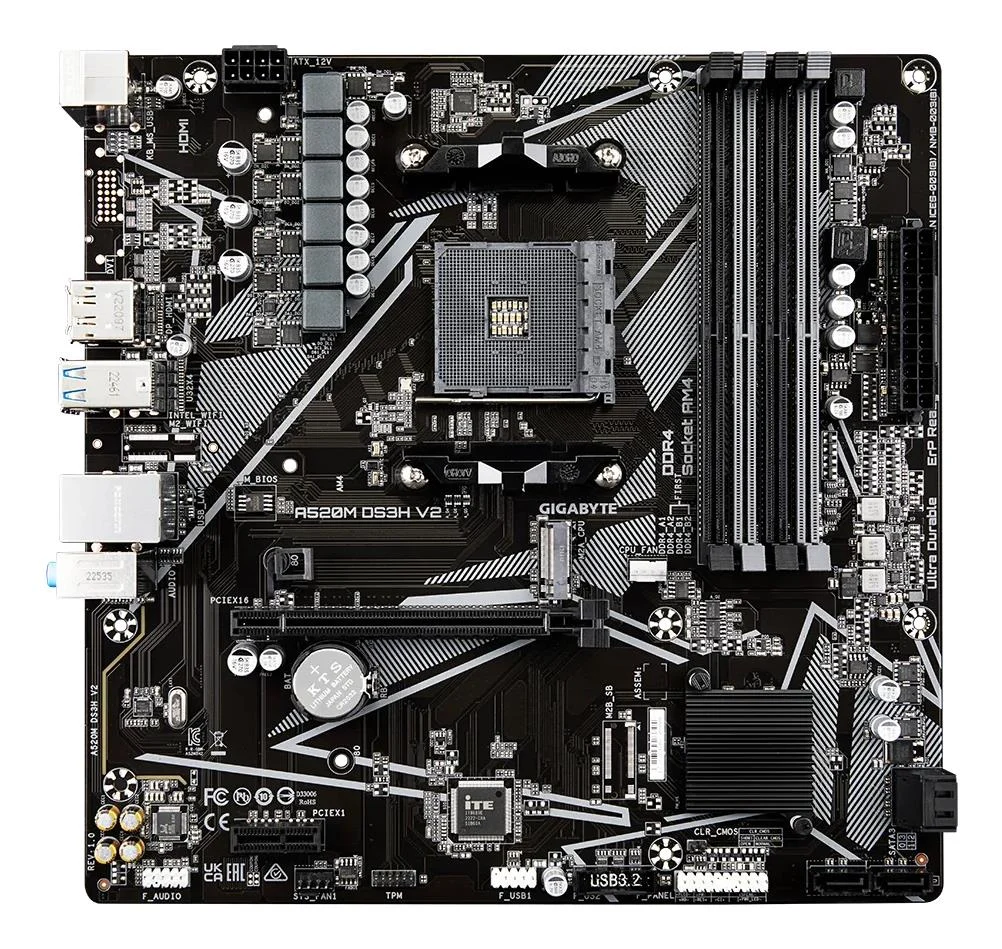

Gigabyte A520M DS3H V2 on usaldusväärne Micro-ATX emaplaadi, mis on optimeeritud AMD Ryzen protsessorite kasutamisele AM4 socketiga. See emaplaadi pakub stabiilset jõudlust ja usaldusväärsust igapäevaseks kasutamiseks ning mängimiseks.
Emaplaadi toetab DDR4-SDRAM mälu standardit nelja mälupaigaga, mis võimaldab teil installida kuni 128GB mälu. Seadmete ühendamiseks on saadaval M.2 ja SATA III liidestused, mis tagavad kiire andmeedastuse. Kaasaegse audiokogemuse jaoks on integreeritud 7.1 kanaline helikaart.
Ühenduvuse poolest pakub emaplaadi:
- 2× USB 2.0 porti
- 4× USB 3.2 Gen 1 (3.1 Gen 1) Type-A porti
- 1× Gigabit Ethernet (RJ-45)
- 1× HDMI väljund
- 1× DVI-D väljund
Diskreetse graafikakaarti tugi on saadaval, mis teeb sellest emaplaadi mitmekülgseks lahenduseks nii büroo- kui ka meediaarvutitele.
Tehnilised andmed
Üldine
| Tootja | Gigabyte |
|---|---|
| Mudel | A520M DS3H V2 |
Features
| Audio chip | Realtek ALC887 |
|---|---|
| Audio output channels | 7.1 channels channels |
| Component for | PC |
| Cooling type | Active |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| PC health monitoring | CPU, LED, Power supply, Temperature, Voltage |
| Power source type | ATX |
| Product colour | Black |
| Windows operating systems supported | Windows 10 x64 |
Processor
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series |
|---|---|
| Maximum internal memory supported by processor | 128 GB GB |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Supported processor sockets | Socket AM4 |
Memory
| ECC сompatibility | ECC & Non-ECC |
|---|---|
| Maximum internal memory | 128 GB GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speeds | 2133,2400,2667,2933,3200,3333,3600,4000,4400,4733 MHz MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 16GB, 32GB |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
Storage controllers
| Number of HDDs supported | 4 |
|---|---|
| Number of storage drives supported | 5 |
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
Graphics
| Discrete graphics support | Yes |
|---|---|
| HDCP | Yes |
| Maximum resolution | 5120 x 2880 pixels pixels |
| Number of displays supported | 3 |
Internal I/O
| 12V power connector | Yes |
|---|---|
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of EATX power connectors | 1 |
| Number of SATA III connectors | 4 |
| Power fan connector | Yes |
| Serial port headers | 1 |
| Total number of SATA connectors | 4 |
| TPM connector | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
Rear panel I/O ports
| Digital audio optical out | 1 |
|---|---|
| DisplayPort version | 2.0 |
| DisplayPorts quantity | 1 |
| DVI-D ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB connector type | USB Type-A |
Network
| Ethernet interface type | Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
Expansion slots
| Number of M.2 (M) slots | 1 |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
BIOS
| ACPI version | 5.0 |
|---|---|
| BIOS memory size | 128 Mbit Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Battery
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
|---|---|
| Battery type | CR2032 |
| Battery weight | 3 g g |
| Lithium weight per battery | 0.07 g g |
| Number of battery cells | 1 |
Weight & dimensions
| Depth | 244 mm mm |
|---|---|
| Height | 35 mm mm |
| Width | 244 mm mm |
Technical details
| Warranty period | 3 year(s) year(s) |
|---|
