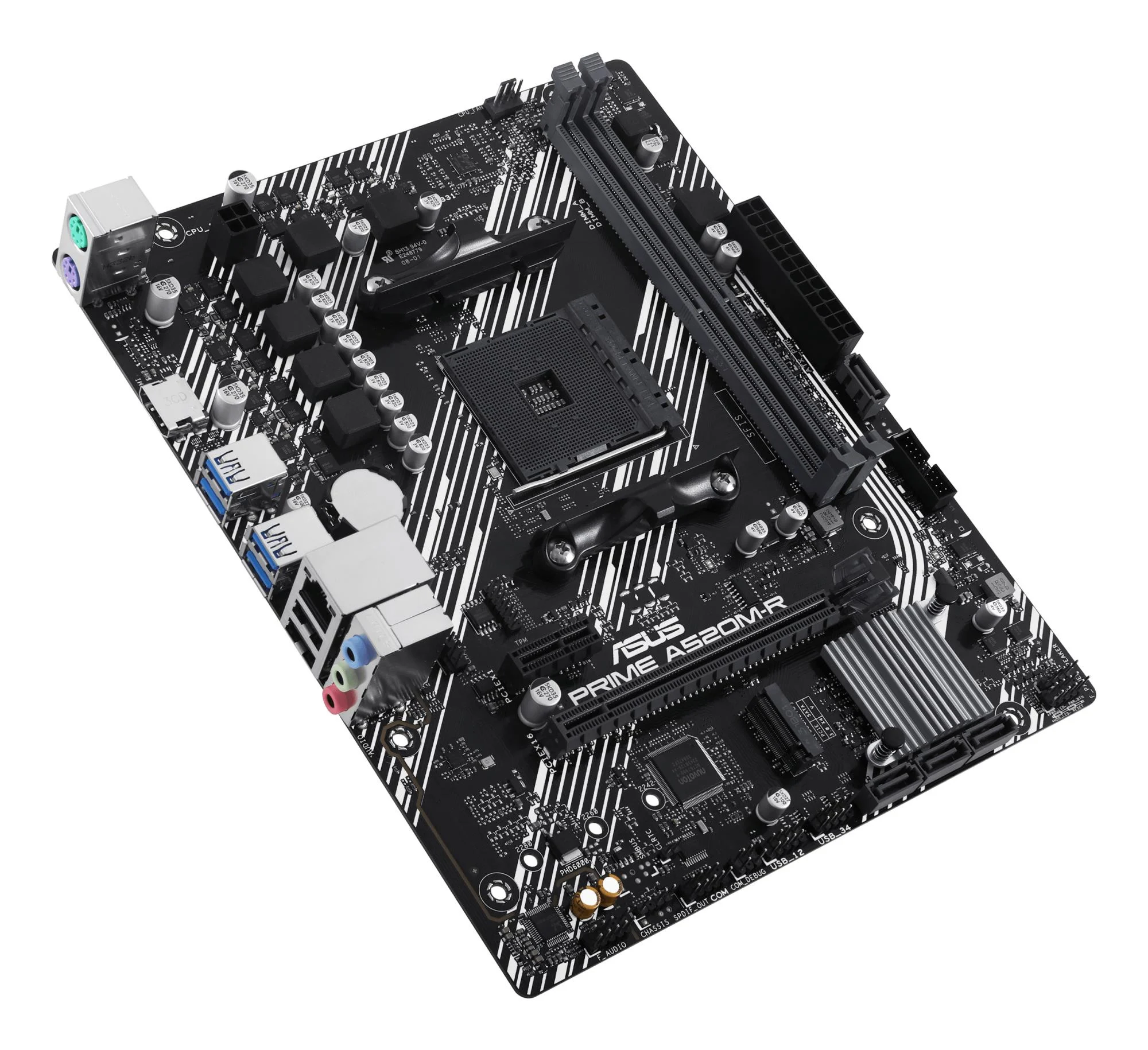

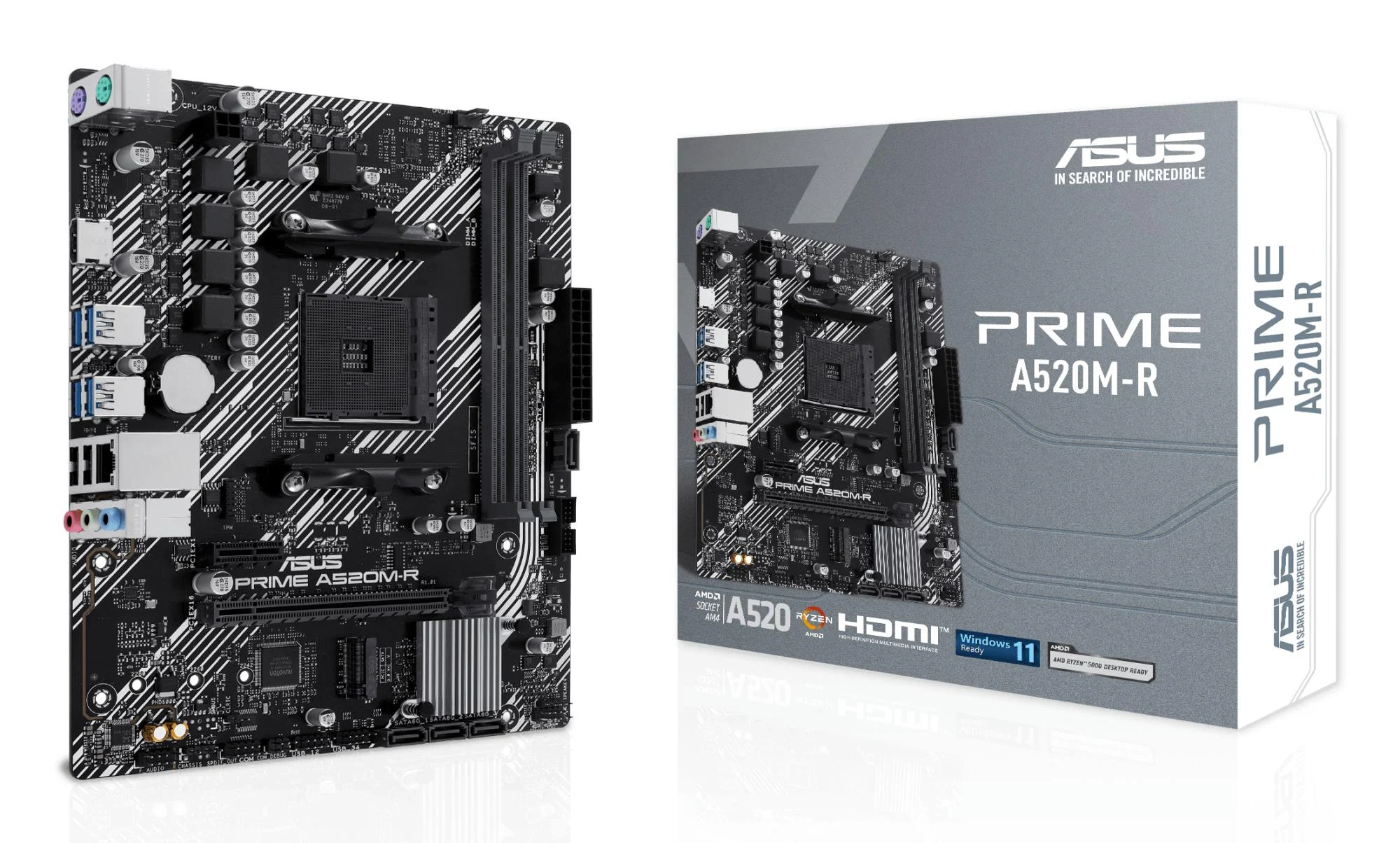

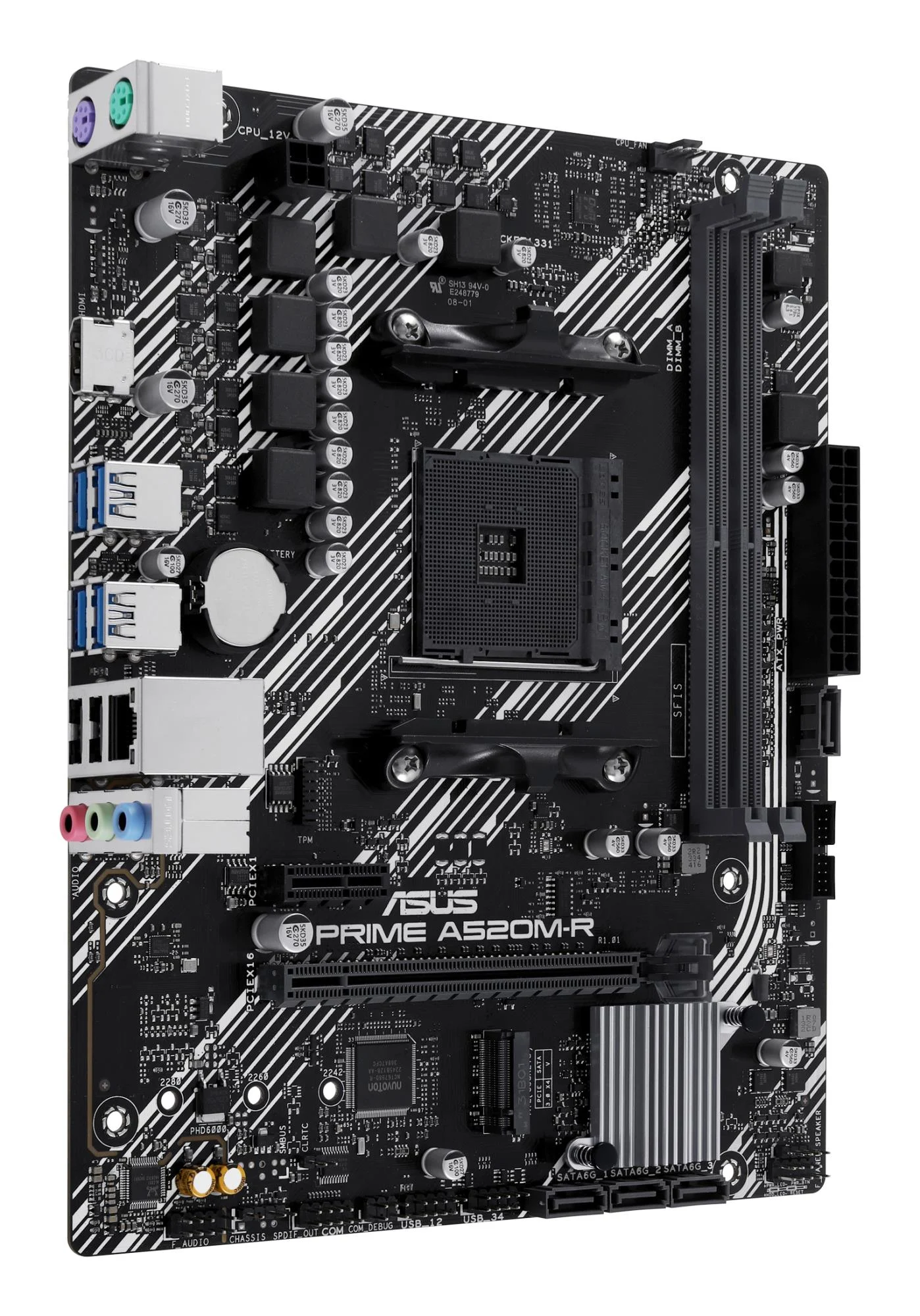

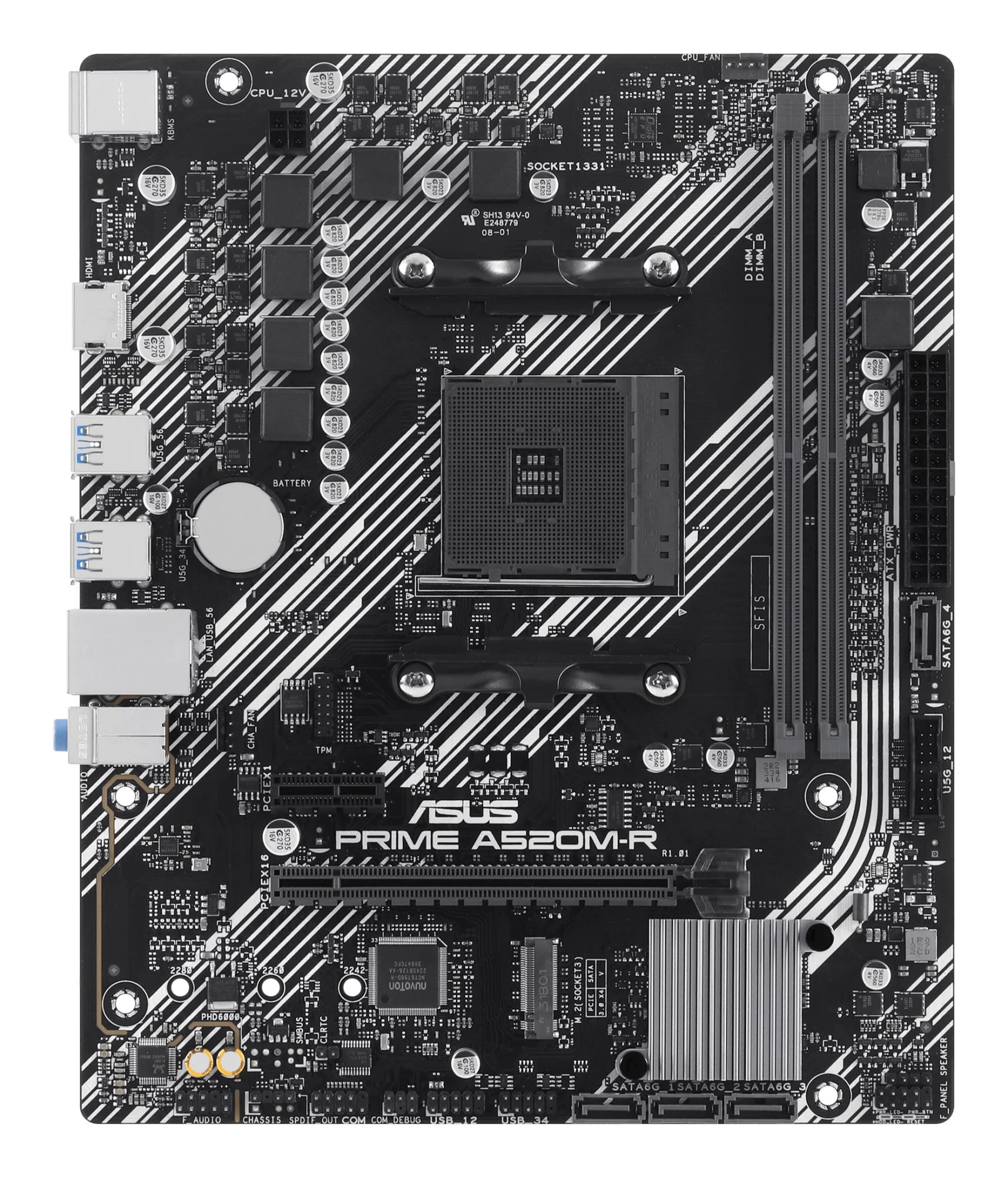

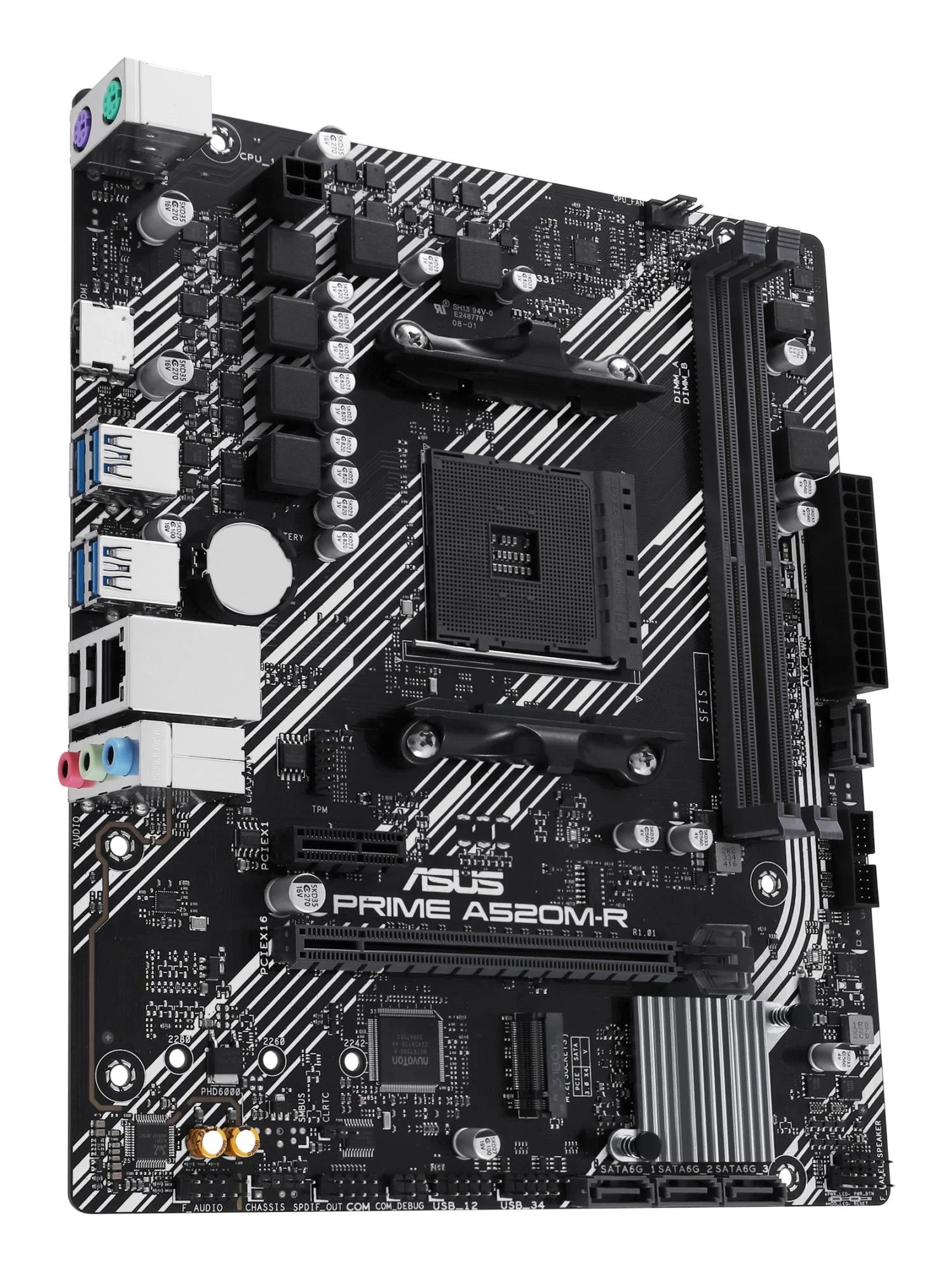

ASUS PRIME A520M-R on usaldusväärseks arvutisüsteemiks ideaalne micro-ATX emaplaat, mis on disainitud AMD A520 chipsetile. See sobib suurepäraselt keskmise taseme ja kodusete arvutisüsteemide jaoks, pakkudes stabiilset jõudlust ja head varustust.
Emaplaat toetab AMD Ryzen 3000 ja 5000 seeria protsessore Socket AM4 pistikuga ja on ühilduv DDR5 mälu tehnoloogiaga, mis võimaldab järgmise põlvkonna jõudlust. Passive jahutusega disain tagab vaikse ja töökindla talituse ning ATX toiteploki ühendamine on lihtne.
Sisseehitatud võrgu- ja helikaardid ning rohke ühendusvalikud muudavad selle ideaalseks valikuks nii tavaliste kasutajate kui ka arendajate jaoks.
- Chipset: AMD A520
- Pistik: Socket AM4
- Vormi tegur: Micro-ATX
- Mälu: 2 × DIMM DDR5-SDRAM, kuni 64 GB
- Maksimaalne mälusagedus: 5100 MHz
- Salvestus: M.2 ja SATA III liidestega 5 draivi toetus (RAID 0, 1, 10)
- Ühendused: 1 × HDMI, 2 × USB 2.0, 4 × USB 3.2 Gen 1, 1 × RJ45 Ethernet
- Heli: 7.1 kanalid
Tehnilised andmed
Üldine
| Tootja | ASUS |
|---|---|
| Mudel | PRIME A520M-R |
Features
| Audio output channels | 7.1 channels channels |
|---|---|
| Component for | PC |
| Cooling type | Passive |
| Motherboard chipset | AMD A520 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Power source type | ATX |
| Product colour | Black |
| Windows operating systems supported | Windows 10, Windows 11 |
Processor
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 5000 Series |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Supported processor sockets | Socket AM4 |
Memory
| ECC сompatibility | ECC |
|---|---|
| Maximum internal memory | 64 GB GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory clock speed (max) | 5100 MHz MHz |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4333,4400,4466,4600,4666,4866,5100 MHz MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
Storage controllers
| Number of HDDs supported | 4 |
|---|---|
| Number of storage drives supported | 5 |
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
Graphics
| Parallel processing technology support | Not supported |
|---|
Internal I/O
| 12V power connector | Yes |
|---|---|
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |

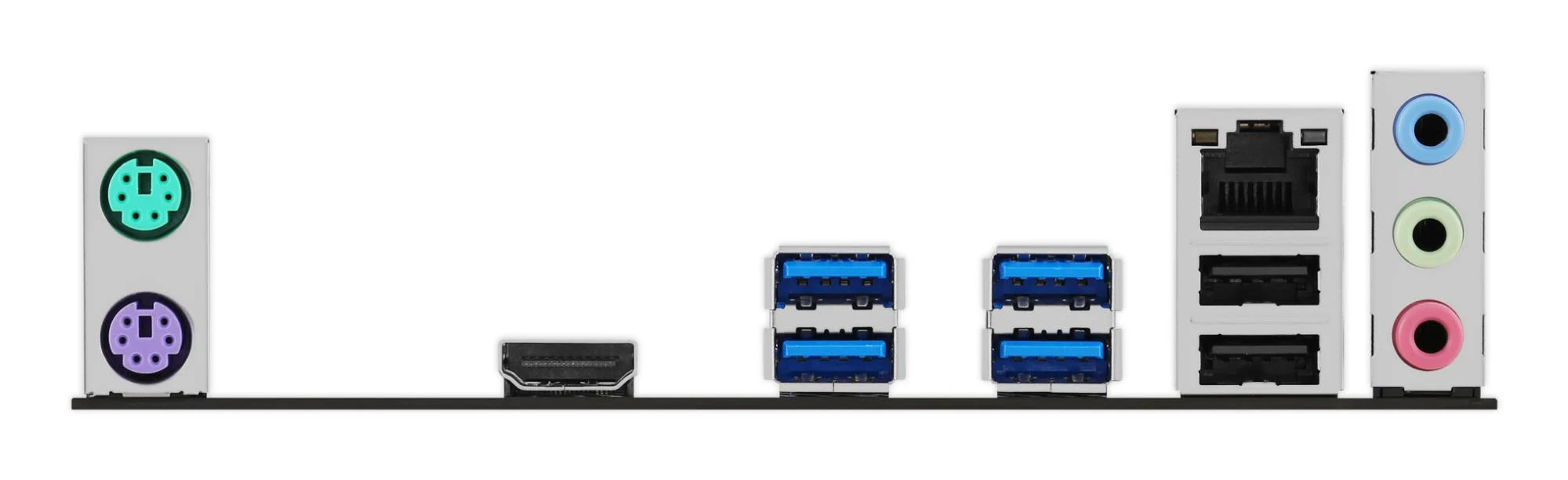

Rear panel I/O ports
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| PS/2 ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
Network
| Ethernet interface type | Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
Expansion slots
| Number of M.2 (M) slots | 1 |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
BIOS
| BIOS memory size | 128 Mbit Mbit |
|---|---|
| BIOS type | UEFI AMI |
Weight & dimensions
| Depth | 193 mm mm |
|---|---|
| Width | 236 mm mm |
