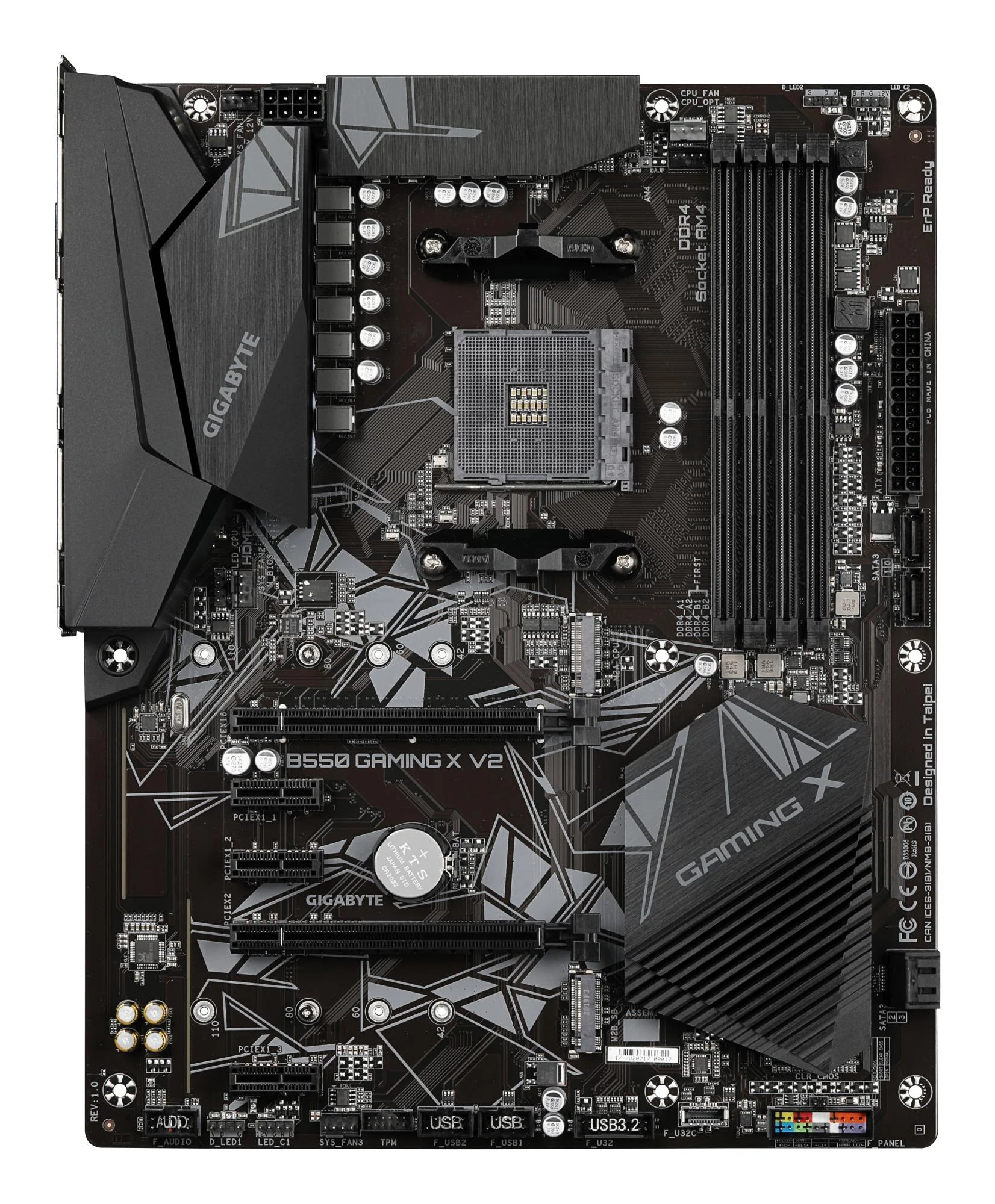

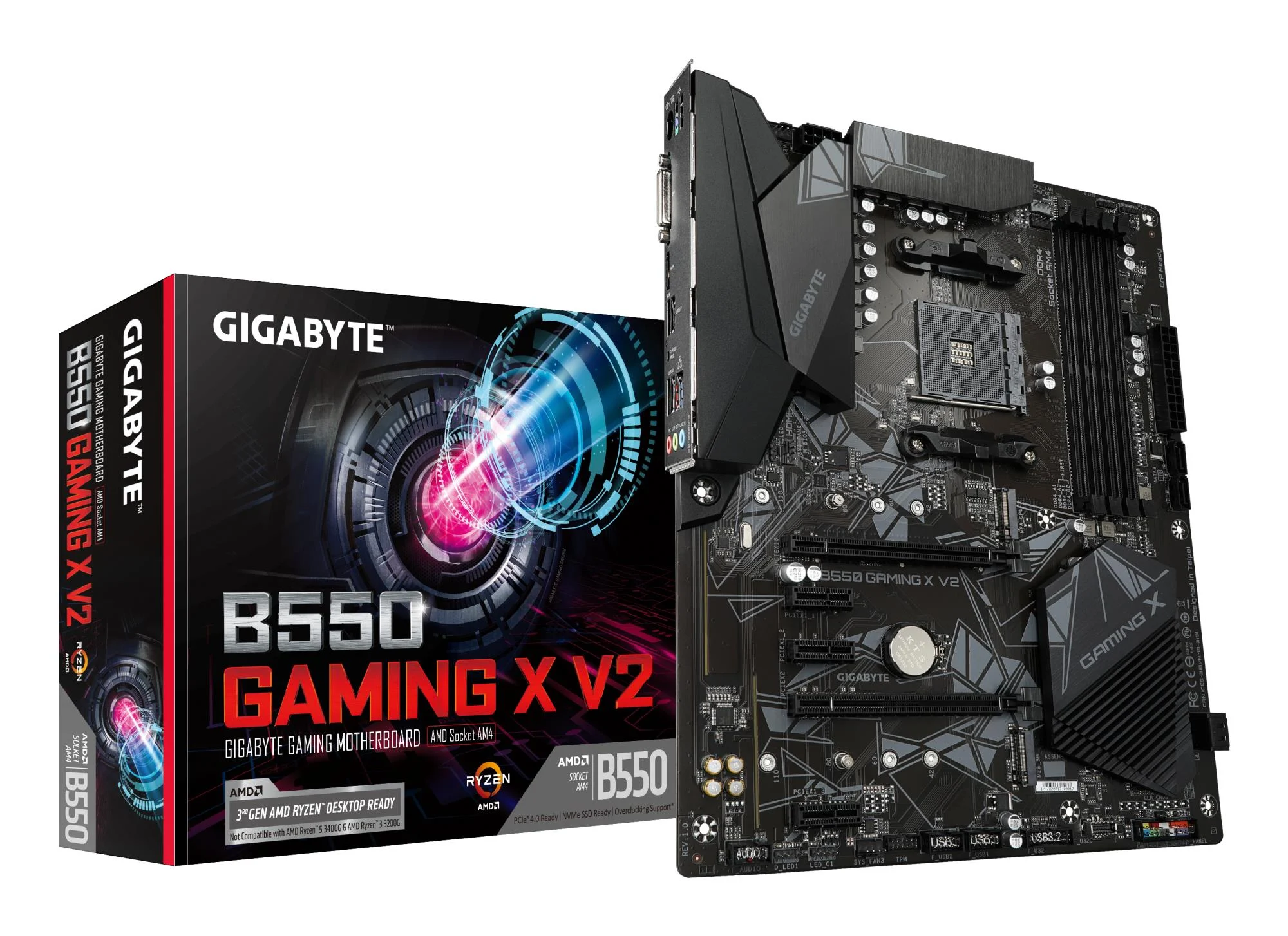

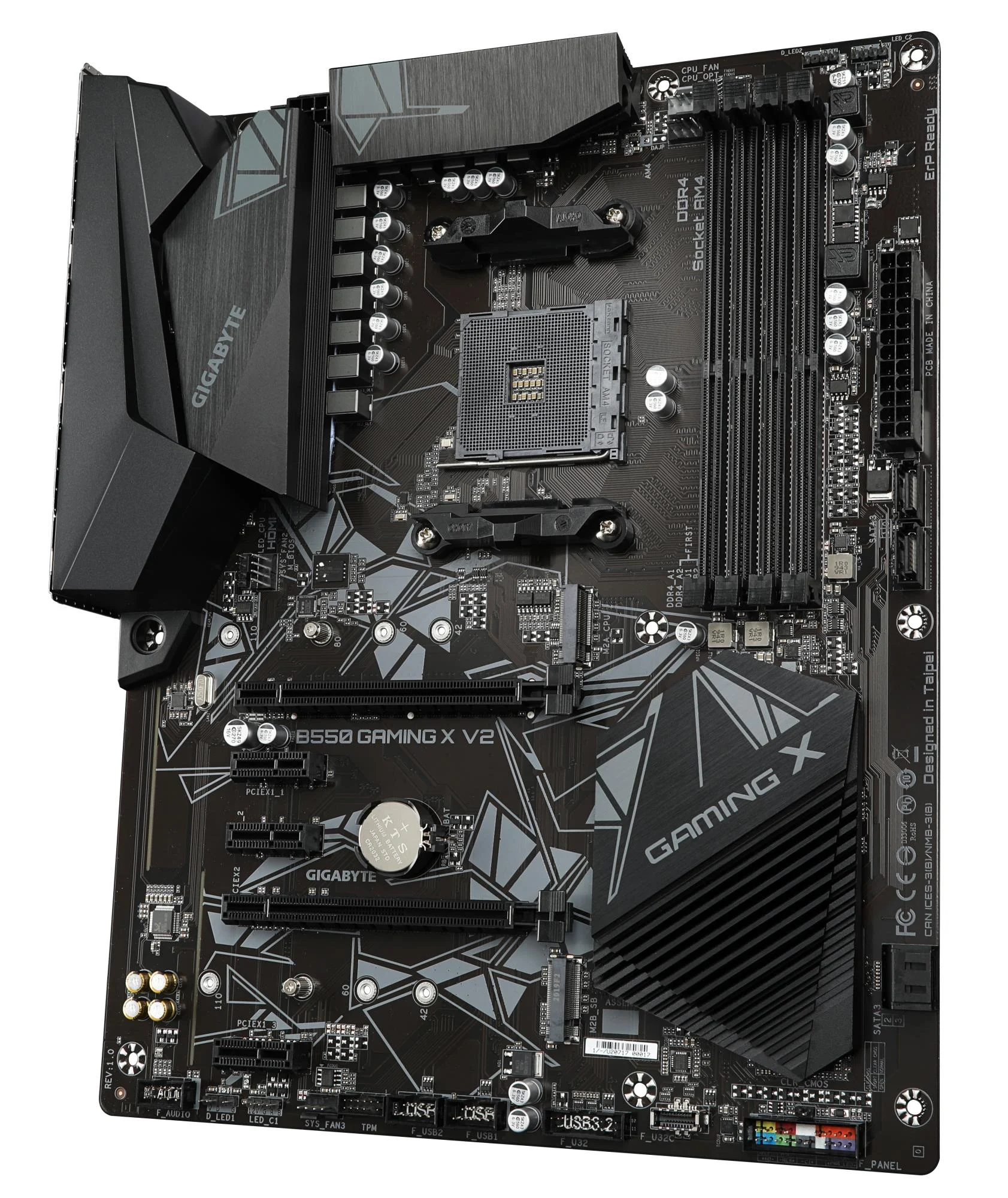

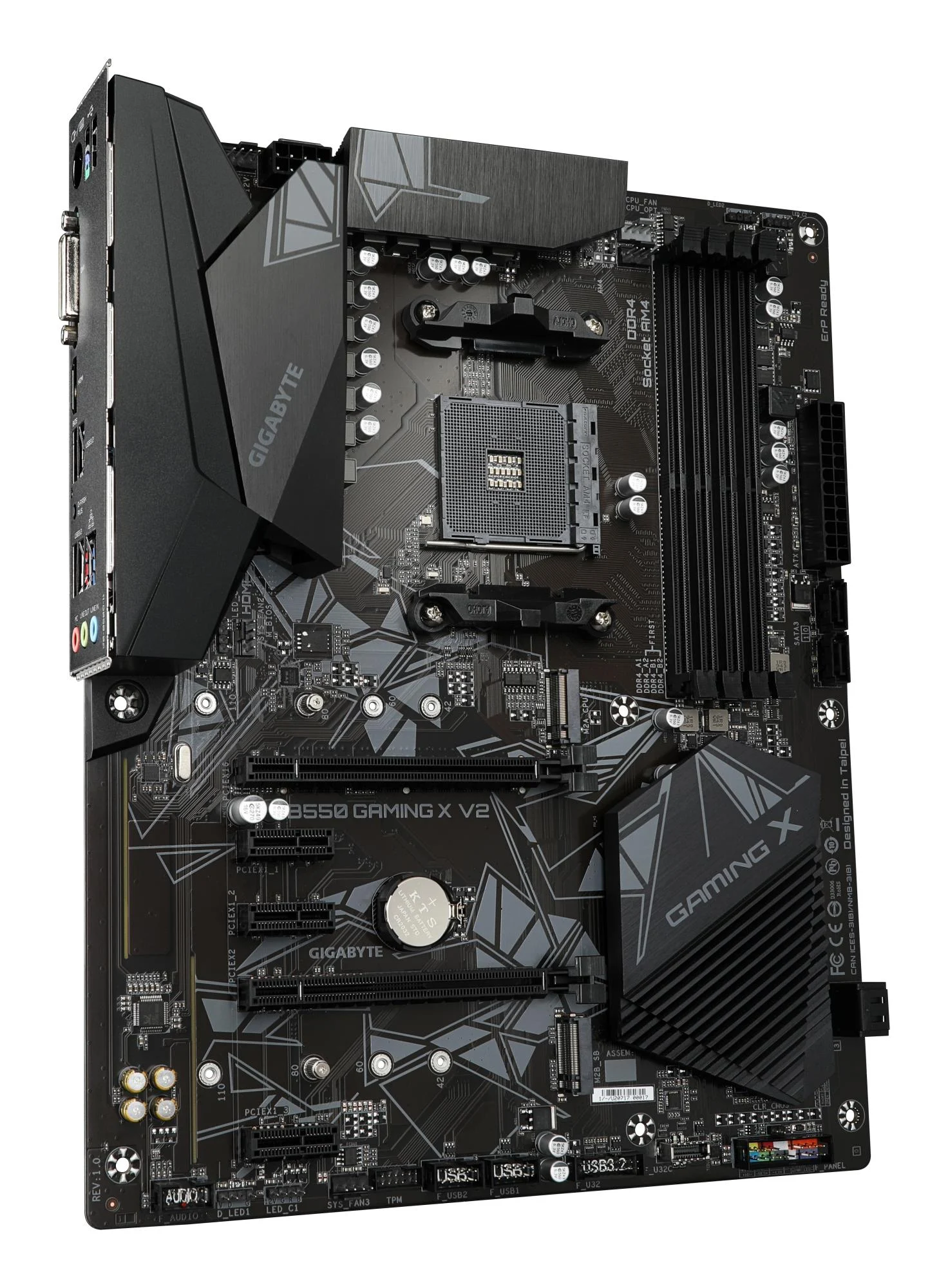

Gigabyte B550 GAMING X V2 on jõukas emaplaat AMD B550 chipsetiga, mis on mõeldud Socket AM4 protsessoritega arvutite ehitamiseks. See ATX-formaat emaplaat pakub suurepärast jõudlust ja stabiilsust nii igapäevaseks tööks kui ka nõudlikukaks mängimiseks.
Emaplaat toetab kaasaegseid DDR4-SDRAM mälumoduleid nelja DIMM-pesa kaudu, mis võimaldab kuni 128 GB mälu paigaldamist. Arvutamisele võib lisada kiireid M.2 ja SATA III salvestusi, mis tagavad kiire andmete lugemise ja kirjutamise.
Helikvaliteet on tagatud 7.1 kanalilise helusüsteemiga, mis annab suurepärase heli mängude ja meedia taasesitamisel. Ühenduvus on lai, sisaldades mitut USB porti, Ethernet LAN-i ja videokiire DVI-D ning HDMI väljundeid.
- Chipset: AMD B550
- Sokkel: Socket AM4
- Vorming: ATX
- Mälupesad: 4x DIMM DDR4-SDRAM
- Salvestus: 2x M.2, SATA III
- Heli: 7.1 kanalit
- USB: 2x USB 2.0, 3x USB 3.2 Gen 1, 1x USB 3.2 Gen 2
- Võrk: 1x Gigabit Ethernet (RJ-45)
- Video väljundid: 1x HDMI, 1x DVI-D
- PCI Express: 3x Gen 3.0 (1x), 1x Gen 3.0 (2x), 1x Gen 4.0 (16x)
- Kaal: 1,12 kg
Tehnilised andmed
Üldine
| Tootja | Gigabyte |
|---|---|
| Mudel | B550 GAMING X V2 (rev. 1.3) |
Features
| Audio chip | Realtek ALC897 |
|---|---|
| Audio output channels | 7.1 channels channels |
| Component for | PC |
| Cooling type | Passive |
| Motherboard chipset | AMD B550 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Power source type | ATX |
| Product colour | Brown |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Processor
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
|---|---|
| Maximum number of SMP processors | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Supported processor sockets | Socket AM4 |
Memory
| ECC сompatibility | ECC & Non-ECC |
|---|---|
| Maximum internal memory | 128 GB GB |
| Maximum internal memory per slot | 32 GB GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 4733 MHz MHz |
| Supported memory clock speeds | 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz MHz |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
Storage controllers
| Number of HDDs supported | 4 |
|---|---|
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
Graphics
| DirectX version | 12.0 |
|---|---|
| HDCP | Yes |
| Parallel processing technology support | Not supported |
Internal I/O
| 12V power connector | Yes |
|---|---|
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of chassis fan connectors | 3 |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 5 |
| Number of SATA III connectors | 4 |
| Number of water pump connectors | 4 |
| RGB LED pin header | Yes |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |

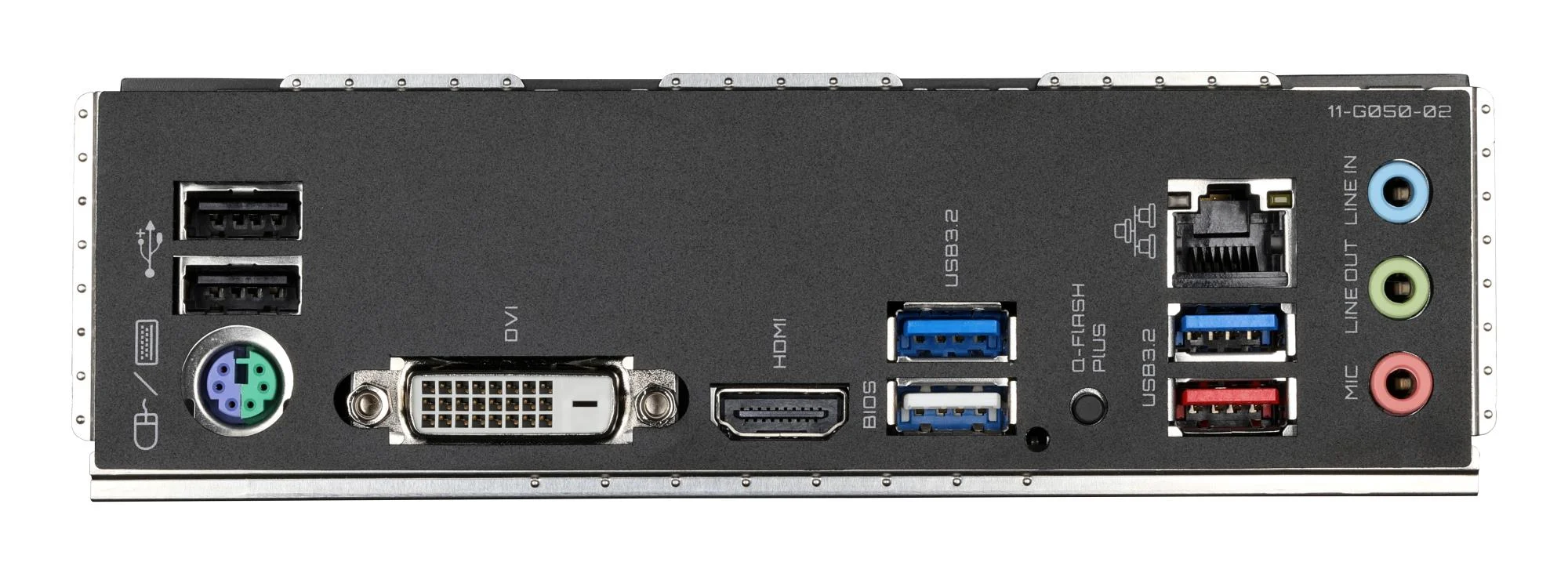

Rear panel I/O ports
| DVI-D ports quantity | 1 |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
Network
| Ethernet interface type | Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
Expansion slots
| 1st M.2 highest PCI Express generation | 4.0 |
|---|---|
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| 2nd M.2 largest key size | 22110 |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
BIOS
| ACPI version | 5.0 |
|---|---|
| BIOS memory size | 128 Mbit Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Battery
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
|---|---|
| Battery type | CR2032 |
| Battery weight | 3 g g |
| Lithium weight per battery | 0.07 g g |
| Number of battery cells | 1 |
Weight & dimensions
| Depth | 244 mm mm |
|---|---|
| Height | 35 mm mm |
| Width | 305 mm mm |
Other features
| DVI port | Yes |
|---|---|
| Weight | 1.12 kg g |
Technical details
| Warranty period | 3 year(s) year(s) |
|---|
