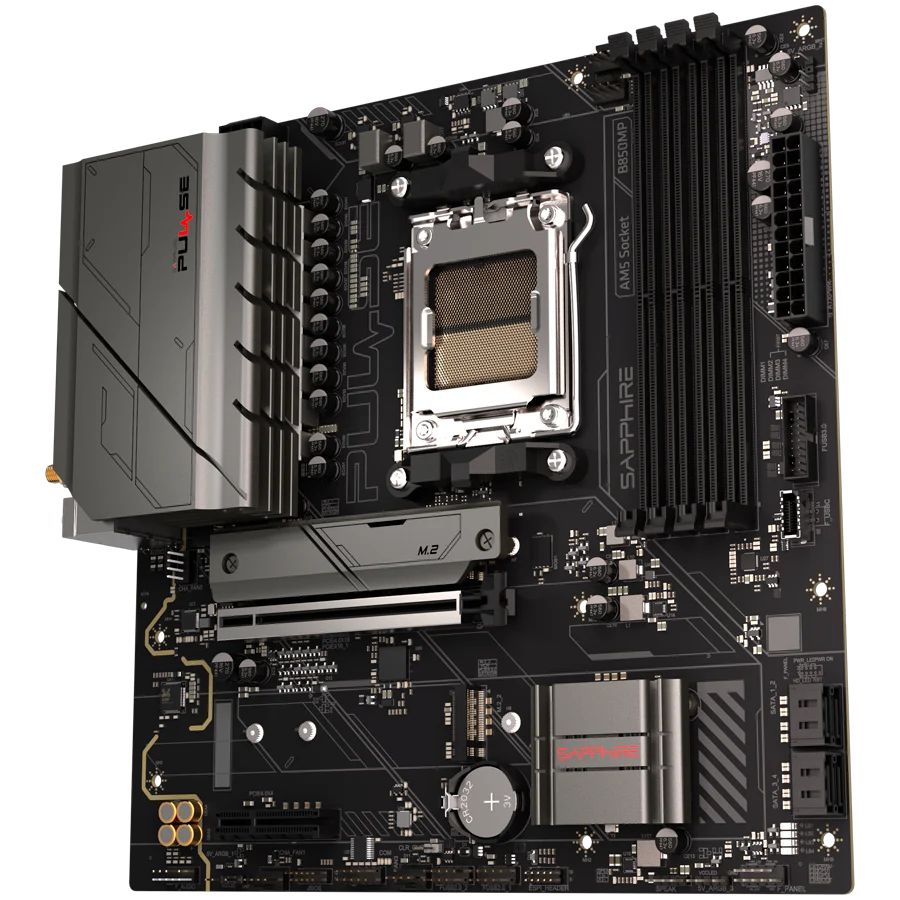

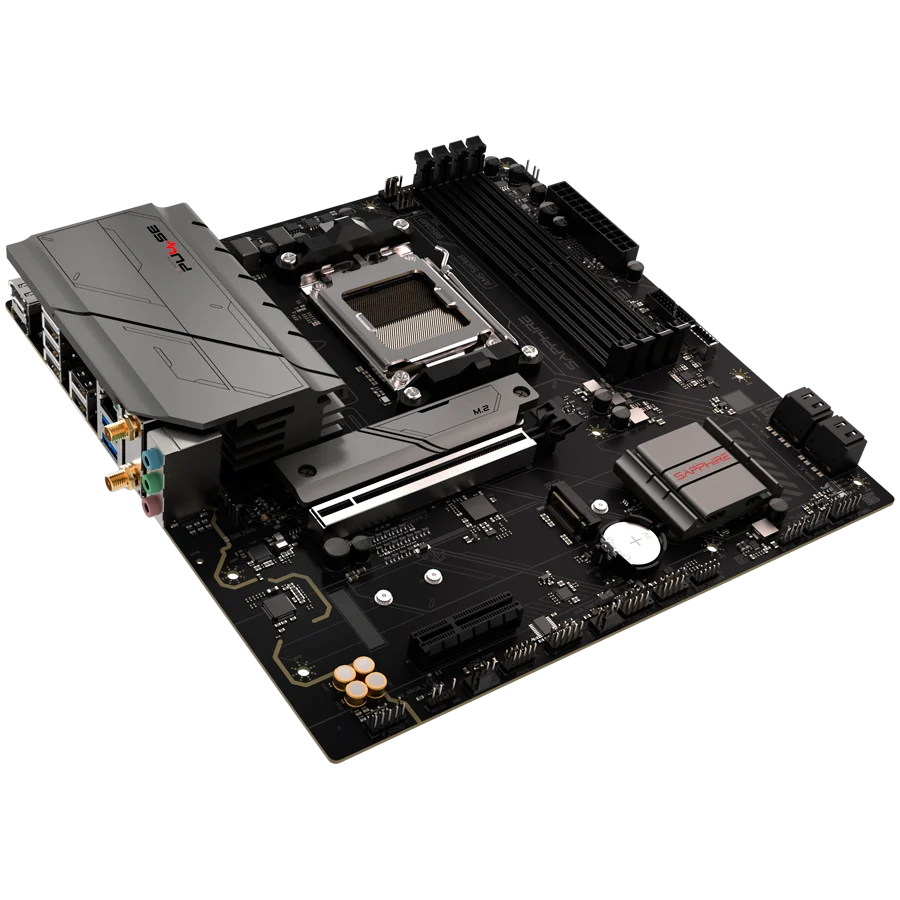

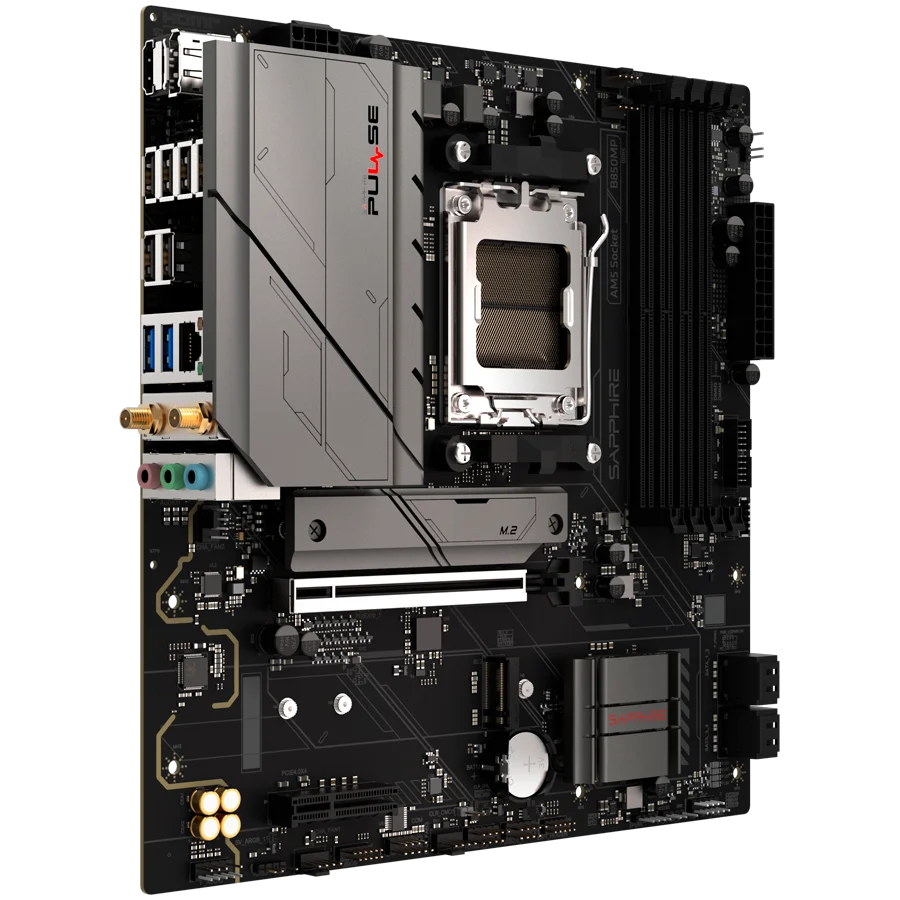

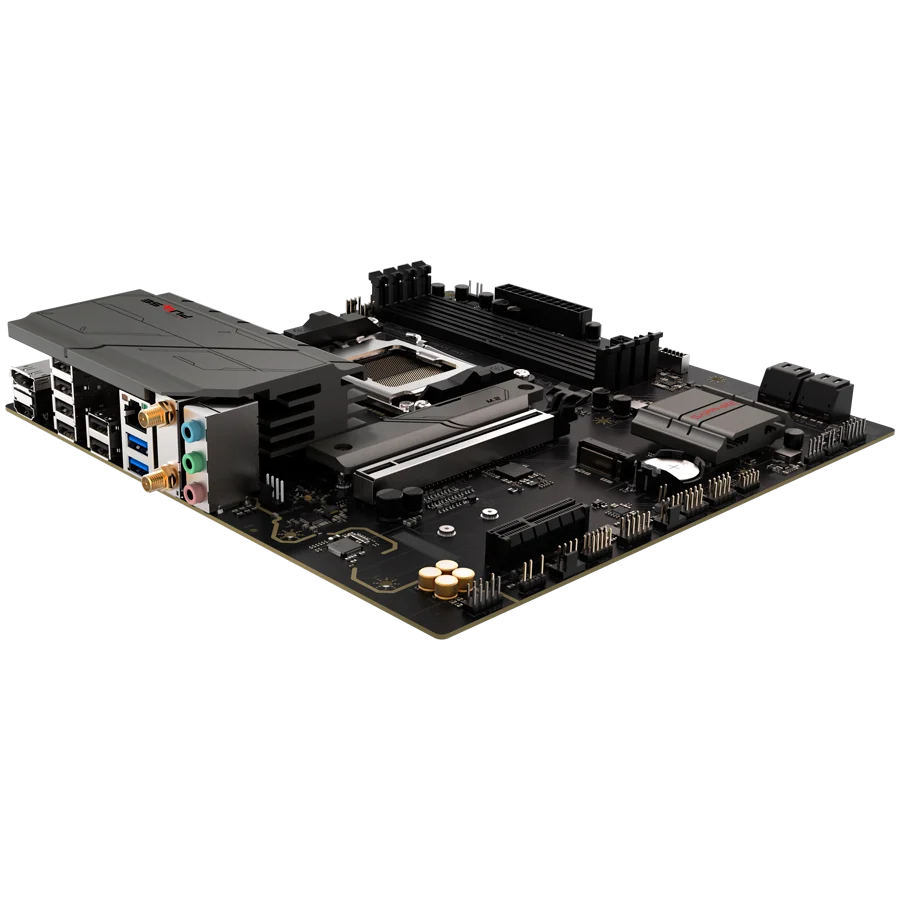

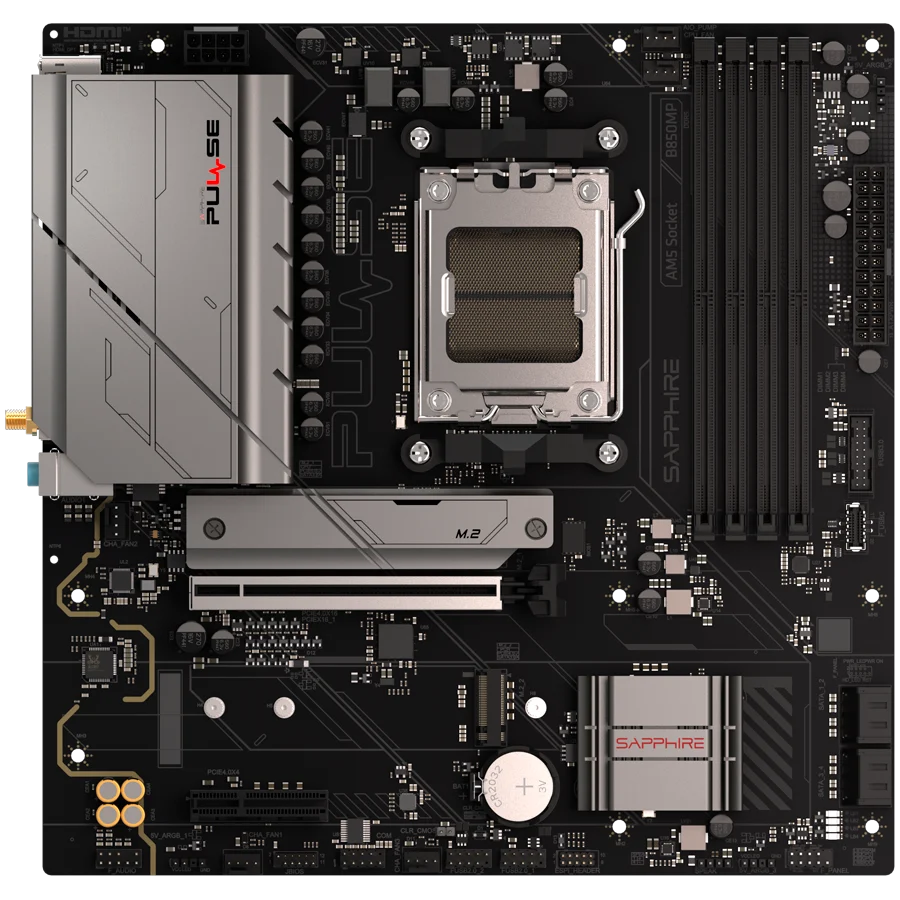

SAPPHIRE AMD B850M AM5 PULSE Ryzen R9/R7/R5, 4x DDR5 7600MHz, PCIE 4.0 x16, 1x M.2 Gen5, 1x M.2 Gen4, LAN 2.5 Gbps, WIFI6, USB, Micro-ATX
Tehnilised andmed
| Chipset | AMD B850 |
|---|---|
| Supports Central Processor Unit | AMD Ryzen 7000 Series AMD Ryzen 8000 Series AMD Ryzen 9000 Series |
| CPU Socket Standard | Socket AM5 |
| CPU Maximum Quantity Supports | 1 |
| Memory Type | DDR5 SDRAM |
| Memory Form Factor | DIMM 288-pin |
| Memory Speed | 7600MHz |
| Maximum Installable System Memory Storage Capacity | 256 gigabaits |
| Memory Slot Total Quantity | 4 |
| Integrēts | Storage Controller: 1 x M.2 Storage Controller: SATA (4) |
| Plug-in-card | Wi-Fi Controller: 1 x M.2 |
| Audio Integrated | yes |
| Ierīces atrašanās vieta | Integrēts |
| Audio Chipset | Realtek ALC897 |
| Audio izvades režīms | 5.1 Channel Surround |
| Compliant Audio Standards | High Definition Audio |
| LAN Integrated | yes |
| Wi-Fi | IEEE 802.11ax Wi-Fi 6 |
| Bluetooth | Bluetooth 5.3 |
| Data Link Protocol Supports | 2.5 Gbps |
| PCI Express 4.0 x16 | 1 |
| PCI Express 4.0 x4 | 1 |
| DisplayPort | 1 |
| HDMI | 1 (HDMI (A tips)) |
| USB 2.0 | 6 (USB 2.0 (A tipa)) |
| USB 3.2 Gen 1 | 2 (USB 3.2 (type A)) |
| LAN | 1 (RJ-45) |
| Wi-Fi Antenna | 2 |
| Audio interfeiss | 3 (3.5-mm mini jack) |
| Supported Operating System | Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit |
| Formas faktors | Micro ATX |
| Augstums (mm) | 244 milimetrs |
| Platums (mm) | 244 milimetrs |
