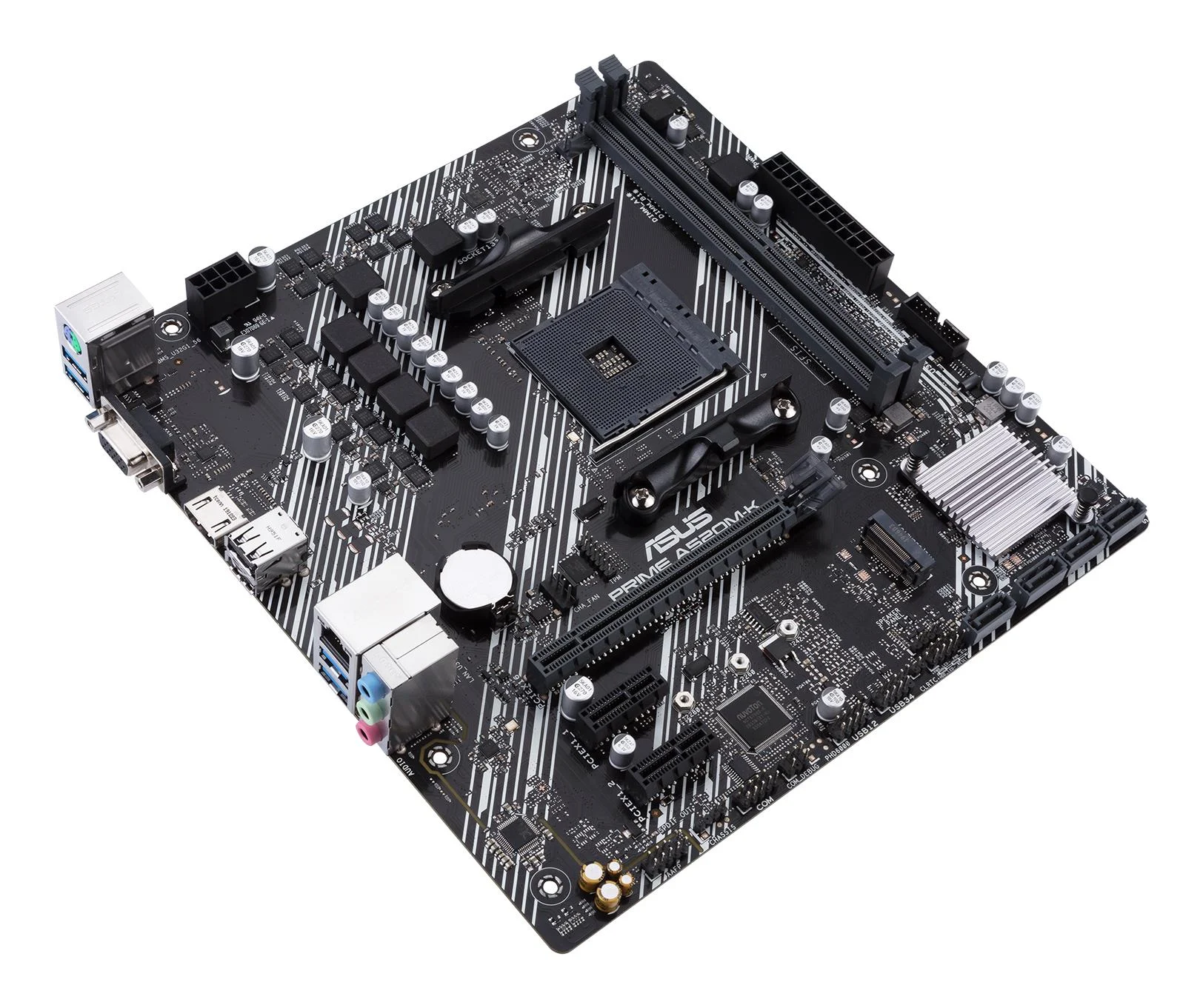

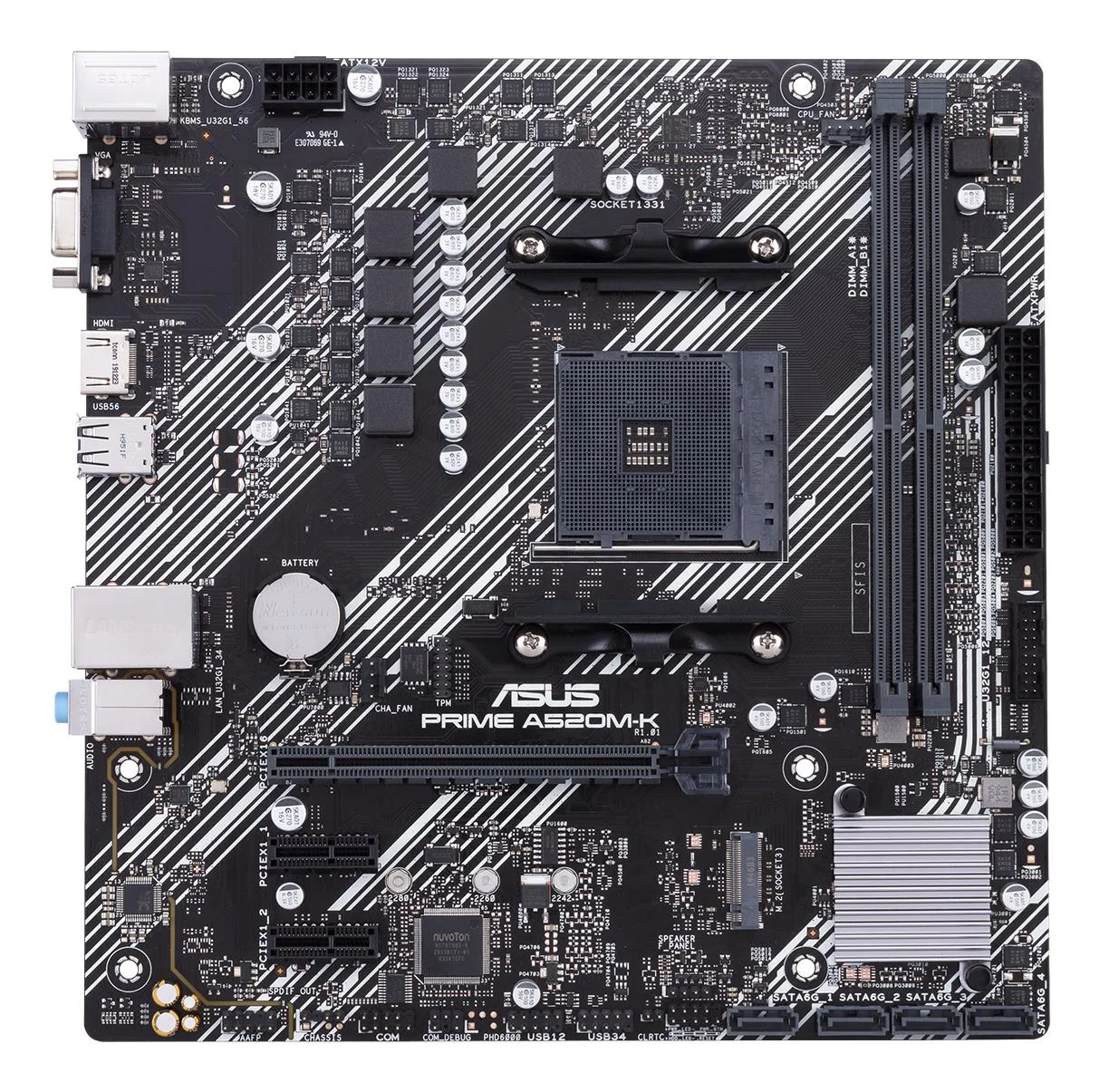

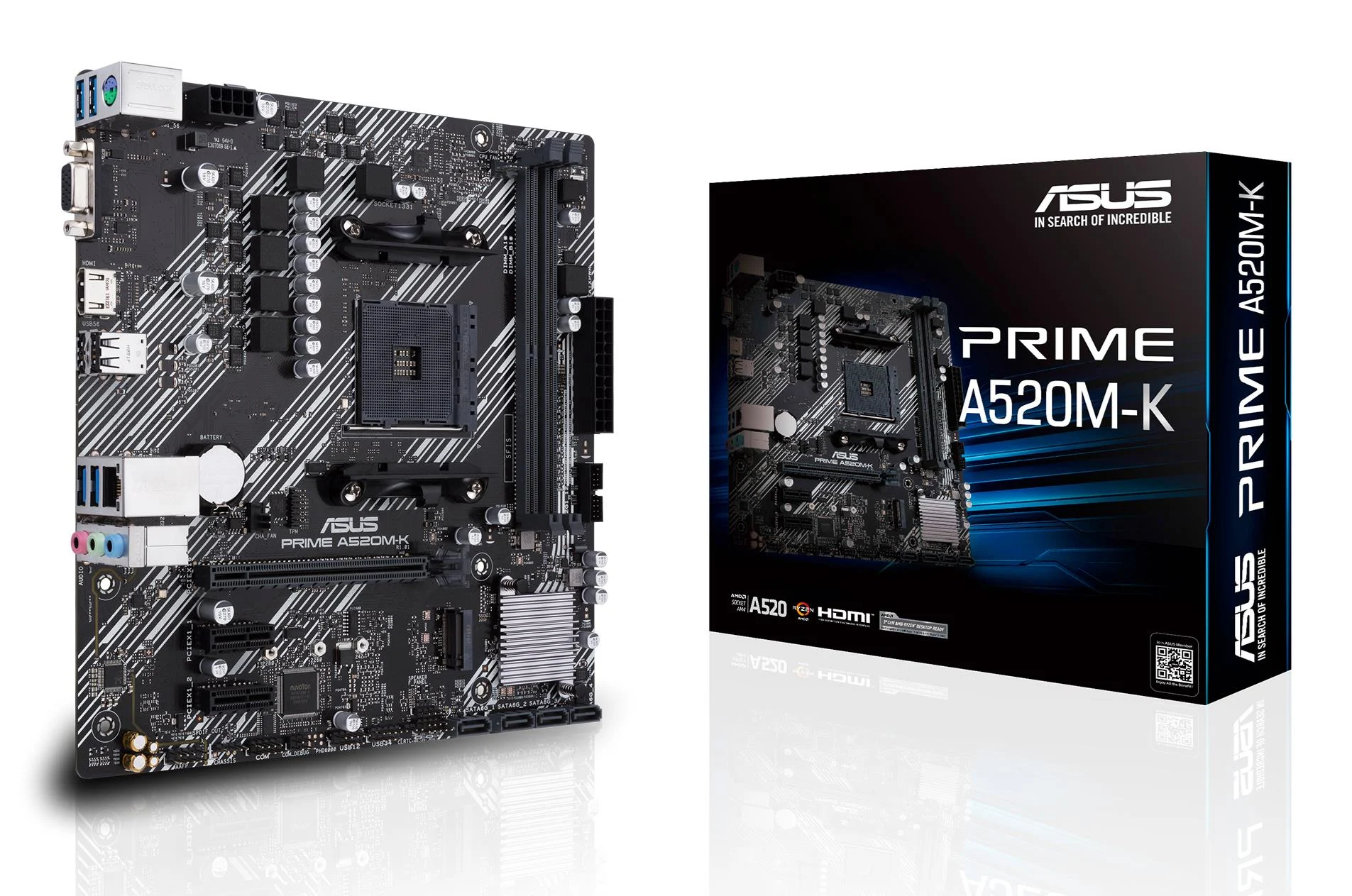

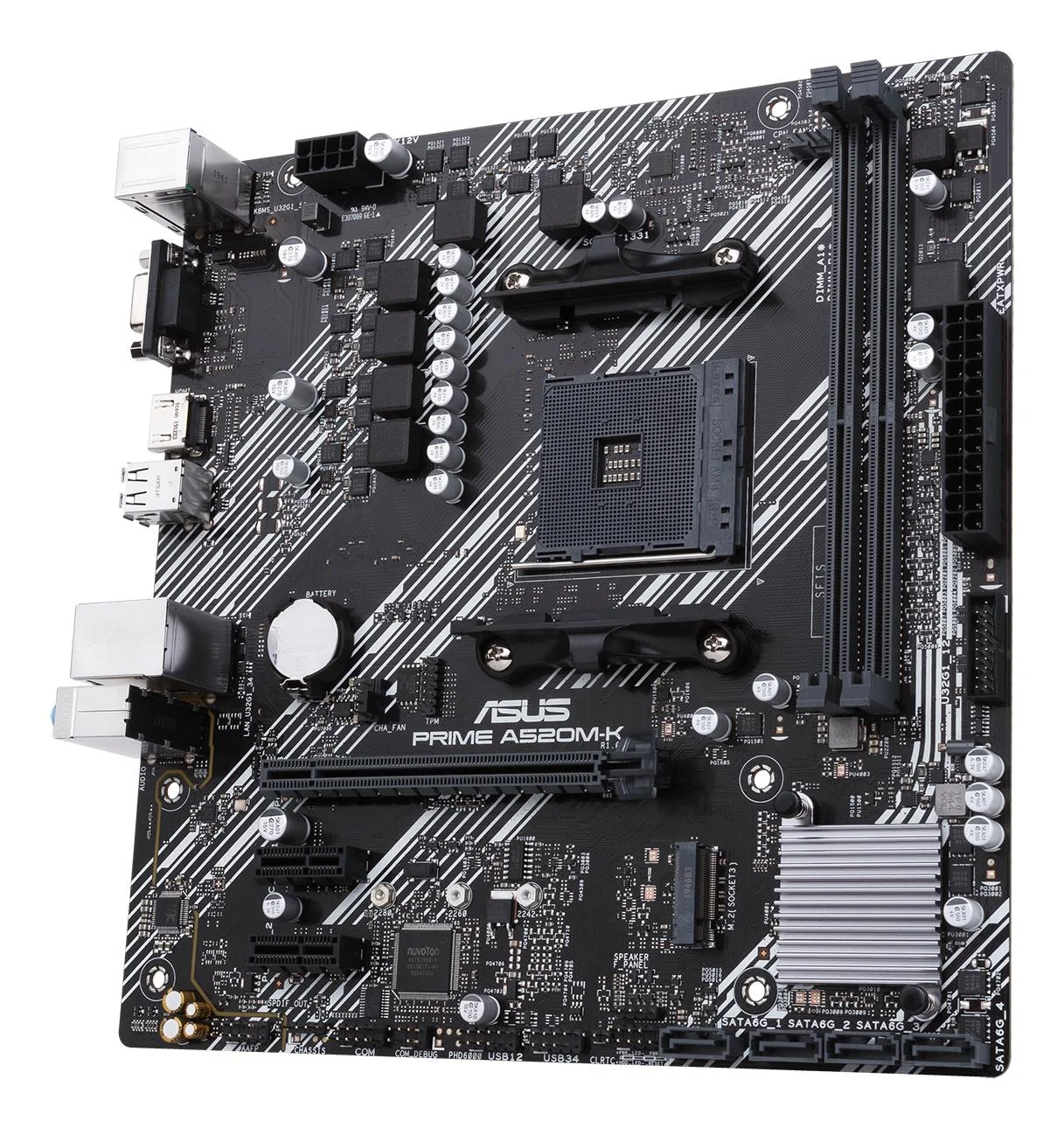

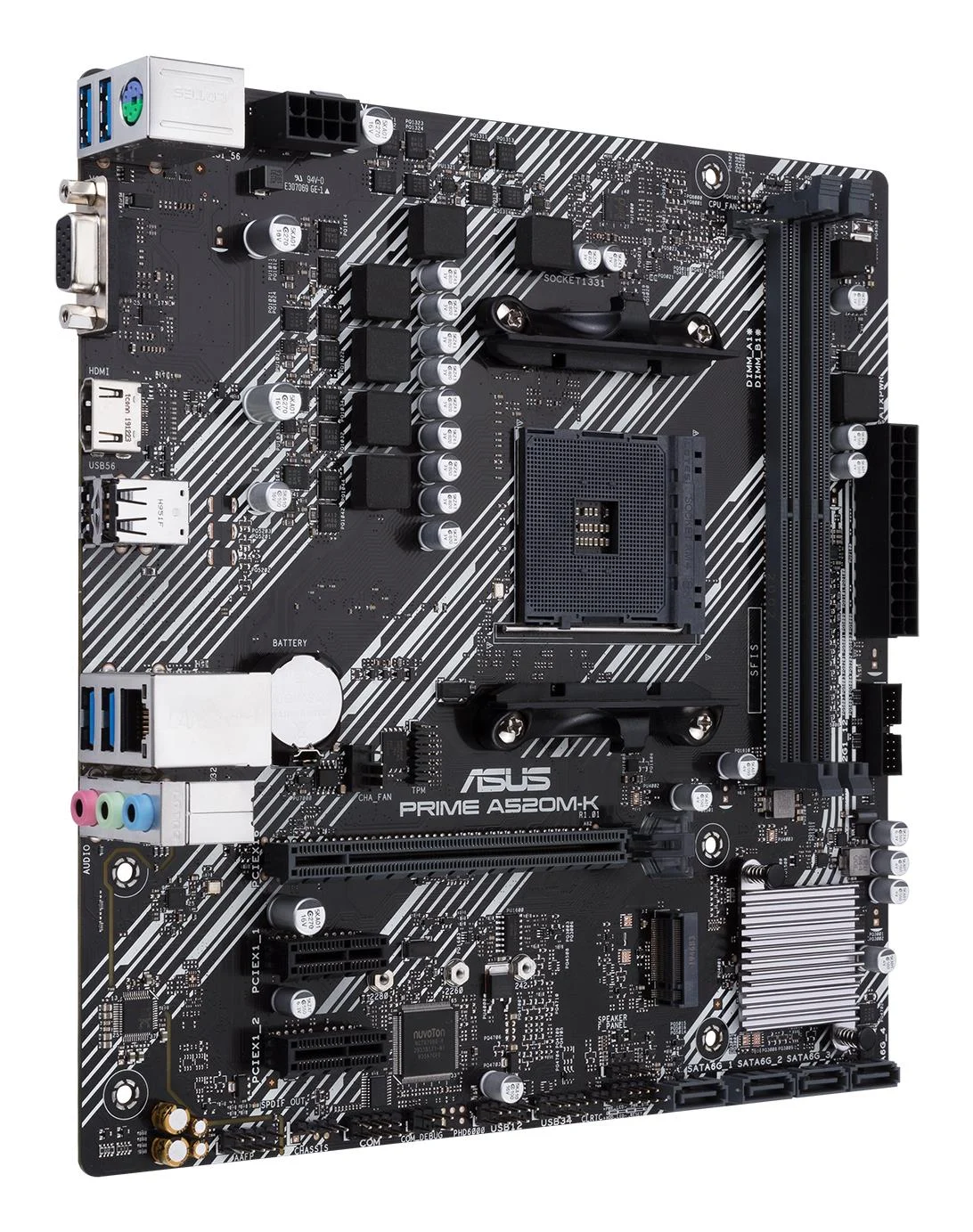

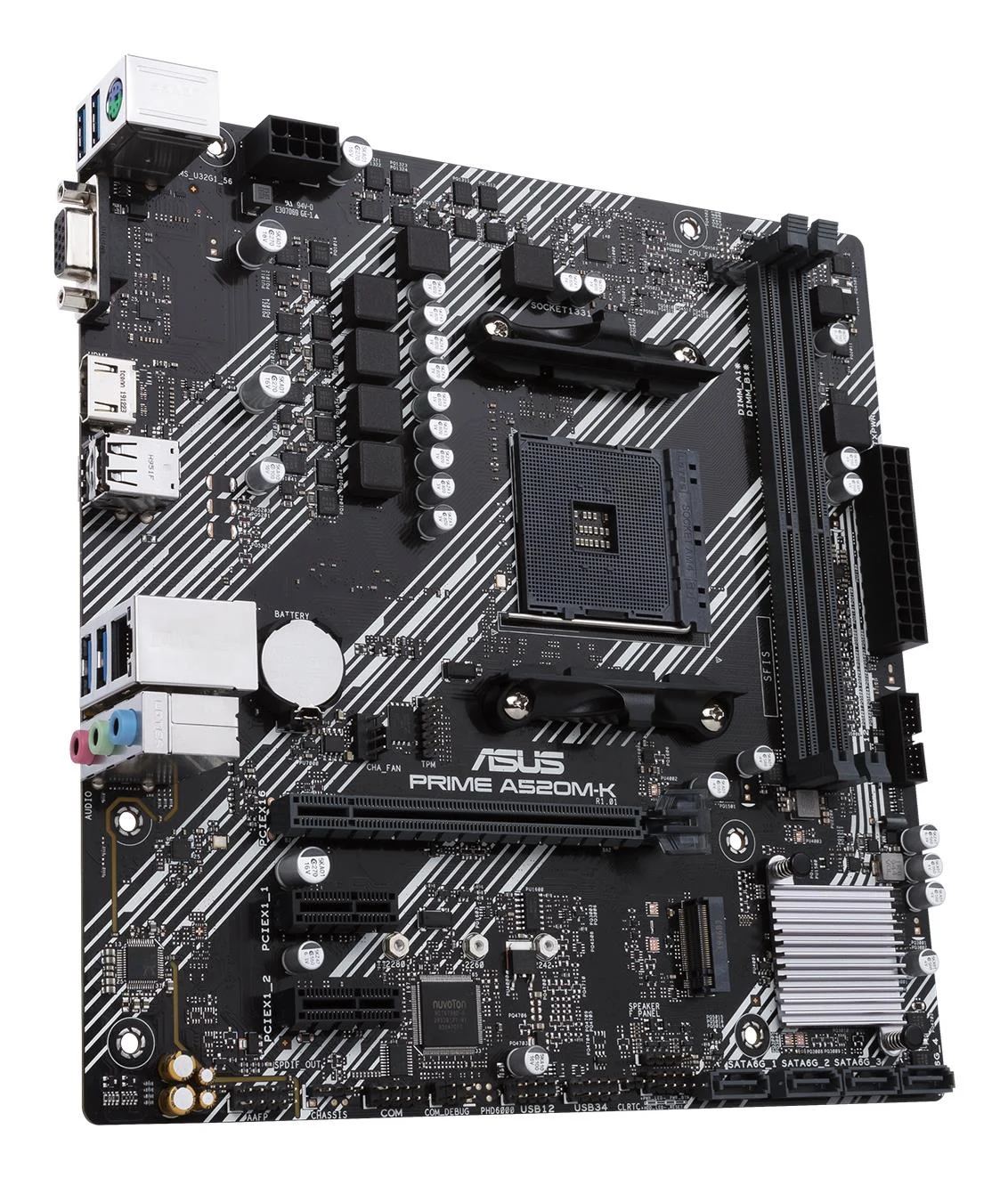

ASUS PRIME A520M-K on usaldusväärselt ja ökonoomiliselt disainitud mikro-ATX emaplaat, mis on mõeldud AMD Ryzen ja Athlon protsessoritele Socket AM4 pistikul. See on ideaalne valik kasutajatele, kes otsivad tasakaalukat lahendust töö-, koduse ja meelelahutuse kasutamiseks.
Emaplaat toetab DDR4-SDRAM mälu kuni kahel DIMM-pluuside pesa, mis võimaldab kiireid andmeedastusi. M.2 salvestusliides pakub kiireid SSD-sid SATA III standardiga, tagades operatsioonisüsteemi ja rakenduste kiire käivitamise.
Ühenduvus ja liidesed:
- PCI-Express 3.0 x16 ja x1 pluuside toetus graafikakaartidele ja lisaseadmetele
- 2× USB 2.0 ja 4× USB 3.2 Gen 1 (Type-A) pordid
- 1× RJ-45 Gigabit Ethernet ühendus
- 1× VGA (D-Sub) ja 1× HDMI videolähendused
- 1× PS/2 hiire/klaviatuuri port
- 7.1-kanaline heliväljund 3× 3,5 mm stereo pistikuga
Kompaktne mikro-ATX vorming sobib hästi väiksemate puhul ja limit-budjeti komplektidesse, säilitades samas kõik olulised funktsioonid.
Tehnilised andmed
Üldine
| Tootja | ASUS |
|---|---|
| Mudel | PRIME A520M-K |
Features
| Audio chip | Realtek ALC887 / Realtek ALC897 |
|---|---|
| Audio output channels | 7.1 channels channels |
| Component for | PC |
| Motherboard chipset | AMD A520 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
Processor
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7 |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Supported processor sockets | Socket AM4 |
Memory
| ECC сompatibility | ECC |
|---|---|
| Maximum internal memory | 64 GB GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4333,4400,4466,4600,4866 MHz MHz |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
Storage controllers
| Number of storage drives supported | 5 |
|---|---|
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
Graphics
| Parallel processing technology support | Not supported |
|---|
Internal I/O
| 12V power connector | Yes |
|---|---|
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 1 |
| Number of EATX power connectors | 2 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |

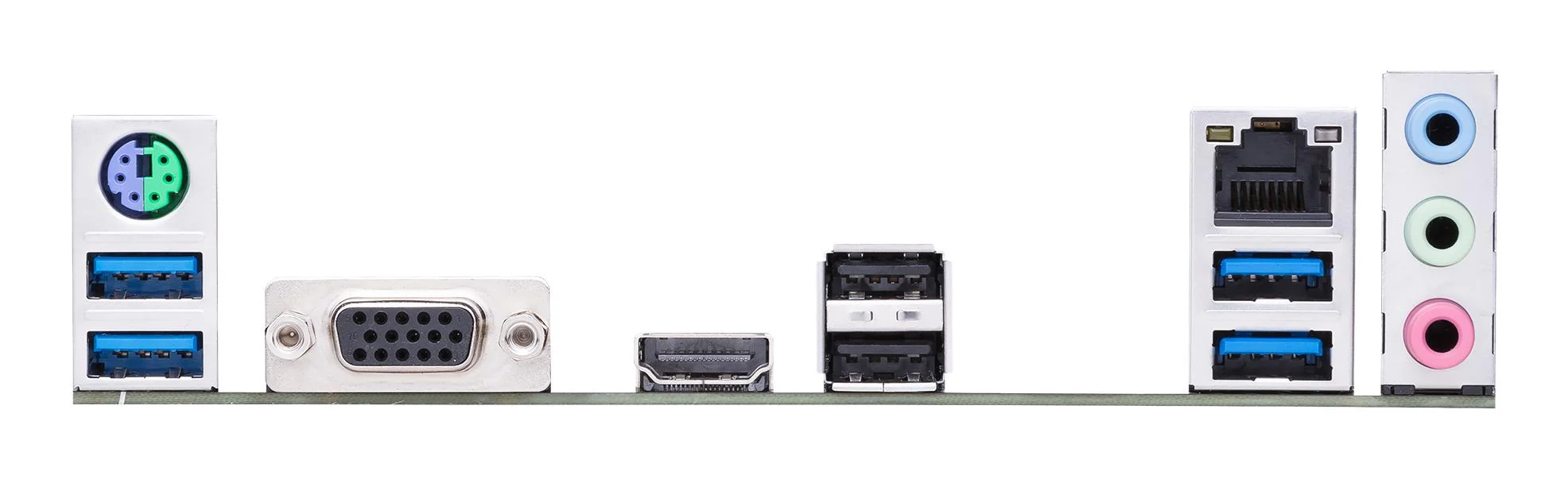

Rear panel I/O ports
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB connector type | USB Type-A |
| VGA (D-Sub) ports quantity | 1 |
Network
| Ethernet interface type | Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
Expansion slots
| Number of M.2 (M) slots | 1 |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
BIOS
| BIOS memory size | 256 Mbit Mbit |
|---|---|
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Depth | 221 mm mm |
|---|---|
| Width | 226 mm mm |
