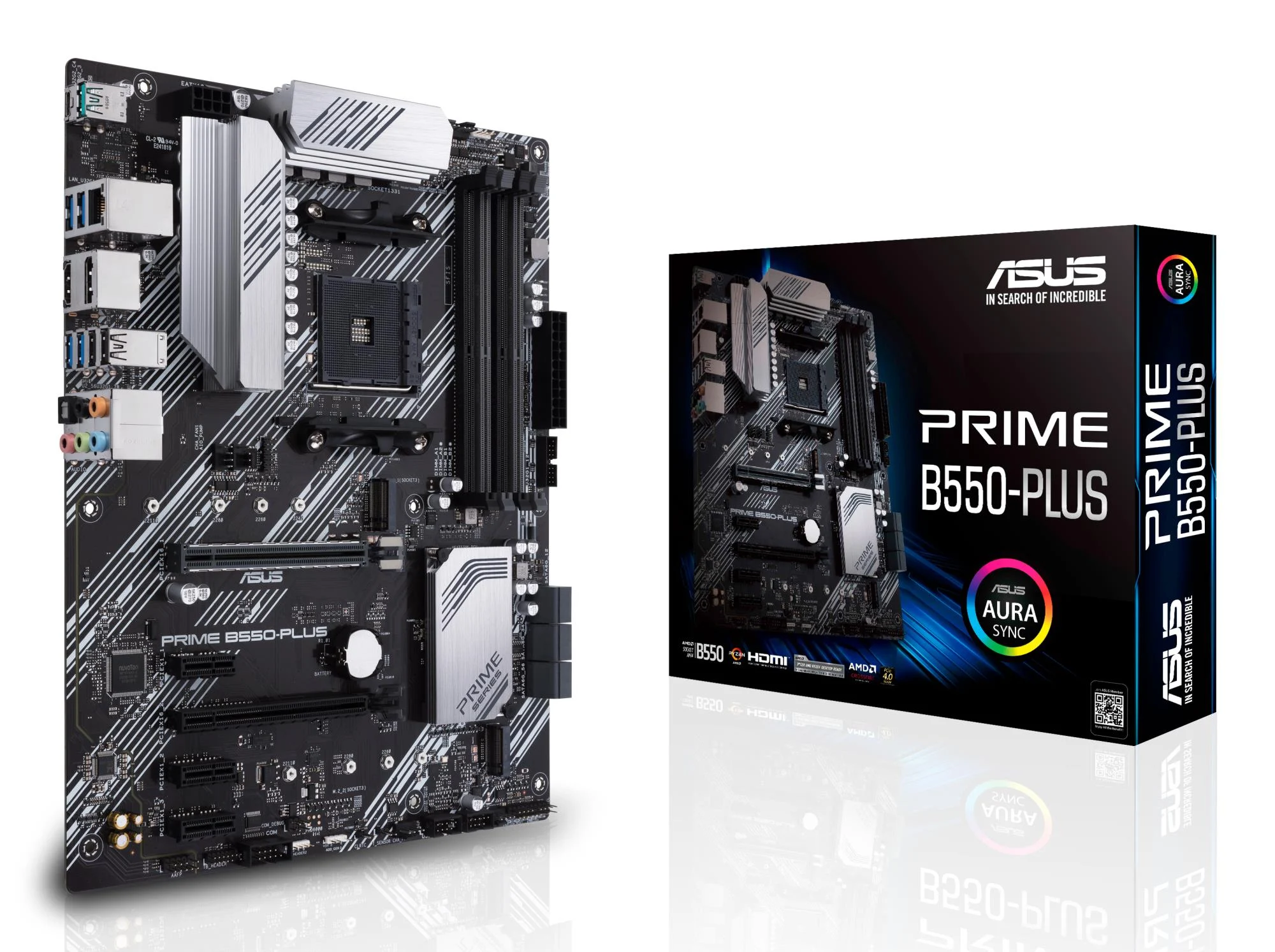

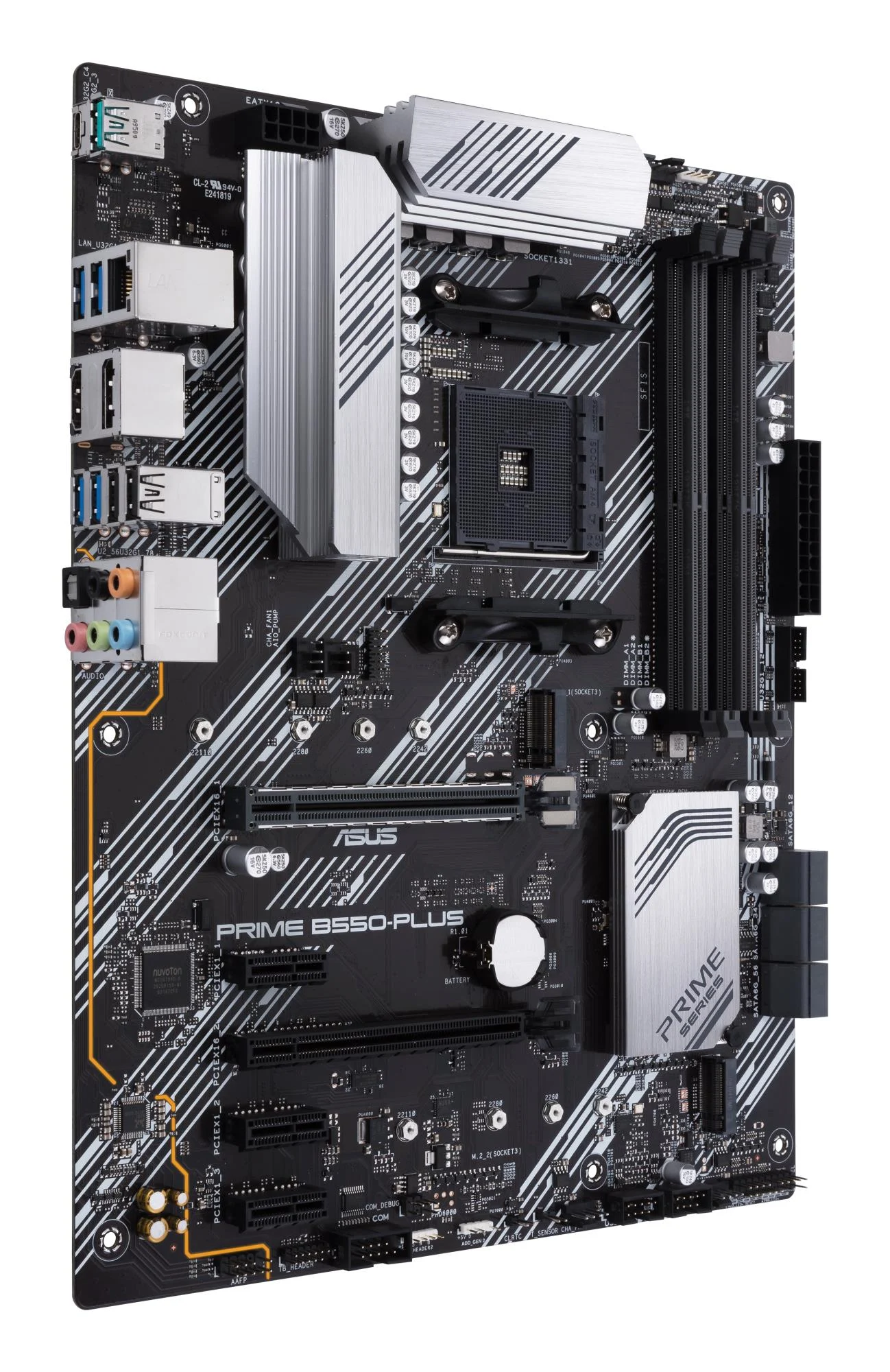

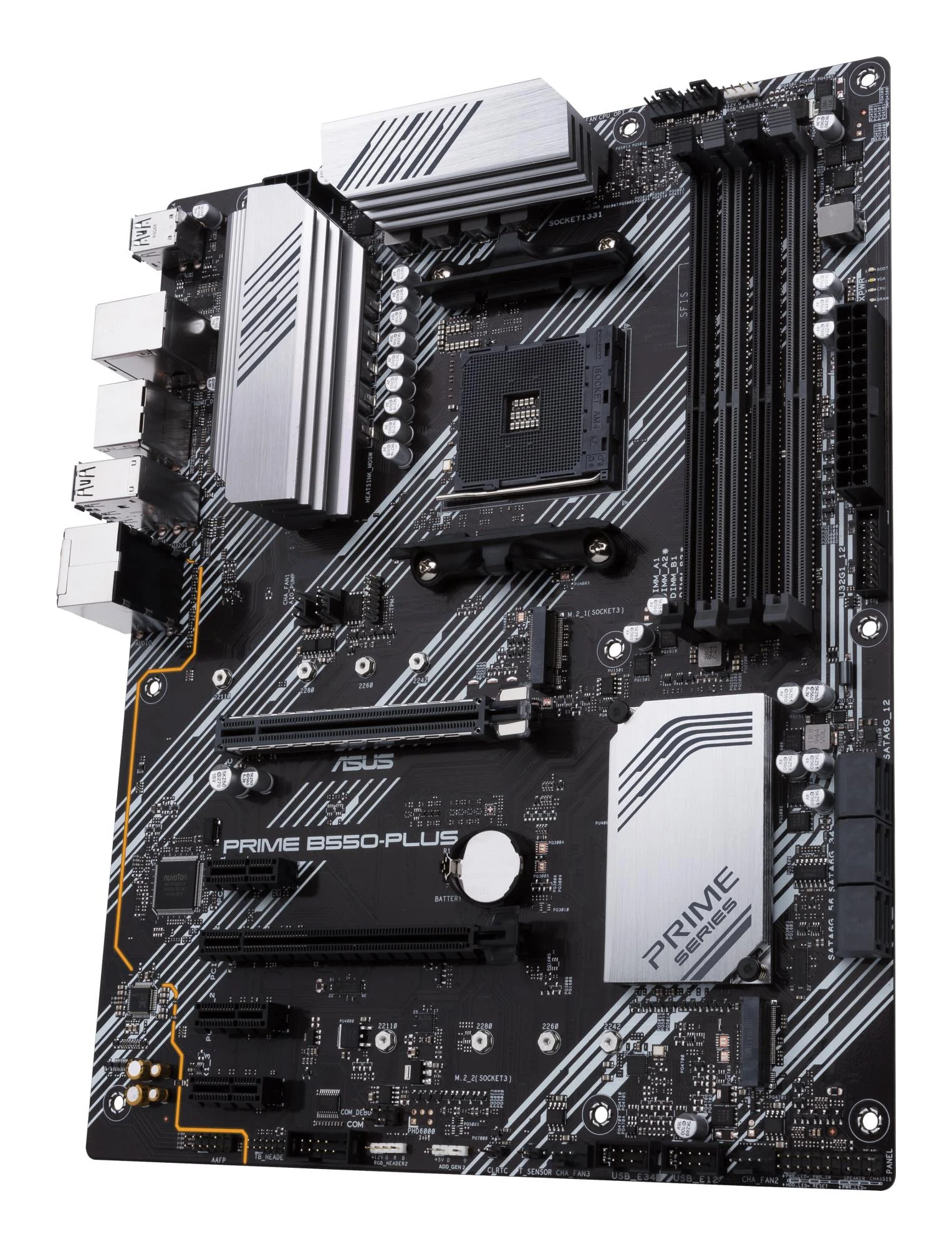

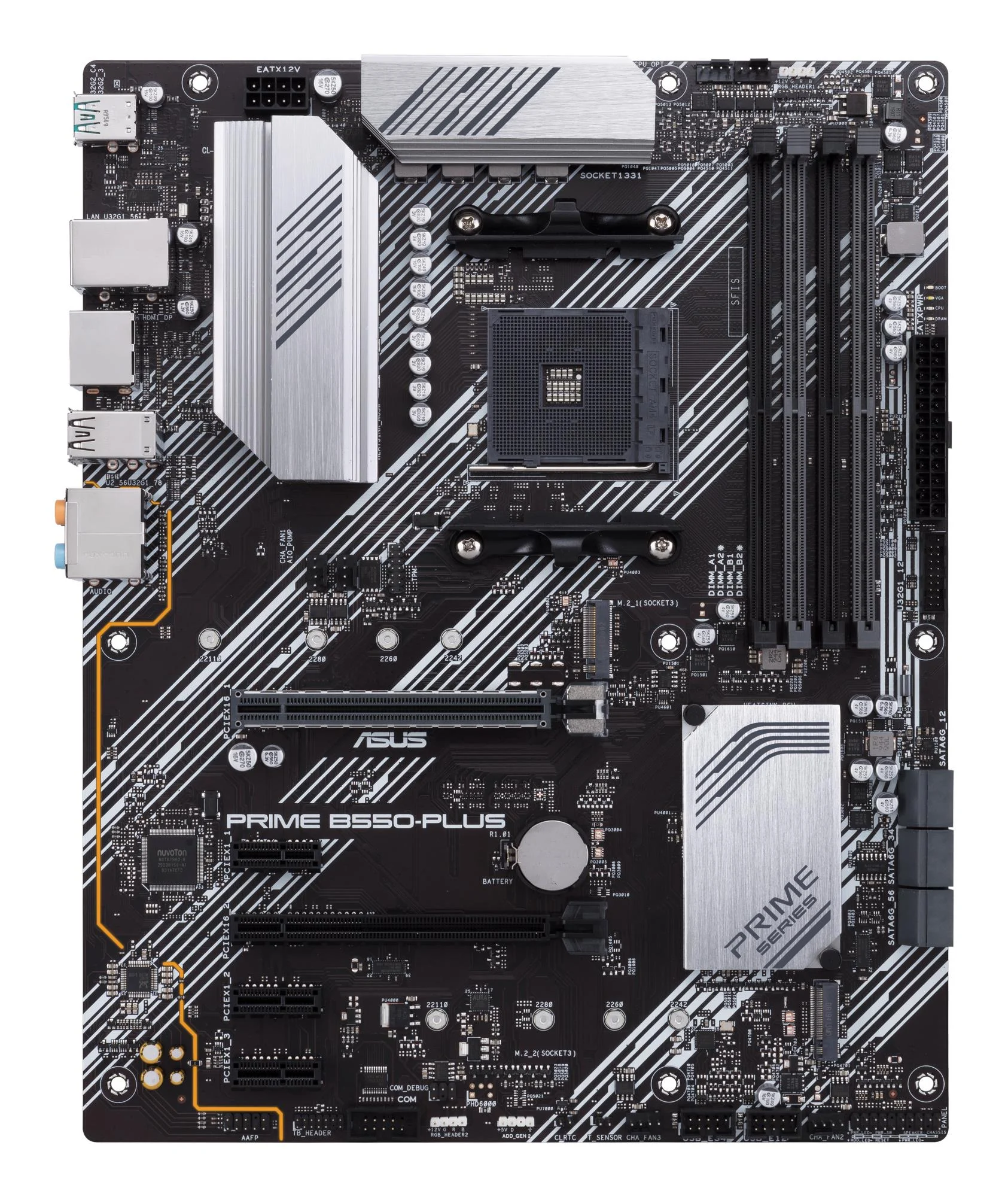

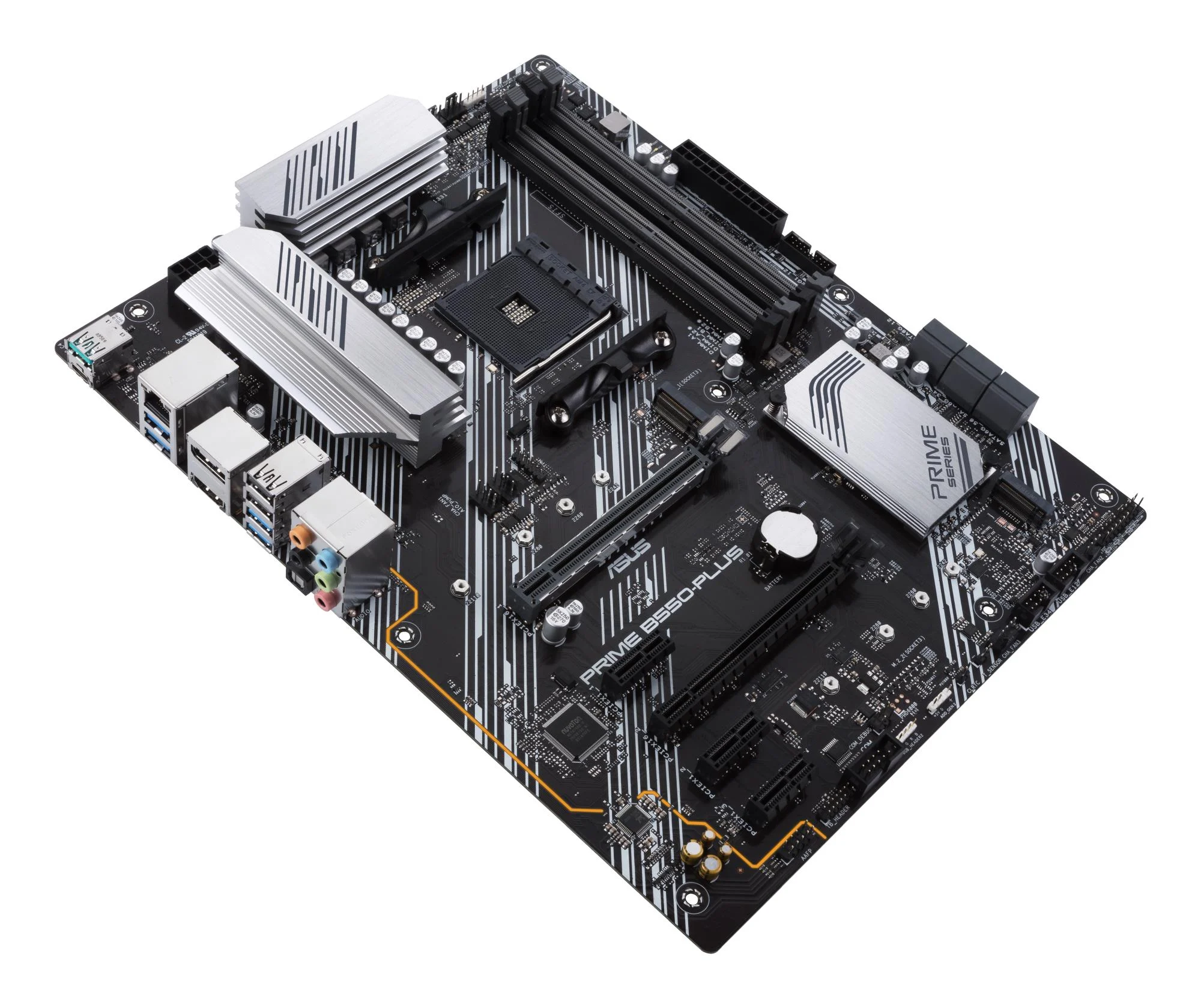

ASUS PRIME B550-PLUS on professionaalne emaplaat, mis on loodud AMD Ryzen protsessorite kasutajatele. ATX-vormingus lahendus pakub stabiilset ja usaldusväärseid toimivust nii igapäevasteks ülesanneteks kui ka nõudlikumateks rakendusteks.
Emaplaadil on 4 DDR4-SDRAM mälupesa, mis võimaldab kuni 64 GB mälu paigaldamist. Rikkalik ühenduste valik sisaldab 1 HDMI-väljundit ja 1 DisplayPorti kuvaühenduse jaoks, 6 USB-porti (sh 1 USB Type-C) ja 5 helipesa 7.1 kanaliga helistemiga. Ethernet-ühendus RJ-45 konnektori kaudu tagab kiire võrguühenduse.
Mälu ja salvestusseadmete osas pakub PRIME B550-PLUS kahte M.2 pesa ja SATA-ühenduste tuge. Graafikakordus väljastub protsessori sisseehitatud GPU-st, mis teeb selle lahenduse ideaalseks kuluefektiivseks arvutite koostamiseks.
- Pesa: Socket AM4 (AMD Ryzen)
- Mälu: DDR4-SDRAM, 4 pesa (DIMM)
- Vorming: ATX
- Heli: 7.1 kanalit
- Salvestus: 2x M.2, SATA-tugi

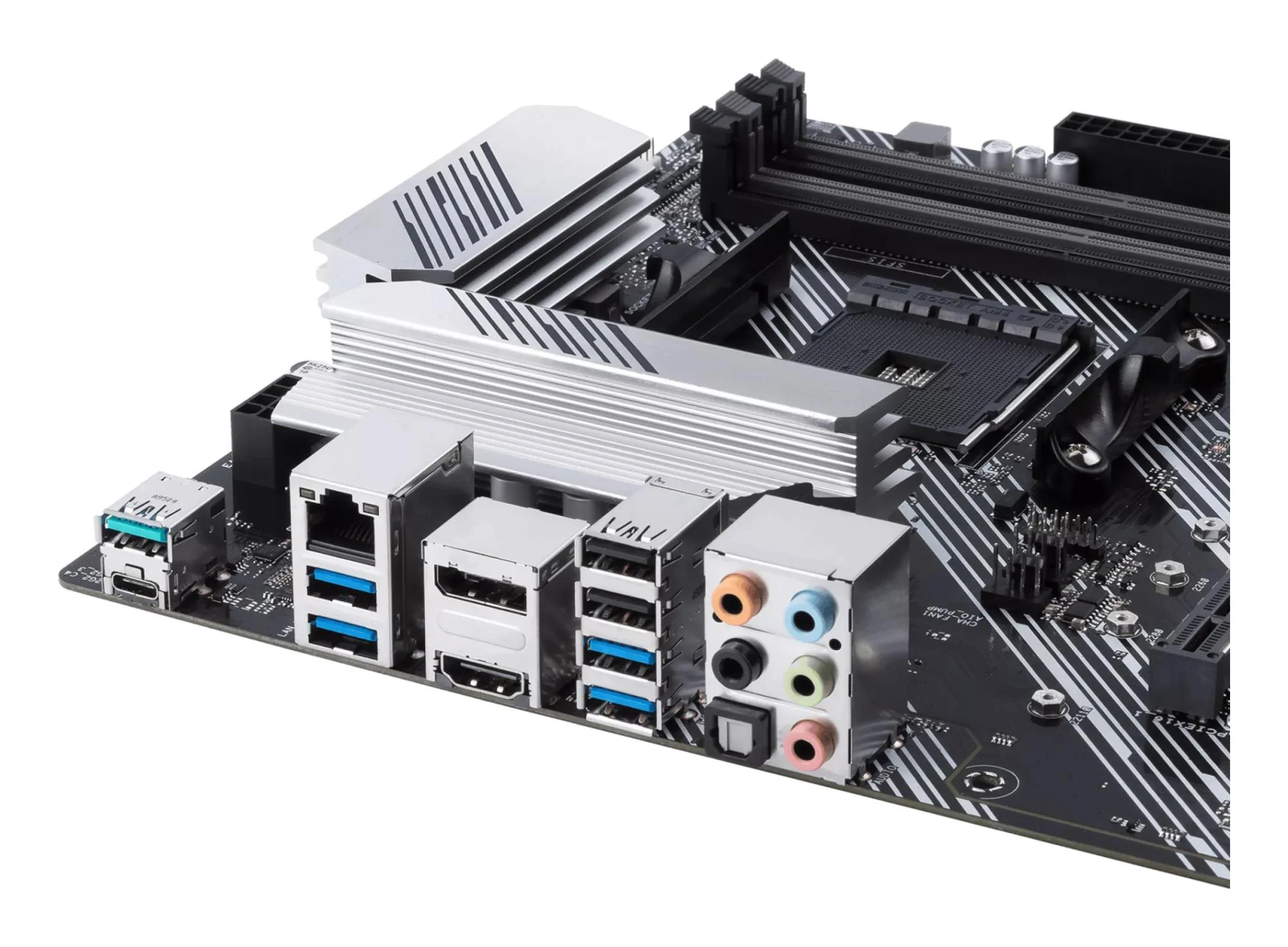

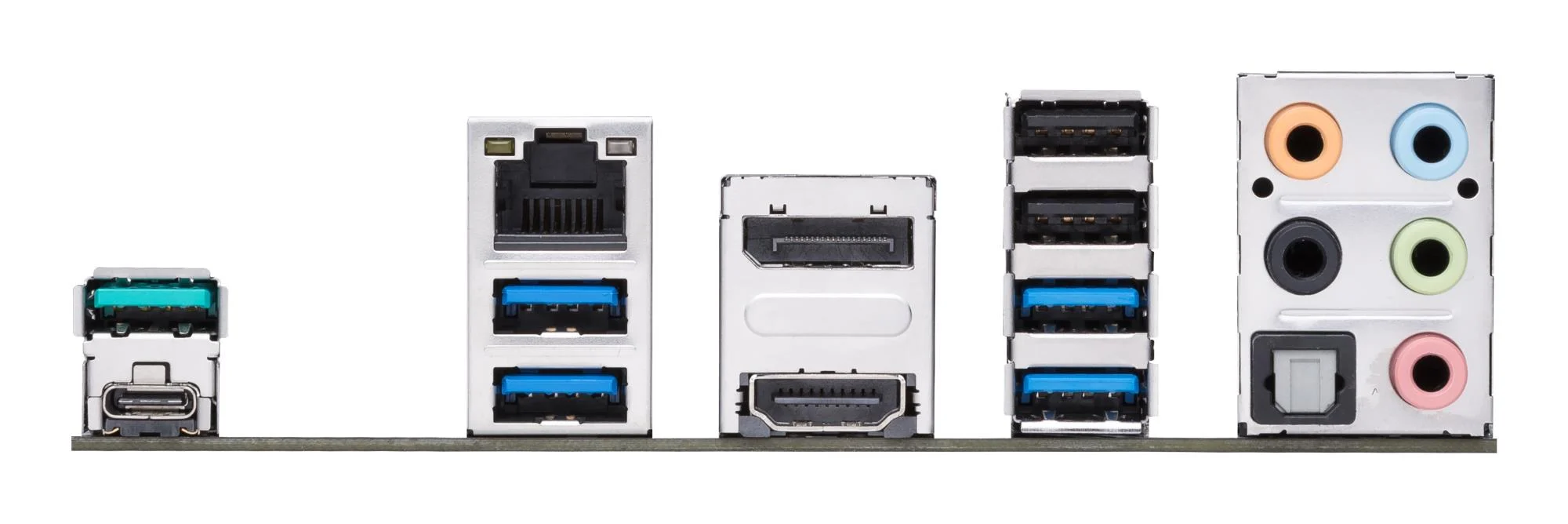

- Ühendused: 1x HDMI, 1x DisplayPort, 6x USB, 1x RJ-45 Ethernet
- Kaal: 1 kg
Tehnilised andmed
Üldine
| Tootja |
ASUS |
| Mudel |
PRIME B550-PLUS |
Features
| Audio output channels |
7.1 channels channels |
| Motherboard chipset |
AMD B550 |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
ATX |
| Product colour |
Black, Silver |
Processor
| Compatible processor series |
AMD Ryzen 3000 Series |
| Processor manufacturer |
AMD |
| Processor socket |
Socket AM4 |
| Supported processor sockets |
Socket AM4 |
Memory
| ECC сompatibility |
ECC & Non-ECC |
| Maximum internal memory |
128 GB GB |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory clock speeds |
2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz MHz |
| Supported memory types |
DDR4-SDRAM |
Storage controllers
| RAID levels |
0, 1, 10 |
| RAID support |
Yes |
| Supported storage drive interfaces |
M.2, SATA |
Graphics
| On-board graphics card |
No |
| Parallel processing technology support |
2-Way CrossFireX |
Internal I/O
| Number of SATA III connectors |
6 |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
Rear panel I/O ports
| DisplayPorts quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
Network
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| LAN controller |
Realtek RTL8111H |
| Wi-Fi |
No |
Expansion slots
| Number of M.2 (M) slots |
2 |
| PCI slots |
2 |
BIOS
| BIOS memory size |
256 Mbit Mbit |
| BIOS type |
UEFI AMI |
Weight & dimensions
Other features
