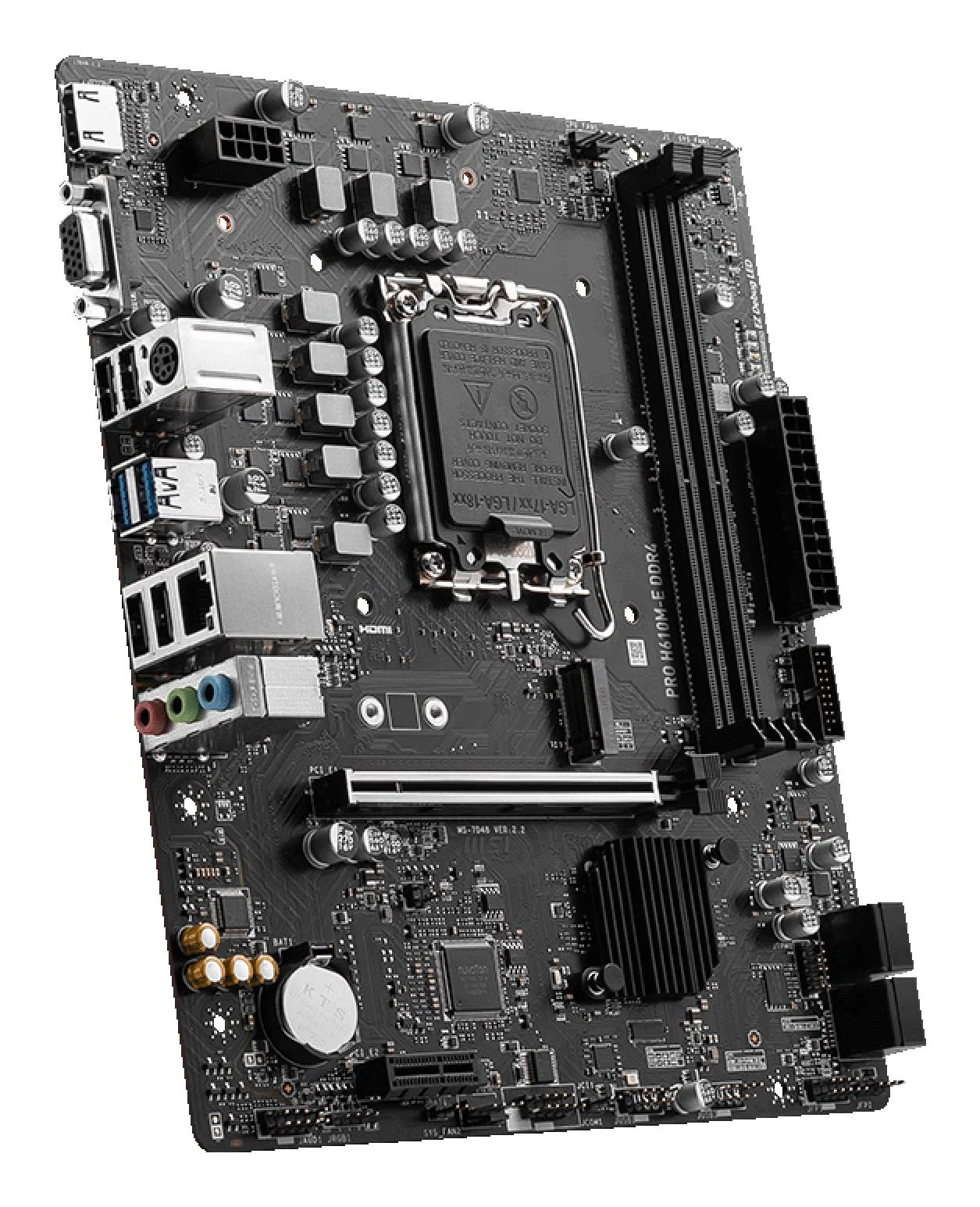

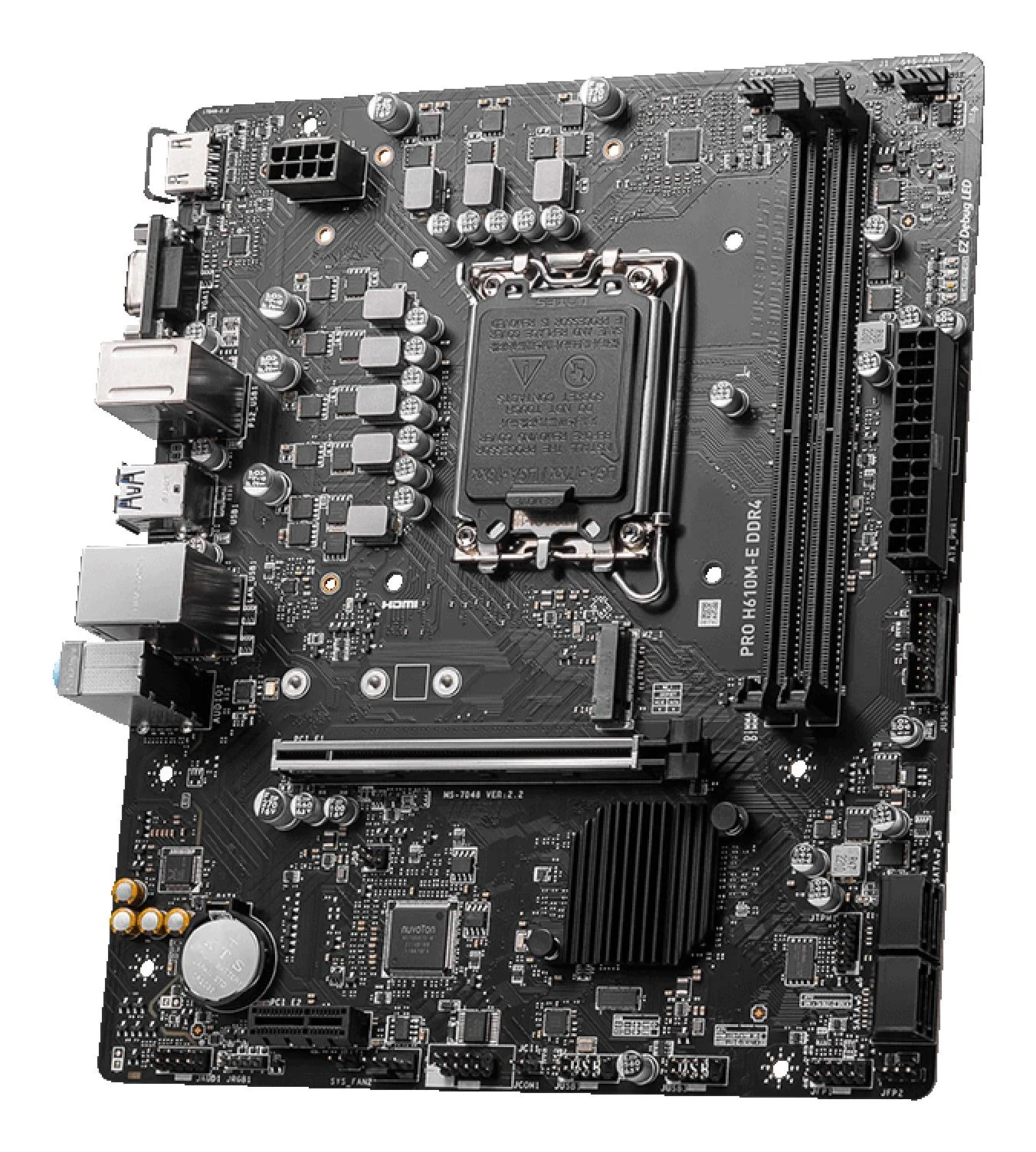

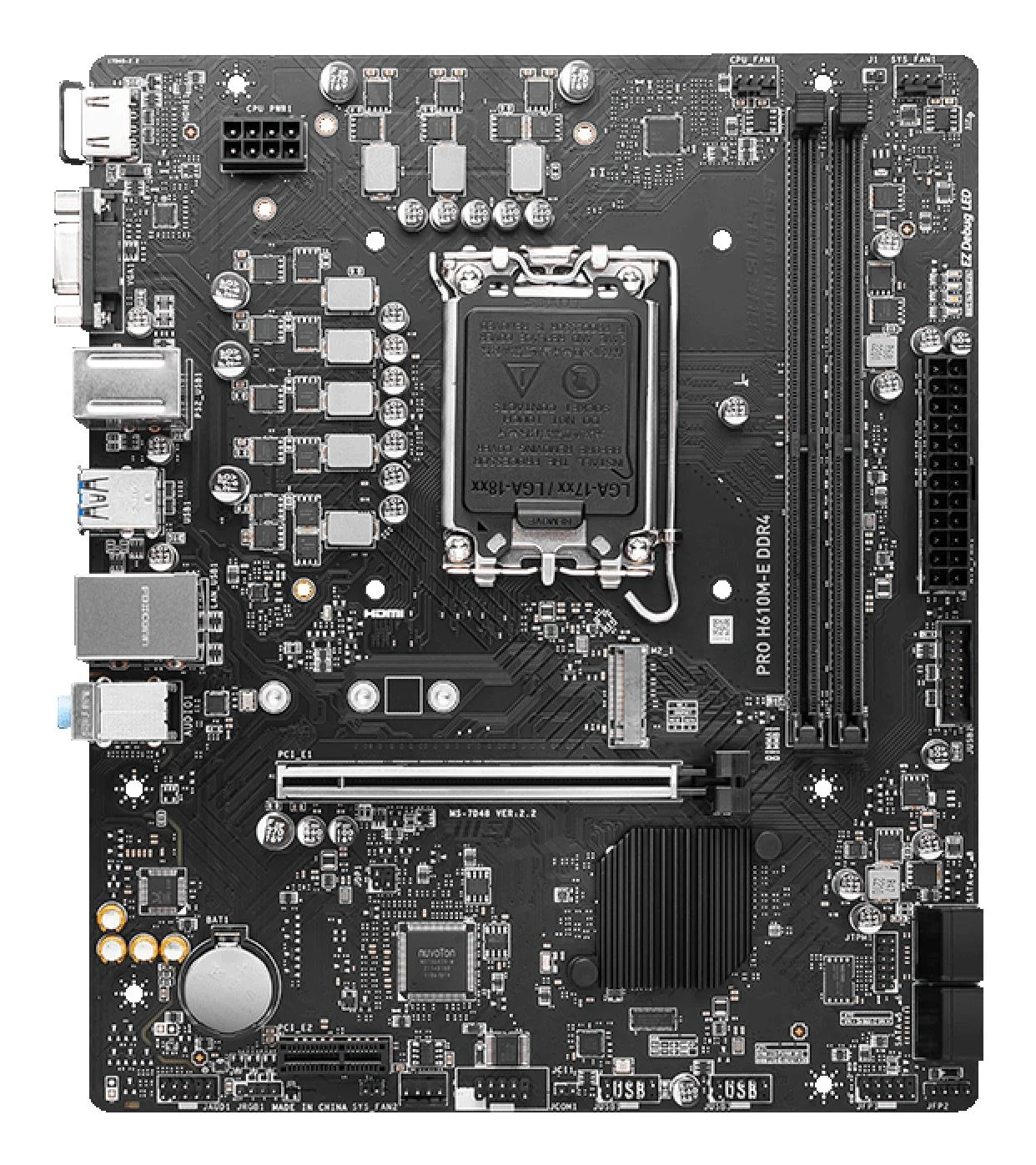

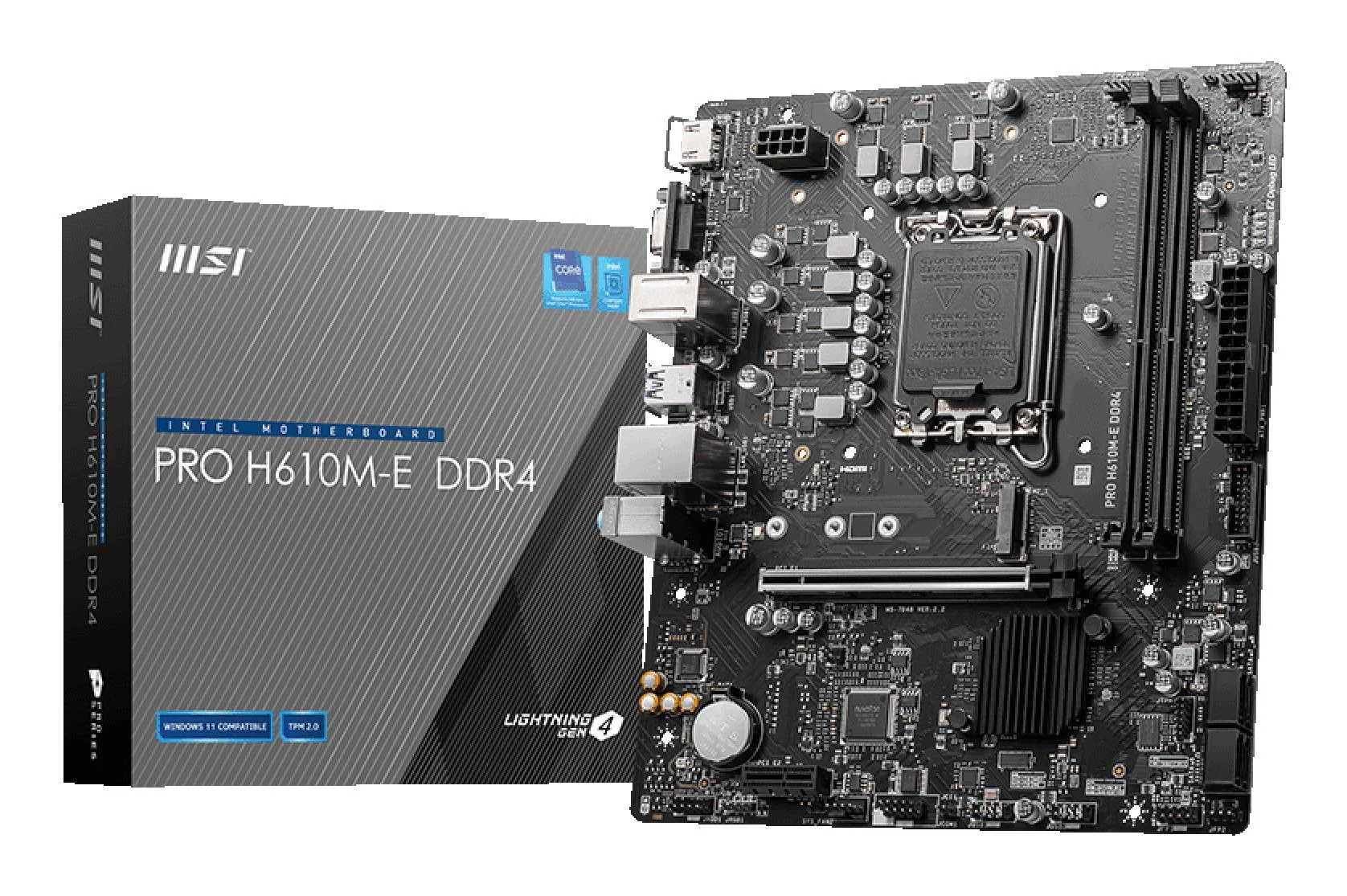

MSI PRO H610M-E DDR4 on usaldusväärselt emaplaat, mis on spetsiaalselt disainitud Intel H610 chipsetiga arvutisüsteemidele. See Micro ATX formaadiline lahendus sobib ideaalselt keskmise klassi ja koduste arvutite ehitamiseks, pakkudes stabiilset jõudlust ja head hinna-kvaliteedi suhet.
Emaplaat toetab Intel LGA1700 soklis olevaid protsessorite, kasutab DDR4-SDRAM mälu ja pakub kahte mäluplaatsi, mis võimaldab kuni 64GB mälu paigaldamist. Rikkalikud ühendused ja ekspansiooniväljad annavad kasutajale paindlikkuse tulevaste täienduste jaoks.
- Chipset: Intel H610
- Formaat: Micro ATX
- CPU sokkel: LGA 1700
- Mälu: DDR4-SDRAM, 2 DIMM pesa
- Salvestusseadmed: M.2, SATA III
- USB pordid: 4× USB 2.0, 2× USB 3.2 Gen 1 Type-A
- Videolähendused: 1× VGA (D-Sub), 1× HDMI
- Võrk: 1× Ethernet LAN (RJ-45)
- Audio: 7.1 kanalit
- Kaal: 760g
Tehnilised andmed
Üldine
| Tootja |
MSI |
| Mudel |
PRO H610M-E DDR4 |
Features
| Audio chip |
Realtek ALC897 |
| Audio output channels |
7.1 channels channels |
| Component for |
PC |
| Motherboard chipset |
Intel H610 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
micro ATX |
Processor
| Compatible processor series |
Intel® Core™ i9 |
| Maximum number of SMP processors |
1 |
| Processor manufacturer |
Intel |
| Processor socket |
LGA 1700 |
| Supported processor sockets |
LGA 1700 |
Memory
| Maximum internal memory |
64 GB GB |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Supported memory clock speed (max) |
3200 MHz MHz |
| Supported memory clock speeds |
2133,2666,2933,3000,3200 MHz MHz |
| Supported memory types |
DDR4-SDRAM |
Storage controllers
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
Graphics
| Parallel processing technology support |
Not supported |
Internal I/O
| 12V power connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Front panel audio connector |
Yes |
| Number of chassis fan connectors |
1 |
| Number of SATA III connectors |
4 |
| TPM connector |
Yes |
| USB 2.0 connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |

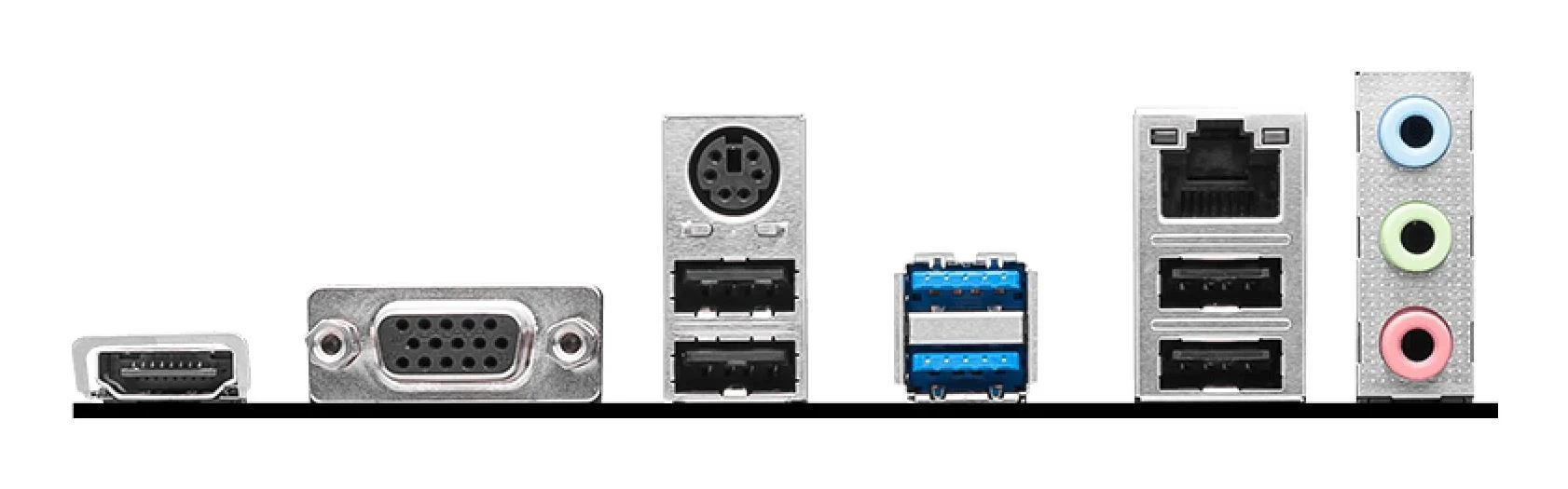

Rear panel I/O ports
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Network
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
BIOS
| BIOS memory size |
256 Mbit Mbit |
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Yes |
| System Management BIOS (SMBIOS) version |
3.4 |
