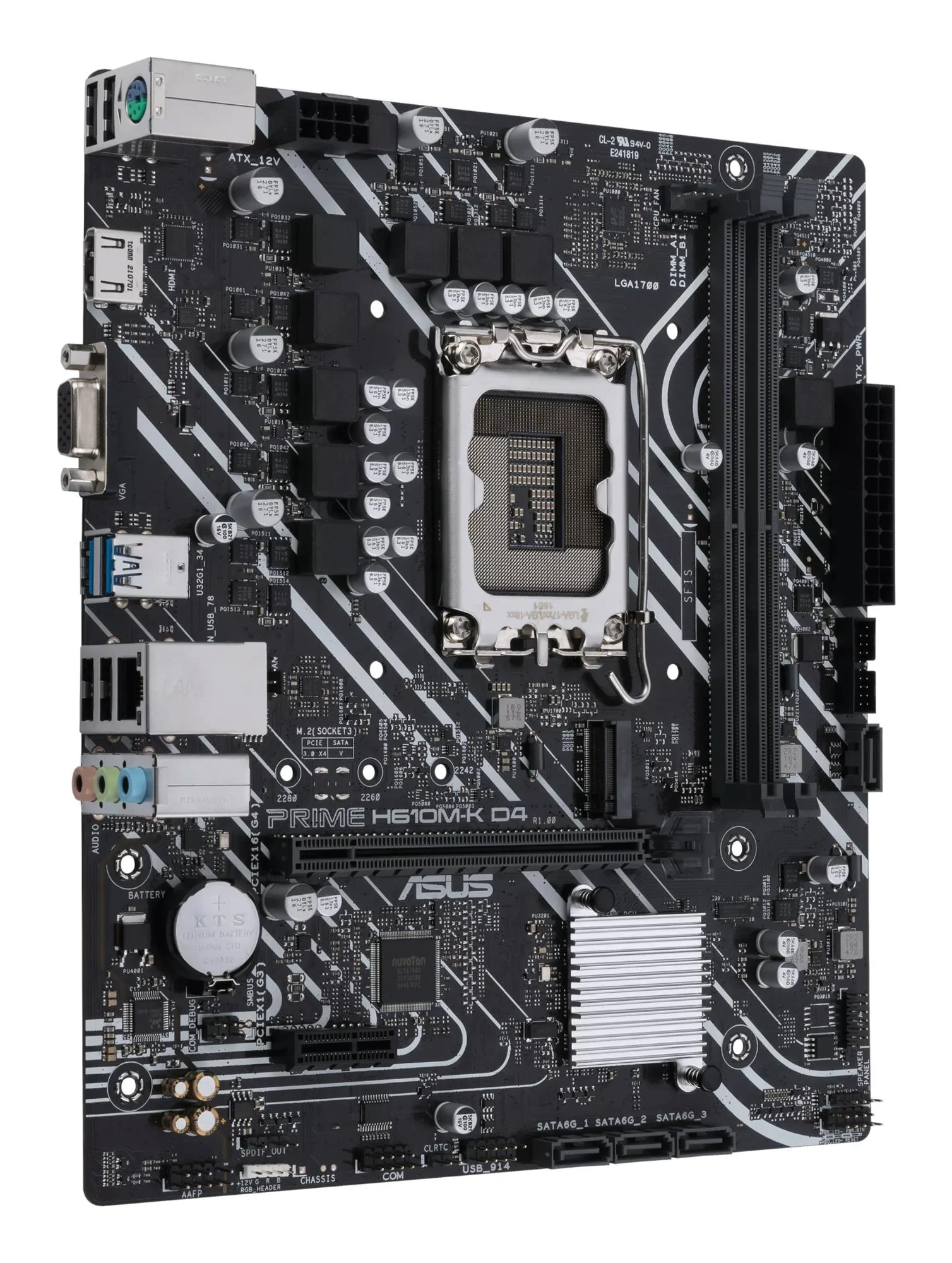

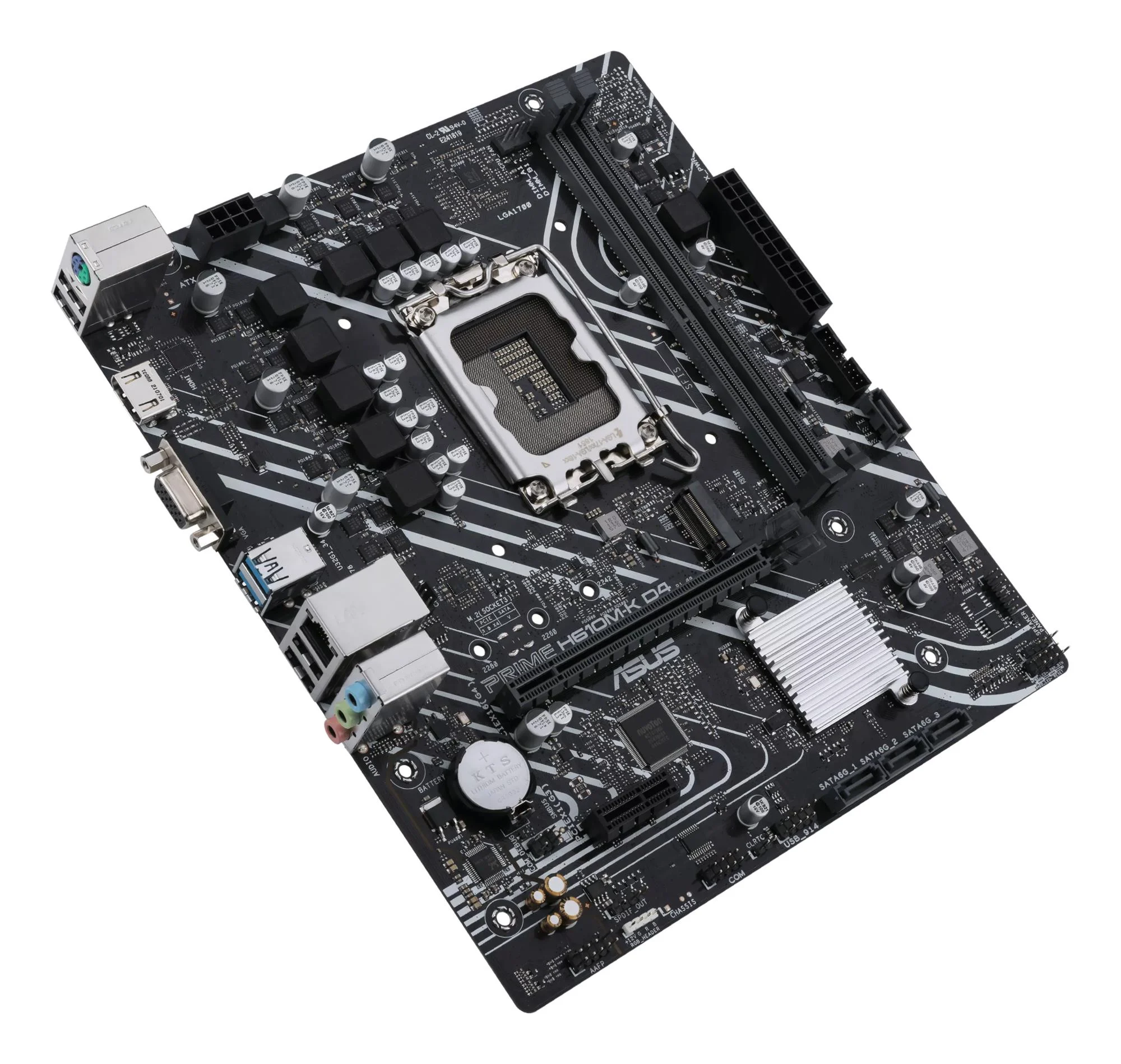

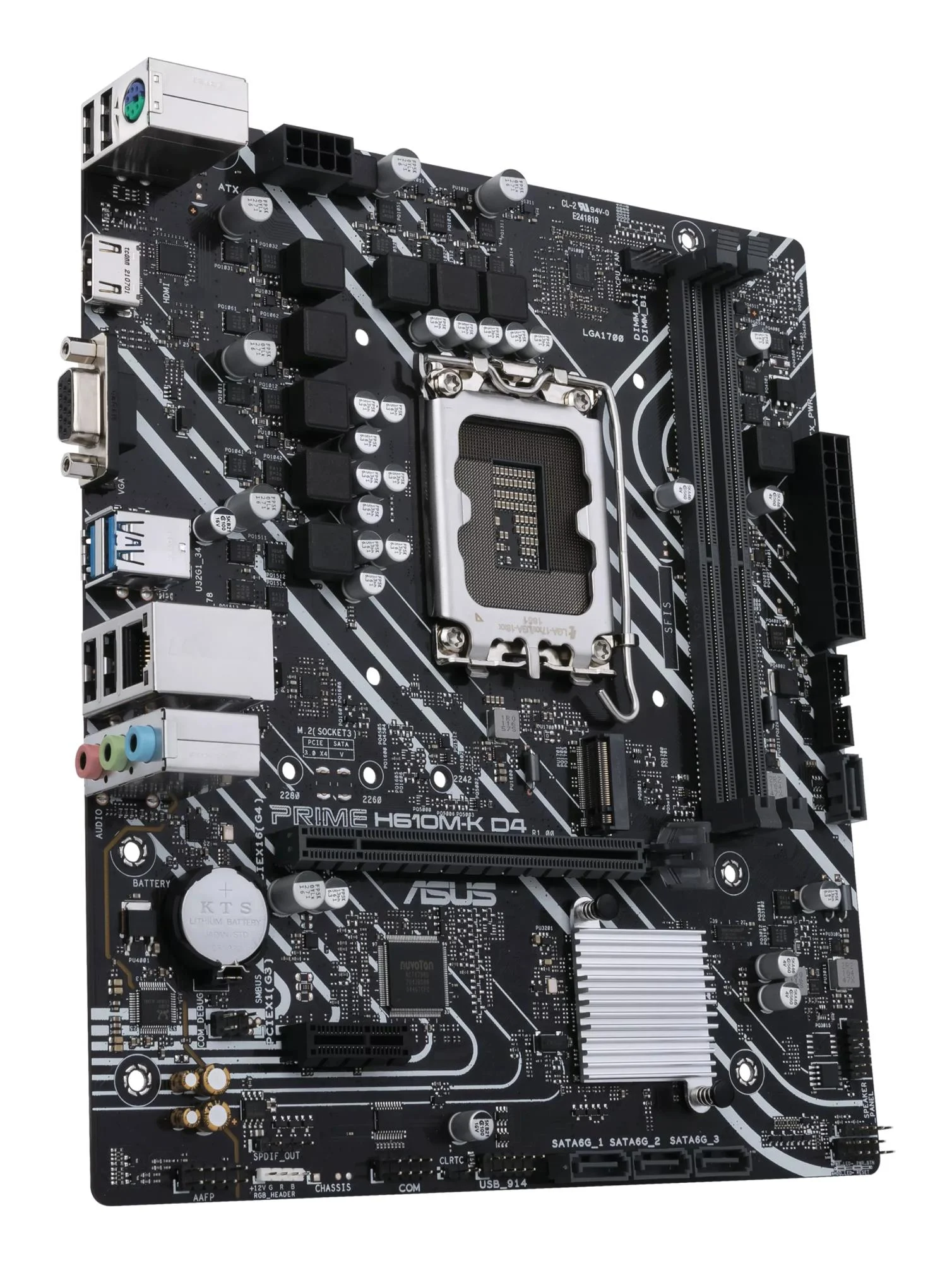

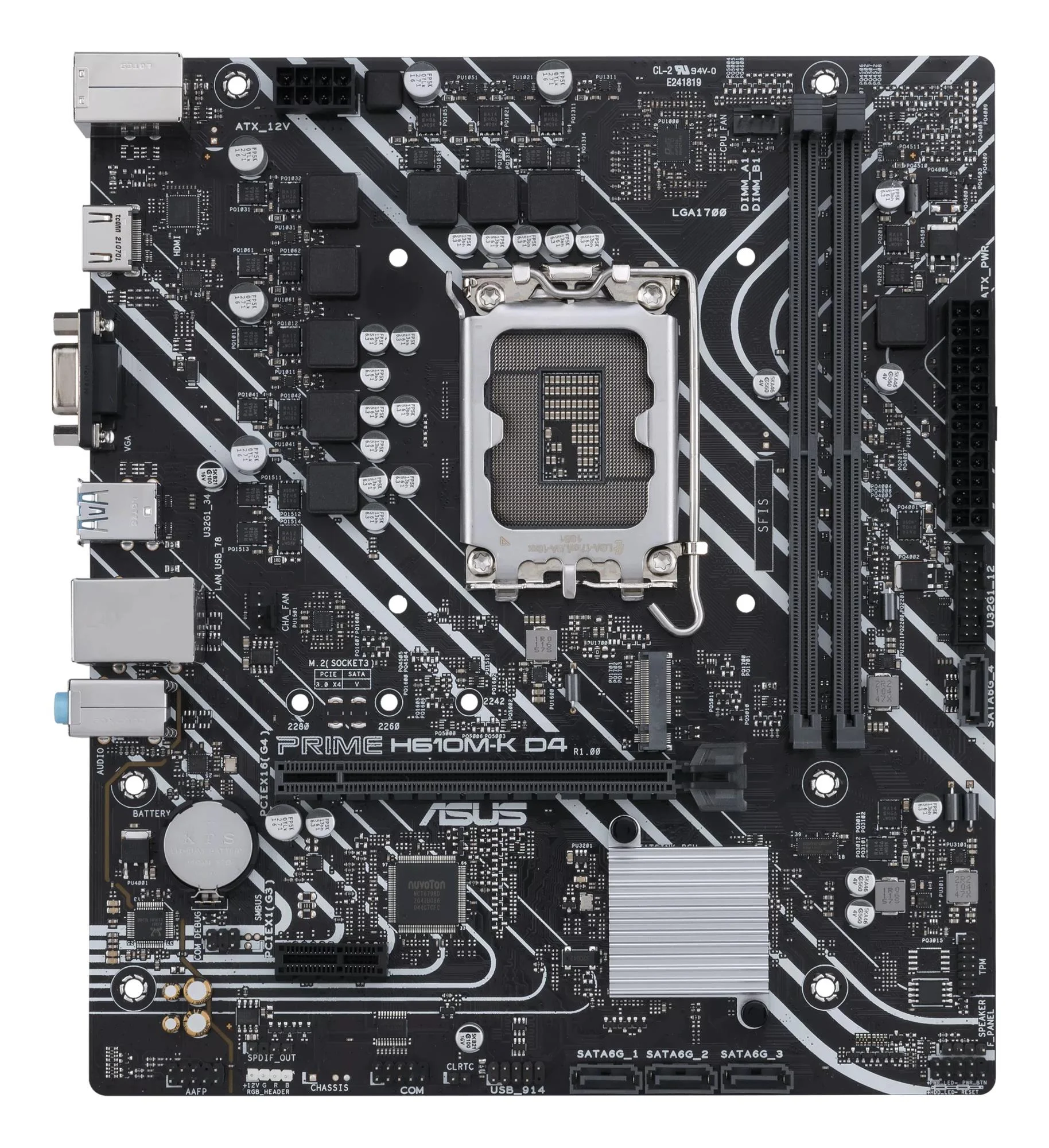

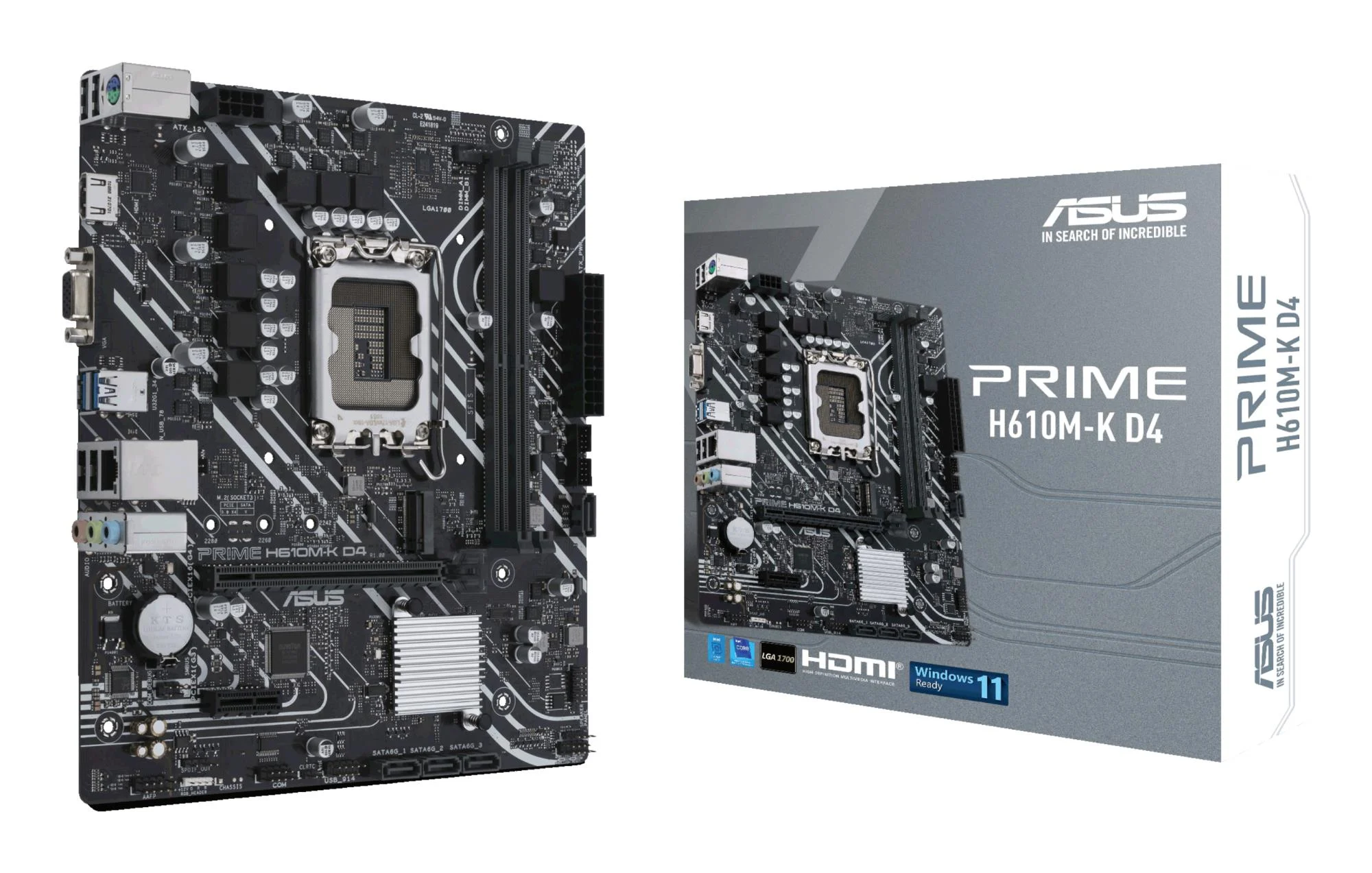

ASUS PRIME H610M-K D4 on usaldusväärselt emaplaadi, mis on spetsiaalselt disainitud 12. ja 13. generatsiooni Intel Core protsessorite jaoks LGA1700 ühendusega. MikroATX vormifaktor muudab selle ideaalseks valikus väiksematele ja kompaktsetele arvutikomplektidele.
See emaplaadi pakub häid võimalusi nii igapäevaseks kasutamiseks kui ka mängimiseks. H610 loogikakomplekt toetab kiireid mälumooduleid ja pakub stabiilset jõudlust. Kujundus on lihtne, kuid funktsionaalne, mis tagab suurepärase hinna-jõudluse suhte.
- Pistik: Intel LGA1700
- Vormifaktor: MicroATX
- Mälu: 2 × DDR4-SDRAM DIMM pesa
- Salvestamine: M.2 ja SATA-liidestused
- Helisüsteem: 7.1 kanali audio
- Ühendused: 4 × USB 2.0, 2 × USB 3.2 Gen 1
- Video väljundid: 1 × HDMI, 1 × D-Sub (VGA)
- Võrk: 1 × Gigabit Ethernet (RJ-45)
- Kaal: 842 g
Tehnilised andmed
Üldine
| Tootja |
ASUS |
| Mudel |
PRIME H610M-K D4 |
Features
| Audio output channels |
7.1 channels channels |
| Component for |
PC |
| Motherboard chipset |
Intel H610 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
micro ATX |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
Processor
| Compatible processor series |
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold |
| Maximum number of SMP processors |
1 |
| Processor manufacturer |
Intel |
| Processor socket |
LGA 1700 |
Memory
| ECC сompatibility |
Non-ECC |
| Maximum internal memory |
64 GB GB |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Supported memory clock speeds |
2133,2400,2666,2800,2933,3000,3200 MHz MHz |
| Supported memory types |
DDR4-SDRAM |
| Unbuffered memory |
Yes |
Storage controllers
| RAID levels |
0, 1, 5, 10 |
| Supported storage drive interfaces |
M.2, SATA |
| Supported storage drive types |
HDD & SSD |
Graphics
| Number of displays supported |
2 |
Internal I/O
| 12V power connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Front panel audio connector |
Yes |
| Number of chassis fan connectors |
1 |
| Number of COM connectors |
1 |
| Number of SATA III connectors |
4 |
| RGB LED pin header |
Yes |
| S/PDIF out connector |
Yes |
| TPM connector |
Yes |
| USB 2.0 connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |

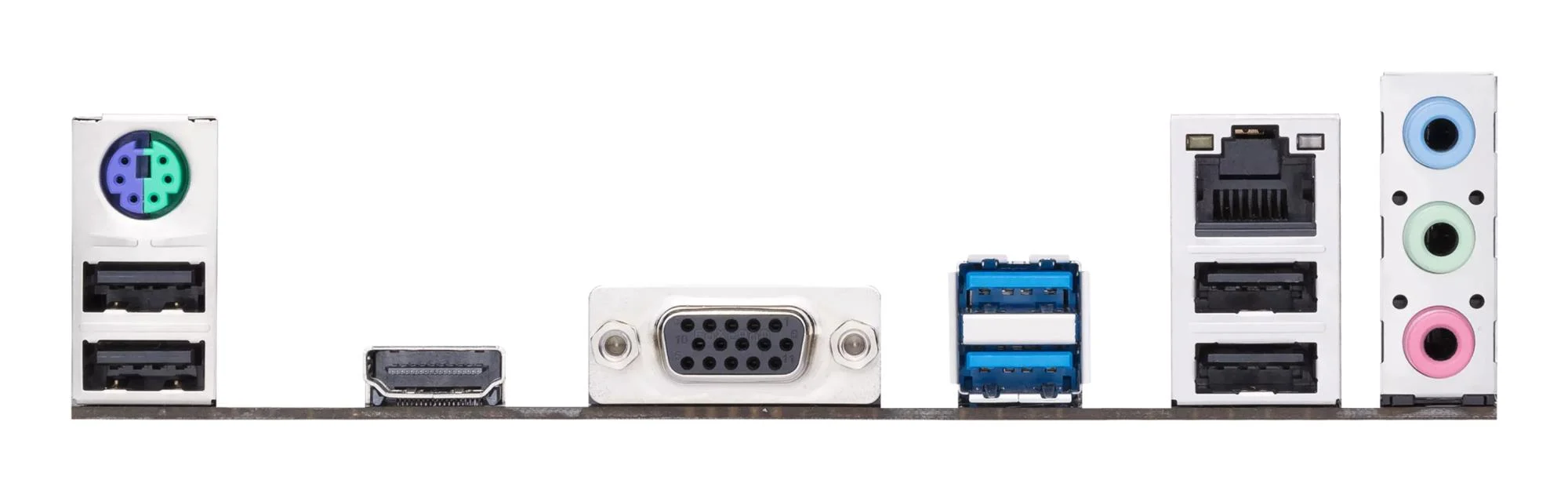

Rear panel I/O ports
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| PS/2 ports quantity |
1 |
| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Network
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
Expansion slots
| Number of M.2 (M) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
BIOS
| BIOS memory size |
128 Mbit Mbit |
| BIOS type |
UEFI AMI |
Weight & dimensions
| Depth |
203 mm mm |
| Height |
51 mm mm |
| Width |
234 mm mm |
Other features
