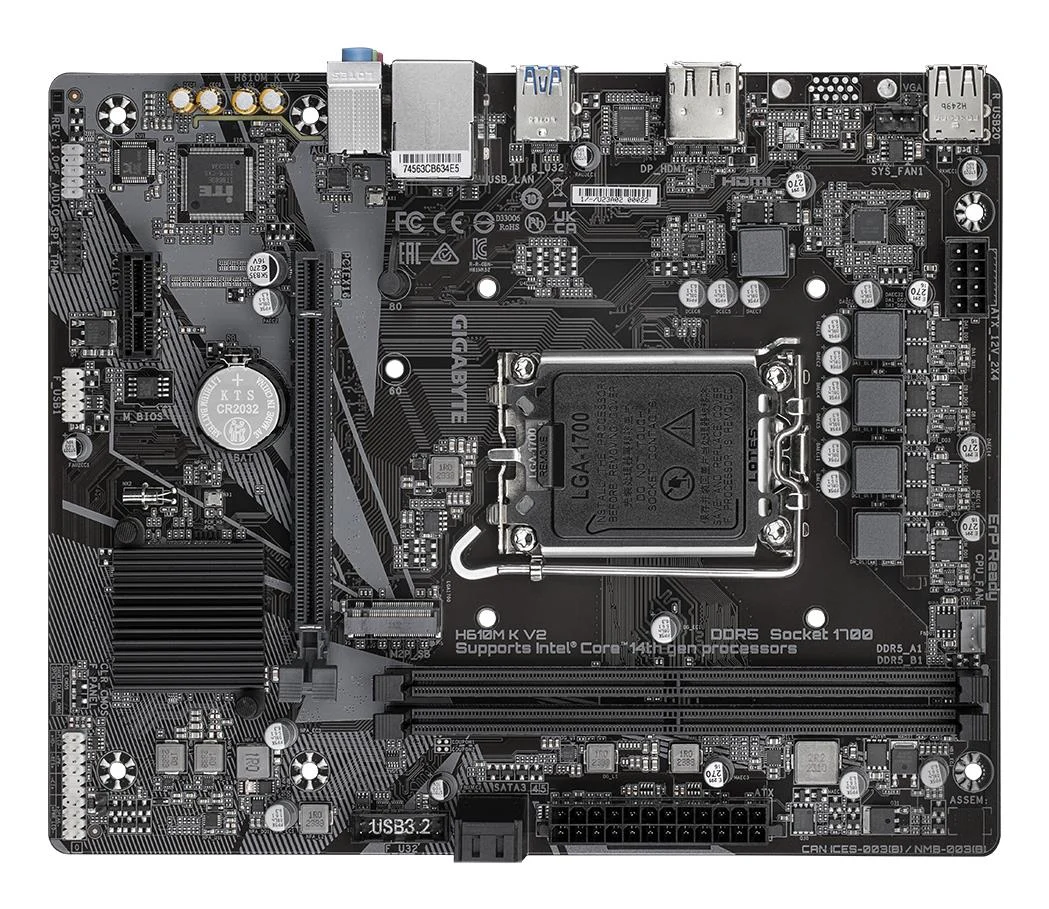

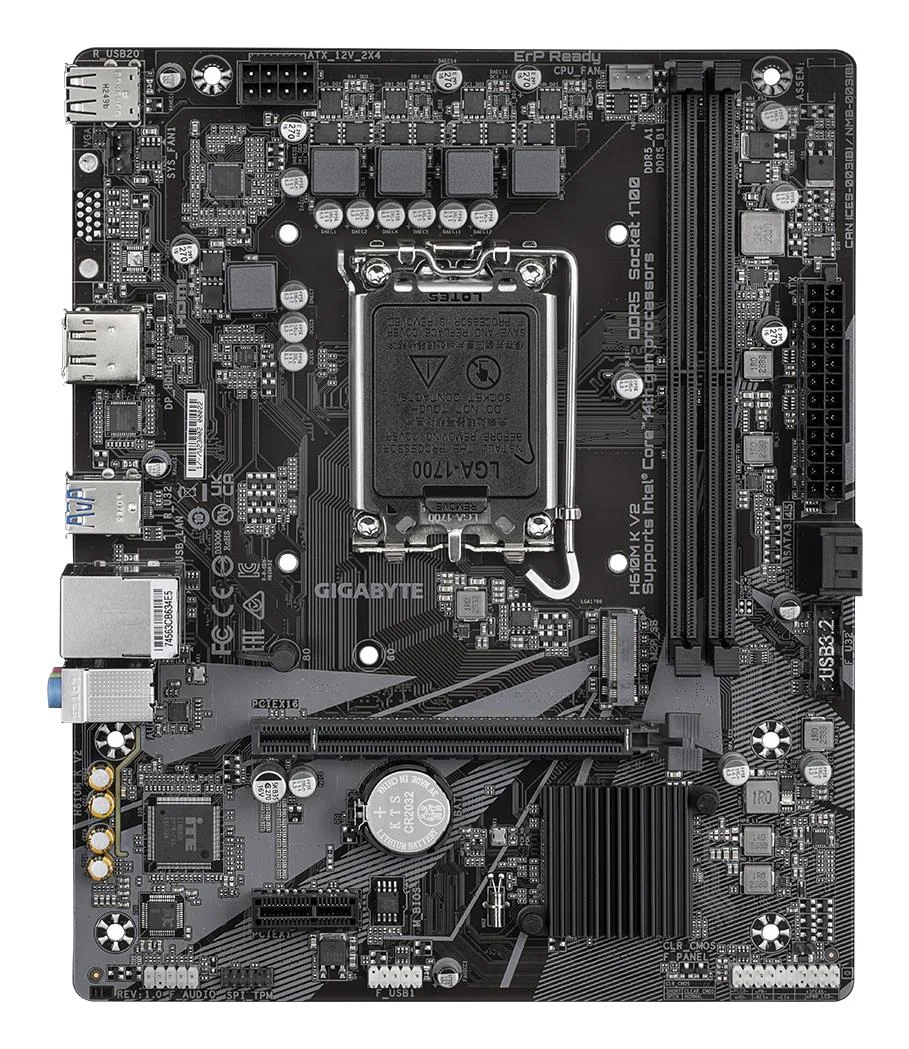

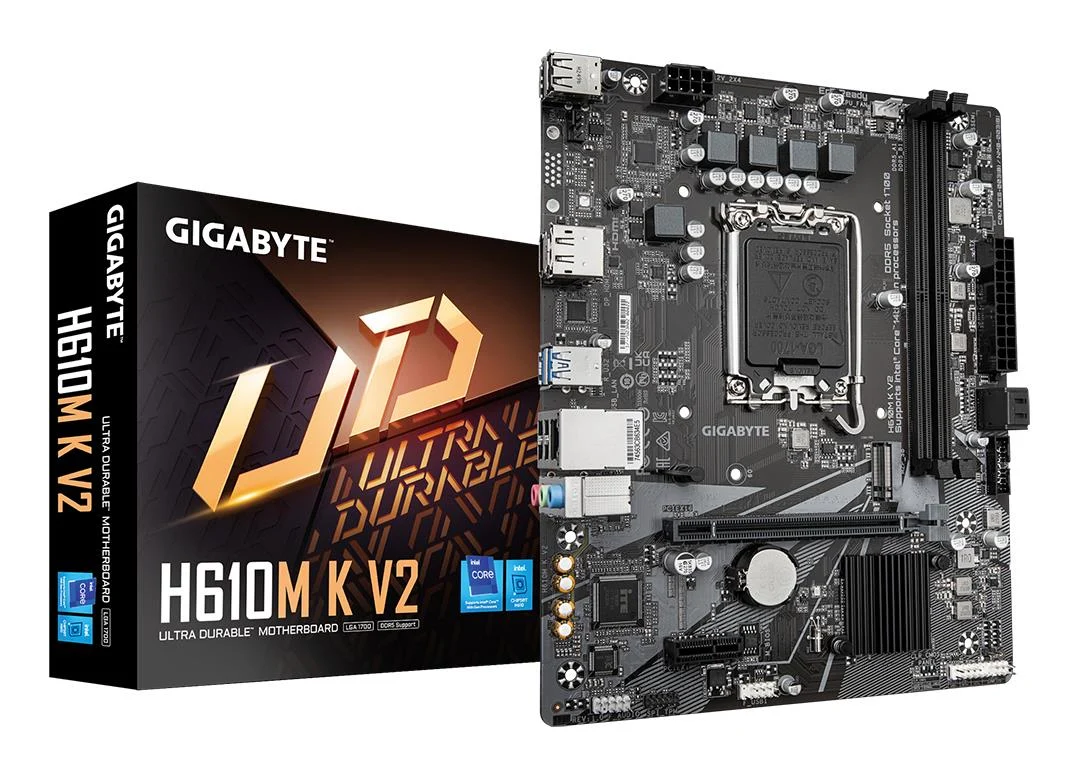

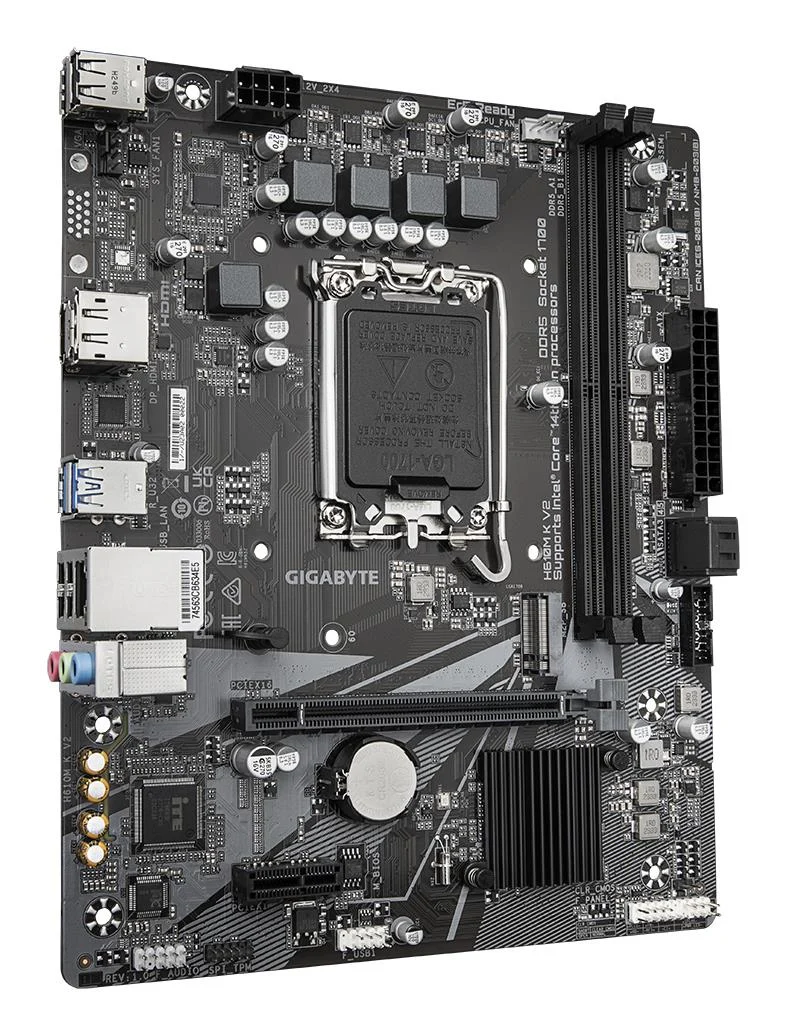

Gigabyte H610M K V2 on kompaktne micro-ATX emaplaas, mis on ideaalne kasutajatele, kes otsivad usaldusväärseid lahendust keskmise tase arvutite kokkupanekuks. Emaplaas kasutab Intel H610 chipsetit ja toetab 13. põlvkonna Intel Core protsessoreid LGA1700 pistikus.
Mäluosa toetab kuni 128GB DDR5-SDRAM mälu kahes DIMM-pesas, mis võimaldab kasutada kuni 5600MHz sagedusega mälumooduleid. Andmete salvestamiseks on olemas 1×M.2 NVMe pesa ja 2×SATA III ühendust HDD/SSD draividele. Passiivsõiduga jahutus ja ATX toiteplokiga ühilduvus tagavad stabiilse tööd.
Ühenduvuse poolest pakub emaplaas HDMI ja DisplayPort väljundeid videole, 4×USB 2.0 ja 2×USB 3.2 Gen 1 porti, samuti Gigabit Ethernet (RJ45) võrguühendust. Realtek ALC897 helikaart toetab 7.1-kanalit häälisüsteemi ja Windows 10/11 x64 opsüsteemidega täielik ühilduvus.
- Chipset: Intel H610
- Pistik: LGA 1700
- Vorming: Micro-ATX
- Mälu: 2×DIMM DDR5-SDRAM, kuni 128GB, max 5600MHz
- Salvestamine: 1×M.2 NVMe, 2×SATA III
- Liidesed: 4×USB 2.0, 2×USB 3.2 Gen 1, 1×Gigabit Ethernet
- Heli: Realtek ALC897, 7.1 kanalit
- Jahutus: Passiivne
Tehnilised andmed
Üldine
| Tootja |
Gigabyte |
| Mudel |
H610M K V2 |
Features
| Audio chip |
Realtek ALC897 |
| Audio output channels |
7.1 channels channels |
| Component for |
PC |
| Cooling type |
Passive |
| Motherboard chipset |
Intel H610 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
micro ATX |
| PC health monitoring |
Fan, Temperature, Voltage, Water cooling |
| Power source type |
ATX |
| Product colour |
Dark brown |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
Processor
| Compatible processor series |
Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen |
| Processor manufacturer |
Intel |
| Processor socket |
LGA 1700 |
| Supported processor sockets |
LGA 1700 |
Memory
| ECC сompatibility |
ECC & Non-ECC |
| Maximum internal memory |
128 GB GB |
| Maximum internal memory per slot |
64 GB GB |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Supported memory clock speed (max) |
5600 MHz MHz |
| Supported memory clock speeds |
5600,5200,4800,4400 MHz MHz |
| Supported memory types |
DDR5-SDRAM |
| Unbuffered memory |
Yes |
Storage controllers
| Number of HDDs supported |
2 |
| Number of storage drives supported |
3 |
| Supported storage drive interfaces |
M.2, PCI Express 3.0, SATA III |
| Supported storage drive types |
HDD & SSD |
Graphics
| DirectX version |
12.0 |
| HDCP |
Yes |
| Maximum resolution |
4096 x 2160 pixels pixels |
| Parallel processing technology support |
Not supported |
Internal I/O
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Front panel audio connector |
Yes |
| Front panel connector |
Yes |
| Number of CPU fan connectors |
1 |
| Number of EPS power connectors (8-pin) |
1 |
| Number of SATA III connectors |
2 |
| TPM connector |
Yes |
| USB 2.0 connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |

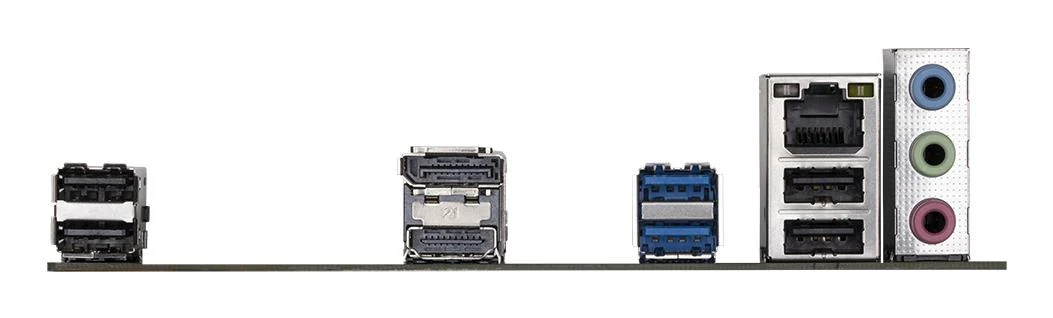

Rear panel I/O ports
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Headphone outputs |
1 |
| Line-in |
Yes |
| Microphone in |
Yes |
| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
Network
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| LAN controller |
Realtek RTL8111H |
| Wi-Fi |
No |
Expansion slots
| 1st M.2 highest PCI Express generation |
3.0 |
| 1st M.2 largest key size |
2280 |
| Number of M.2 (M) slots |
1 |
| PCI Express x1 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
BIOS
| ACPI version |
5.0 |
| BIOS memory size |
128 Mbit Mbit |
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Yes |
| Desktop Management Interface (DMI) version |
2.7 |
| System Management BIOS (SMBIOS) version |
2.7 |
Battery
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Battery type |
CR2032 |
| Battery weight |
3 g g |
| Lithium weight per battery |
0.07 g g |
| Number of battery cells |
1 |
Weight & dimensions
| Depth |
185 mm mm |
| Height |
35 mm mm |
| Width |
226 mm mm |
Technical details
| Warranty period |
3 year(s) year(s) |
Other features
