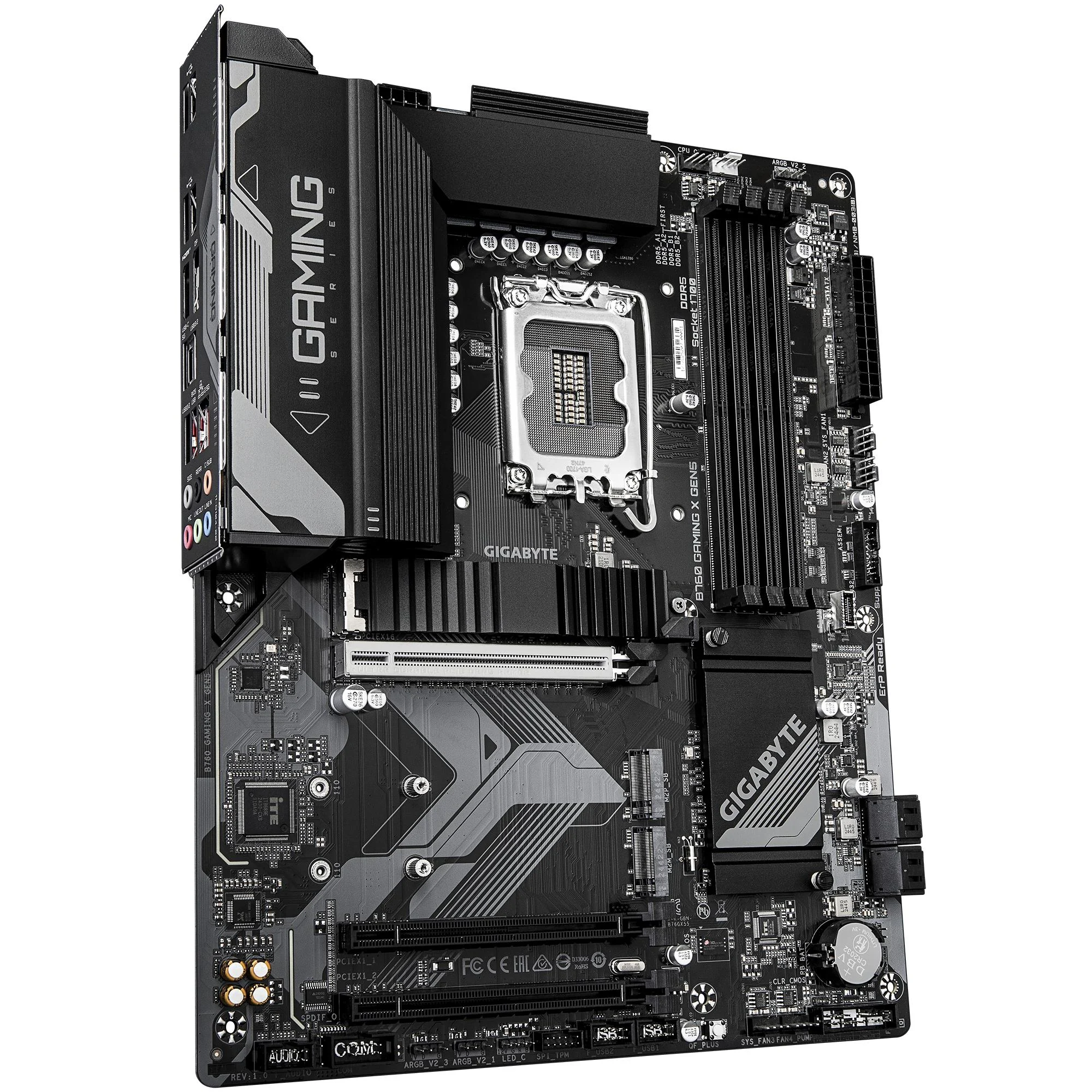

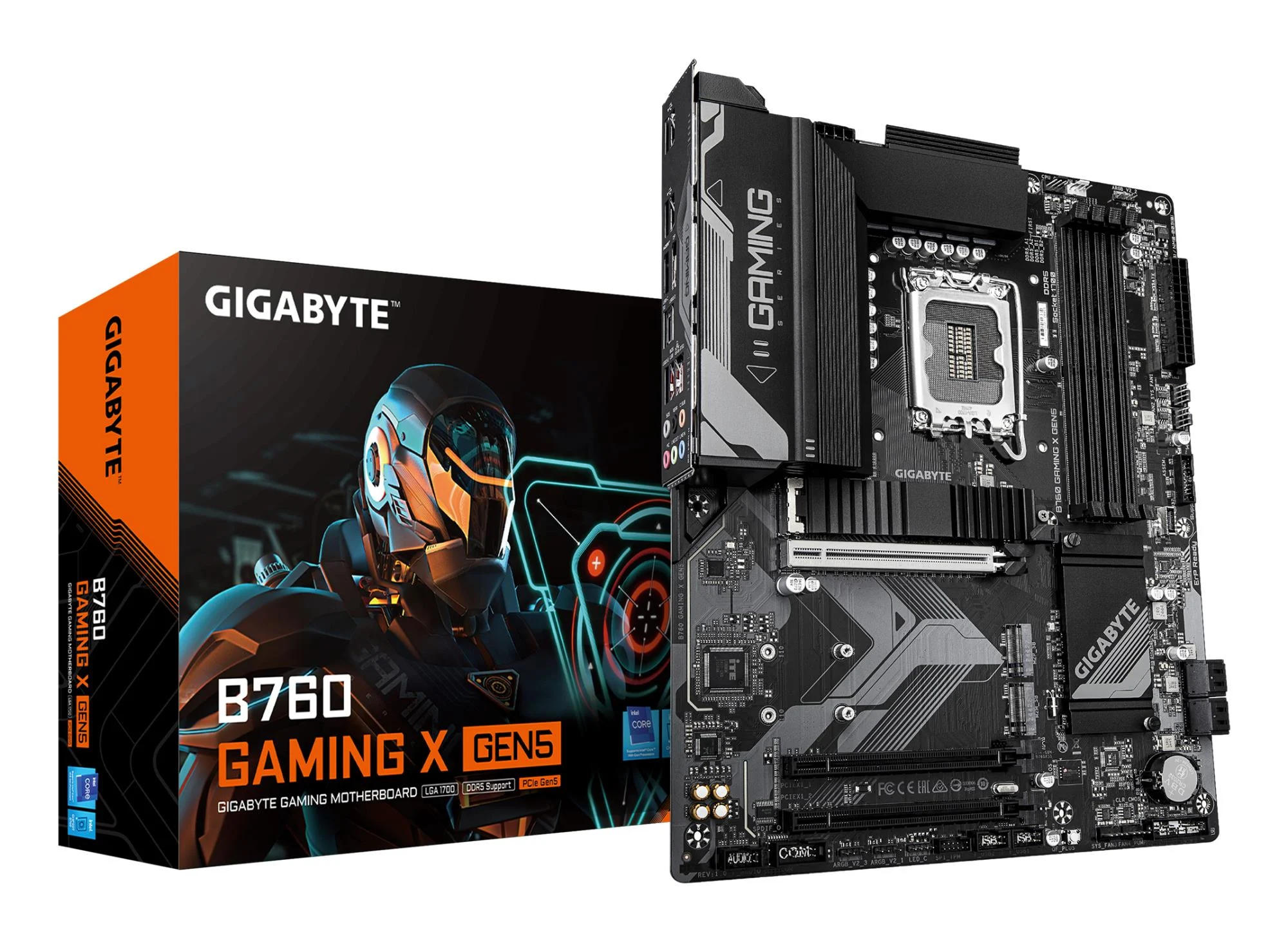

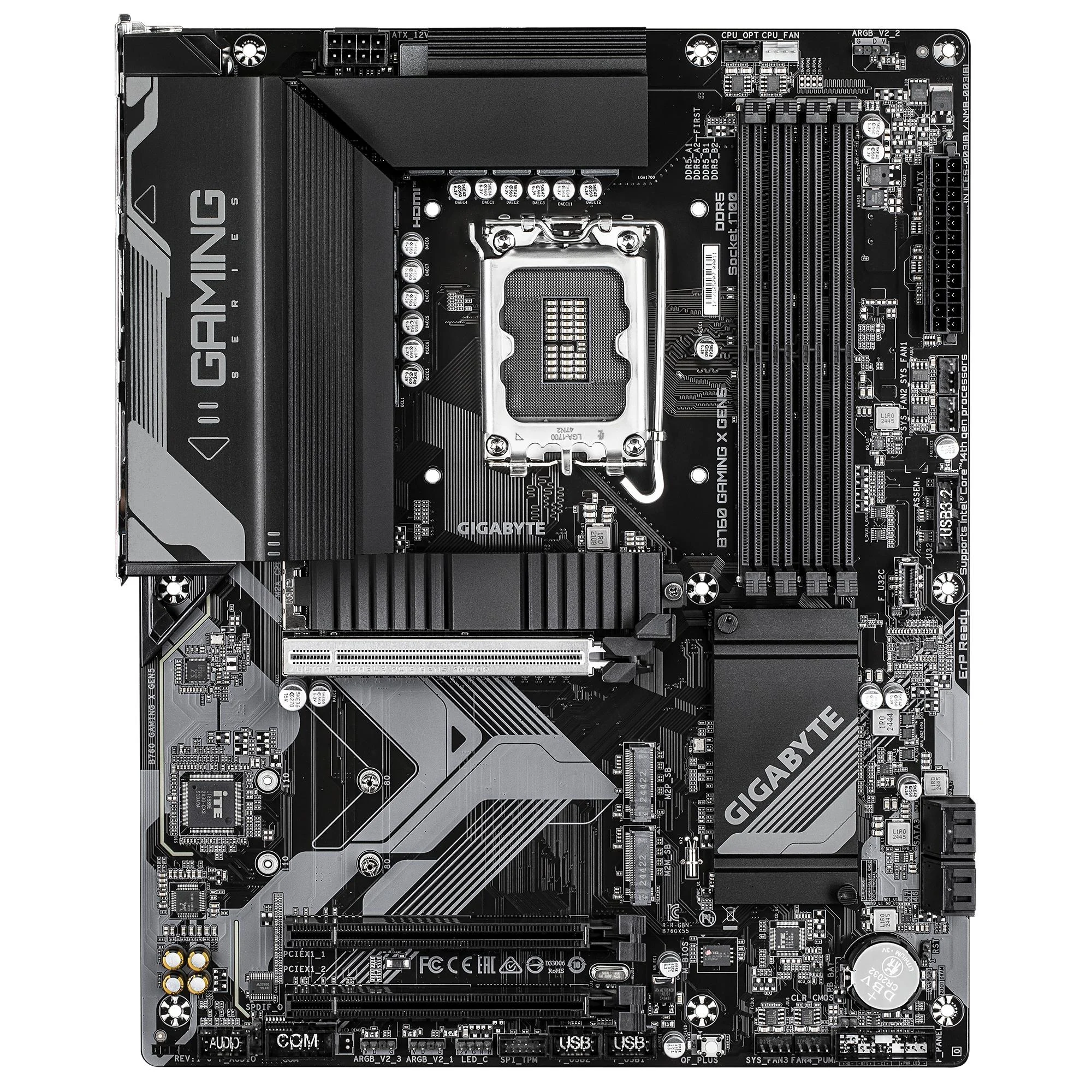

Gigabyte B760 GAMING X GEN5 on tänapäevane ATX-formaadis emaaplaat, mis on spetsiaalselt disainitud Intel 12. ja 13. põlvkonna protsessoritele. See emaaplaat pakub ülimodernseid funktsioone ja suurepärast jõudlust nii tavaliste kasutajate kui ka entusiasti jaoks.
Emaaplaat on varustatud Realtek ALC897 helikaardiga, mis toetab 7.1 kanalit. Jahutus on passiivsüsteemi tüüpi, mis tagab vaikseid töötingimusi. Süsteem toetab Windows 10 ja Windows 11 operatsioonisüsteeme 64-bitiste versioonidena.
Salvestusseadmete ühendamiseks on saadaval mitmed valikud: M.2 pesa, PCI Express 4.0 ja SATA III liidesed. Emaaplaat toetab kuni 7 salvestusseadet ja RAID tasemeid 0, 1, 5, 10.
- Chipset: Intel B760
- Protsessori pesa: LGA 1700
- Mälu: DDR5-SDRAM, 4 DIMM pesad, kuni 256 GB
- Mälu sagedused: 4400, 4800, 5200, 5600 MHz
- Helikaart: Realtek ALC897, 7.1 kanalit
- Salvestus: M.2, PCI Express 4.0, SATA III
- Ports: 5x USB 2.0, 1x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 1 Type-C, 1x USB 3.2 Gen 2 Type-A, 1x Gigabit Ethernet, 1x HDMI
- Kaal: 1.56 kg
Tehnilised andmed
Üldine
| Tootja |
Gigabyte |
| Mudel |
B760 GAMING X GEN5 |
Features
| Audio chip |
Realtek ALC897 |
| Audio output channels |
7.1 channels channels |
| Component for |
PC |
| Cooling type |
Passive |
| Motherboard chipset |
Intel B760 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
ATX |
| PC health monitoring |
Fan, Temperature, Voltage, Water cooling |
| Power source type |
ATX |
| Product colour |
Dark brown |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
Processor
| Compatible processor series |
Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen |
| Processor manufacturer |
Intel |
| Processor socket |
LGA 1700 |
| Supported processor sockets |
LGA 1700 |
Memory
| ECC сompatibility |
ECC & Non-ECC |
| Maximum internal memory |
256 GB GB |
| Maximum internal memory per slot |
64 GB GB |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory clock speed (max) |
5600 MHz MHz |
| Supported memory clock speeds |
4400,4800,5200,5600 MHz MHz |
| Supported memory types |
DDR5-SDRAM |
| Unbuffered memory |
Yes |
Storage controllers
| Number of HDDs supported |
4 |
| Number of storage drives supported |
7 |
| RAID levels |
0, 1, 5, 10 |
| RAID support |
Yes |
| Supported storage drive interfaces |
M.2, PCI Express 4.0, SATA III |
| Supported storage drive types |
HDD & SSD |
Graphics
| DirectX version |
12.0 |
| HDCP |
Yes |
| Maximum resolution |
4096 x 2304 pixels pixels |
| Parallel processing technology support |
Not supported |
Internal I/O
| 12V power connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Front panel audio connector |
Yes |
| Front panel connector |
Yes |
| Number of chassis fan connectors |
4 |
| Number of CPU fan connectors |
2 |
| Number of EPS power connectors (8-pin) |
1 |
| Number of RGB LED pin headers |
4 |
| Number of SATA III connectors |
4 |
| Number of water pump connectors |
2 |
| RGB LED pin header |
Yes |
| S/PDIF out connector |
Yes |
| Serial port headers |
1 |
| TPM connector |
Yes |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |

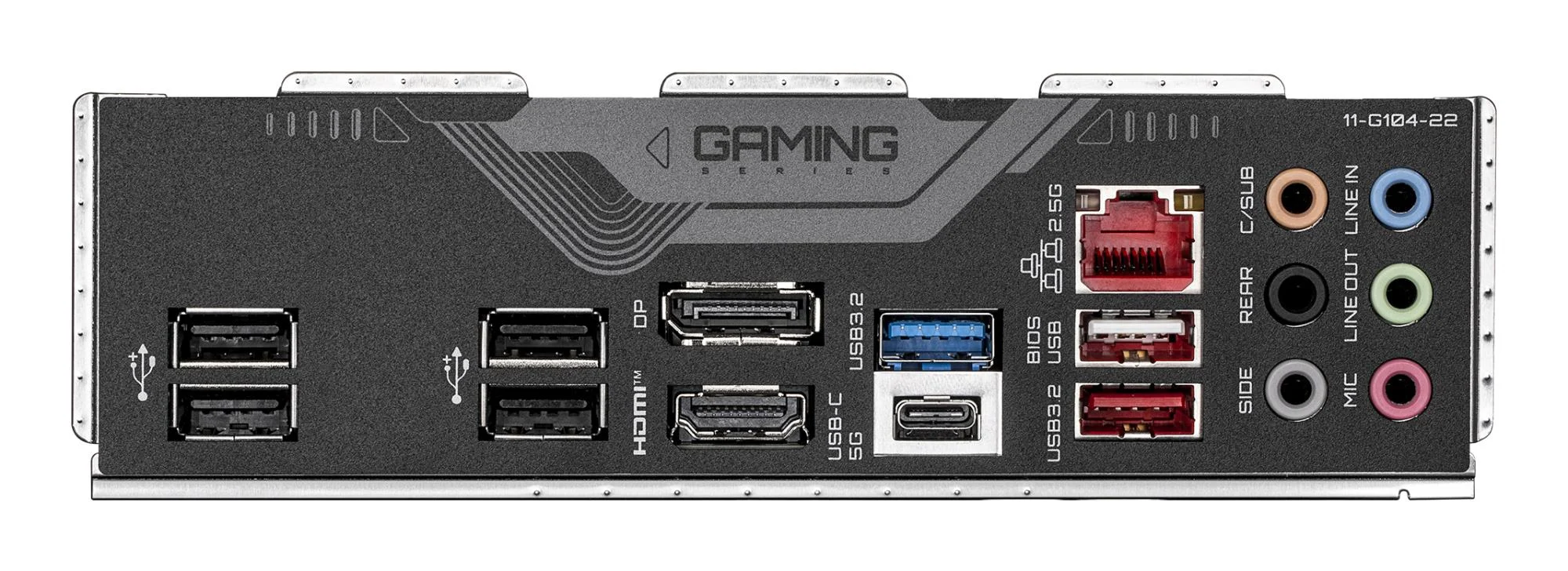

Rear panel I/O ports
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Headphone outputs |
1 |
| Line-in |
Yes |
| Microphone in |
Yes |
| USB 2.0 ports quantity |
5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
Network
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| LAN controller |
Realtek RTL8125 |
| Wi-Fi |
No |
Expansion slots
| 1st M.2 highest PCI Express generation |
4.0 |
| 1st M.2 largest key size |
22110 |
| 2nd M.2 highest PCI Express generation |
4.0 |
| 2nd M.2 largest key size |
22110 |
| 3rd M.2 highest PCI Express generation |
4.0 |
| 3rd M.2 largest key size |
22110 |
| Number of M.2 (M) slots |
3 |
| PCI Express x16 (Gen 3.x) slots |
2 |
| PCI Express x16 (Gen 5.x) slots |
1 |
BIOS
| ACPI version |
5.0 |
| BIOS memory size |
256 Mbit Mbit |
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Yes |
| Desktop Management Interface (DMI) version |
2.7 |
| System Management BIOS (SMBIOS) version |
2.7 |
Battery
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Battery type |
CR2032 |
| Battery weight |
3 g g |
| Lithium weight per battery |
0.07 g g |
| Number of battery cells |
1 |
Weight & dimensions
| Depth |
244 mm mm |
| Height |
35 mm mm |
| Width |
305 mm mm |
Technical details
| Warranty period |
3 year(s) year(s) |
Other features
