Gigabyte H610M H V3 DDR4 on kompaktne micro-ATX emaplaat, mis sobib ideaalselt budžeetkonsistentidele ja kantoriofficeja koduse kasutuse PC-desse. See toetab uusimaid Intel 12. ja 13. põlvkonna protsessoreid LGA1700 socketiga ning pakub stabiilset platvorme Intel H610 chipsetiga.
Emaplaat omab kaht DDR4 DIMM pesa, mis toetab kuni 64GB mälu sagedusega kuni 3200MHz. Salvestusseadmete jaoks on olemas üks M.2 pesa (NVMe) ja kuni viis SATA III ühendust, mis võimaldab paindlikku kettasüsteemi konfiguratsioon. Sisseehitatud Realtek ALC897 audiokooder tagab 7.1-kanaali heliväljundi kvaliteetse helitaiusega.

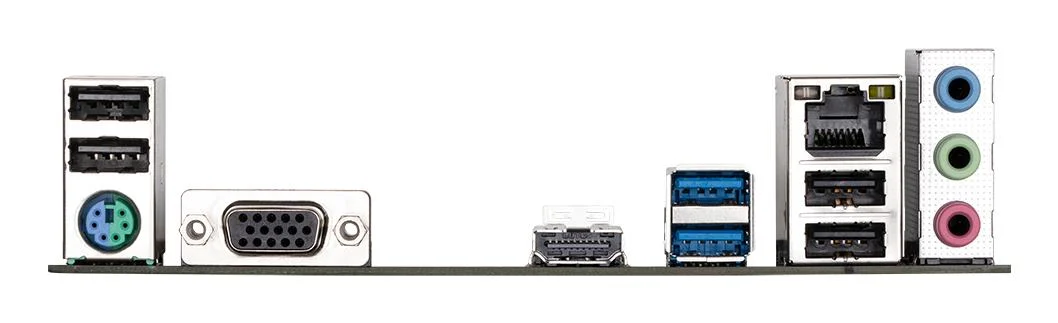

I/O paneelil asuvad 4 USB 2.0 porti, 2 USB 3.2 Gen1 Type-A porti, üks Gigabit Ethernet (RJ45), VGA (D-Sub) ja HDMI väljundid ning PS/2 pistik. Emaplaat toetab Windows 10 ja Windows 11 x64 operatsioonisüsteeme ning sisaldab aktiivseid jälgimisfunktsioone ventilaatori, temperatuuri, pinge ja jahutusega seotud parameetrite monitoorimiseks.
- Chipset: Intel H610 Express
- Protsessori socket: LGA 1700
- Vormi tegur: Micro-ATX
- Mälu: 2× DDR4 DIMM (kuni 64GB, max 3200MHz)
- Salvestus: 1× M.2 (NVMe), 5× SATA III
- Audio: Realtek ALC897 (7.1 kanalit)
- I/O: 4× USB 2.0, 2× USB 3.2, 1× Gigabit RJ45, VGA, HDMI, PS/2
Tehnilised andmed
Üldine
| Tootja | Gigabyte |
|---|---|
| Mudel | H610M H V3 DDR4 |
Features
| Audio chip | Realtek ALC897 |
|---|---|
| Audio output channels | 7.1 channels channels |
| Component for | PC |
| Cooling type | Active |
| Motherboard chipset | Intel H610 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Power source type | ATX |
| Product colour | Black |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Processor
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
Memory
| ECC сompatibility | ECC & Non-ECC |
|---|---|
| Maximum internal memory | 64 GB GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory clock speed (max) | 3200 MHz MHz |
| Supported memory clock speeds | 3200, 3000, 2933, 2666, 2400, 2133 MHz MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
Storage controllers
| Number of HDDs supported | 1 |
|---|---|
| Number of storage drives supported | 5 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
Graphics
| Graphics card | HD Graphics |
|---|---|
| Graphics card family | Intel |
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels pixels |
| Parallel processing technology support | Not supported |
Internal I/O
| 12V power connector | Yes |
|---|---|
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
Rear panel I/O ports
| DisplayPorts quantity | 2 |
|---|---|
| DVI-D ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB connector type | USB Type-A |
| VGA (D-Sub) ports quantity | 1 |
Network
| Ethernet interface type | Gigabit Ethernet |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
Expansion slots
| Number of M.2 (M) slots | 1 |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
BIOS
| ACPI version | 5.0 |
|---|---|
| BIOS memory size | 128 Mbit Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Battery
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
|---|---|
| Battery type | CR2032 |
| Battery weight | 3 g g |
| Lithium weight per battery | 0.07 g g |
| Number of battery cells | 1 |
Weight & dimensions
| Depth | 215 mm mm |
|---|---|
| Height | 35 mm mm |
| Width | 230 mm mm |
Technical details
| Warranty period | 3 year(s) year(s) |
|---|
