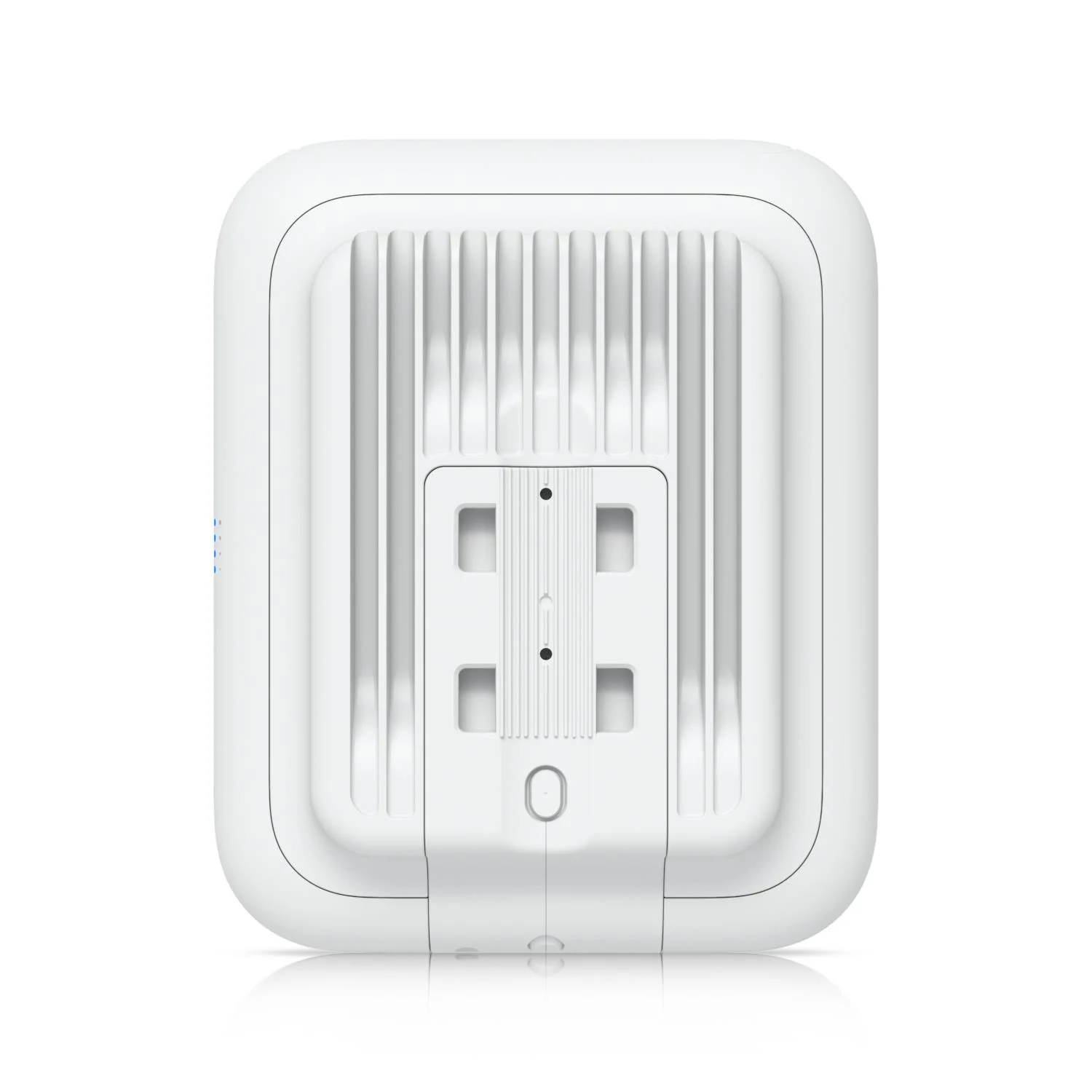

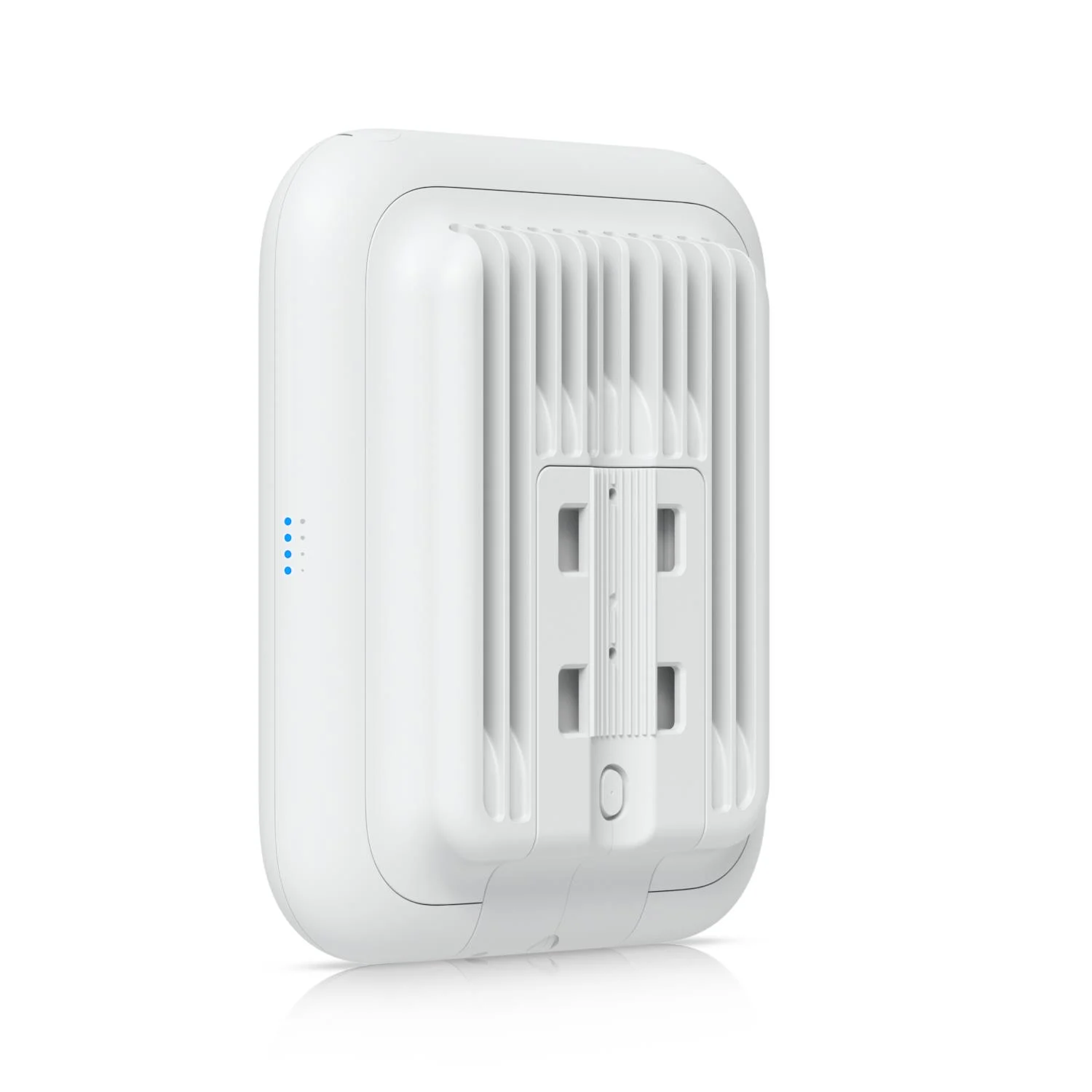

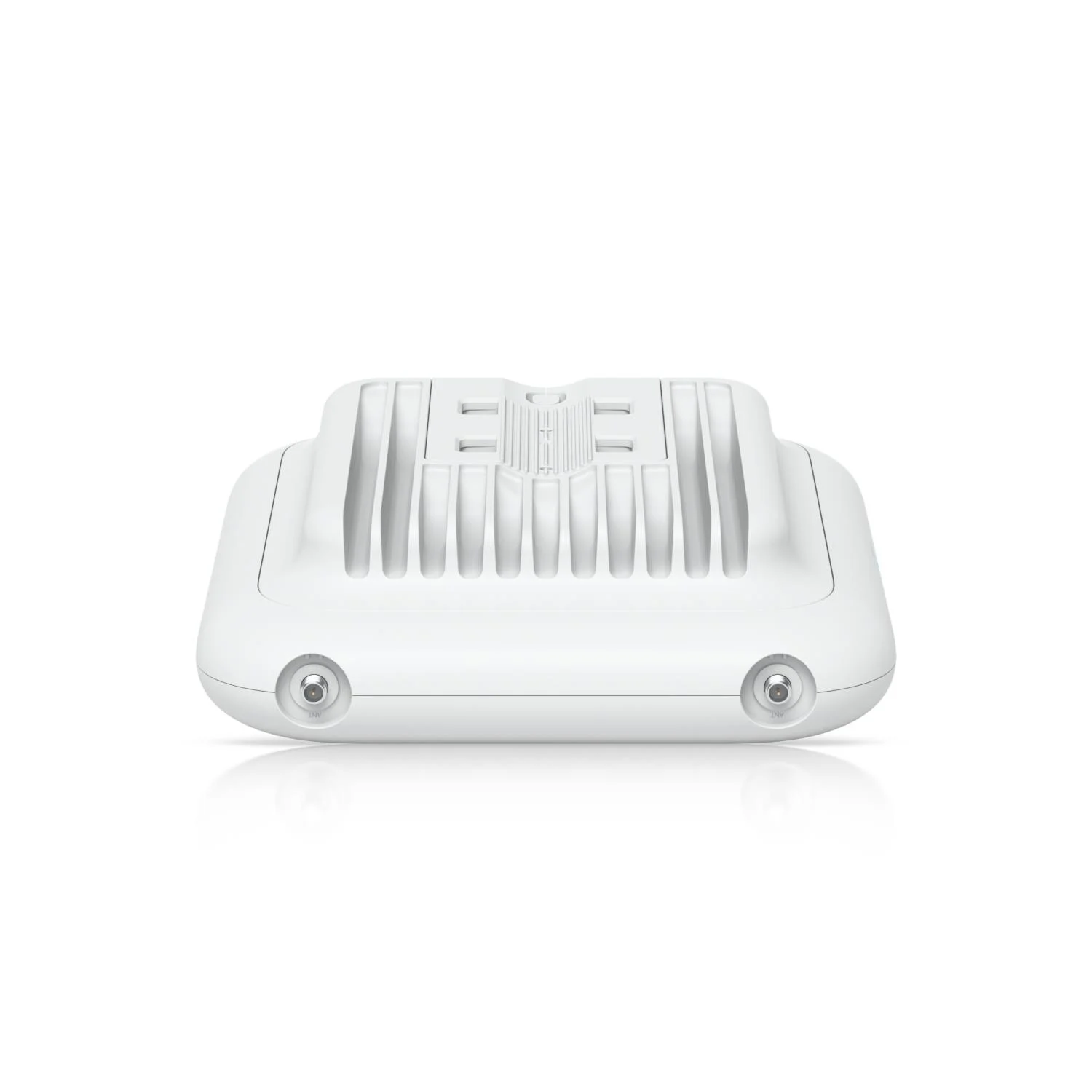

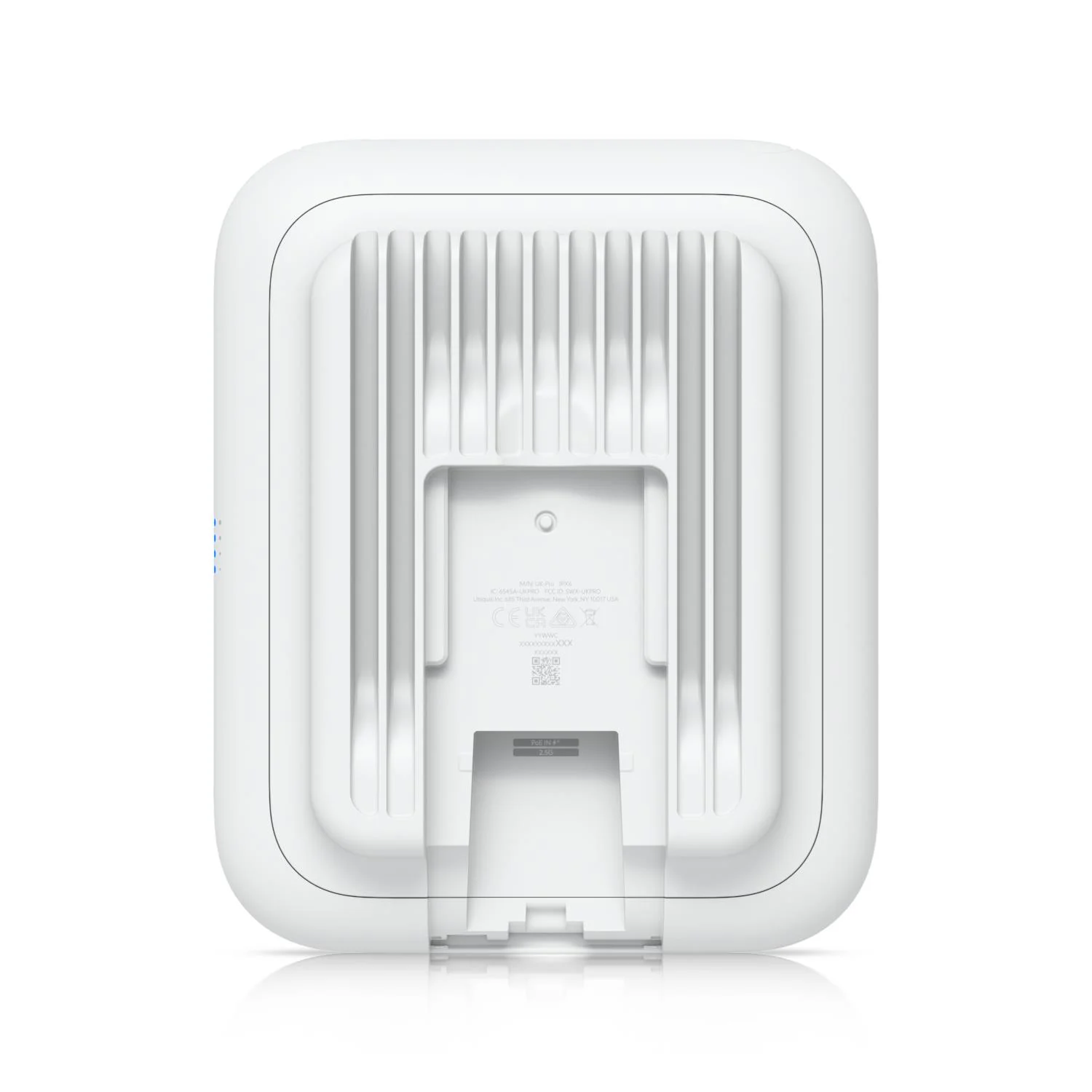

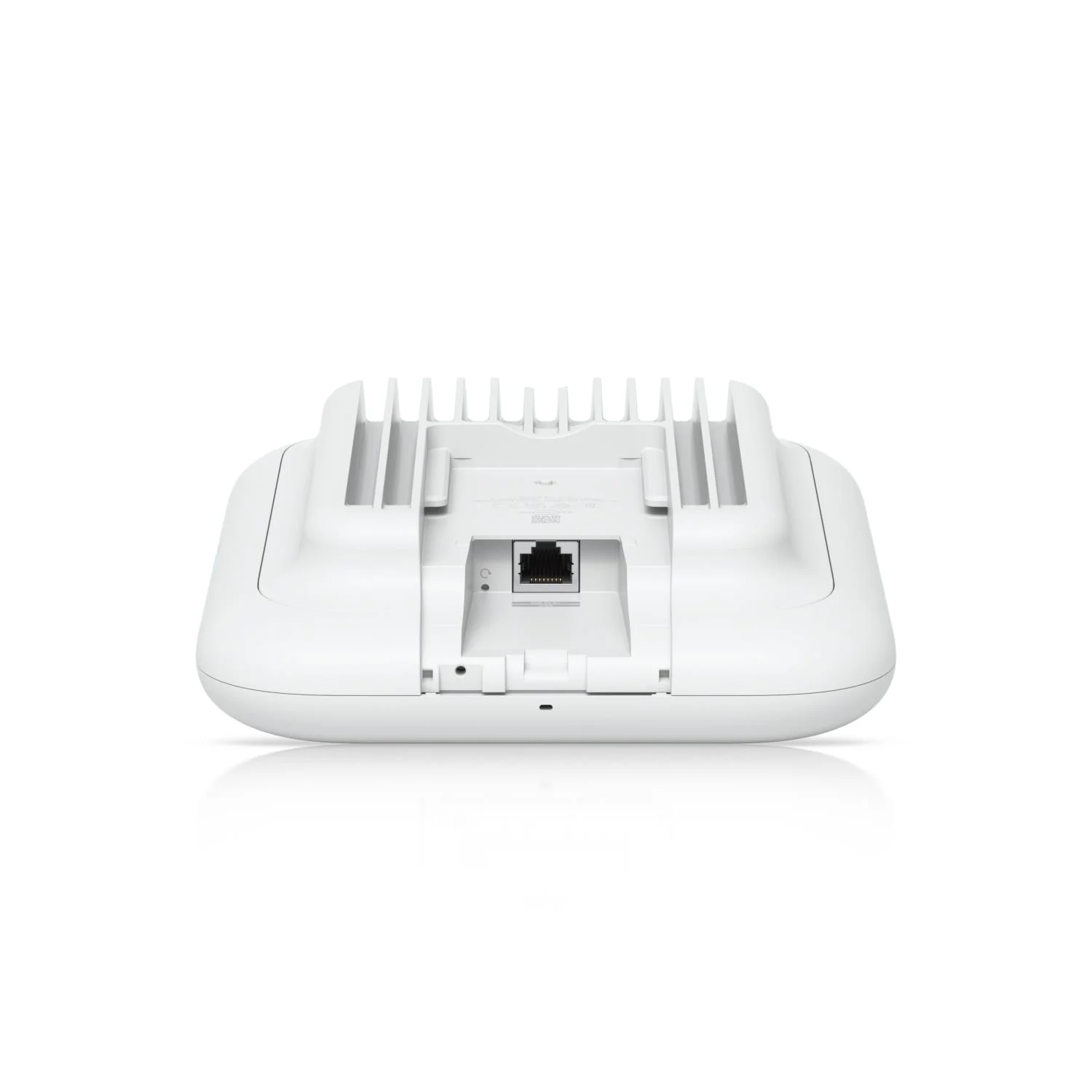

All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.
- WiFi 7
- 4 spatial streams
- 465 m² (5,000 ft²) open space coverage with the integrated directional super antenna
- Software-adjustable antenna beamwidth for balanced coverage with the kaasas omni antennas
- 200+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
- Versatile wall and pole mounting
- Weatherproof (outdoor exposed)
Tehnilised andmed
Üldine
| Tootja | Ubiquiti |
|---|---|
| Mudel | U7-Outdoor |
Features
| 2.4 Ghz | jah |
|---|---|
| 5 Ghz | jah |
| 6 Ghz | ei |
| Ethernet Lan Data Rates | 2500 Mbit/s Mbit/s |
| Sagedus Band | 2.4 – 5 GHz GHz |
| Maximum Data Transfer Rate | 4300 Mbit/s Mbit/s |
| Mimo | jah |
| Mimo Type | Multi User MIMO |
| Networking Standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at |
| Quality Of Service (Qos) Support | jah |
| Rate Limiting | jah |
| Spatial Streams | 4 |
| Throughput Data Rate | 4324 Mbit/s Mbit/s |
| Vlan Support | jah |
Security
| Security Algorithms | PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
|---|
Ports & interfaces
| Ethernet Lan (Rj-45) Ports | 1 |
|---|
Power
| Dc Pinge Range | 44 – 57 V V |
|---|---|
| Võimsus Consumption (Max) | 19 W W |
| Võimsus Over Ethernet (Poe) | jah |
Design
| Housing Materjal | Aluminium, Polycarbonate (PC) |
|---|---|
| International Protection (Ip) Code | IPX6 |
| Led Indicators | jah |
| Placement | Ceiling, Pole, Wall |
| Product Värv | valge |
| Recommended Usage | Outdoor |
| Reset Button | jah |
Antenna
| Antenna Pistik Type | RP-SMA |
|---|---|
| Antenna Direction Type | Omni-directional |
| Antenna Omadused | Detachable antenna |
| Antenna Gain Level (Max) | 12.5 dBi dBi |
| Antenna Type | External |
| Antennas Quantity | 2 |
| Number Of Connectors | 2 |
Weight & dimensions
| Sügavus | 54.5 mm mm |
|---|---|
| Kõrgus | 208 mm mm |
| Kaal | 1.2 kg g |
| Laius | 170 mm mm |
Operational conditions
| Operating Relative Humidity (H-H) | 5 – 95% % |
|---|---|
| Operating Temperature (T-T) | -30 – 60 °C °C |
