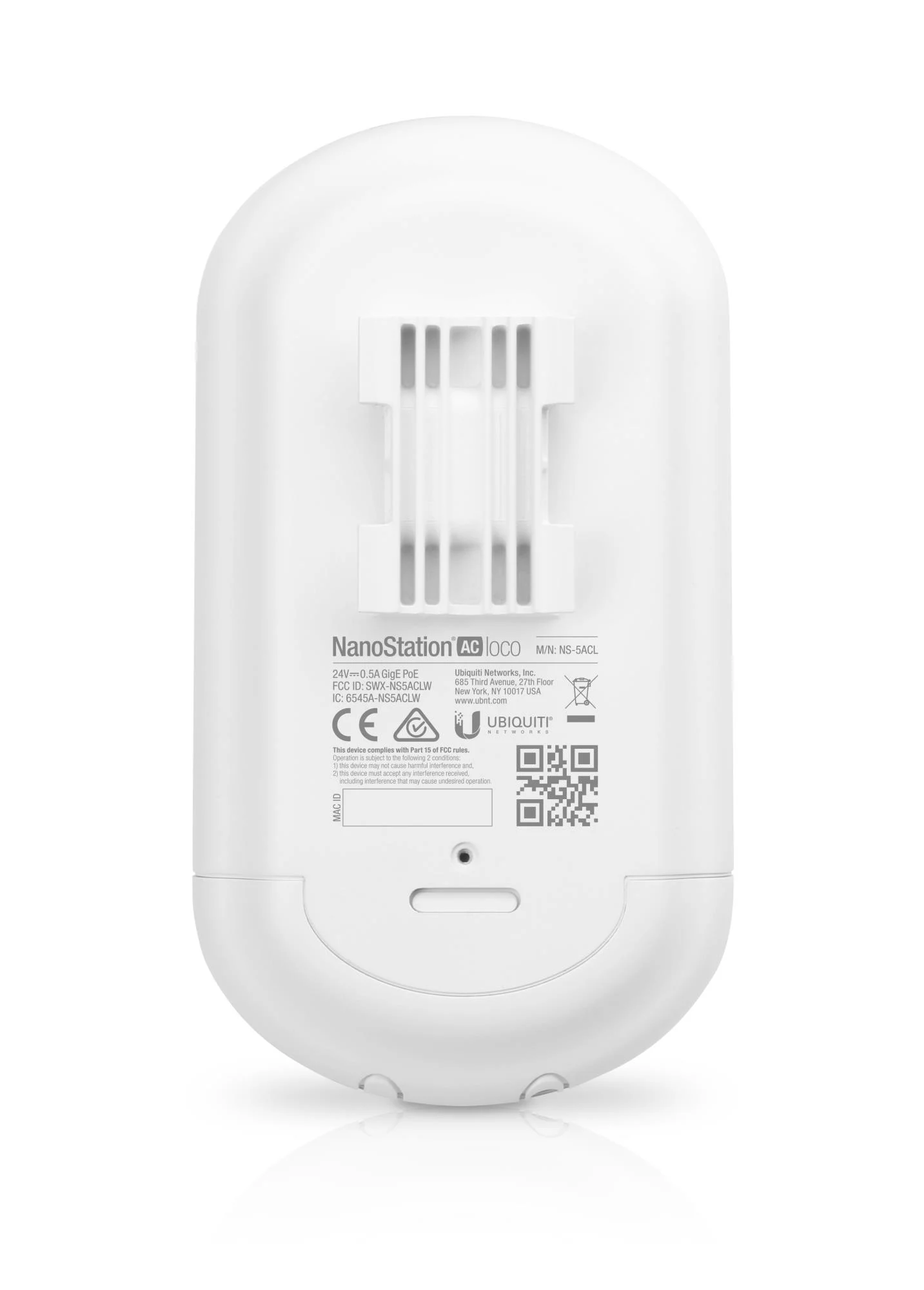

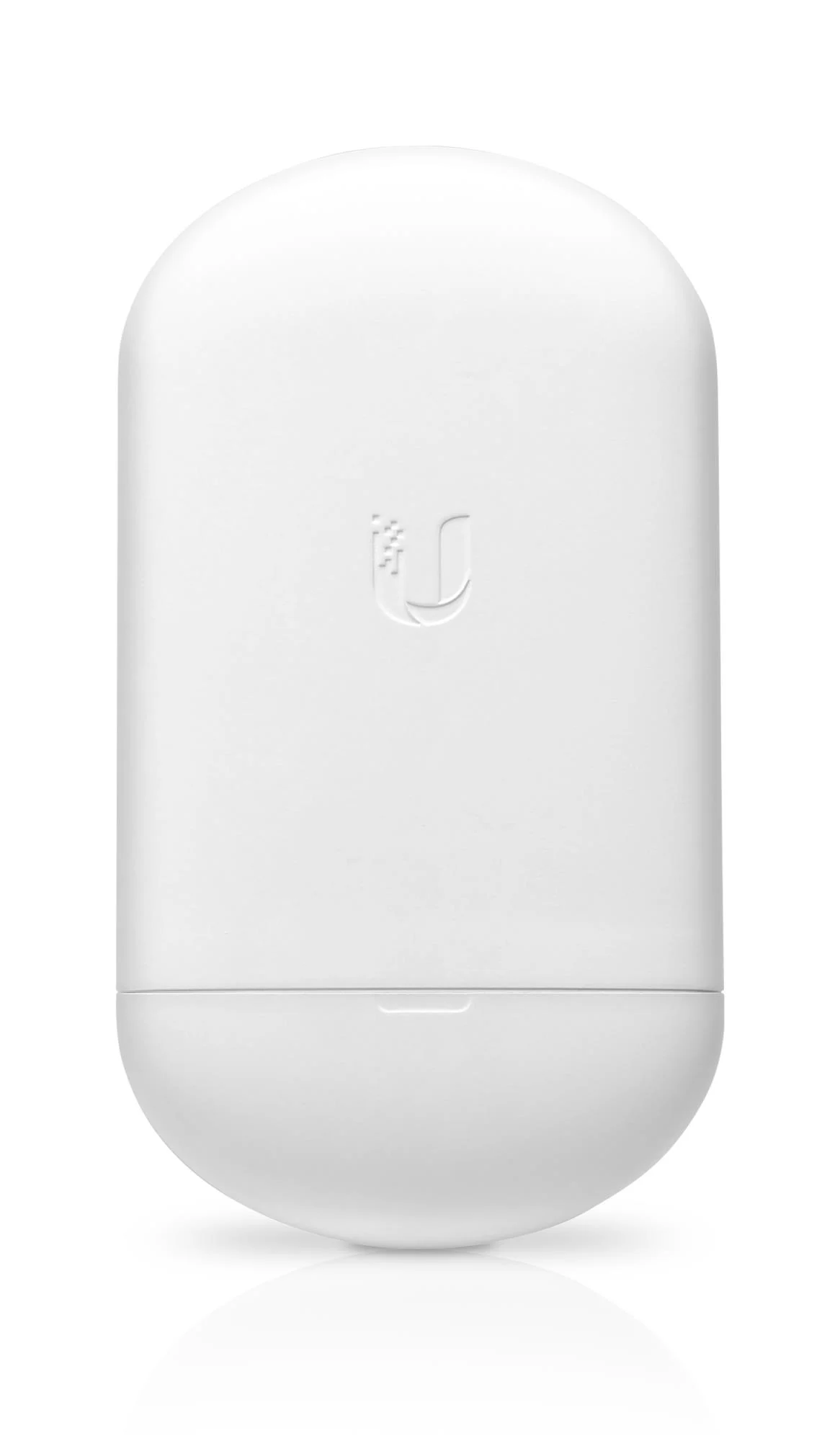

Ubiquiti LOCO5AC juhtmevaba pääsupunkt

The indoor/outdoor NanoStation® AC and NanoStation AC loco are compact, high-performance CPEs featuring airMAX® AC technology and a dedicated Wi-Fi radio for management.

Sleek Industrial Design
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the juhtmevaba ISP industry.

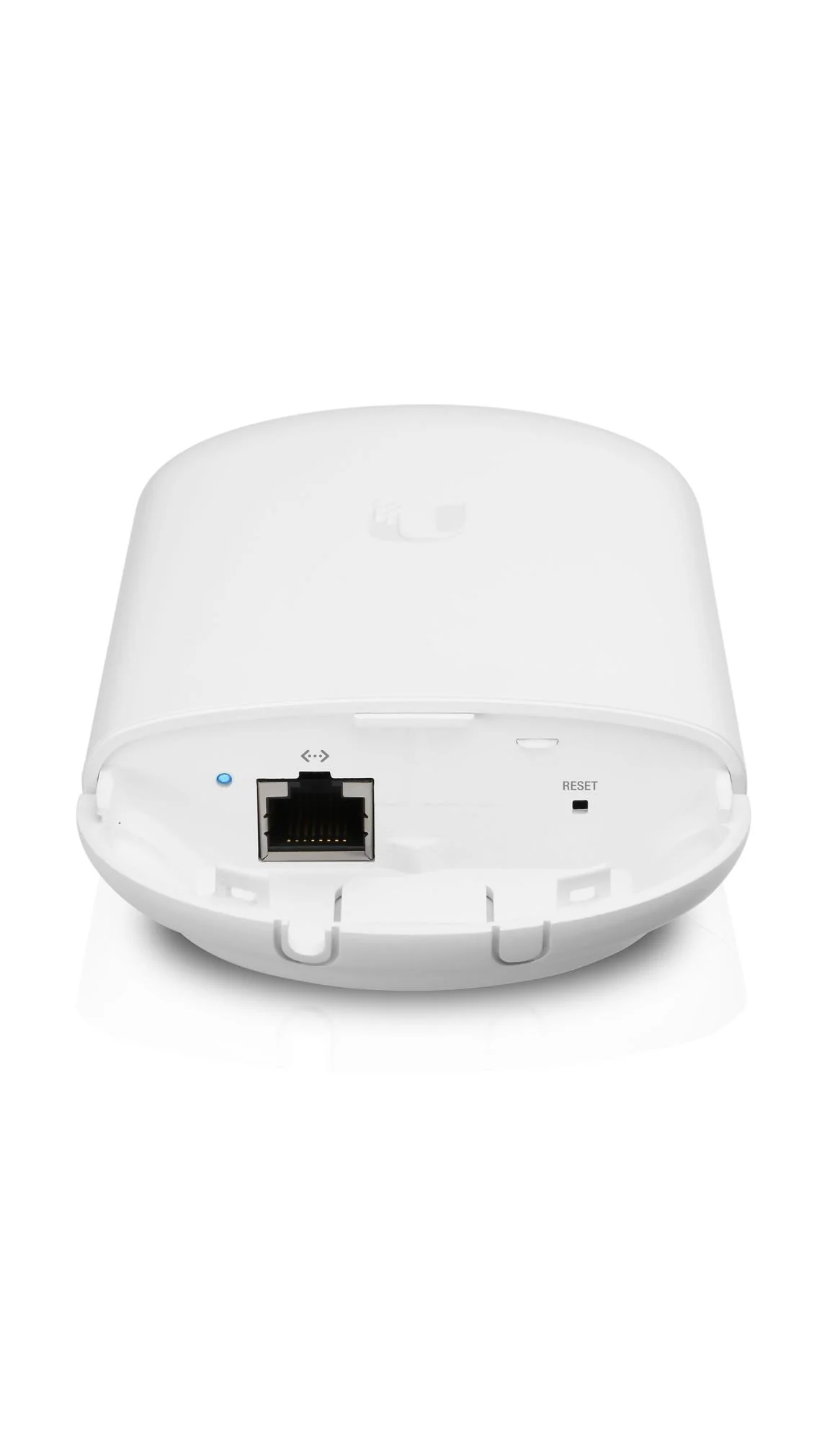

Dual Ethernet Connectivity
The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently võimsus an external device, such as a PoE security camera, for seamless IP video integration.

Management Wi-Fi Radio
Each NanoStation AC mudel integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.

Now with airOS®8
airOS®8 provides powerful omadused, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Tehnilised andmed

Üldine

Tootja	Ubiquiti
Mudel	UBIQUITI airMAX NanoStation 5AC Loco

Features

5 Ghz	jah
Ethernet Lan Data Rates	10/100/1000 Mbit/s
Sagedus Band	5.150 – 5.250, 5.250 – 5.350, 5.470 – 5.725, 5.725 – 5.850 GHz GHz
Maximum Data Transfer Rate	1000 Mbit/s Mbit/s
Maximum Outdoor Range	10000 m m
Modulation	16-QAM/256-QAM/64-QAM/BPSK/QPSK
Throughput Data Rate	450 Mbit/s Mbit/s

Ports & interfaces

Ethernet Lan (Rj-45) Ports	1

Power

Ac Input Pinge	24 V V
Input Current	0.5 A A
Võimsus Over Ethernet (Poe)	jah

Design

Led Indicators	Network/võimsus/Signal strength
Placement	Ceiling
Product Värv	valge

Antenna

Antenna Type	Internal

Performance

Built-In Processor	jah
Internal Mälu	64 MB MB
Operating System Installed	AirOS

Weight & dimensions

Sügavus	77.5 mm mm
Kõrgus	59.1 mm mm
Kaal	180 g g
Laius	179 mm mm

Operational conditions

Operating Relative Humidity (H-H)	5 – 95% %
Operating Temperature (T-T)	-40 – 70 °C °C
