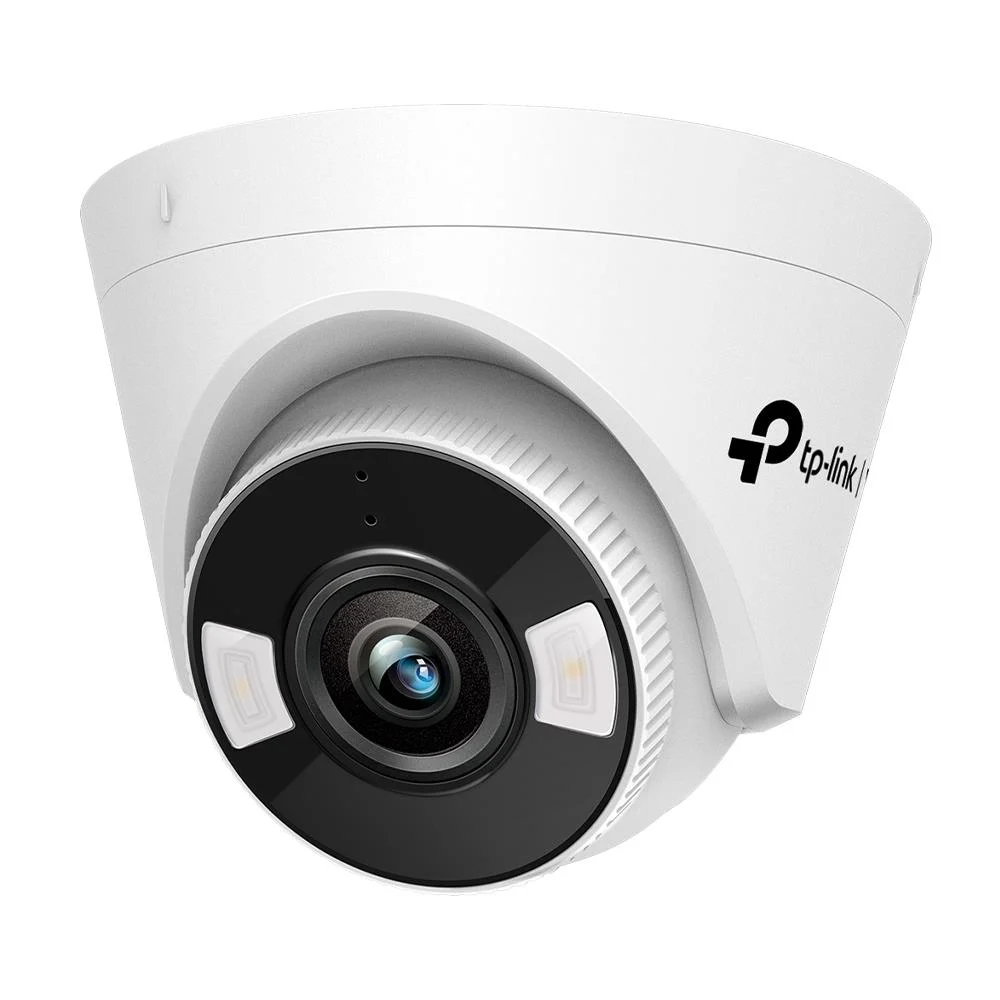

TP-Link VIGI C430 on täisväärtuslik IP-turvakamera, mis sobib nii sisemiseks kui ka väliseks paigaldamiseks. Kompaktne turretkujuline disain ja must/valge värvi variant muudavad selle mitmeküljeks lahenduseks erinevate keskkondade jaoks.
Kaamera pakub stabiilset videovalvet tänu 3 megapikslilisele CMOS-andurite ja H.264 kodeeringule. Lai dünaamiline ulatus (WDR) tagab selge pildi nii eredates kui ka nõrkades valgustingimustes. Kaamera toetab päeva/öö režiimi ja 30 meetri pikkust öönägemise vahemaad, mis tagab jälgimise ka madala valgusintensiivsusega keskkondades (minimaalne valgustus 0,005 lx).
Lihtne paigaldamine on tagatud Ethernet LAN-ühenduse ja PoE/DC toiteallikatega. Sisseehitatud mikrofon võimaldab helimonitoreerimist, muutes kaamerat veelgi funktsionaalsemaks.
- Resolutsioon: 3 MP
- Objektiiv: 2,8 mm
- Sensor: CMOS, 1/2,8″
- Kaadrisagedus: 25 fps
- Öönägemine: kuni 30 m
- Laiendynaamika: jah
- Päeva/öö režiim: jah
- Toiteallikas: PoE / DC
- Ühendus: Ethernet LAN
- Mikrofon: sisseehitatud
- Paigutus: siseruumi ja väliruumi
Tehnilised andmed
Üldine
| Tootja |
Tp-Link |
| Mudel |
VIGI C430(4MM) |
Design
| Form factor |
Turret |
| Housing material |
Plastic |
| Mounting type |
Ceiling |
| Product colour |
Black, White |
Performance
| Connectivity technology |
Wired |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Wide Dynamic Range (WDR) |
Yes |
Camera
| Lens viewing angle, diagonal |
128.7° ° |
| Lens viewing angle, horizontal |
107.5° ° |
| Lens viewing angle, vertical |
57.2° ° |
| Minimum illumination |
0.005 lx lx |
Image sensor
| Number of sensors |
1 |
| Optical sensor size |
25.4 / 2.8 mm (1 / 2.8″) " |
| Progressive scan |
Yes |
| Sensor type |
CMOS |
Lens system
| Fixed focal length |
2.8 mm mm |
| Number of lenses |
1 |
Night vision
| Night vision |
Yes |
| Night vision distance |
30 m m |
Video
| 3D positioning |
Yes |
| Back Light Compensation (BLC) |
Yes |
| Bit rate |
64 Kbps – 4 Mbps |
| Digital Wide Dynamic Range (DWDR) |
Yes |
| Frame rate |
25 fps fps |
| Highlight Compensation (HLC) |
Yes |
| Image quality adjustment |
Brightness, Contrast, Mirror, Saturation |
| Maximum resolution |
2304 x 1296 pixels pixels |
| Privacy masking |
Yes |
| Region of Interest (ROI) encoding |
Yes |
| Smart IR |
Yes |
| Supported graphics resolutions |
320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296 |
| Total megapixels |
3 MP MP |
| Video compression formats |
H.264, H.264+, H.265, H.265+ |
Audio
Network
| Bluetooth |
No |
| Ethernet LAN |
Yes |
| Live view |
Yes |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Number of simultaneous live view channels |
3 channels channels |
| Supported network protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Wi-Fi |
No |
Storage
Ports & interfaces
| Ethernet LAN (RJ-45) ports |
1 |
Security
| Active tampering alarm |
Yes |
| Digest authentication |
Yes |
| HTTPS encryption |
Yes |
| Human and vehicle targets classification |
Yes |
| Intelligent Video Surveillance (IVS) system features |
Human detection, Vehicle detection |
| IP address filtering |
Yes |
| Mirror |
Yes |
| Password protection |
Yes |
| Password reset via email |
Yes |
| Video motion detection |
Yes |
Management features
| Behavior analysis |
Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection |
Power
| Power consumption (max) |
4.2 W W |
| Power source type |
DC, PoE |
Operational conditions
| Operating temperature (T-T) |
-30 – 60 °C °C |
Weight & dimensions
| Depth |
83 mm mm |
| Height |
123 mm mm |
| Width |
123 mm mm |
