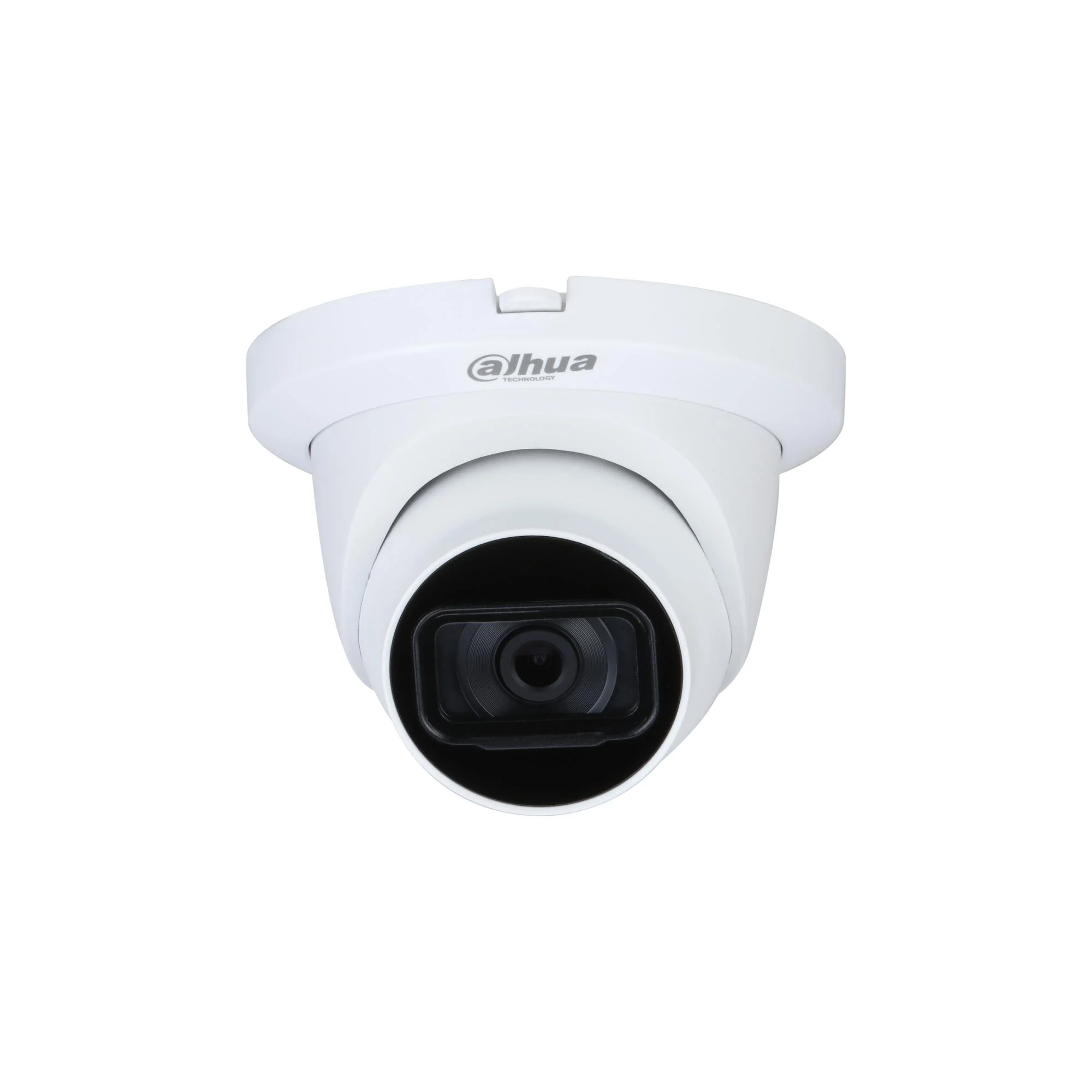

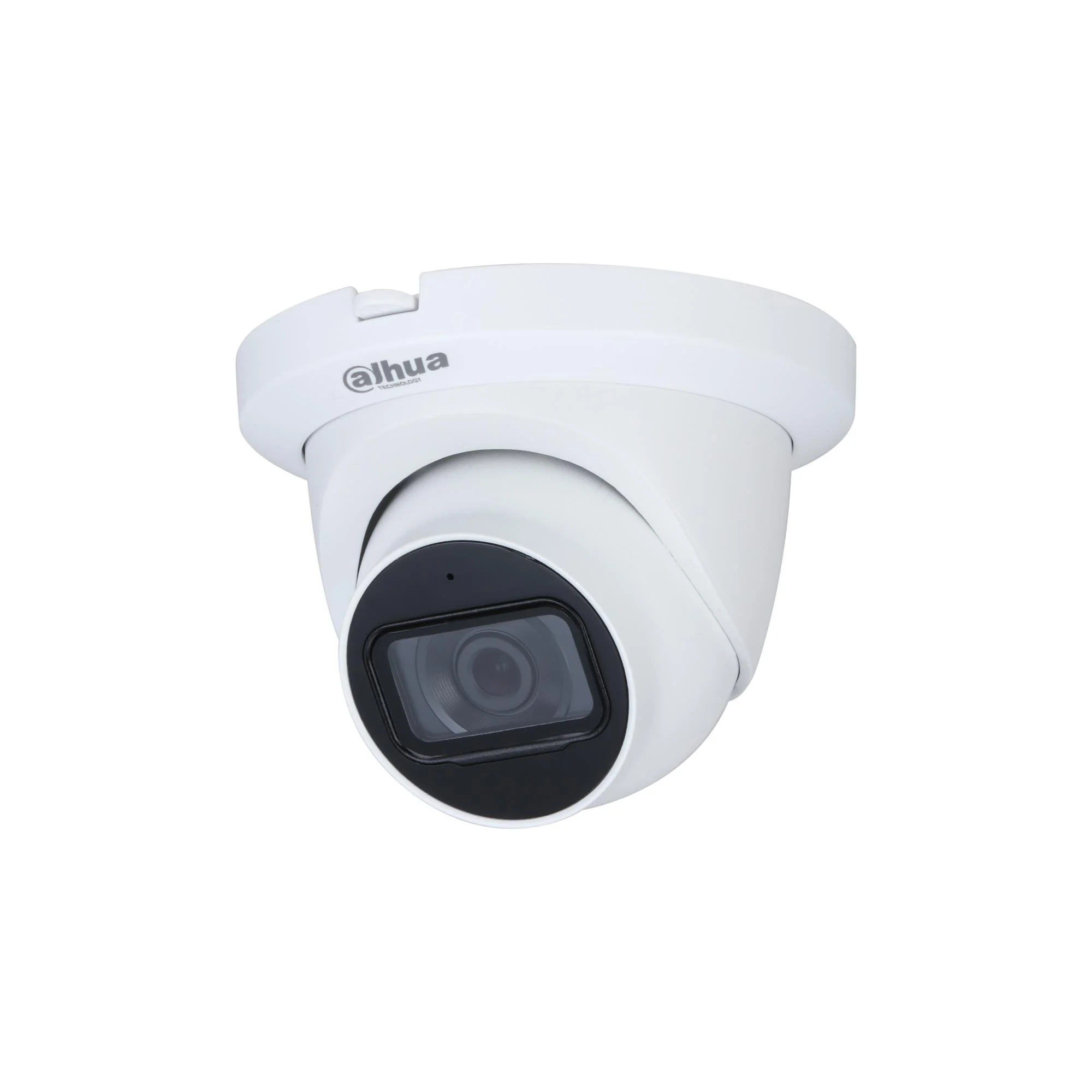

Dahua HAC-HDW1231TLMQ-A-0280B on professionaalne 2MP HDCVI turvakaamera, mis on disainitud usaldusväärseks välisturvalisuse jälgimiseks. Kaamera pakub kõrge kvaliteediga videojälgimist päeva ja öö jooksul ning sobib kasutamiseks erinevates keskkonnatingimustes.
Kaamera omab IP67 klassifitseeringu, mis tagab tõhusa kaitse tolmu ja vee eest. Lai dünaamiliste vahemike (WDR) tehnoloogia parandab videokvaliteeti nõrgas valguses ja kõrgkontrastsetes stseenides. Elektronilise lukustusega kaamera ja 1/2.8″ CMOS sensor tagavad teravad ja selged pildid.
Paigutus on paindlik – kaamera saab paigaldada laes, seinale või poolile. Kaasasolev sisseehitatud mikrofon võimaldab helimonitoorimist. Kaamera kasutab DC toiteallikat ja kaalub 350 g.
- Resolutsioon: 2 megapikselit
- Kaadersagedus: 30 fps
- Objektiiv: 2,8 mm
- IP kood: IP67
- Sensorit: CMOS 1/2.8″
- Tuvastamisulatuse: 4,4 m
- Päeva/öö režiim: jah
- Lai dünaamiliste vahemiku (WDR): jah
- Müra vähendamine: jah
- Sisseehitatud mikrofon: jah
- Toiteallikas: DC
- Värvus: valge
- Kaal: 280 g
Tehnilised andmed
Üldine
| Tootja |
Dahua |
| Mudel |
Technology Lite HAC-HDW1231TLMQ-A-0280B |
Performance
| Connectivity technology |
Wired |
| Day/night mode |
Yes |
| Placement supported |
Outdoor |
| Type |
IP security camera |
| Wide Dynamic Range (WDR) |
Yes |
Design
| Form factor |
Dome |
| Housing material |
Metal, Plastic |
| International Protection (IP) code |
IP67 |
| Mounting type |
Ceiling/Wall/Pole |
| Product colour |
White |
Camera
| Angle of rotation |
360° ° |
| Camera pan control |
Yes |
| Camera shutter type |
Electronic |
| Camera tilt control |
Yes |
| Lens viewing angle, diagonal |
127° ° |
| Lens viewing angle, horizontal |
107° ° |
| Lens viewing angle, vertical |
56° ° |
| Pan range |
0 – 360° ° |
| Tilt angle range |
0 – 78° ° |
| White balance |
Auto |
Image sensor
| Number of effective pixels (H x V) |
1920 x 1080 pixels pixels |
| Optical sensor size |
25.4 / 2.8 mm (1 / 2.8″) " |
| Sensor type |
CMOS |
Lens system
| Closest focusing distance |
0.7 m m |
| Detect distance |
43.9 m m |
| Fixed focal length |
2.8 mm mm |
| Identify distance |
4.4 m m |
| Maximum aperture number |
1.6 |
| Observe distance |
17.5 m m |
| Recognize distance |
8.8 m m |
Video
| Analog signal format system |
NTSC, PAL |
| Back Light Compensation (BLC) |
Yes |
| Frame rate |
30 fps fps |
| Gain control type |
Auto/Manual |
| Highlight Compensation (HLC) |
Yes |
| Maximum resolution |
1920 x 1080 pixels pixels |
| Noise reduction |
Yes |
| Noise reduction technology |
3D noise reduction |
| Privacy masking |
Yes |
| Smart IR |
Yes |
| Supported graphics resolutions |
960 x 480, 960 x 576, 1920 x 1080 (HD 1080) |
| Supported video modes |
480p, 576p, 1080p |
| Total megapixels |
2 MP MP |
Audio
| Audio input channels |
1.0 channels channels |
| Built-in microphone |
Yes |
| Signal-to-Noise Ratio (SNR) |
65 dB dB |
Network
| Bluetooth |
No |
| Ethernet LAN |
No |
| Wi-Fi |
No |
Storage
Ports & interfaces
| BNC output ports |
1 |
| DC-in jack |
Yes |
Security
Power
| DC output voltage |
12 |
| Power consumption (max) |
3.1 W W |
| Power source type |
DC |
Operational conditions
| Operating temperature (T-T) |
-40 – 60 °C °C |
| Storage temperature (T-T) |
-40 – 60 °C °C |
Weight & dimensions
| Diameter |
11 cm mm |
| Height |
88.1 mm mm |
| Weight |
280 g g |
