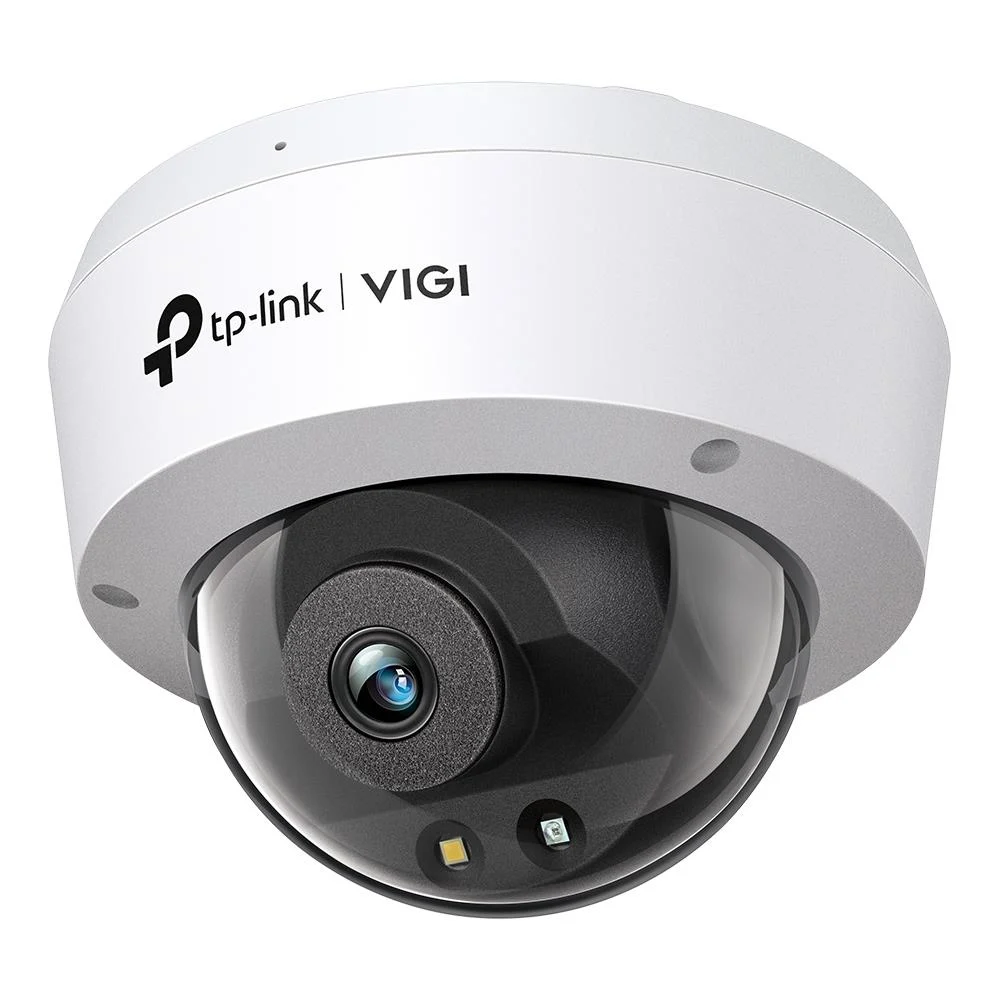

TP-Link VIGI C230(2.8MM) on professionaalne 3 megapikselise resolutsiooniga IP dome kaamera, mis sobib nii sisekasutusele kui ka välistingimustesse paigaldamiseks. Kaamera on IP67 klassifitseeritud ja paindlik lahendus turvalisuse jälgimiseks erinevates keskkondades.
Kaamera pakub toimivaid öönägemise võimalusi kuni 30 meetri kaugusele, mis tagab selge jälgimise nõrgates valgustingimustes. CMOS anduriga varustatud kaamera sisaldab müra vähendamise funktsiooni teravate ja selgete piltide jaoks. Sisseehitatud mikrofoniga saate jälgida nii visuaalselt kui ka kuulata keskkonda reaalajas.
- Resolutsioon: 3 MP
- Andurite tüüp: CMOS
- Objektiiv: 2,8 mm
- Öönägemine: kuni 30 meetrit
- IP klass: IP67
- Pöördamisvahemik: 0–360°
- Ühendus: Ethernet LAN, juhtmega toide (DC)
- Sisseehitatud mikrofon: jah
- Müa vähendamine: jah
- Päeva/öö režiim: automaatne
Tehnilised andmed
Üldine
| Tootja |
Tp-Link |
| Mudel |
VIGI C230(2.8MM) |
Design
| Form factor |
Dome |
| Housing material |
Plastic |
| IK code |
IK10 |
| International Protection (IP) code |
IP67 |
| Mounting type |
Ceiling |
| Product colour |
White |
Performance
| Connectivity technology |
Wired |
| Day/night mode |
Yes |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
Camera
| Angle of rotation |
360° ° |
| Camera pan control |
Yes |
| Camera tilt control |
Yes |
| Lens viewing angle, diagonal |
128.7° ° |
| Lens viewing angle, horizontal |
107.5° ° |
| Lens viewing angle, vertical |
57.2° ° |
| Minimum illumination |
0 lx lx |
| Pan range |
0 – 360° ° |
| Tilt angle range |
0 – 85° ° |
Image sensor
| Optical sensor size |
25.4 / 2.8 mm (1 / 2.8″) " |
| Sensor type |
CMOS |
Lens system
| Fixed focal length |
2.8 mm mm |
Night vision
| Infra-red wavelength |
850 nm nm |
| LED type |
IR |
| Night vision |
Yes |
| Night vision distance |
30 m m |
| Number of illumination LEDs |
1 |
Video
| Back Light Compensation (BLC) |
Yes |
| Digital Wide Dynamic Range (DWDR) |
Yes |
| Highlight Compensation (HLC) |
Yes |
| Image quality adjustment |
Brightness, Contrast, Mirror, Saturation, Sharpness |
| Maximum resolution |
2304 x 1296 pixels pixels |
| Noise reduction |
Yes |
| Noise reduction technology |
3D noise reduction |
| Privacy masking |
Yes |
| Smart IR |
Yes |
| Supported graphics resolutions |
320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296 |
| Total megapixels |
3 MP MP |
| Video compression formats |
H.264, H.264+, H.265, H.265+ |
| Video streaming |
Yes |
Audio
Network
| Bluetooth |
No |
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Supported network protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Wi-Fi |
No |
Storage
Security
| Active tampering alarm |
Yes |
| HTTPS encryption |
Yes |
| IP address filtering |
Yes |
| Mirror |
Yes |
| Password protection |
Yes |
| Password reset via email |
Yes |
| Video motion detection |
Yes |
Power
| DC output voltage |
12 |
| Power consumption (max) |
4.7 W W |
| Power source type |
DC |
Operational conditions
| Operating temperature (T-T) |
-30 – 60 °C °C |
Weight & dimensions
| Depth |
86 mm mm |
| Height |
115 mm mm |
| Width |
115 mm mm |
