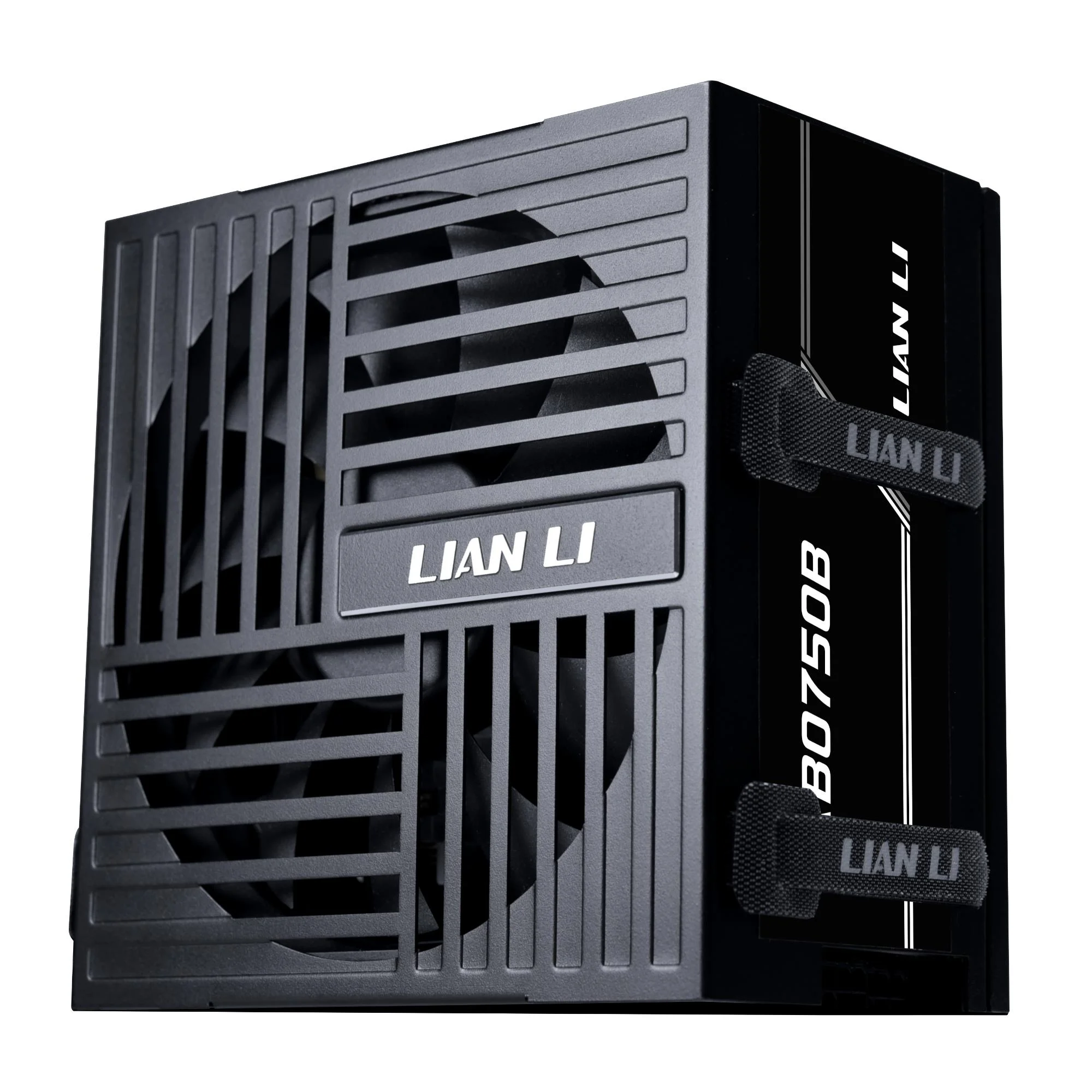

Lian Li RB PSU on usaldusväärseks arvutisüsteemile mõeldud 750W toiteplokk, mis vastab ATX 3.1 standardile. Seade pakub stabiilset võimsust arvutis ja peripheraalseadmetes, kasutades aktiivset Power Factor Correction (PFC) tehnoloogiat energiatõhususe parandamiseks.
80+ Bronze sertifikaadiga toiteplokk tagab 85% keskmise kasuteguri, mis vähendab soojuse arengut ja elektrikulu. Mittemodulaarses konstruktsioonis kasutatakse stabiilseid ühendusi ilma paistvate kaabliteta. Tüüpi ribakujuline ventilaator (135 mm läbimõõt) hoiab jahutuse 40,1 dB müratasemel.
- Võimsus: 750W koguarvutus, +12V liini peal kuni 62,5A
- Sertifikaat: 80+ Bronze, 85% kasutegur
- Sissepääs: 100–240V vahelduvvool, 50/60 Hz, 10A sisendvool

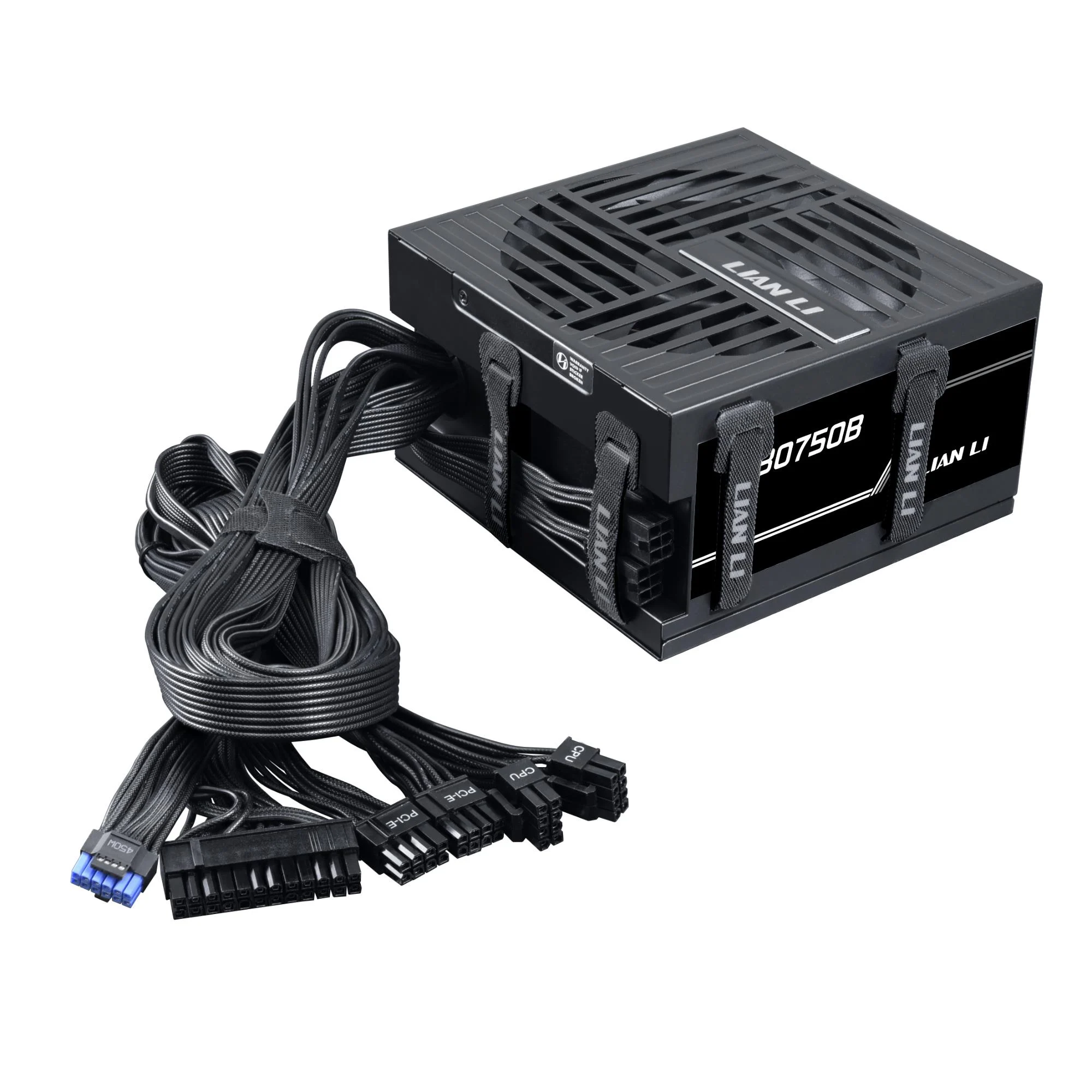

- Pistikud: 24-pin ATX motherboard, 4+4pin CPU, 8-pin EPS, 4× PCIe 6+2, 3× PATA, 1× floopia
- Kaablipikkused: 65 cm CPU kaabel, 60 cm motherboard kaabel
- Jahutus: 135 mm ventilaator, 40,1 dB müra
- Standard: ATX 3.1, mittemodulaaritud juurutus
Tehnilised andmed
Üldine
| Tootja | Lian Li |
|---|---|
| Mudel | RB PSU G9P.RB0750B.B000.EU |

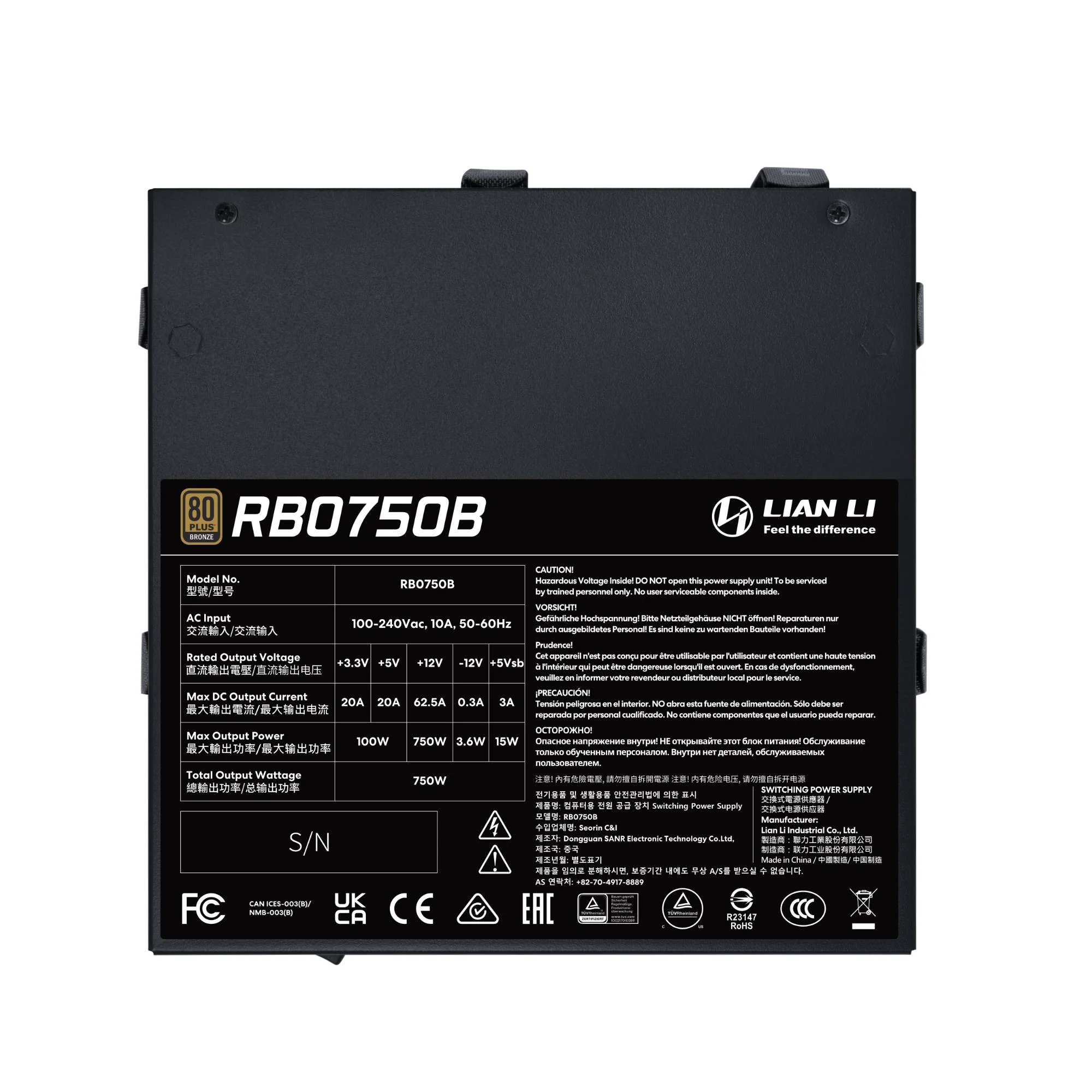

Power
| AC input frequency | 50/60 Hz Hz |
|---|---|
| AC input voltage | 100 – 240 V V |
| Combined power (+12V) | 750 W W |
| Combined power (+3.3V) | 100 W W |
| Combined power (+5V) | 100 W W |
| Combined power (+5Vsb) | 15 W W |
| Combined power (-12V) | 3.6 W W |
| Efficiency | 85% % |
| Input current | 10 A A |
| Max output current (+12V) | 62.5 A A |
| Max output current (+3.3V) | 20 A A |
| Max output current (+5V) | 20 A A |
| Max output current (+5Vsb) | 3 A A |
| Max output current (-12V) | 0.3 A A |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under temperature, Under voltage |
| Total power | 750 W W |
Ports & interfaces
| ATX Power connector (24-pin) | Yes |
|---|---|
| Cabling type | Non-Modular |
| CPU power cable length | 65 cm mm |
| CPU power connector (4+4 pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Motherboard power cable length | 60 cm mm |
| Motherboard power connector | 24-pin ATX |
| Number of PATA power connectors | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
Performance
| 80 PLUS certification | 80 PLUS Bronze |
|---|---|
| ATX version | 3.1 |
| Noise level | 40.1 dB dB |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
Design
| Fan diameter | 13.5 cm mm |
|---|---|
| Fan speed | 0 – 1600 RPM RPM |
| Number of fans | 1 fan(s) fan(s) |
| Product colour | Black |
Weight & dimensions
| Depth | 150 mm mm |
|---|---|
| Height | 150 mm mm |
| Width | 86 mm mm |
