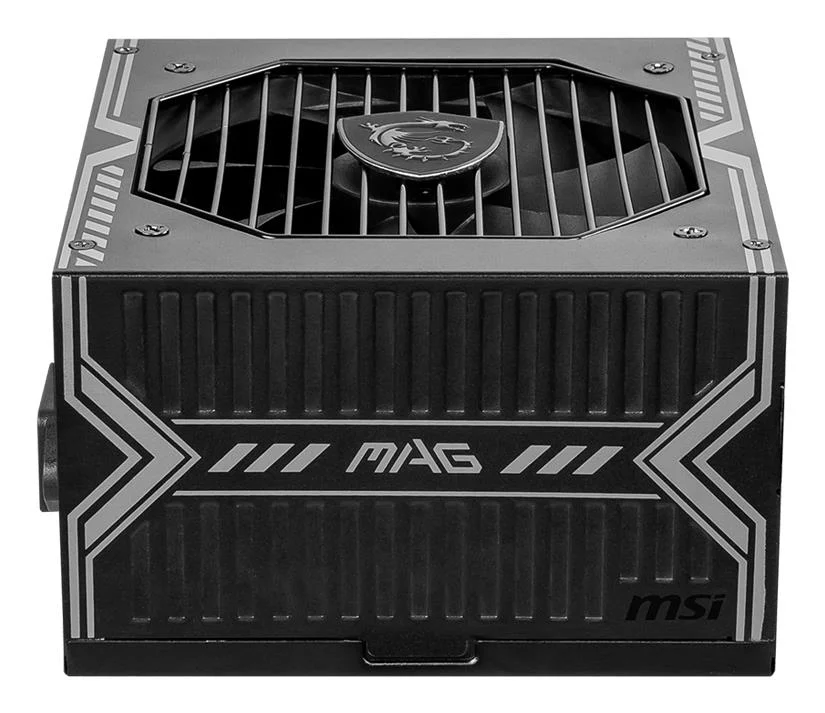

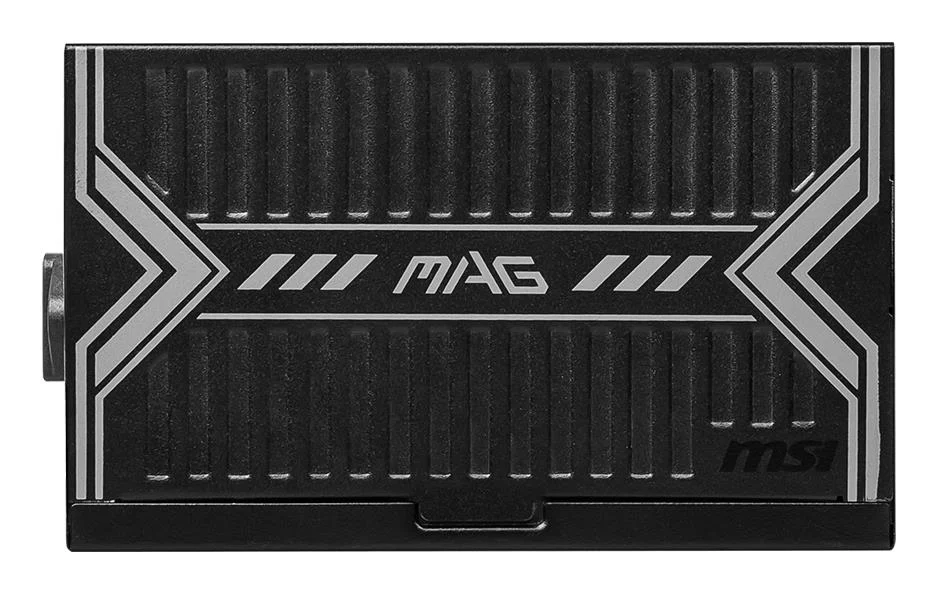

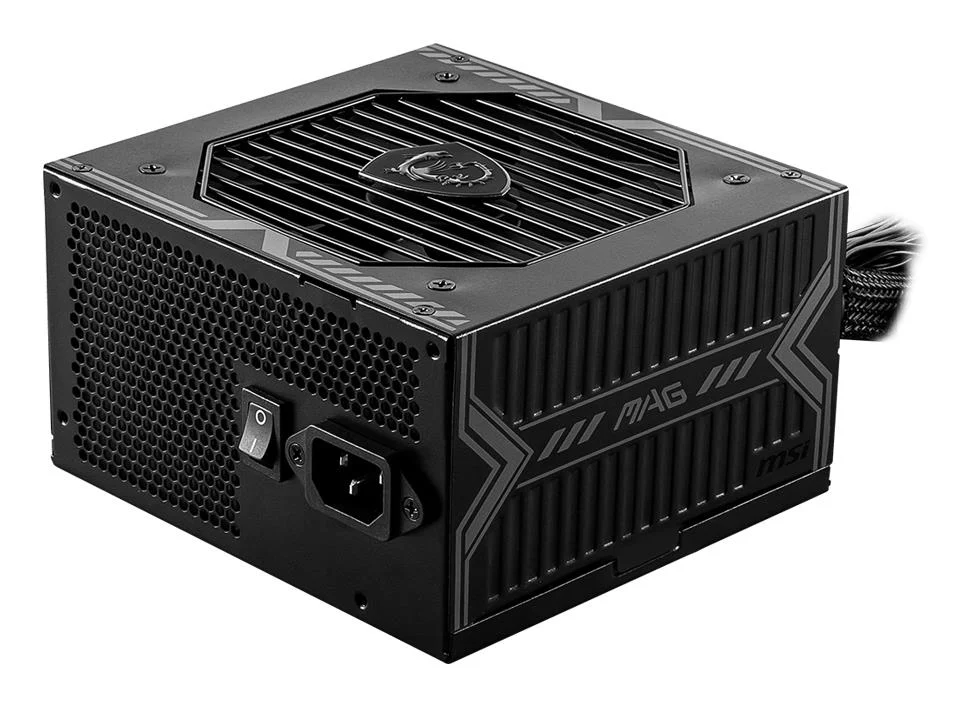

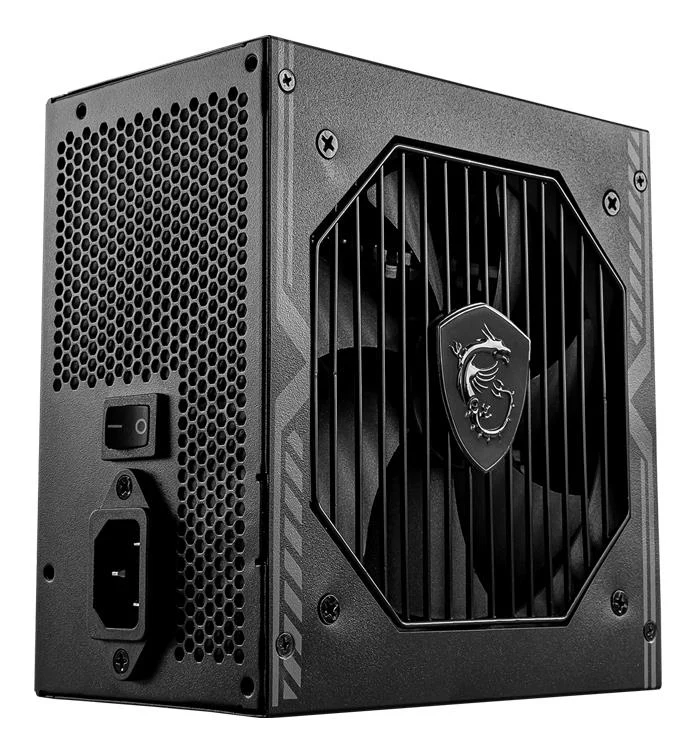

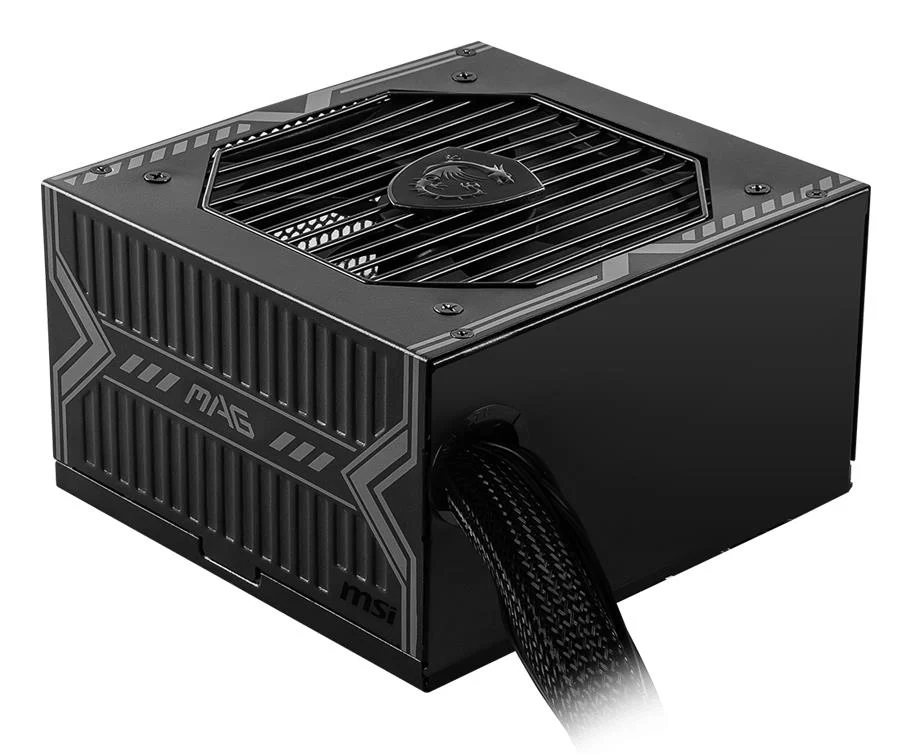

MSI MAG A550BN on usaldusväärne 550 W toiteplokk, mis on mõeldud keskmise kuni kõrgema võimsusega personaalarvutitele. See mudel ühendab head efektiivsust ja stabiilset toiteallikat konkurentsitingimustes hinna juures.
Toiteplokk on varustatud 120 mm fänniga, mis tagab optimaalse jahutuse ka kõrgema koormuse ajal. Aktiivne PFC (Power Factor Correction) parandab energiatõhusust ja vähendab võrgu koormamist. 80 PLUS Bronze sertifikaat tähendab, et seade tagab vähemalt 82% efektiivsuse nimikoormusel.
- Võimsus: 550 W
- Efektiivsus: 85%
- Sertifikaat: 80 PLUS Bronze
- Vormi tegur: ATX
- Sisendpinge: 100–240 V AC
- Jahutamise viis: 120 mm ventilaator
- Funktsioonid: Aktiivne PFC
Tehnilised andmed
Üldine
| Tootja | MSI |
|---|---|
| Mudel | MAG A550BN |
Power
| AC input frequency | 50 – 60 Hz Hz |
|---|---|
| AC input voltage | 100 – 240 V V |
| Combined power (+12V) | 546 W W |
| Combined power (+3.3V) | 110 W W |
| Combined power (+5V) | 110 W W |
| Combined power (+5Vsb) | 12.5 W W |
| Combined power (-12V) | 3.6 W W |
| Efficiency | 85% % |
| Max output current (+12V) | 45.5 A A |
| Max output current (+3.3V) | 20 A A |
| Max output current (+5V) | 20 A A |
| Max output current (+5Vsb) | 2.5 A A |
| Max output current (-12V) | 0.3 A A |
| Maximum input current (@110V) | 8 A A |
| Maximum input current (@220V) | 4 A A |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |
| Total power | 550 W W |
Ports & interfaces
| ATX power connector (20+4 pin) | No |
|---|---|
| ATX Power connector (24-pin) | No |
| Cabling type | Non-Modular |
| CPU power connector (4+4 pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | No |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Motherboard power cable length | 60 cm mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
Performance
| 80 PLUS certification | 80 PLUS Bronze |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
Design
| Cooling type | Active |
|---|---|
| Fan diameter | 12 cm mm |
| Number of fans | 1 fan(s) fan(s) |
| On/off switch | Yes |
| Product colour | Black |
Weight & dimensions
| Depth | 140 mm mm |
|---|---|
| Height | 86 mm mm |
| Width | 150 mm mm |
