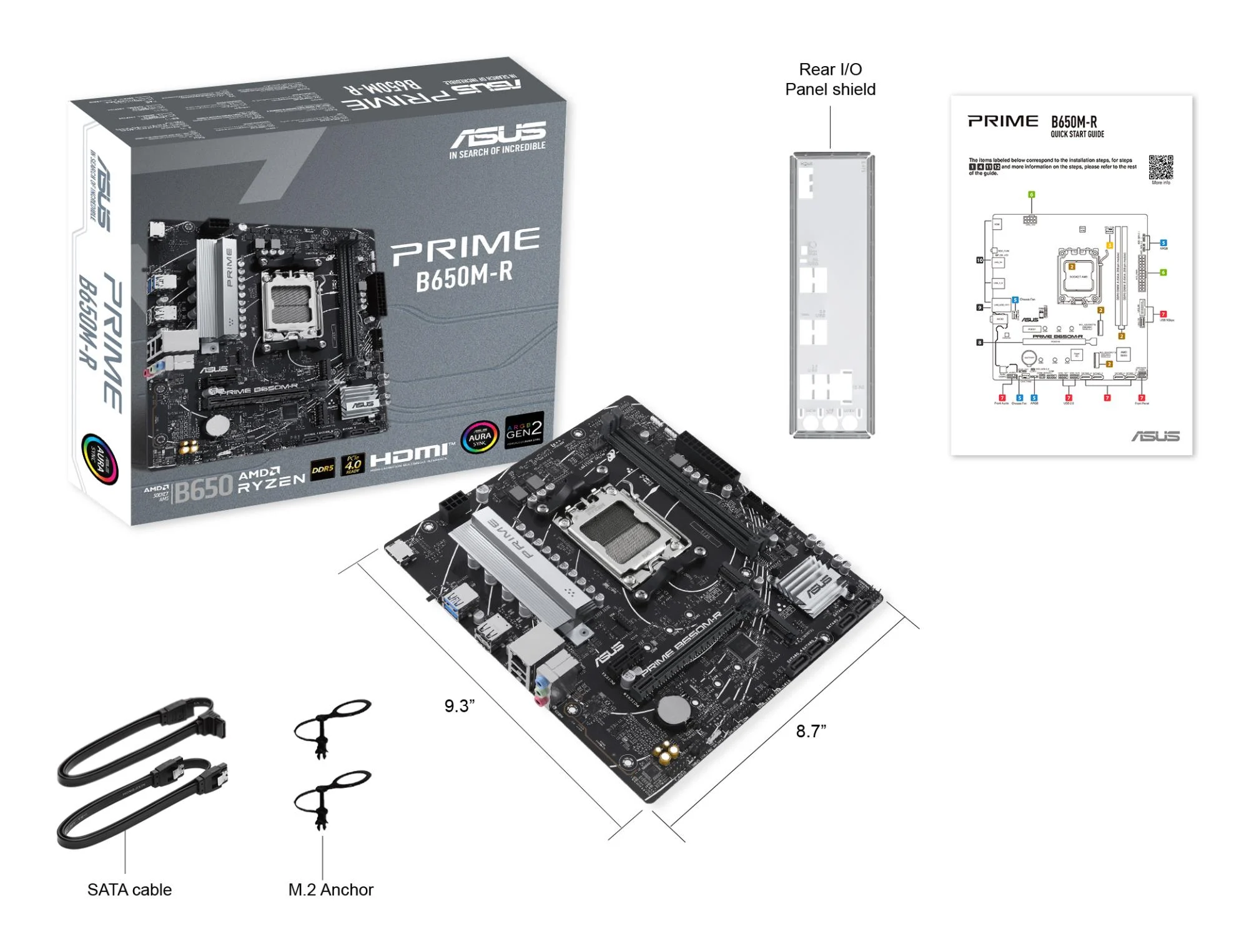

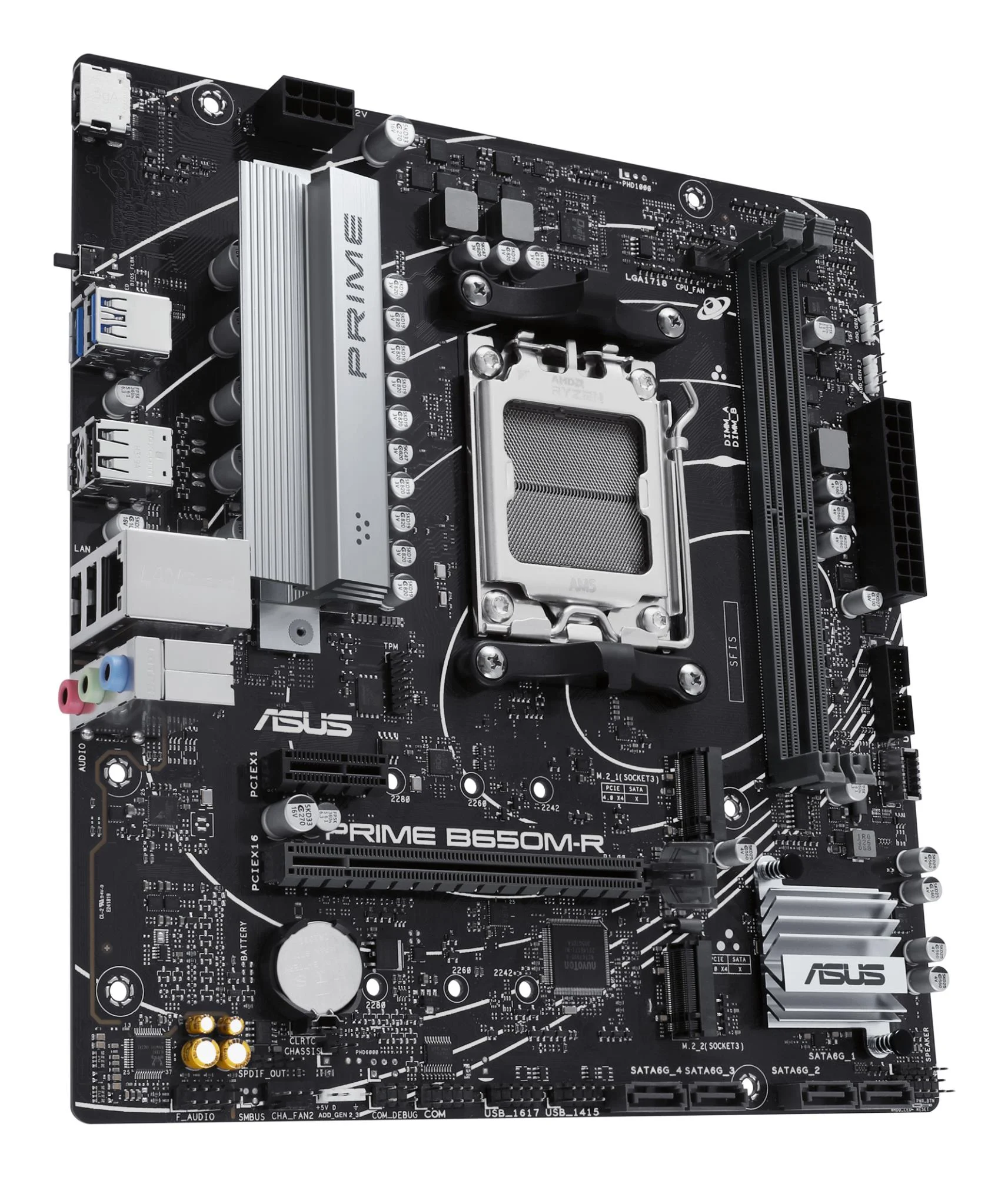

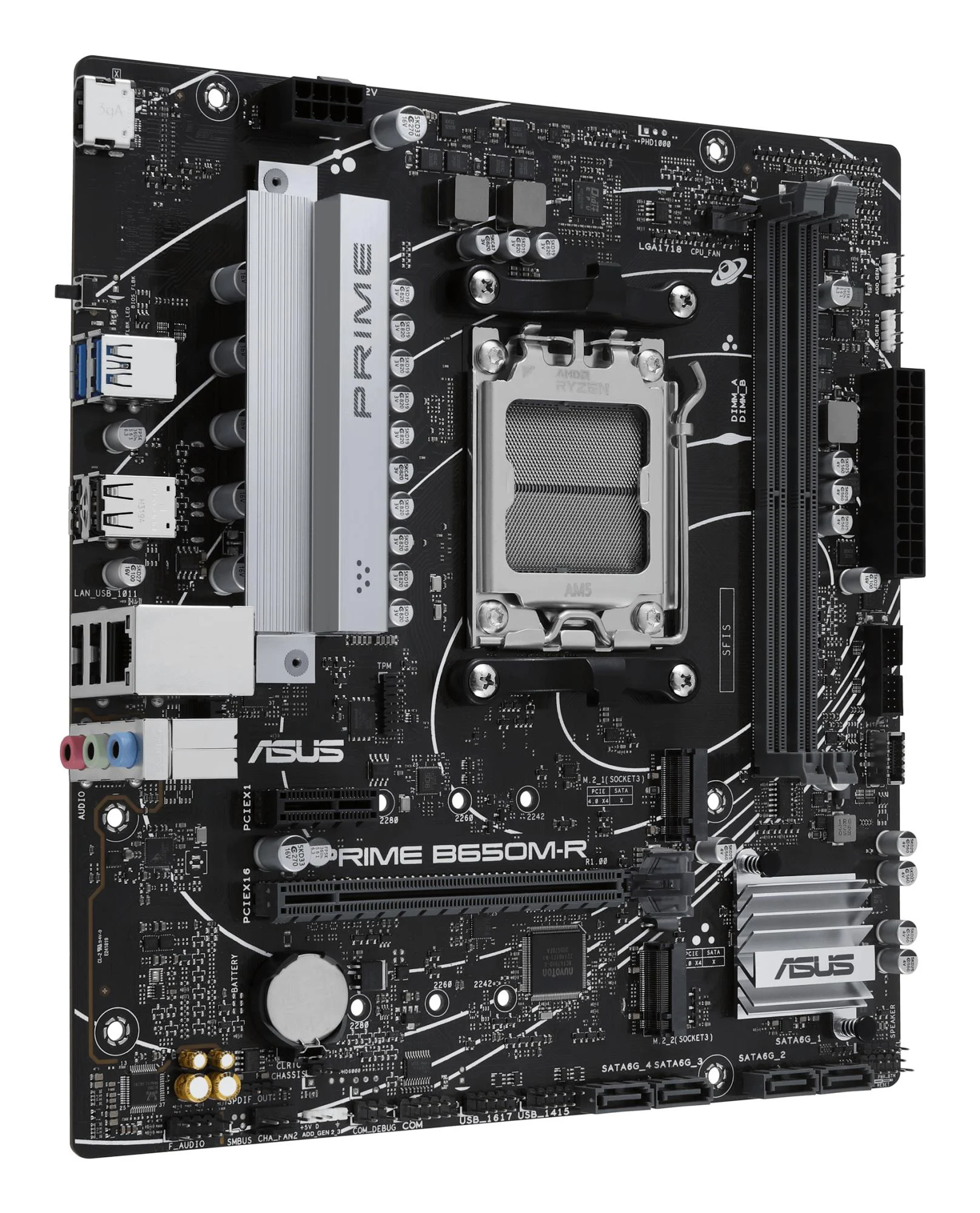

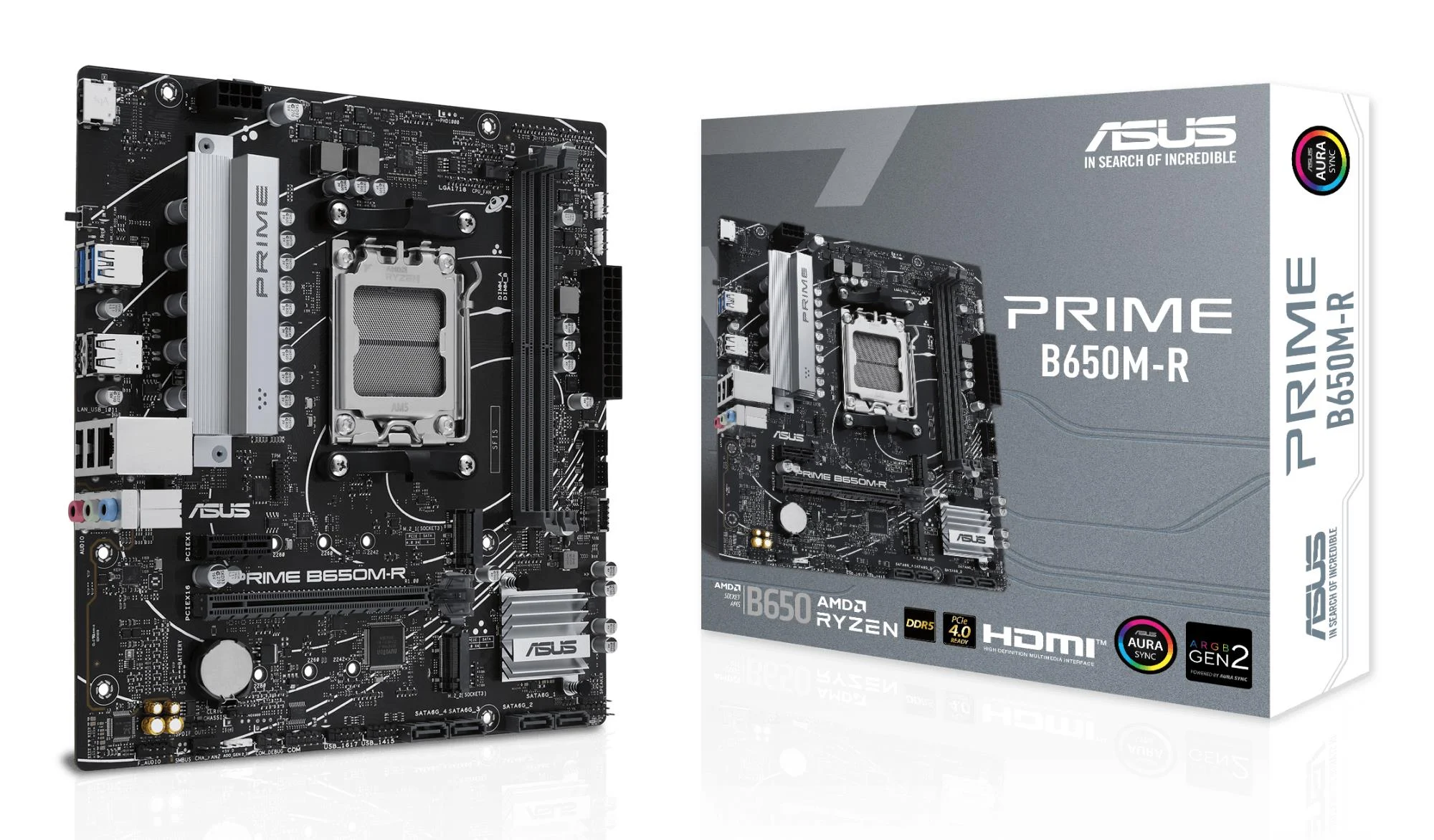

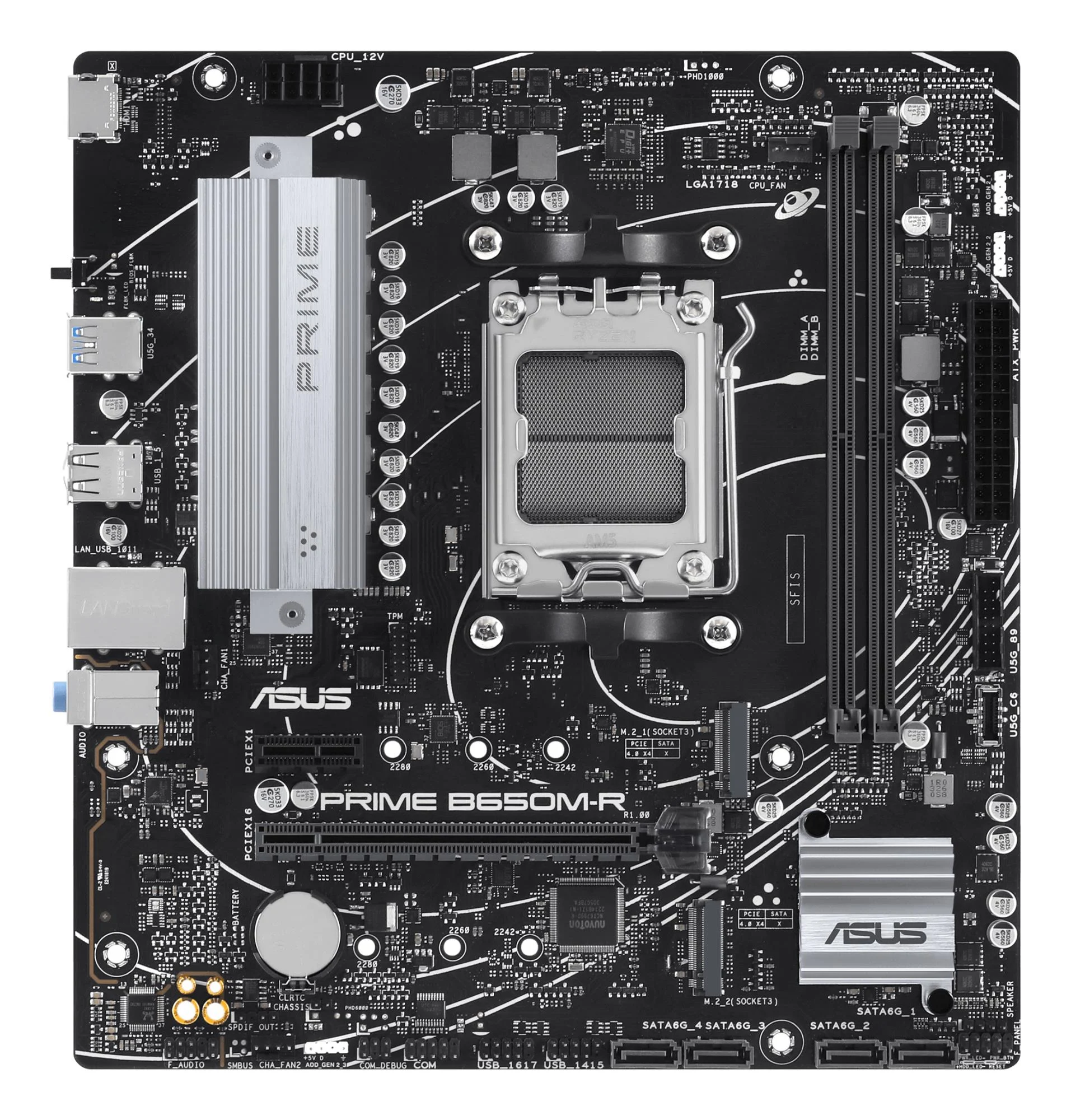

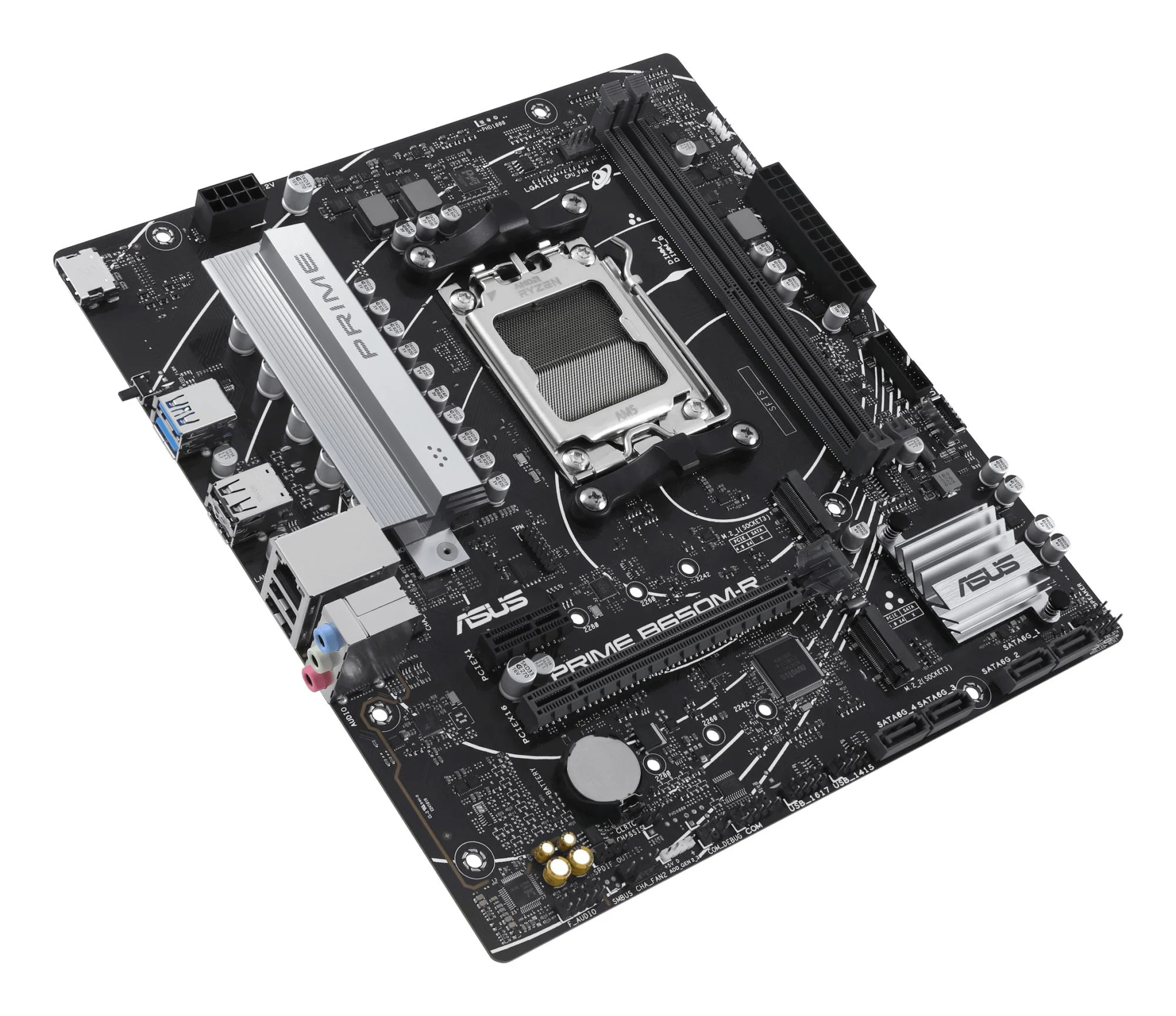

ASUS PRIME B650M-R on kompaktne ja usaldusväärsete jõudlusega emaplaat, mis on spetsiaalselt disainitud AMD Ryzen 7000 ja Ryzen 8000 seeria protsessoridele. B650 kiibistik tagab täieliku toetuse kõige uuematele protsessoritele, samas kui Micro-ATX vormifaktor sobib hästi kompaktsetesse arvutikassidesse.
Emaplaat toetab DDR5-SDRAM mälu kuni 7200 MHz sagedusega ja kahel DIMM pesa optimaalset kahe kanali arhitektuuri. Salvestusinterfeisid hõlmavad M.2 ja SATA III ühendusi, mis võimaldavad kiireid SSD draivide ja traditsioonilistele HDD-dele. Integreeritav 7.1 kanaliga heli süsteem tagab head helikvaliteeti, samas kui Ethernet pesa (RJ-45) ja USB 3.2 porte tagavad universaalseid ühendusvalikuid.
Emaplaat kasutab passiivset jahutust, mis tähendab, et see töötab vaikselt ja usaldusväärselt. Toetab RAID 0, 1 ja 10 tasemeid andmete kaitsmiseks.
- Kiibistik: AMD B650
- Protsessori pesa: Socket AM5
- Mälu: DDR5-SDRAM, 2 DIMM pesa, kuni 96 GB, max 7200 MHz
- Salvestus: 6 draivi toetus, M.2 ja SATA III liidesed, RAID tugi
- Heli: 7.1 kanalit
- Ühendused: 1× HDMI, 4× USB 2.0, 2× USB 3.2, 1× Ethernet (RJ-45)
- Vorm: Micro-ATX
- Värv: Must
Tehnilised andmed
Üldine
| Tootja |
ASUS |
| Mudel |
PRIME B650M-R |
Features
| Audio output channels |
7.1 channels channels |
| Component for |
PC |
| Cooling type |
Passive |
| Motherboard chipset |
AMD B650 |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
micro ATX |
| Power source type |
ATX |
| Product colour |
Black |
| Windows operating systems supported |
Windows 10, Windows 11 |
Processor
| Compatible processor series |
AMD Ryzen 8000 Series, AMD Ryzen 7000 Series |
| Processor manufacturer |
AMD |
| Processor socket |
Socket AM5 |
| Supported processor sockets |
Socket AM5 |
Memory
| ECC сompatibility |
Non-ECC |
| Maximum internal memory |
96 GB GB |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Supported memory clock speed (max) |
7200 MHz MHz |
| Supported memory clock speeds |
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz MHz |
| Supported memory types |
DDR5-SDRAM |
| Unbuffered memory |
Yes |
Storage controllers
| Number of HDDs supported |
4 |
| Number of storage drives supported |
6 |
| RAID levels |
0, 1, 10 |
| RAID support |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
Graphics
| Parallel processing technology support |
Not supported |
Internal I/O
| 12V power connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Front panel audio connector |
Yes |
| Number of chassis fan connectors |
2 |
| Number of COM connectors |
1 |
| Number of SATA III connectors |
4 |
| RGB LED pin header |
Yes |
| S/PDIF out connector |
Yes |
| TPM connector |
Yes |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |

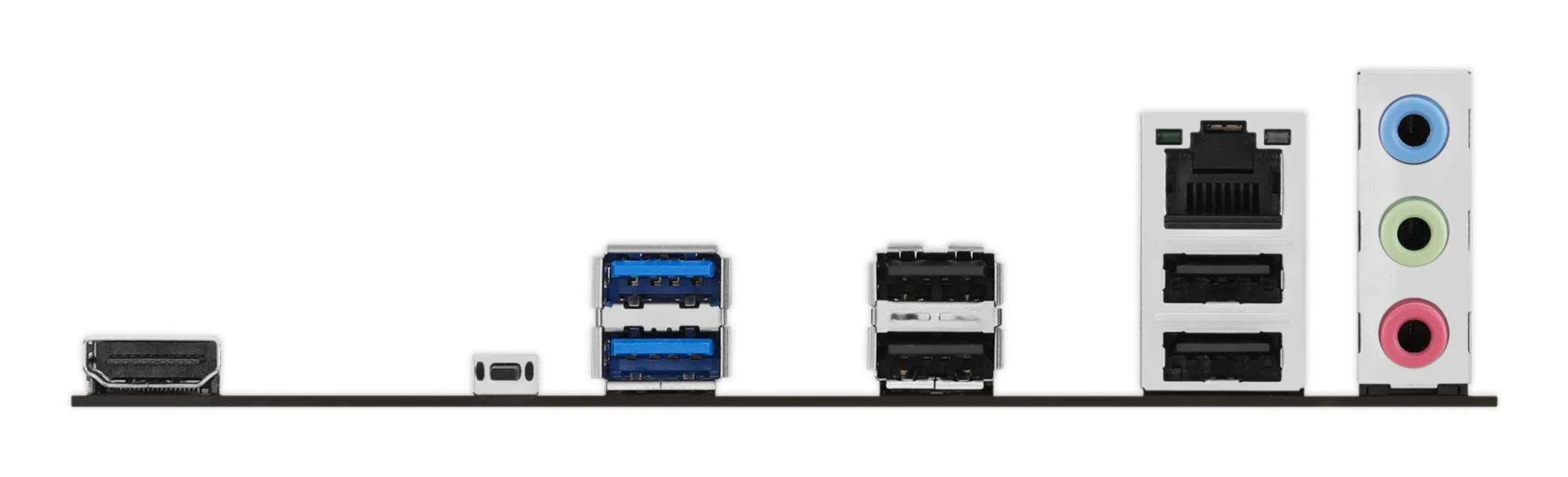

Rear panel I/O ports
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| Headphone outputs |
1 |
| Line-in |
Yes |
| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
Network
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
Expansion slots
| Number of M.2 (M) slots |
2 |
| PCI Express x1 (Gen 4.x) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
BIOS
| BIOS memory size |
256 Mbit Mbit |
| BIOS type |
UEFI AMI |
Weight & dimensions
| Depth |
221 mm mm |
| Width |
236 mm mm |
Other features
