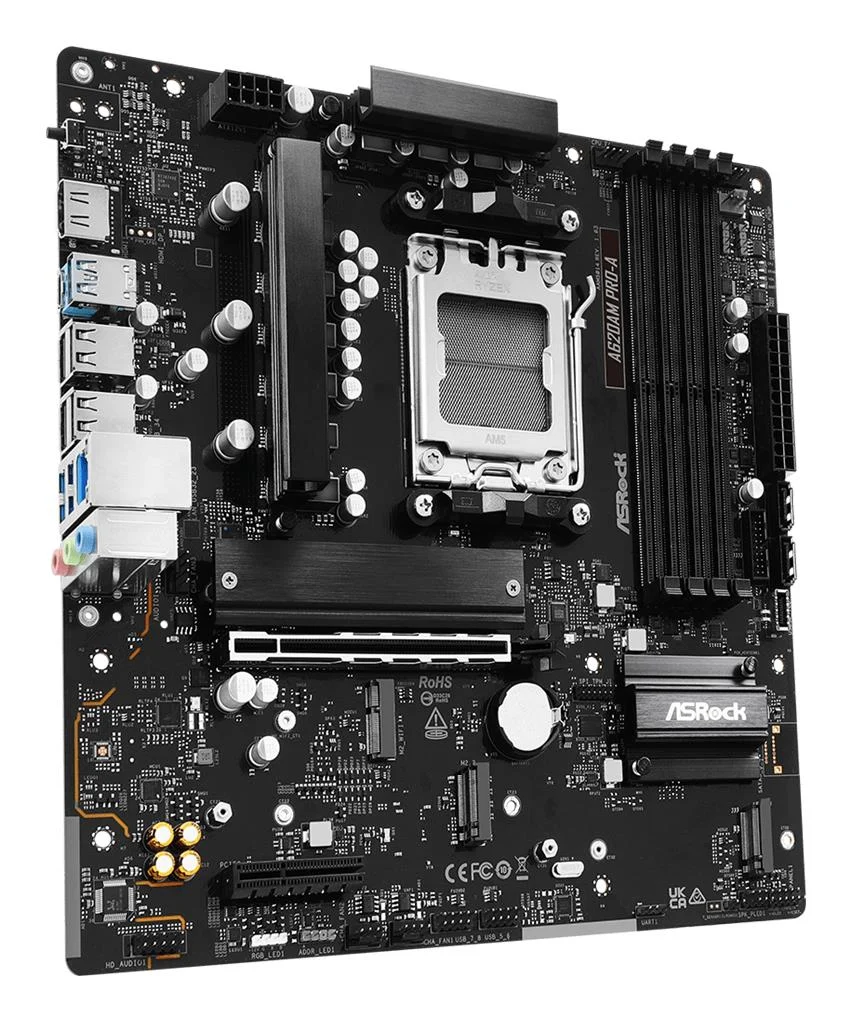

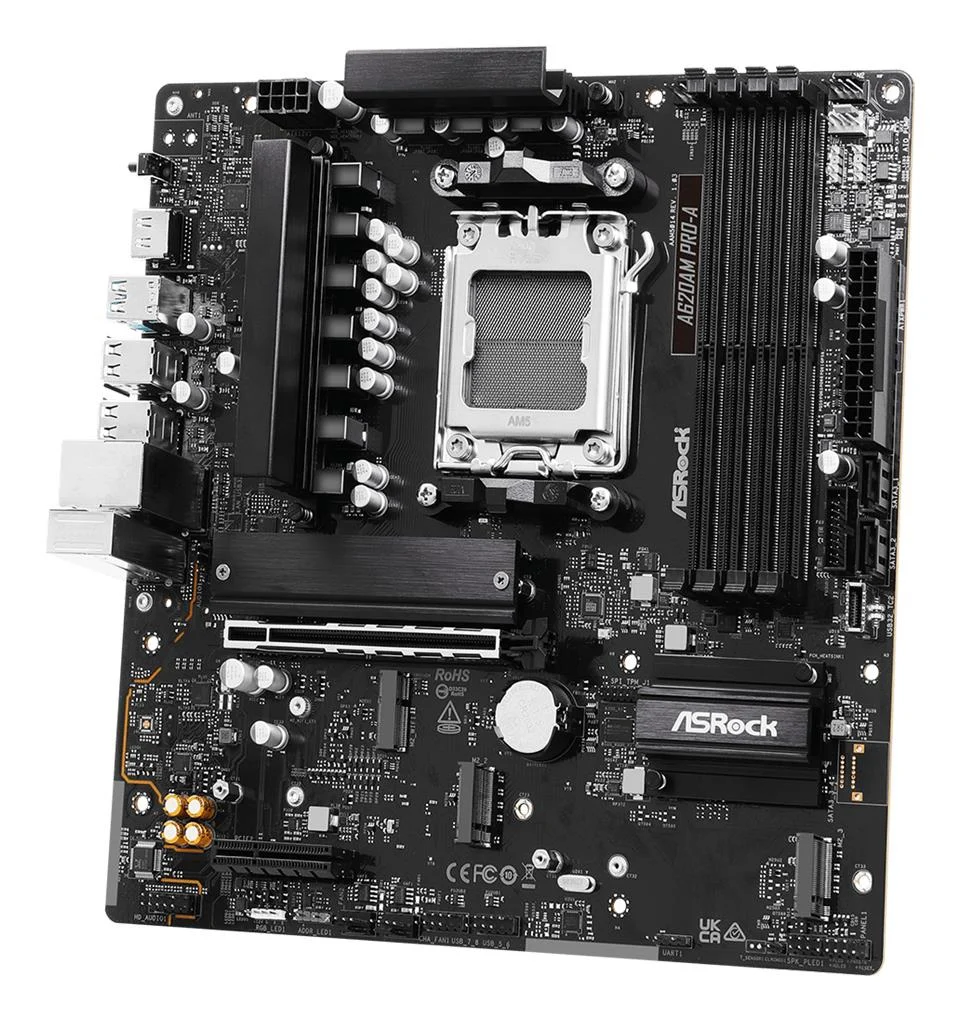

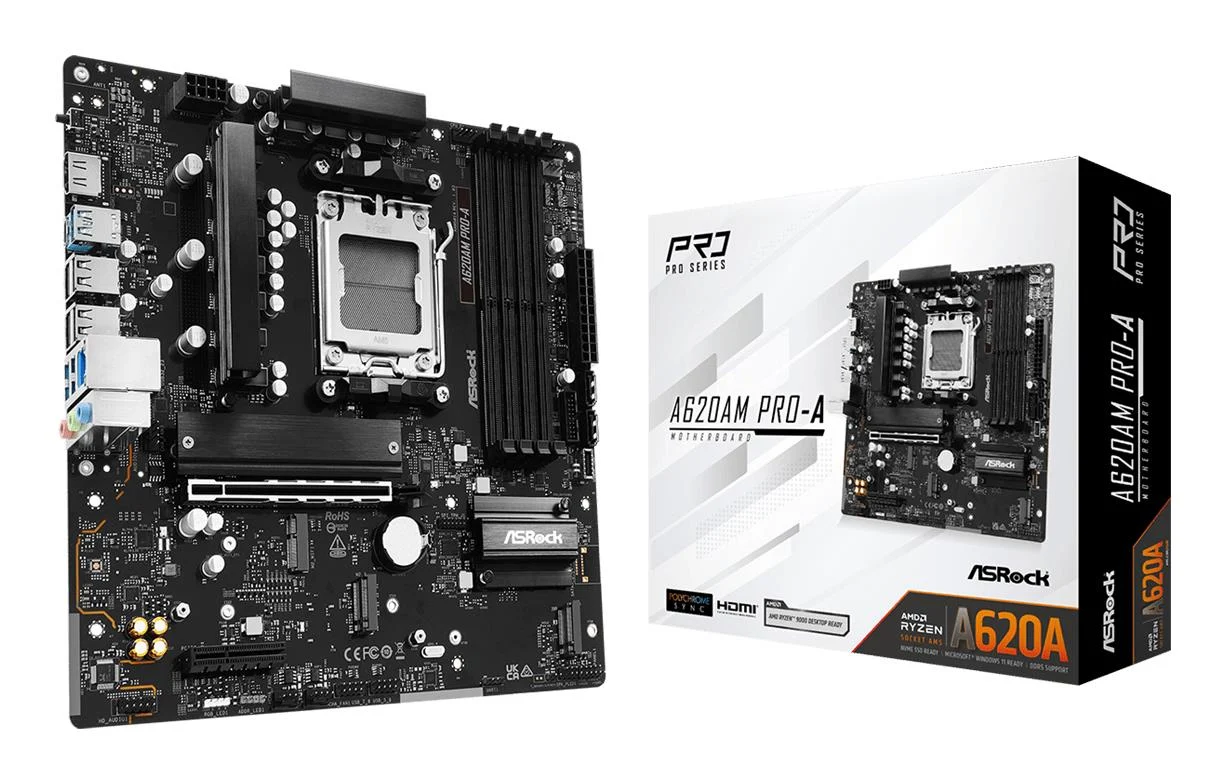

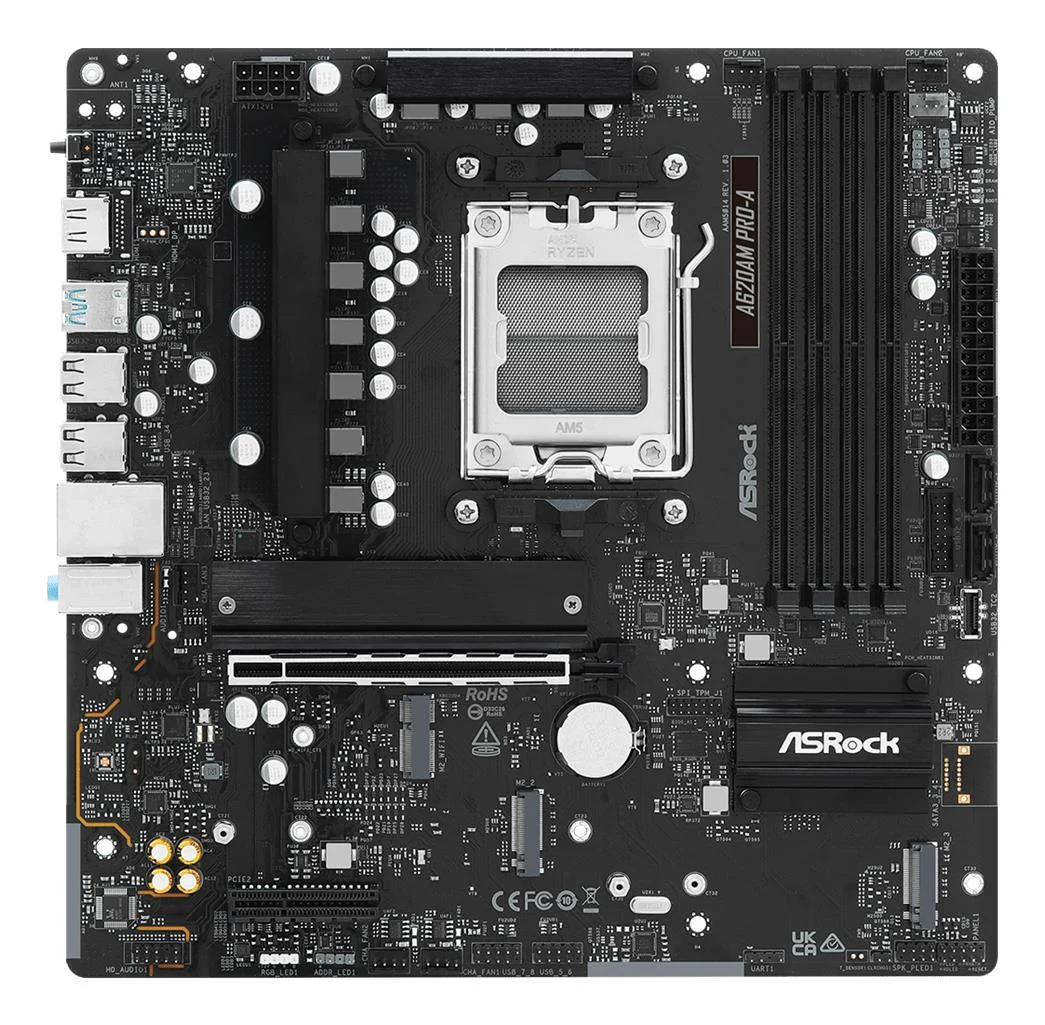

ASRock A620AM Pro-A on usaldusväärselt ehitatud micro ATX emaplaat, mis on spetsiaalselt kavandatud AMD Ryzen 7000, 8000 ja 9000 seeria protsessorite jaoks. A620 chipset tagab optimaalse tasakaalu võimsuse ja hinnatõhususe vahel, muutes selle ideaalseks valikuks keskmise klassi arvutiehitajatele.
Emaplaat pakub tänapäevast funktsioonide komplekti, sealhulgas DDR5 mälutugi, kiired salvestusliidesed ja stabiilse võrguühenduse. Passive jahutusega disain hoiab temperatuure kontrolli all, samas kui Realtek ALC897 heliprotsessor tagab 7.1 kanali helikvaliteedi. Must värvus sobib paljudesse arvutikeres.
- Chipset: AMD A620
- Pistik: Socket AM5
- Mälu: 4x DIMM, DDR5-SDRAM, kuni 256 GB, kuni 8000 MHz
- Salvestusliides: 3x M.2 (NVMe), 2x SATA III
- Graafikakaart: AMD RDNA 2 (kuni 3840×2160)
- Heli: Realtek ALC897, 7.1 kanalit
- Ühendused: 4x USB 2.0, 3x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 1 Type-C, 1x HDMI, 1x Gigabit Ethernet
- RAID tugi: RAID 0, 1, 10
Tehnilised andmed
Üldine
| Tootja | ASRock |
|---|---|
| Mudel | A620AM Pro-A |
Features
| Audio chip | Realtek ALC897 |
|---|---|
| Audio output channels | 7.1 channels channels |
| Component for | PC |
| Cooling type | Passive |
| Motherboard chipset | AMD A620 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Product colour | Black |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Processor
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
Memory
| ECC сompatibility | ECC & Non-ECC |
|---|---|
| Maximum internal memory | 256 GB GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speeds | 8000 MHz MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
Storage controllers
| Number of HDDs supported | 2 |
|---|---|
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, NVMe, SATA III |
| Supported storage drive types | HDD & SSD |
Graphics
| Graphics card | AMD RDNA 2 |
|---|---|
| Graphics card family | AMD |
| HDCP | Yes |
| HDCP version | 2.3 |
| High Dynamic Range (HDR) supported | Yes |
| Maximum resolution | 3840 x 2160 pixels pixels |
| On-board graphics card | Yes |
| Parallel processing technology support | Not supported |
Internal I/O
| 12V power connector | Yes |
|---|---|
| ATX Power connector (24-pin) | Yes |
| Audio connector | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 3 |
| Number of CPU fan connectors | 2 |
| Number of RGB LED pin headers | 1 |
| Number of SATA III connectors | 2 |
| Number of water pump connectors | 1 |
| RGB LED pin header | Yes |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |

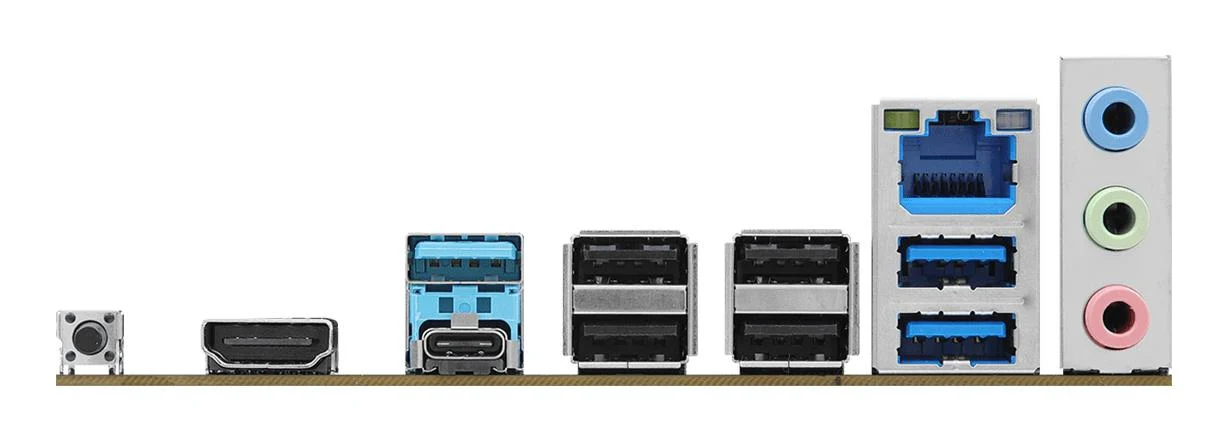

Rear panel I/O ports
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Line-in | Yes |
| Microphone in | Yes |
| Rear speaker out | Yes |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
Network
| Bluetooth | No |
|---|---|
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Dragon RTL8125BG |
| Wi-Fi | No |
Expansion slots
| Number of M.2 (M) slots | 3 |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
BIOS
| BIOS flashback button | Yes |
|---|---|
| BIOS memory size | 256 Mbit Mbit |
| BIOS type | UEFI AMI |
Processor special features
| AMD Extended Profiles for Overclocking (EXPO) | Yes |
|---|---|
| Intel Extreme Memory Profile (XMP) | Yes |
Weight & dimensions
| Depth | 244 mm mm |
|---|---|
| Width | 244 mm mm |
Technical details
| Compliance certificates | CE, Federal Communications Commission (FCC) |
|---|
Other features
| PCI Express x4 (Gen 3.x) slots | 1 |
|---|
