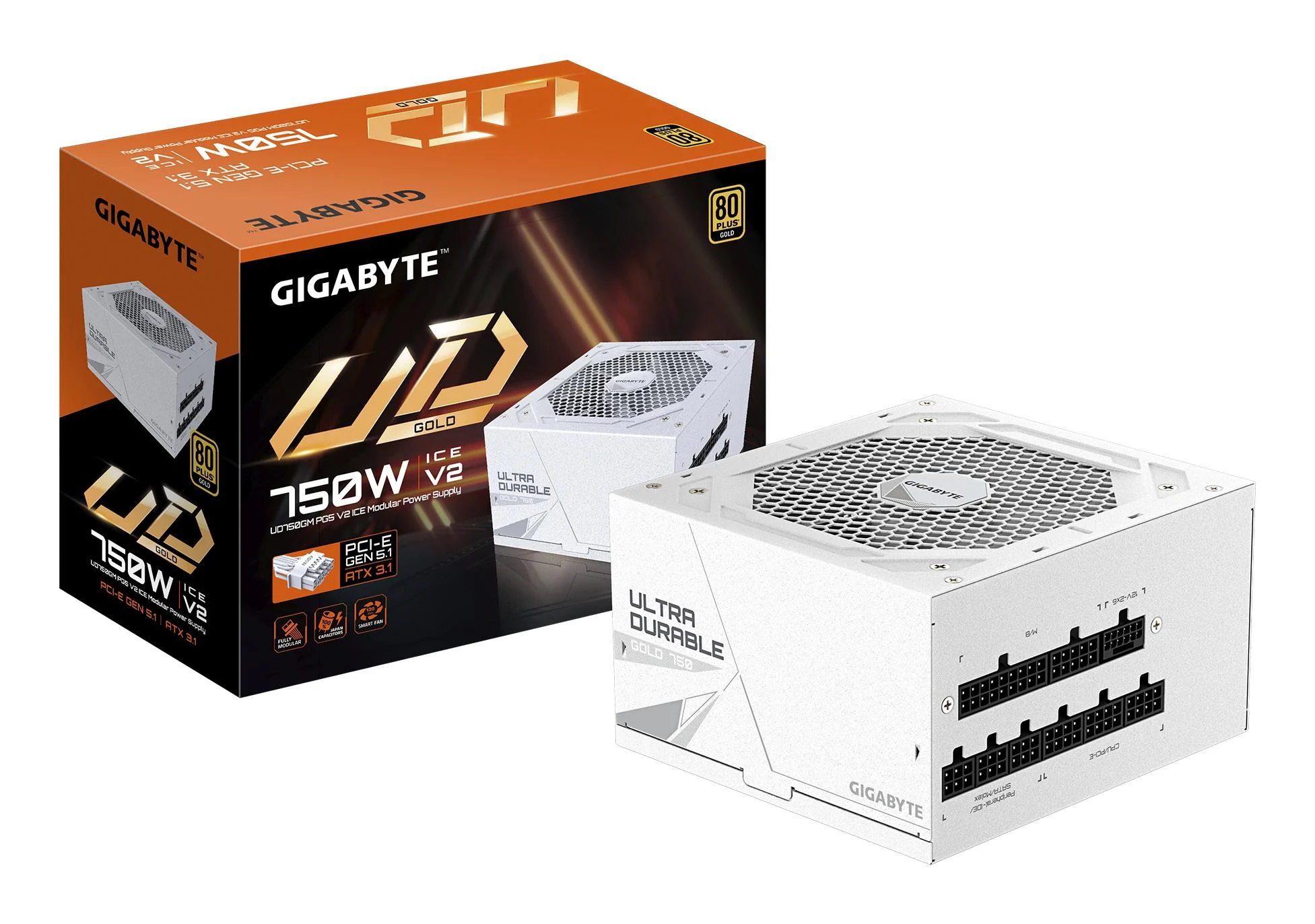

Gigabyte UD750GM PG5 ICE on kõrgekvaliteediline 750W ATX 3.1 toiteplokk, mis vastab nõudlikumate süsteemide energiavajadusele. Täistehotsegaline modulaarne disain vähendab ebavajalikke kaableid ja parandab jahutusringlust. 80+ Gold sertifikaadiga toiteplokk tagab 90% energiatõhususe ja minimaalsed soojuskaod.
Seade on varustatud aktiivsete PFC (Power Factor Correction) ja 120mm ventilaatoriga pideva jahutuse jaoks. MTBF keskmise rikete vahelise aja hindamine on 100 000 tundi, mis lubab pikaajaalist usaldusväärsust.
- Võimsus: 750W kogu väljund
- Efektiivsus: 90% (80+ Gold sertifikaadiga)
- AC sisendpinge: 100–240V, 50/60Hz
- PFC tüüp: Aktiivne
- Kaablid: Täistehotsegaline modulaarne
- CPU pistik: 4+4 pin (2 tk EPS konnektor)
- SATA konnektor: 8 tk
- Pci Express: 12+4 pin (1 tk)
- Kaal: 2,34 kg
Tehnilised andmed
Üldine
| Tootja | Gigabyte |
|---|---|
| Mudel | UD750GM PG5 ICE |
Power
| AC input frequency | 50/60 Hz Hz |
|---|---|
| AC input voltage | 100 – 240 V V |
| Combined power (+12V) | 750 W W |
| Combined power (+3.3V) | 105 W W |
| Combined power (+5V) | 105 W W |
| Combined power (+5Vsb) | 15 W W |
| Combined power (-12V) | 3.6 W W |
| Efficiency | 90% % |
| Hold time | 16 ms ms |
| Input current | 12 – 6.5 A A |
| Max output current (+12V) | 62.5 A A |
| Max output current (+3.3V) | 20 A A |
| Max output current (+5V) | 20 A A |
| Max output current (+5Vsb) | 3 A A |
| Max output current (-12V) | 0.3 A A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Total power | 750 W W |
Ports & interfaces
| Cabling type | Fully-Modular |
|---|---|
| CPU power cable length | 65 cm mm |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Motherboard power cable length | 61 cm mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of EPS connectors | 2 |
| Number of SATA power connectors | 8 |
| PCI Express connector | Yes |
| PCI Express power cable length | 60 cm mm |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 700 mm mm |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
Performance
| 80 PLUS certification | 80 PLUS Gold |
|---|---|
| ATX version | 3.1 |
| Bearing technology | HYB |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
Design
| Cooling type | Active |
|---|---|
| Fan diameter | 12 cm mm |
| Number of fans | 1 fan(s) fan(s) |
| On/off switch | Yes |
| Product colour | White |
Weight & dimensions
| Depth | 140 mm mm |
|---|---|
| Height | 86 mm mm |
| Weight | 2.34 kg g |
| Width | 150 mm mm |
Arvustused
Tooteülevaateid veel ei ole.
