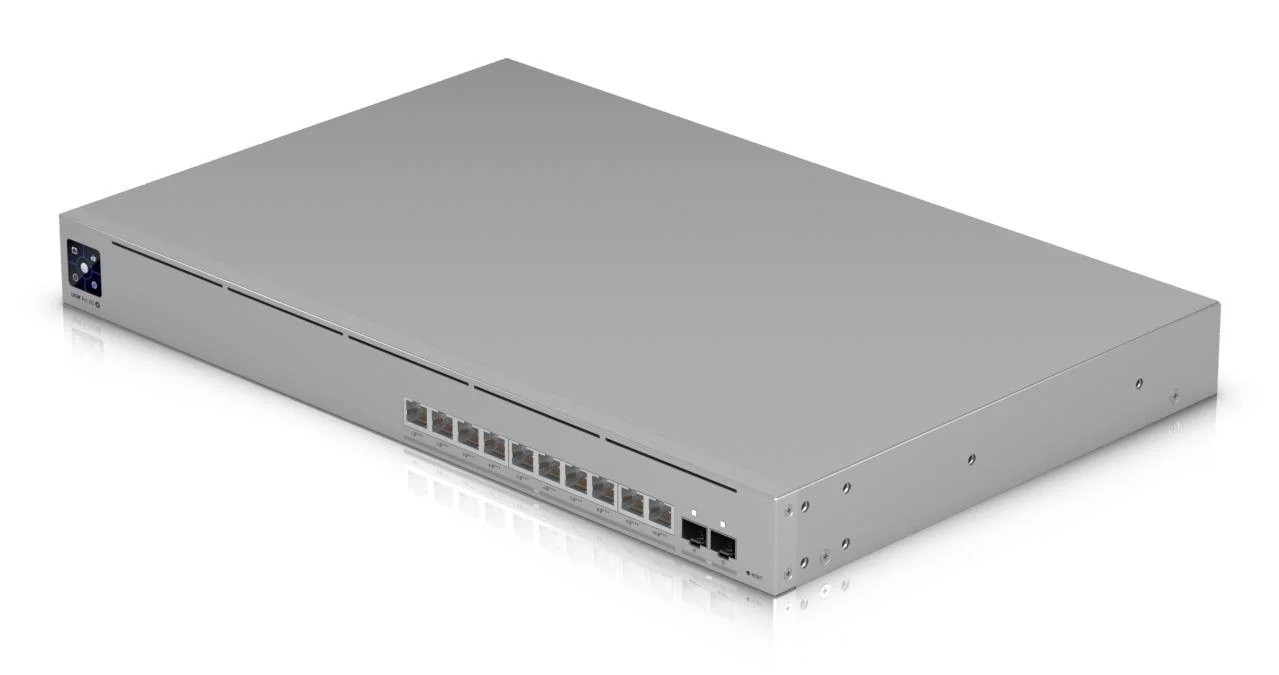

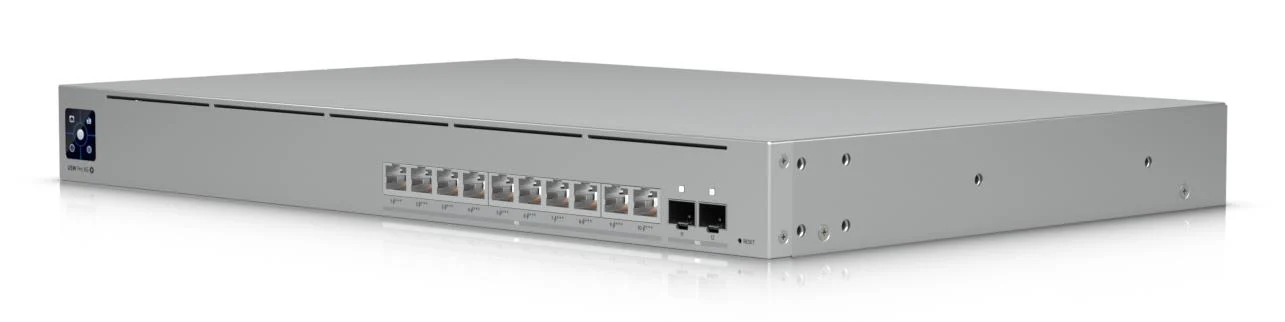

Ubiquiti USW-PRO-XG-10-POE on suure jõudlusega hallatav võrgukalts, mis on mõeldud nõudlikele äri- ja ettevõtterakenduste jaoks. See toob kõrge kiiruse ja usaldusväärsuse andmekeskustesse, eri ja kampuste võrkudesse.
Kalts pakub 10 x 10 Gigabitti Ethernet porti ning 2 x SFP+ moodulipesa laia ühenduvuse ja tulevikukaitse tagamiseks. Toetab PoE++ (802.3bt) tehnoloogiat kuni 15,4 W pordi kohta, kokku 400 W eelarve, mis võimaldab toita võimsaid juhtmevabasi juurdepääsupunkte ja muid seadmeid.
Eelistatud omadused:
- 10 x 10G RJ-45 Ethernet porti
- 2 x SFP+ lisamooduli pesa
- L2/L3 hallatavus QoS toega
- 240 Gbit/s lülitusmahtuvus
- 120 Gbit/s läbilaskevõime
- 179 Mpps edastuskiirus
- 400 W PoE++ eelarve
- Pordipeegeldamine (port mirroring)
- Virnastatav arhitektuur

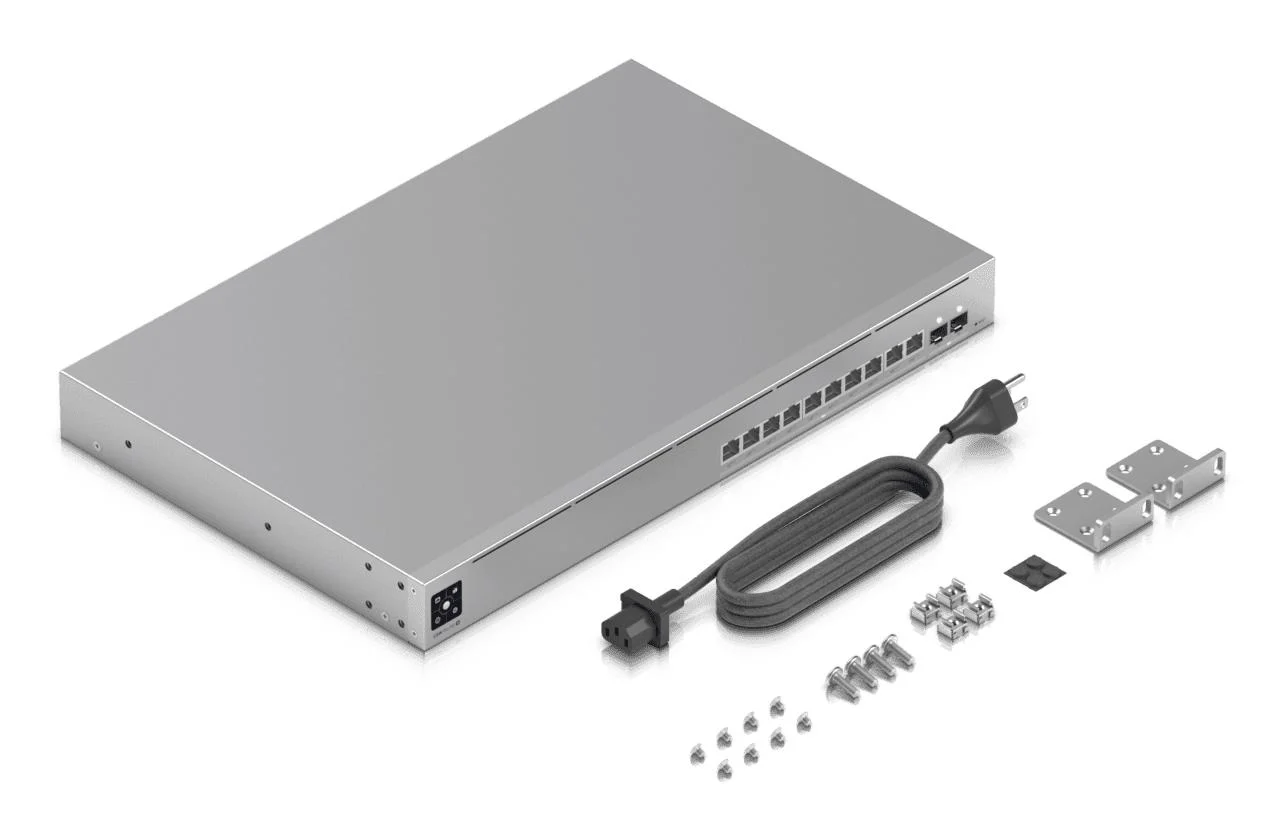

- 1U riiulipaigutus, AC/DC toiteallikas kaasas
- Mõõtmed: 442,4 x 285 x 44 mm, kaal 4,6 kg
Tehnilised andmed
Üldine
| Tootja |
Ubiquiti |
| Mudel |
USW-PRO-XG-10-POE |
Management features
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L3 |
| Switch type |
Managed |
Ports & interfaces
| 10G Ethernet (copper) ports quantity |
10 |
| Basic switching RJ-45 Ethernet ports quantity |
10 |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| Power connector |
AC/DC |
| SFP+ module slots quantity |
2 |
Network
| 10G support |
Yes |
| Broadcast storm control |
Yes |
| Flow control support |
Yes |
| IPv4 routes |
12000 |
| Number of VLANs |
1000 |
| Port mirroring |
Yes |
| Rate limiting |
Yes |
| Virtual LAN features |
Interface-based VLAN, Voice VLAN |
| VLAN support |
Yes |
Data transmission
| Forwarding rate |
179 Mpps Mpps |
| Jumbo frames support |
Yes |
| MAC address table |
32000 entries entries |
| Packet buffer memory |
2 MB MB |
| Static route |
Yes |
| Switching capacity |
240 Gbit/s Gbit/s |
| Throughput |
120 Gbit/s Gbit/s |
Security
| DHCP features |
DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping |
| IGMP snooping |
Yes |
| Loop protection |
Yes |
Multicast features
Design
| Backlight display |
Yes |
| Display type |
LCM |
| Form factor |
1U |
| Housing material |
SGCC |
| LED indicators |
System |
| Product colour |
Grey |
| Rack mounting |
Yes |
| Reset button |
Yes |
| Stackable |
Yes |
Power
| AC input frequency |
50/60 Hz Hz |
| AC input voltage |
100 – 240 V V |
| Power consumption (max) |
520 W W |
| Power source |
AC/DC |
| Power supply included |
Yes |
| Redundant power supply (RPS) support |
Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) power per port |
15.4 W W |
| Power over Ethernet (PoE) type supported |
PoE++ (4PPoE) |
| Power over Ethernet 4PPoE (PoE++) ports quantity |
10 |
| Total Power over Ethernet (PoE) budget |
400 W W |
Operational conditions
| Operating relative humidity (H-H) |
10 – 90% % |
| Operating temperature (T-T) |
-5 – 40 °C °C |
Weight & dimensions
| Depth |
285 mm mm |
| Height |
44 mm mm |
| Weight |
4.6 kg g |
| Width |
442.4 mm mm |
