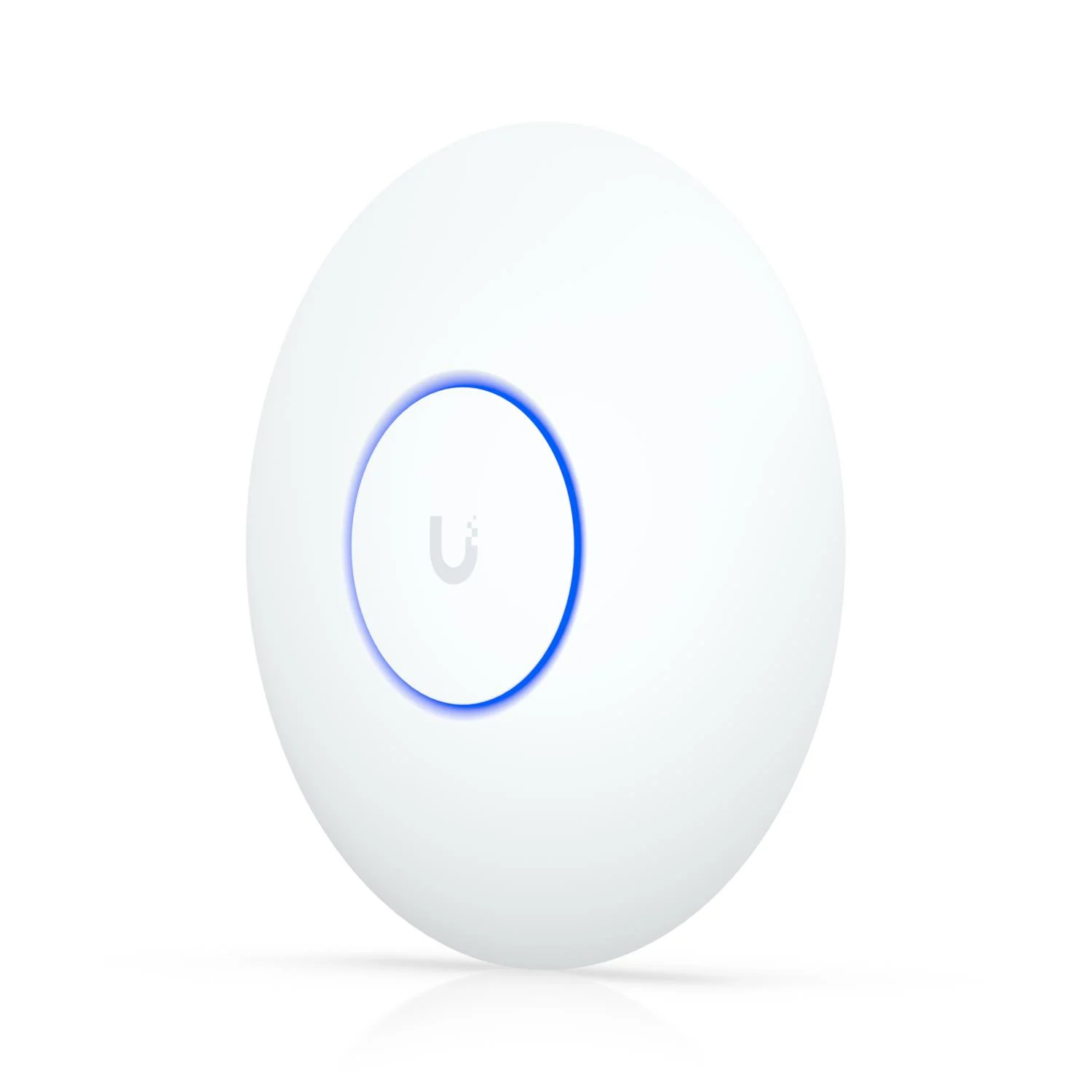

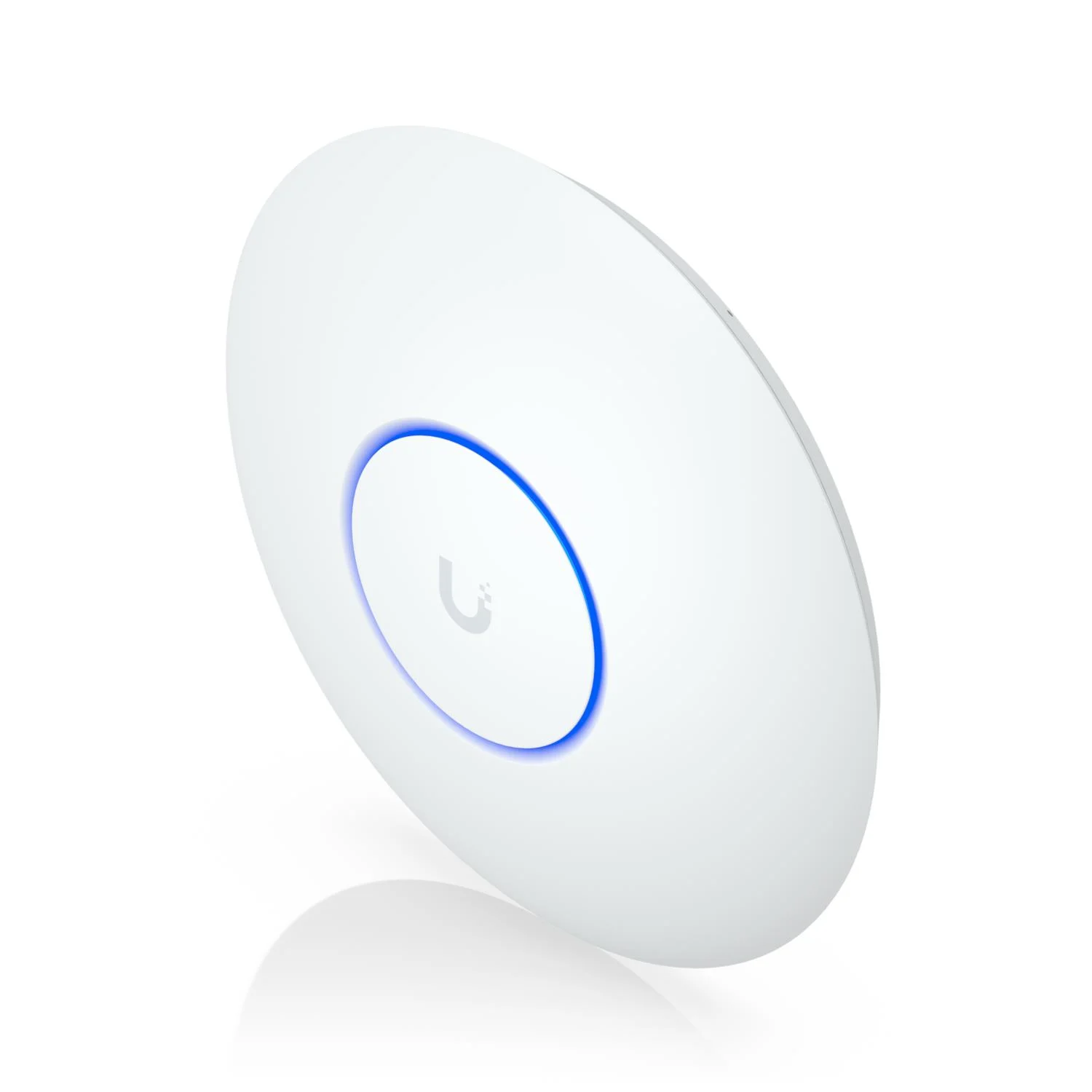

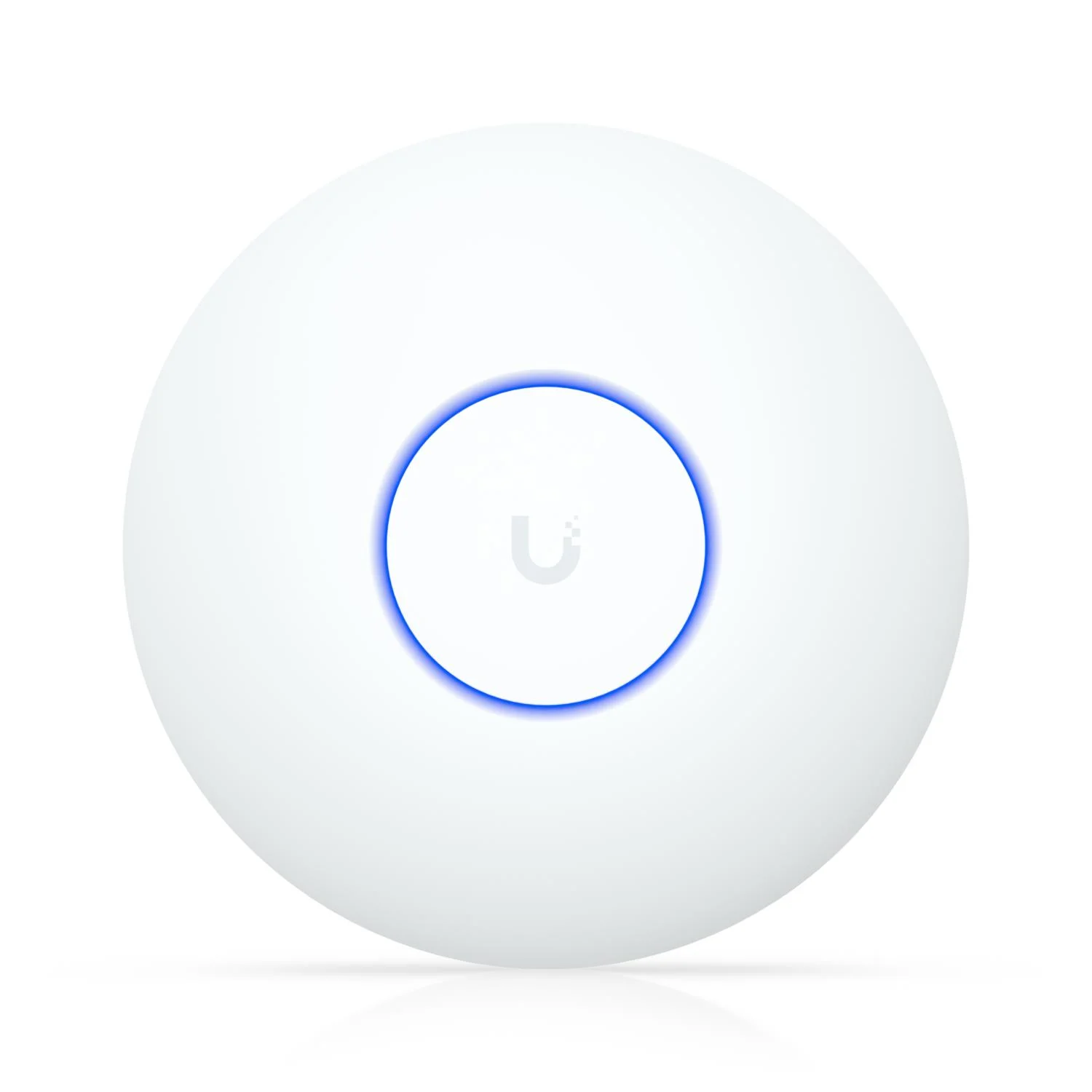

Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.
Tehnilised andmed
Üldine
| Tootja |
Ubiquiti |
| Mudel |
U7 Lite |
Features
| 2.4 Ghz |
jah |
| 5 Ghz |
jah |
| 6 Ghz |
ei |
| Band Steering |
jah |
| Coverage Area |
115 m² m² |
| Ethernet Lan Data Rates |
1000,2500 Mbit/s Mbit/s |
| Fast Roaming |
jah |
| Fit Ap Mode Omadused |
Hotspot 2.0 |
| Sagedus Band |
2.4 – 5 GHz GHz |
| Maximum Data Transfer Rate |
4300 Mbit/s Mbit/s |
| Maximum Data Transfer Rate (2.4 Ghz) |
688 Mbit/s Mbit/s |
| Maximum Data Transfer Rate (5 Ghz) |
4300 Mbit/s Mbit/s |
| Maximum Tx Võimsus (2.4 Ghz) |
23 dBmW dBmW |
| Maximum Tx Võimsus (5 Ghz) |
24 dBmW dBmW |
| Mimo |
jah |
| Mimo Type |
Multi User MIMO |
| Networking Standards |
IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Number Of Users |
200 user(s) user(s) |
| Rate Limiting |
jah |
| Spatial Streams |
4 |
| Vlan Support |
jah |
| Juhtmevaba Meshing |
jah |
Security
Management features
| Access Point Management |
Wi-Fi schedule |
Ports & interfaces

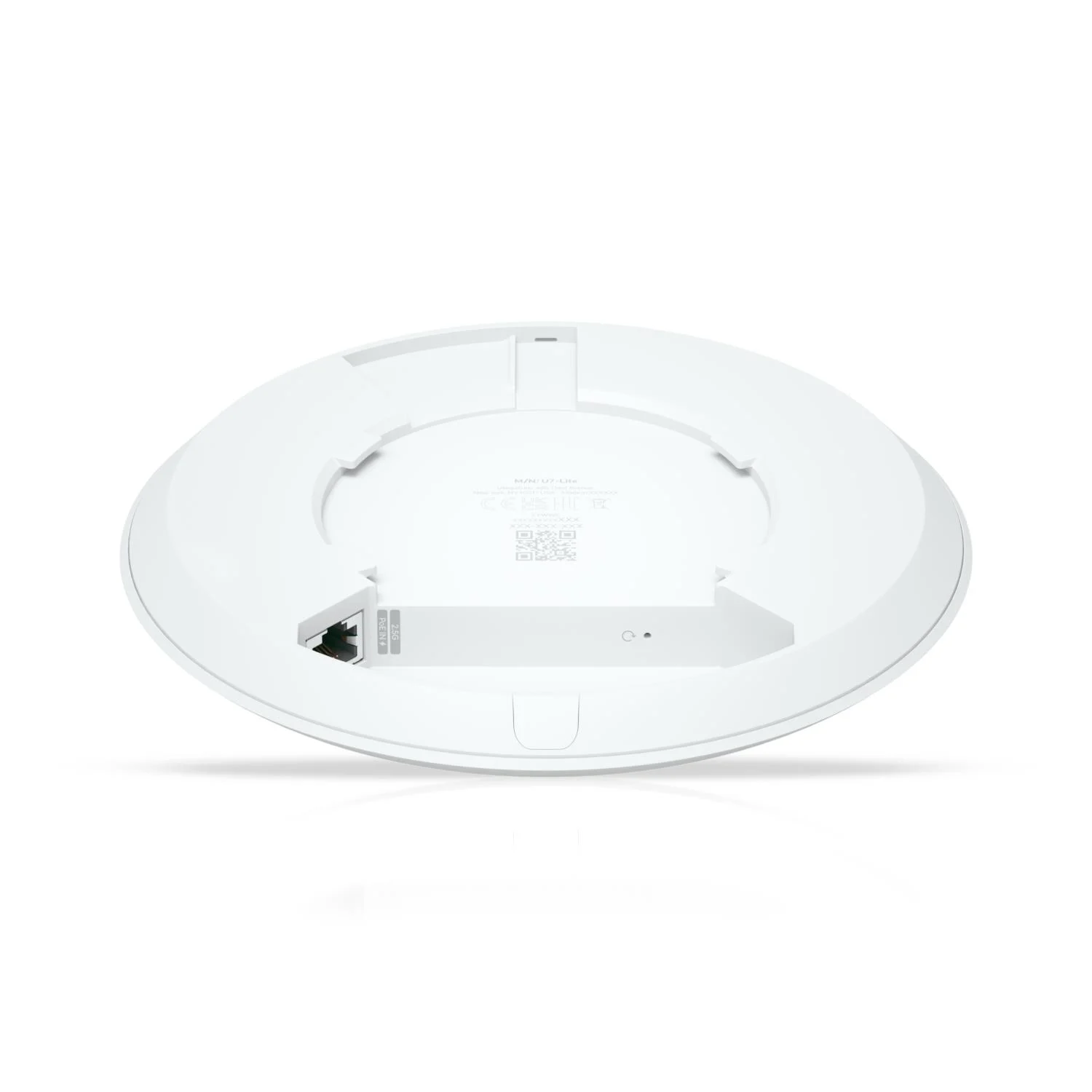

| Ethernet Lan (Rj-45) Ports |
1 |
Power
| Dc Pinge Range |
44 – 57 V V |
| Võimsus Consumption (Max) |
13 W W |
| Võimsus Over Ethernet (Poe) |
jah |
Design
| Housing Materjal |
Polycarbonate (PC) |
| Led Indicators |
System |

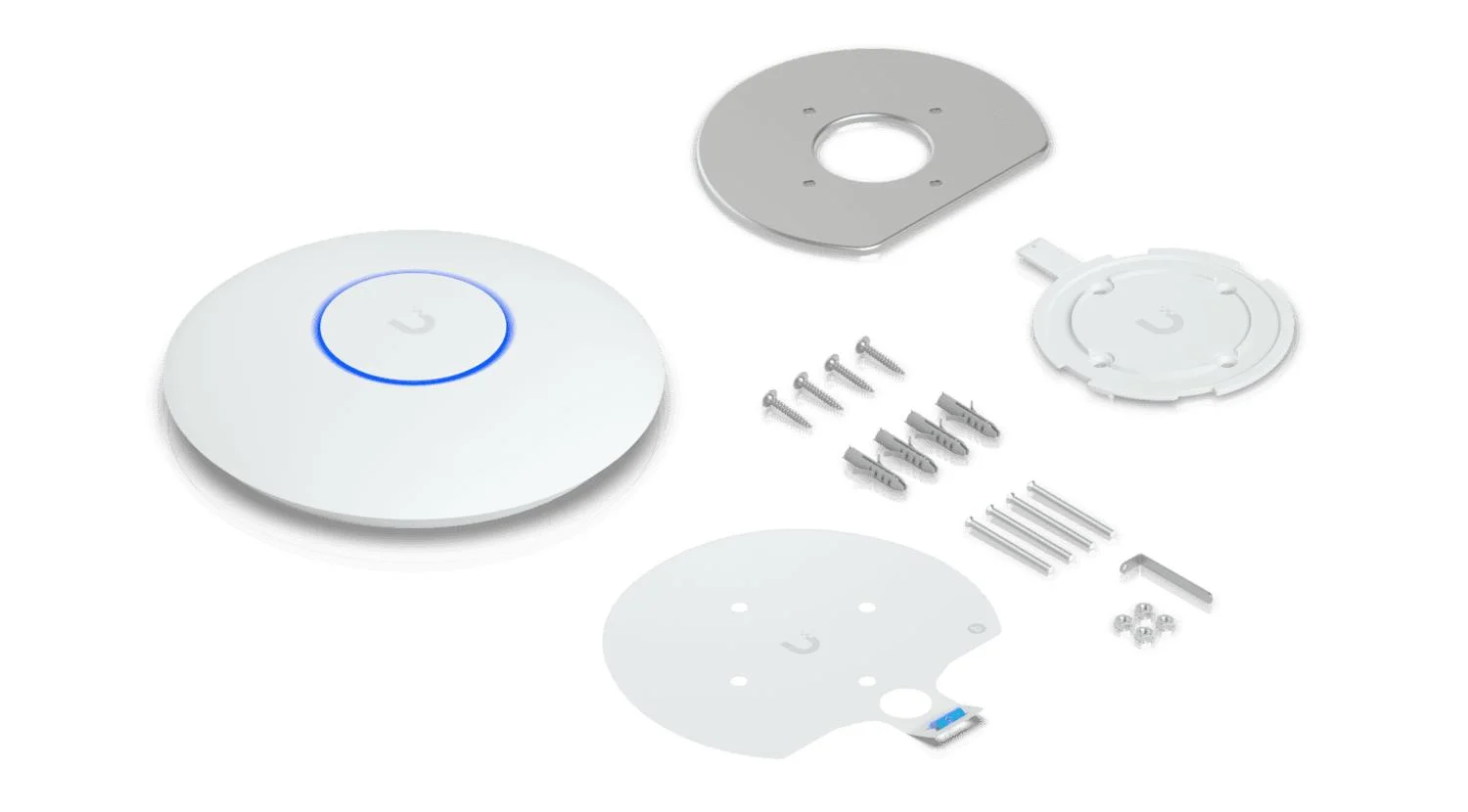

| Placement |
Ceiling, Wall |
| Product Värv |
valge |
| Reset Button |
jah |
Antenna
| Antenna Gain Level (Max) |
5 dBi dBi |
| Antenna Type |
Internal |
| Antennas Quantity |
4 |
Weight & dimensions
| Sügavus |
33 mm mm |
| Kõrgus |
171.5 mm mm |
| Kaal |
313 g g |
| Laius |
171.5 mm mm |
Operational conditions
| Operating Relative Humidity (H-H) |
5 – 95% % |
| Operating Temperature (T-T) |
-30 – 40 °C °C |
Arvustused
Tooteülevaateid veel ei ole.
