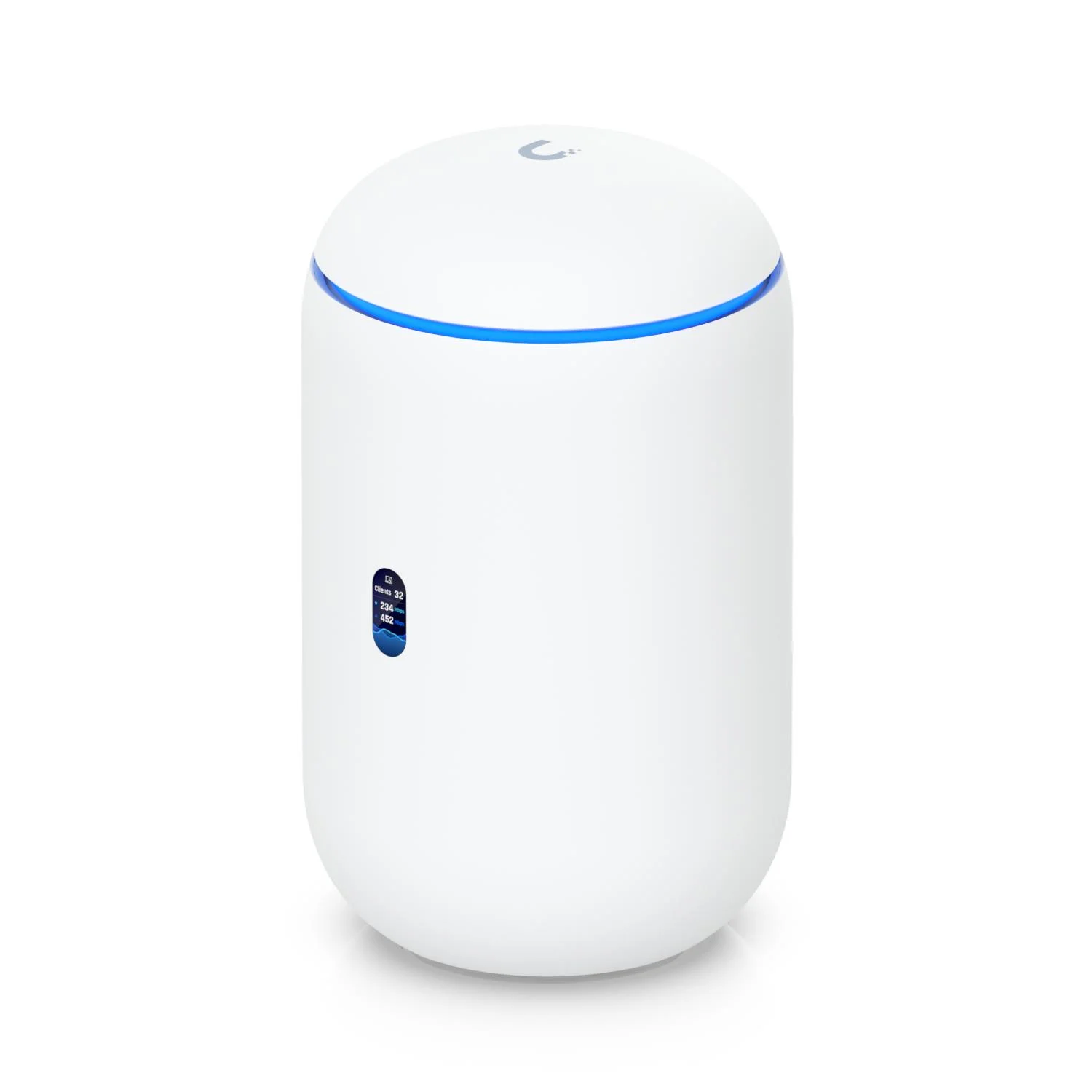

Ubiquiti Dream Router 7 (UDR7) on uusim Wi-Fi 7 ruuter, mis toob kottisse ultramodernse 802.11be võrgu tehnoloogia. Seade tagab kolmekihilise sagedusalasüsteemi (2,4 GHz / 5 GHz / 6 GHz) kaudu kiire ja stabiilse interneti ühenduse kogu kodus või kontoriruumis.
Märkimisväärsed omadused hõlmavad maksimaalset andmekiirust 5700 Mbit/s, mis tagab vilkuseta videojuhtumine ja kiire andmeülekande. Seade on varustatud neljast 2,5 Gigabiti Ethernet (RJ-45) pordiga, mis võimaldavad kiireid juhtmega ühendusi. Toiteallikas toe nii AC-võrgust kui ka PoE (Power over Ethernet) režiimist, mis muudab paigalduse paindlikuks.
- Wi-Fi 7 (802.11be) tehnoloogia
- Tri-band sagedusalad: 2,4 GHz / 5 GHz / 6 GHz
- Maksimalne andmekiirus: 5700 Mbit/s

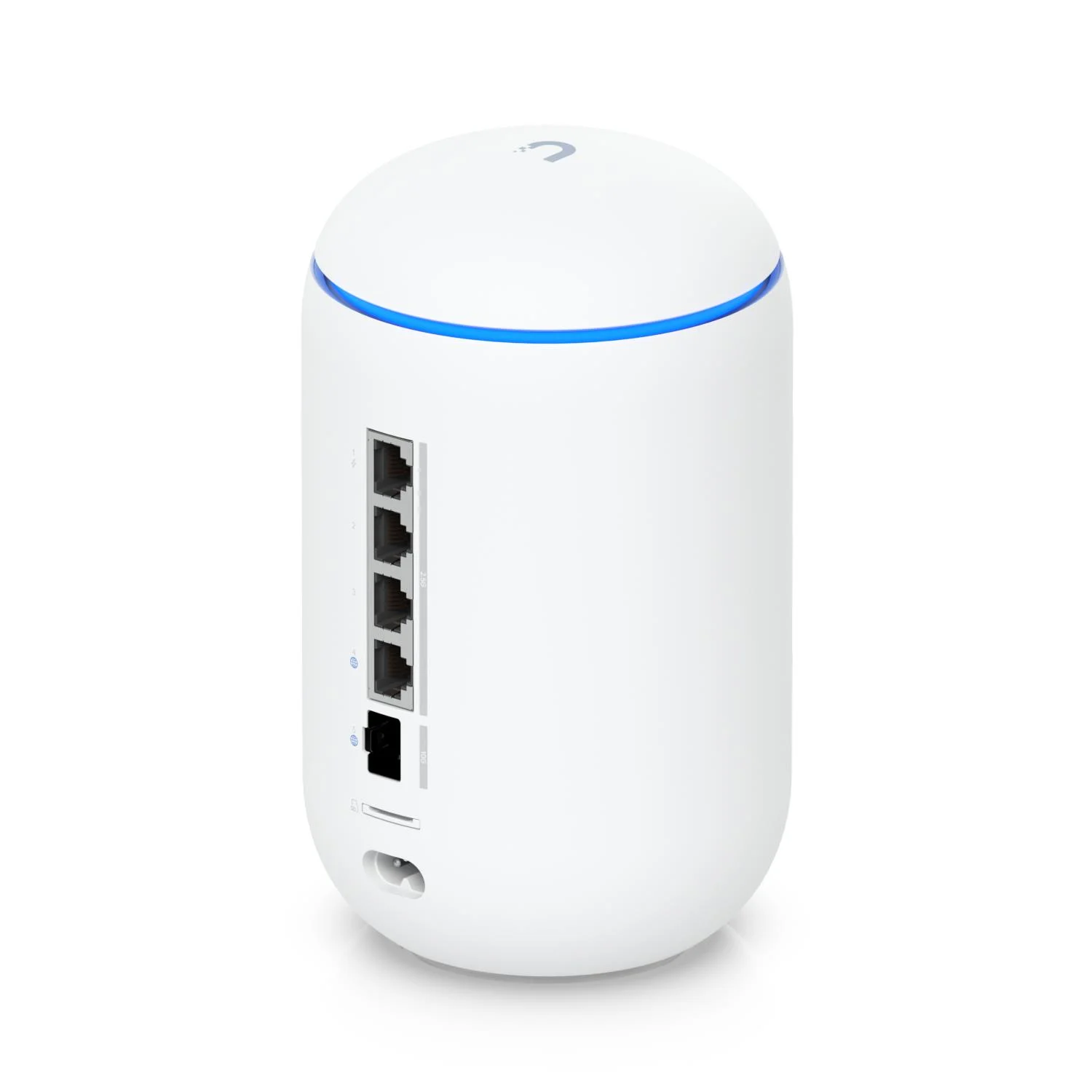

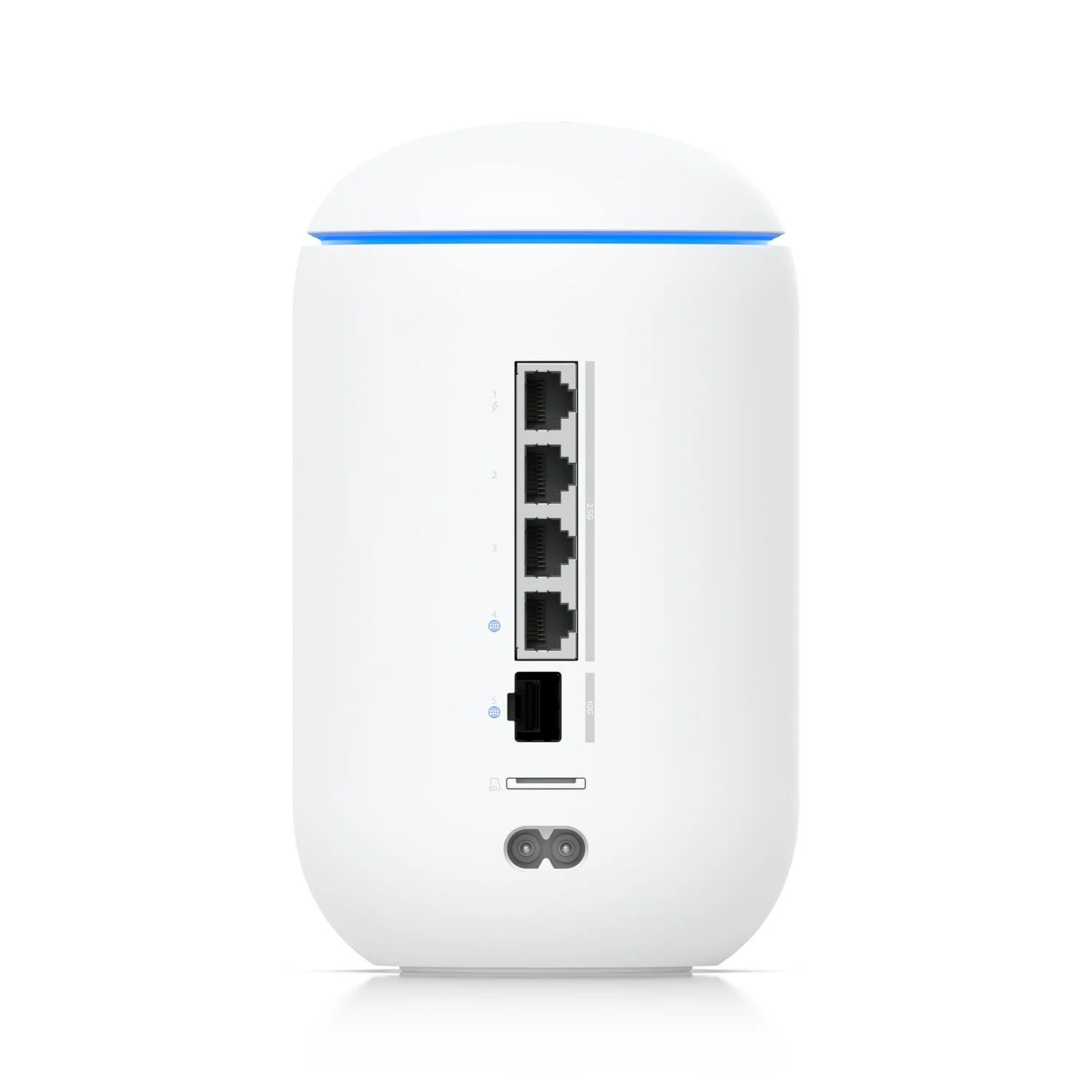

- Neli 2,5 Gigabiti Ethernet LAN porti
- Sisseehitatud antenni disain
- Toitamine: AC või PoE
- Mälukaardi pesa: jah
- Töötemperatuur: -10 kuni 40°C
- Kaal: 1100 g
Dream Router 7 on ideaalne valik professionaalsetele kasutajatele ja kodudele, kus nõutakse kõrgeid interneti kiiruseid ja usaldusväärsust.
Tehnilised andmed
Üldine
| Tootja | Ubiquiti |
|---|---|
| Mudel | Dream Router 7 |
Wireless LAN features
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (first band) | 688 Mbit/s Mbit/s |
| WLAN data transfer rate (max) | 5700 Mbit/s Mbit/s |
| WLAN data transfer rate (second band) | 4300 Mbit/s Mbit/s |
| WLAN data transfer rate (third band) | 5700 Mbit/s Mbit/s |
WAN connection
| 3G/4G USB modem compatibility | No |
|---|---|
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | No |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 2500 Mbit/s Mbit/s |
| Ethernet LAN interface type | 2.5 Gigabit Ethernet |
| Load balancing system | Yes |
| Maximum coverage | 160 m² m² |
| Maximum Tx power (2.4 GHz) | 23 dBmW dBmW |
| Maximum Tx power (5 GHz) | 26 dBmW dBmW |
| Multicast support | Yes |
| Networking standards | IEEE 802.1Q |
| Policy-based routing | Yes |
| VPN server | Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP |
Ports & interfaces
| Compatible memory cards | MicroSD (TransFlash) |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| Fiber optic connector | SFP+ |
| Memory card slot(s) | Yes |
| USB port | No |
Management features
| MIMO | Yes |
|---|---|
| MU-MIMO technology | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Web-based management | Yes |
Security
| Filtering | Yes |
|---|---|
| Firewall | Yes |
| MAC address table | 2000 entries entries |
| Security algorithms | PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
Protocols
| DHCP server | Yes |
|---|---|
| Routing protocols | OSPF |
Design
| Built-in display | Yes |
|---|---|
| Display type | LCM |
| Housing material | Polycarbonate (PC) |
| LED indicators | Status |
| Product colour | White |
Antenna
| Antenna design | Internal |
|---|---|
| Antenna gain level (max) | 7 dBi dBi |
Features
| Bluetooth | Yes |
|---|---|
| Built-in processor | Yes |
| Internal memory | 3000 MB MB |
| Number of simultaneously connected devices (max) | 300 |
| Processor architecture | ARM Cortex-A53 |
| Processor cores | 4 |
| Processor frequency | 1500 MHz MHz |
Power
| AC input frequency | 50/60 Hz Hz |
|---|---|
| AC input voltage | 100 – 240 V V |
| Power consumption (typical) | 26 W W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 57 V V |
| Power source type | AC, PoE |
| Power supply | 50 W W |
Operational conditions
| Operating relative humidity (H-H) | 5 – 95% % |
|---|---|
| Operating temperature (T-T) | -10 – 40 °C °C |
Weight & dimensions
| Depth | 110 mm mm |
|---|---|
| Height | 184.1 mm mm |
| Weight | 1.1 kg g |
| Width | 110 mm mm |
