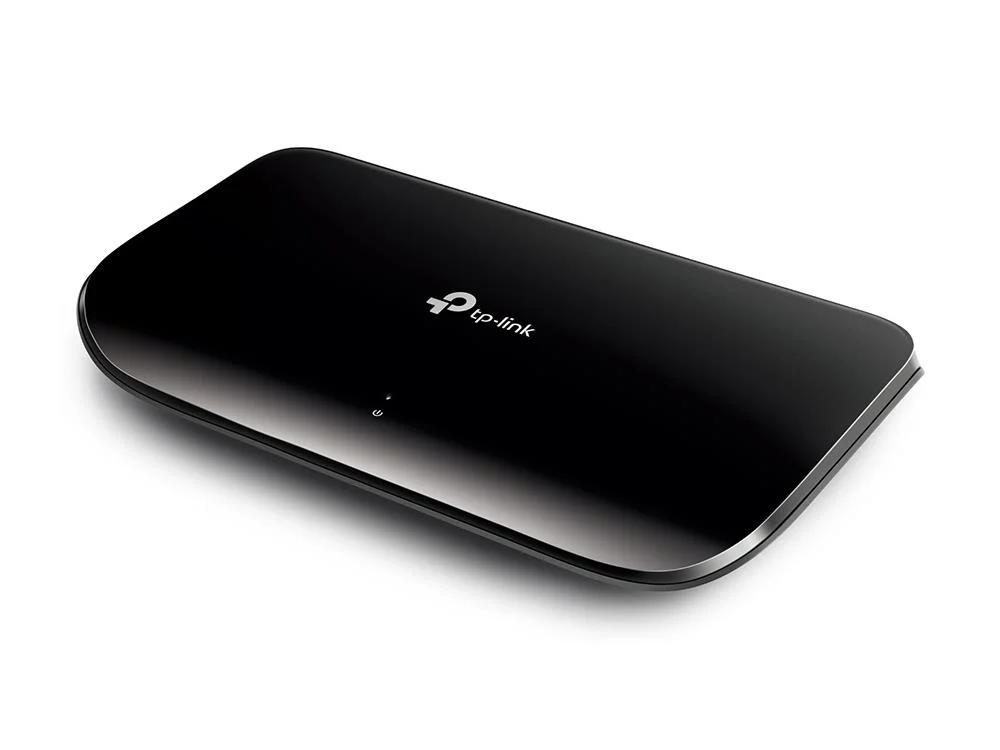

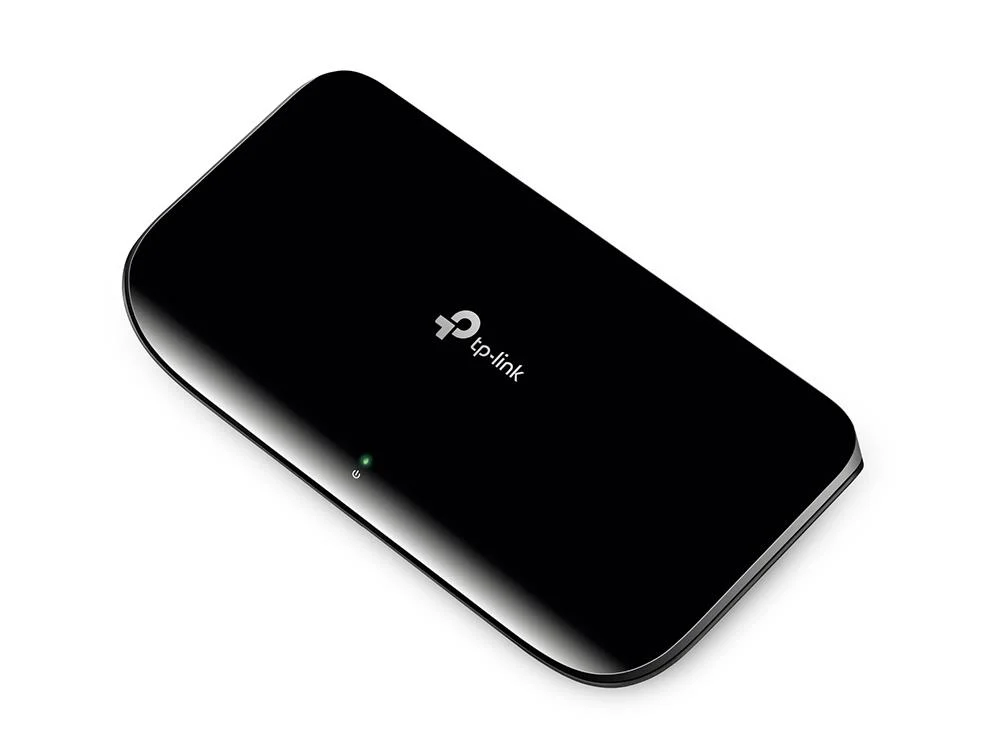

TP-LINK TL-SG1008D võrgunaaldur

The TP-Link 8-Port Gigabit desktop switch TL-SG1008D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1008D adopts lower võimsus consumption design. With the innovative energy-efficient technology, the TL-SG1008D can save up to 80%* of the võimsus consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch
Featured with 8 10/100/1000Mbps ports, TL-SG1008D greatly expands your network maht, enabling instant large files transferring. So, võimsus users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1008D 8-Port Gigabit Desktop Switch omadused the latest innovative energy-efficient technologies that can greatly expand your network maht with much less võimsus. It automatically adjusts võimsus consumption according to the link status and kaabli pikkus to limit the carbon footprint of your network.

võimsus down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of võimsus. The TL-SG1008D can automatically detect the link status of each port and reduce the võimsus consumption of ports that are idle, resulting in up to an 80% reduction in võimsus use.

võimsus Budget According to kaabli pikkus
Ideally, shorter cable would use less võimsus because of less võimsus degradation over their pikkus; this is not the case with most devices as they will use the same amount of võimsus across the cable regardless of the pikkus.

Easy to Use
The auto omadused of this gigabit switch make installation plug and play and hassle-free. ei configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

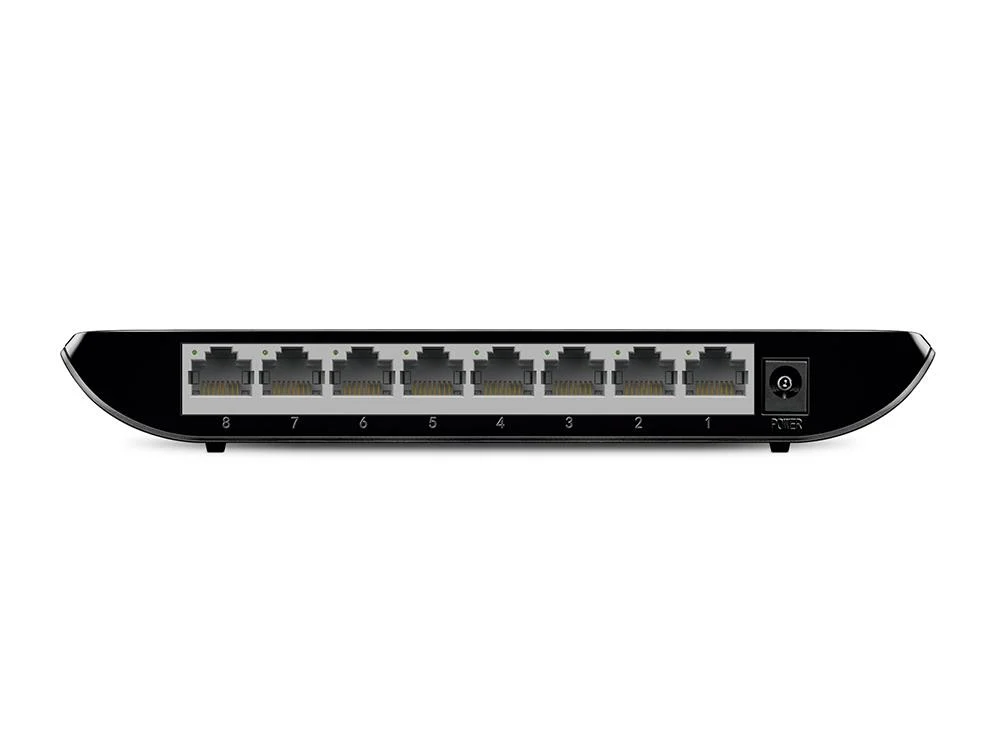

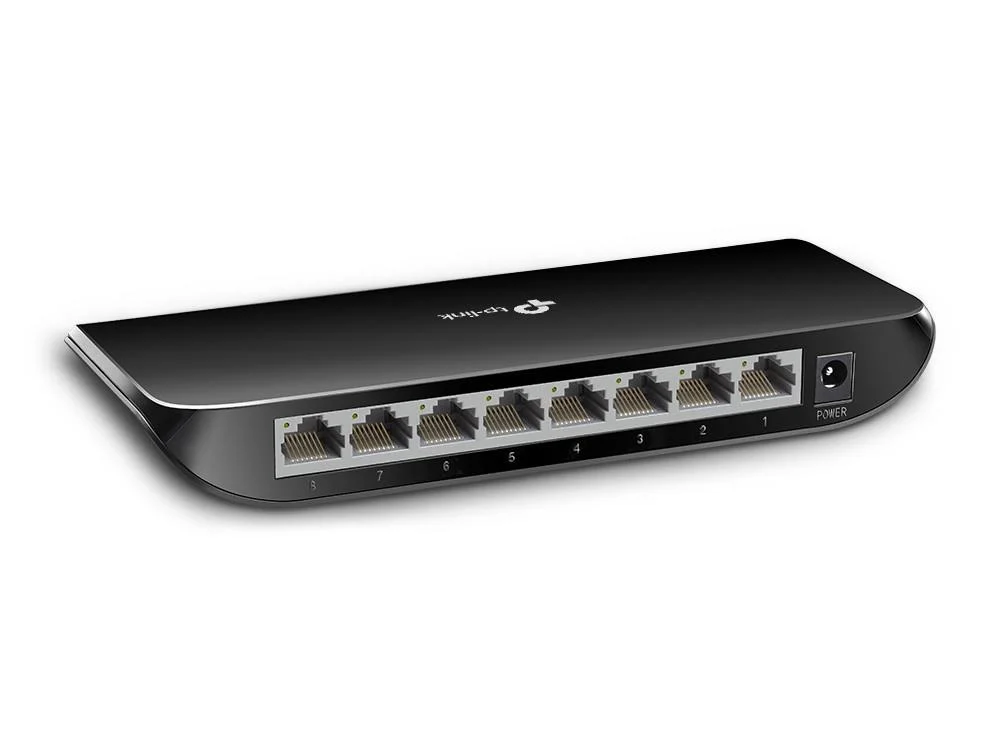

• 8 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
• Green Ethernet technology saves the võimsus up to 80%
• IEEE 802.3x flow control provides reliable data transfer
• Plastic case, desktop or wall-mounting design
• Plug and play, ei configuration required

Tehnilised andmed

Üldine

Tootja	Tp-Link
Mudel	8-Port Gigabit Desktop Network Switch

Management features

Switch Type	Unmanaged

Ports & interfaces

Basic Switching Rj-45 Ethernet Ports Quantity	8
Basic Switching Rj-45 Ethernet Ports Type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (Copper) Ports Quantity	8
Võimsus Pistik	DC-in jack

Network

10G Support	ei
Auto Mdi/Mdi-X	jah
Auto-Negotiation	jah
Cable Types Supported	Cat3, Cat4, Cat5, Cat5e
Copper Ethernet Cabling Technology	10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet Lan Data Rates	10,100,480,800,1000 Mbit/s Mbit/s
Flow Control Support	jah
Full Duplex	jah
Networking Standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Data transmission

Jumbo Frames	15000
Jumbo Frames Support	jah
Mac Address Table	4000 entries entries
Packet Buffer Mälu	2 MB MB
Packet Forwarding Rate (1 Gbps)	14880 pps pps
Packet Forwarding Rate (10 Mbps)	1488000 pps pps
Packet Forwarding Rate (100 Mbps)	148800 pps pps
Store-And-Forward	jah
Switching Maht	16 Gbit/s Gbit/s

Design

Housing Materjal	Plastic
Led Indicators	jah
Product Värv	must
Rack Mounting	ei
Stackable	ei
Wall Mountable	jah

Performance

Fanless	jah
Maximum Kaabli Pikkus	100 m m

Power

Ac Input Sagedus	50/60 Hz Hz
Ac Input Pinge	100 – 240 V V
Dc Input Pinge	9 V V
Input Current	0.6 A A
Võimsus Consumption (Max)	3.53 W W
Võimsus Consumption (Typical)	4.63 W W
Võimsus Source	DC
Võimsus Supply Kaasas	jah

Power over Ethernet (PoE)

Võimsus Over Ethernet (Poe)	ei

Operational conditions

Heat Dissipation	15.8 BTU/h BTU/h
Operating Relative Humidity (H-H)	10 – 90% %
Operating Temperature (T-T)	0 – 40 °C °C
Salvestusmaht Relative Humidity (H-H)	5 – 90% %
Salvestusmaht Temperature (T-T)	-40 – 70 °C °C

Weight & dimensions

Sügavus	90 mm mm
Kõrgus	25.5 mm mm
Laius	180 mm mm
