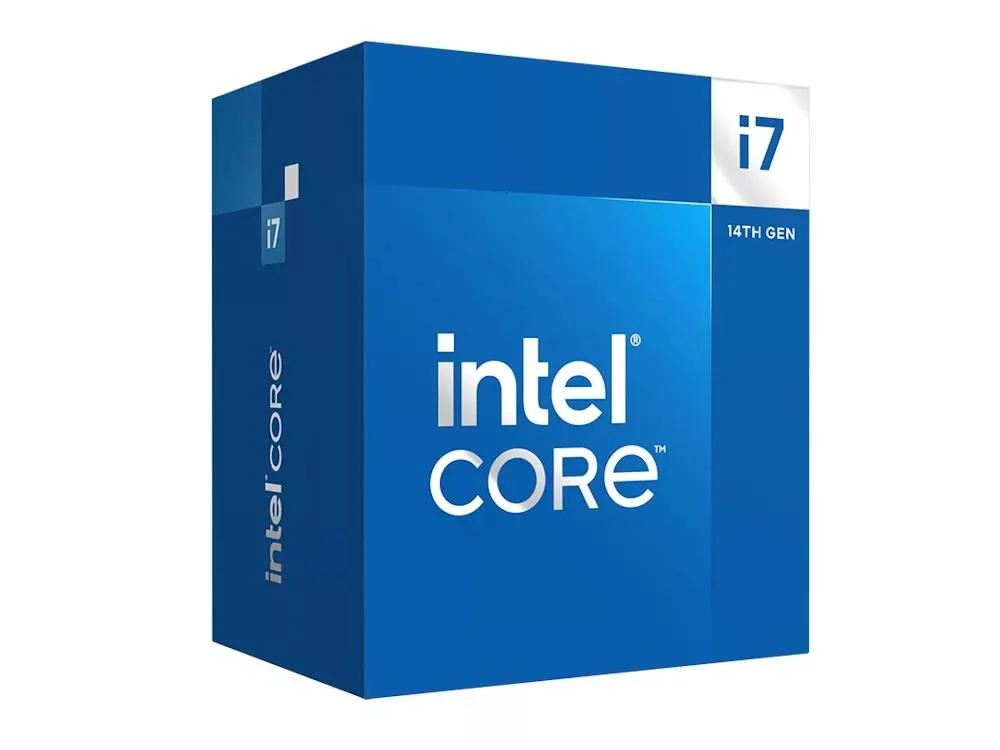

Intel Core i7-14700F on 14. põlvkonna desktop-protsessor, mis ühendab 8 jõudlus- ja 12 tõhusatuuma, pakkudes kiireid arvutusi ja energiatõhusat tööd. Raptor Lake arhitektuuril põhinev CPU suudab käsitleda nii nõudlikke rakendusi kui ka mänge suurepärase jõudlusega.
Protsessor kasutab LGA 1700 pistikut ja toetab DDR4 ja DDR5 mälusid kahel kanalis. Sellele lisanduvad täiustatud funktsioonid nagu Intel Turbo Boost Technology ja Smart Cache, mis tagavad stabiilse ja kiire jõudluse erinevates tööülesannetes.
- Tuumad ja lõimed: 20 tuuma, 28 lõime
- Sagedused: Jõudlus 2,1–5,3 GHz, tõhusus 1,5–4,2 GHz, maksimaalne 5,4 GHz
- Vahemälu: 33 MB Smart Cache
- Pistik: LGA 1700
- Alustamisvõimsus: 65 W
- Režiim: 64-bitine
- Mälutüübid: DDR4-SDRAM, DDR5-SDRAM, dual-channel
- Pakend: BOX, jahuti kaasas
Tehnilised andmed
Üldine
| Tootja |
Intel |
| Mudel |
i7-14700F |
| CPU Family name |
Intel Core i7 |
| Model number |
i7-14700F |
Processor
| Cooler included |
Yes |
| Efficient cores |
12 |
| Efficient-core base frequency |
1.5 GHz GHz |
| Efficient-core boost frequency |
4.2 GHz GHz |
| Maximum number of DMI lanes |
8 |
| Maximum turbo power |
219 W W |
| Memory bandwidth supported by processor (max) |
89.6 GB/s GB/s |
| Package type |
Box |
| Performance cores |
8 |
| Performance-core base frequency |
2.1 GHz GHz |
| Performance-core boost frequency |
5.3 GHz GHz |
| Processor ARK ID |
236854 |
| Processor base power |
65 W W |
| Processor boost frequency |
5.4 GHz GHz |
| Processor cache |
33 MB MB |
| Processor cache type |
Smart Cache |
| Processor codename |
Raptor Lake |
| Processor cores |
20 |
| Processor family |
Intel® Core™ i7 |
| Processor generation |
Intel® Core™ i7 (14th gen) |
| Processor manufacturer |
Intel |
| Processor model |
i7-14700F |
| Processor operating modes |
64-bit |
| Processor socket |
LGA 1700 |
| Processor threads |
28 |
| Stepping |
B0 |
Memory
| Maximum internal memory supported by processor |
192 GB GB |
| Memory bandwidth (max) |
89.6 GB/s GB/s |
| Memory channels |
Dual-channel |
| Memory types supported by processor |
DDR4-SDRAM, DDR5-SDRAM |
Graphics
| Discrete graphics card |
No |
| Discrete graphics card model |
Not available |
| On-board graphics card |
No |
| On-board graphics card model |
Not available |
Features
| Commodity Classification Automated Tracking System (CCATS) |
740.17B1 |
| CPU configuration (max) |
1 |
| Direct Media Interface (DMI) Revision |
4.0 |
| Embedded options available |
No |
| Execute Disable Bit |
Yes |
| Export Control Classification Number (ECCN) |
5A992C |
| Idle States |
Yes |
| Market segment |
Desktop |
| Maximum number of PCI Express lanes |
20 |
| PCI Express configurations |
1×16+1×4, 2×8+1×4 |
| PCI Express slots version |
4.0, 5.0 |
| Scalability |
1S |
| Supported instruction sets |
AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies |
Yes |
| Use conditions |
PC/Client/Tablet |
Processor special features
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel 64 |
Yes |
| Intel Turbo Boost Max Technology 3.0 |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel® Boot Guard |
Yes |
| Intel® Control-flow Enforcement Technology (CET) |
Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU |
Yes |
| Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® OS Guard |
Yes |
| Intel® Secure Key |
Yes |
| Intel® Speed Shift Technology |
Yes |
| Intel® Standard Manageability (ISM) |
Yes |
| Intel® Thread Director |
Yes |
| Intel® Turbo Boost Max Technology 3.0 frequency |
5.4 GHz GHz |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Volume Management Device (VMD) |
Yes |
| Mode-based Execute Control (MBE) |
Yes |
Operational conditions
Technical details
| Launch date |
Q1’24 |
| Status |
Launched |
Other features
| L2 cache |
28672 KB KB |
| Maximum internal memory |
192 GB GB |
