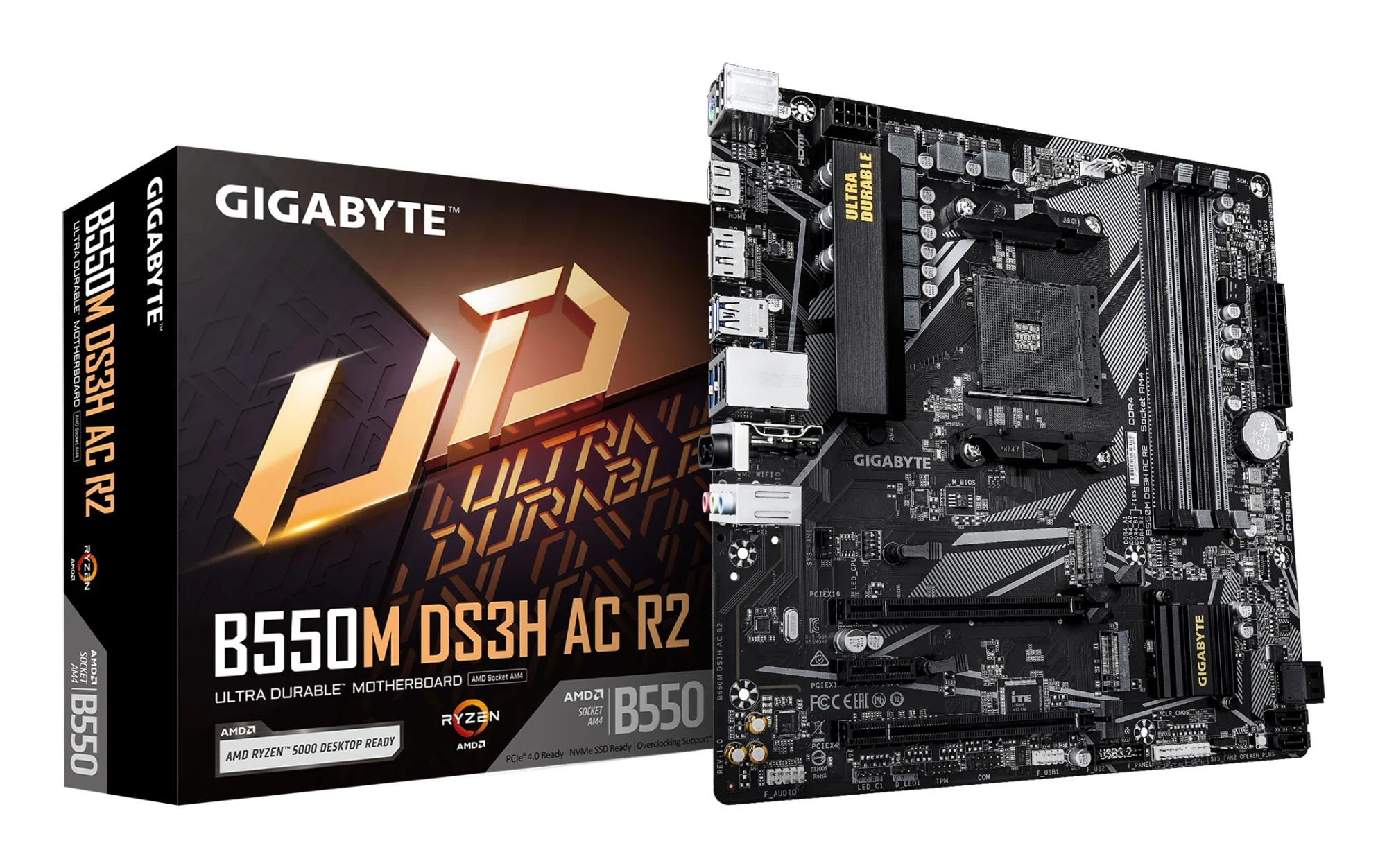

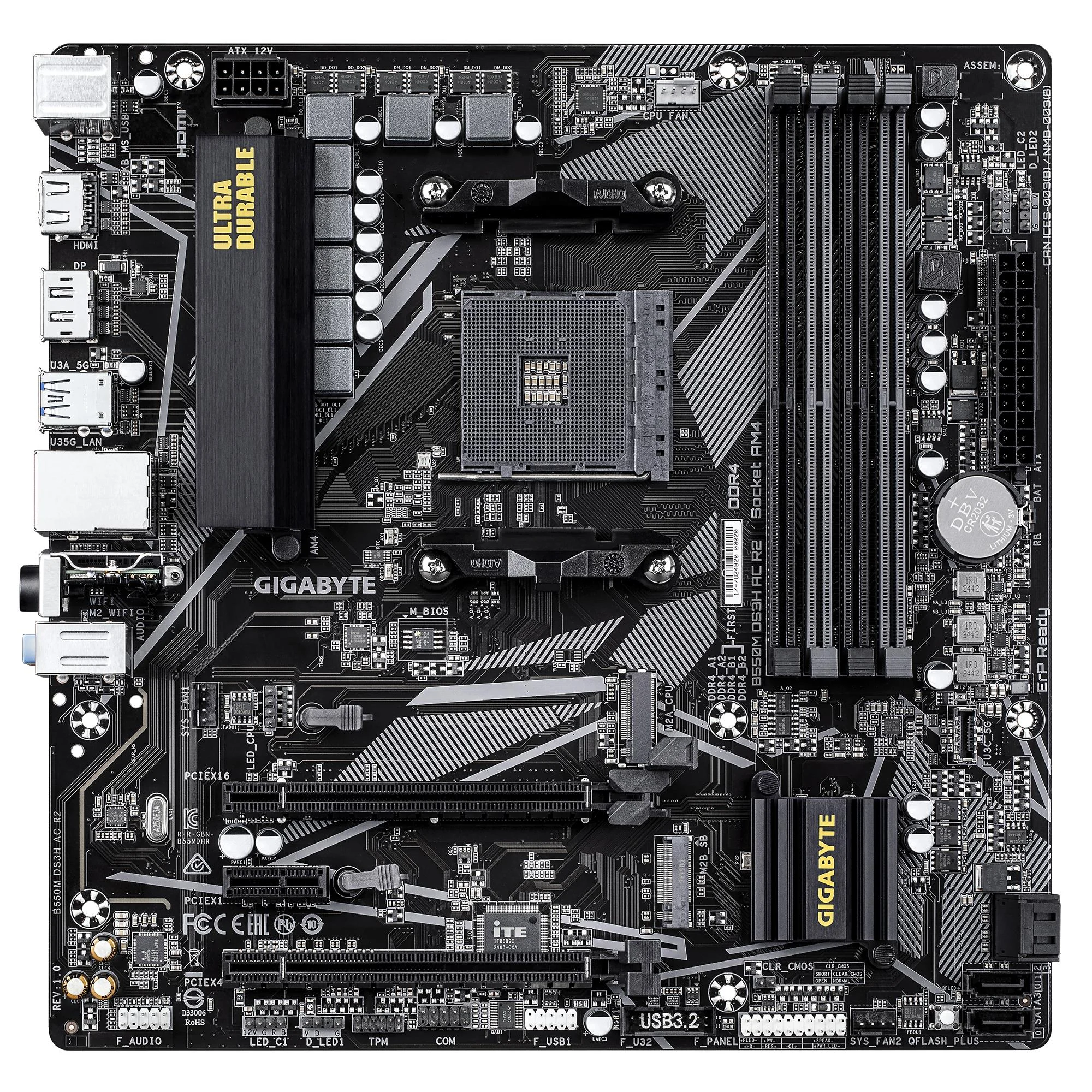

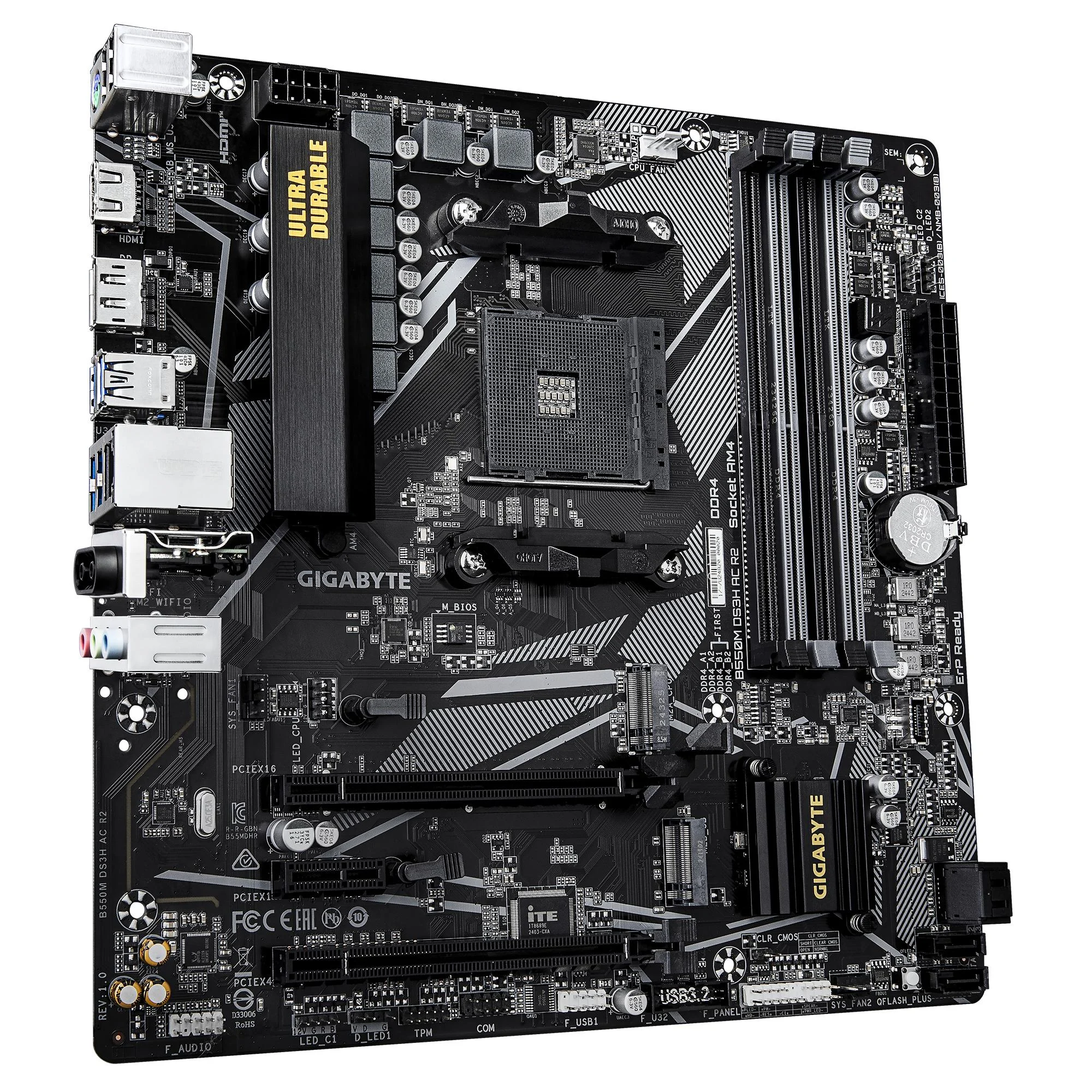

Gigabyte B550M DS3H AC R2 on kompaktne micro ATX formaadis emaplaadi, mis on disainitud AMD Ryzen protsessoritele Socket AM4 pesaga. See emaplaadi sobib ideaalselt kasutajatele, kes otsivad tasakaalustatud jõudlust ja usaldusväärsust PC-i ehitamisel, säilitades samas kompaktse ja säästliku disaini.
Emaplaadi pakub 4 DDR4 SDRAM mälupesa, mis toetab kuni 128 GB mälu ja sagedusi kuni 4733 MHz. Suurepärane valik nii tavaliste kasutajate kui ka power-kasutajate jaoks. Kaasasolev Realtek ALC1220-VB heliprotsessor annab 7.1 kanalise helikvaliteedi, mis on piisav nii mängimiseks kui ka meediamaterjali tarbimiseks.
Seade on varustatud Wi-Fi ja Bluetooth funktsioonidega, mis võimaldavad juhtmevaba ühendust. Emaplaadi toetab RAID-i (0, 1, 10), millega saab parandada andmete turvalisust ja jõudlust.
- Chipset: AMD B550
- Protsessori pesa: Socket AM4
- Mälu: 4x DDR4 DIMM pesa, kuni 128 GB, max 4733 MHz
- Salvestamine: 2x M.2 (M) pesa, 4x SATA III, RAID toega
- Heliprotsessor: Realtek ALC1220-VB, 7.1 kanali
- Ühendused: 1x Gigabit Ethernet, 1x HDMI, 2x USB 2.0, 4x USB 3.2 Gen 1 Type-A
- Juhtmevaba: Wi-Fi ja Bluetooth (antenn kaasas)
- Kuju: Micro ATX, mass 980g
Tehnilised andmed
Üldine
| Tootja |
Gigabyte |
| Mudel |
B550M DS3H AC R2 |
Features
| Audio chip |
Realtek ALC1220-VB |
| Audio output channels |
7.1 channels channels |
| Component for |
PC |
| Cooling type |
Passive |
| Motherboard chipset |
AMD B550 |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
micro ATX |
| PC health monitoring |
Fan/Temperature/Voltage |
| Power source type |
ATX |
| Product colour |
Dark brown |
| Windows operating systems supported |
Windows 10 x64/Windows 11 x64 |
Processor
| Compatible processor series |
AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series |
| Processor manufacturer |
AMD |
| Processor socket |
Socket AM4 |
| Supported processor sockets |
Socket AM4 |
Memory
| ECC сompatibility |
ECC & Non-ECC |
| Maximum internal memory |
128 GB GB |
| Maximum internal memory per slot |
32 GB GB |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory clock speed (max) |
4733 MHz MHz |
| Supported memory clock speeds |
2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz |
| Supported memory types |
DDR4-SDRAM |
| Unbuffered memory |
Yes |
Storage controllers
| Number of HDDs supported |
4 |
| Number of storage drives supported |
6 |
| RAID levels |
0/1/10 |
| RAID support |
Yes |
| Supported storage drive interfaces |
M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
| Supported storage drive types |
HDD & SSD |
Graphics
| DirectX version |
12.0 |
| HDCP |
Yes |
| Maximum resolution |
5120 x 2880 pixels pixels |
| On-board graphics card |
No |
| Parallel processing technology support |
Not supported |
Internal I/O
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Front panel audio connector |
Yes |
| Front panel connector |
Yes |
| Number of chassis fan connectors |
2 |
| Number of CPU fan connectors |
1 |
| Number of EPS power connectors (8-pin) |
1 |
| Number of RGB LED pin headers |
5 |
| Number of SATA III connectors |
4 |
| RGB LED pin header |
Yes |
| Serial port headers |
1 |
| TPM connector |
Yes |
| USB 2.0 connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |

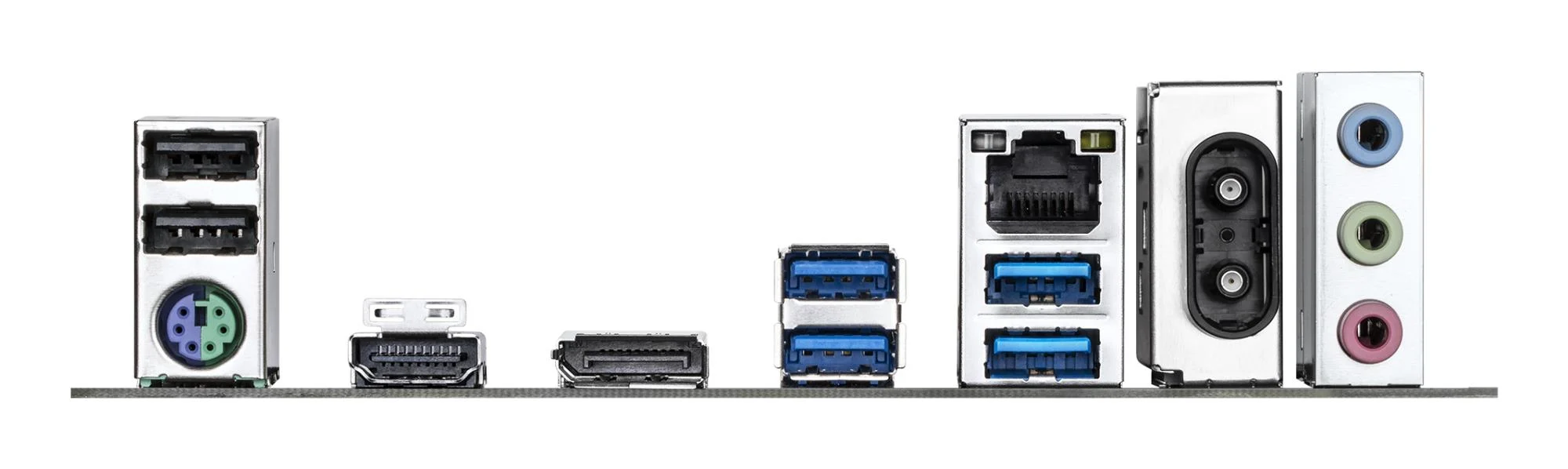

Rear panel I/O ports
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Headphone outputs |
1 |
| Line-in |
Yes |
| Microphone in |
Yes |
| PS/2 ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| WiFi-AP antenna jack |
2 |
Network
| Bluetooth |
Yes |
| Bluetooth version |
5.0 |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| LAN controller |
Realtek RTL8111H |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) |
| WLAN controller model |
Realtek RTL8821CE |
Expansion slots
| 1st M.2 highest PCI Express generation |
4.0 |
| 1st M.2 largest key size |
2280 |
| 2nd M.2 highest PCI Express generation |
3.0 |
| 2nd M.2 largest key size |
2280 |
| Number of M.2 (M) slots |
2 |
| PCI Express x1 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
BIOS
| ACPI version |
5.0 |
| BIOS memory size |
128 Mbit Mbit |
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Yes |
| Desktop Management Interface (DMI) version |
2.7 |
| System Management BIOS (SMBIOS) version |
2.7 |
Battery
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Battery type |
CR2032 |
| Battery weight |
3 g g |
| Lithium weight per battery |
0.07 g g |
| Number of battery cells |
1 |
Weight & dimensions
| Depth |
244 mm mm |
| Height |
35 mm mm |
| Width |
244 mm mm |
Technical details
| Warranty period |
3 year(s) year(s) |
Other features
