With the PowerUp series, Chieftec aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.
A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS® Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very
large gaming cases.
- 80 PLUS® Gold certified efficiency

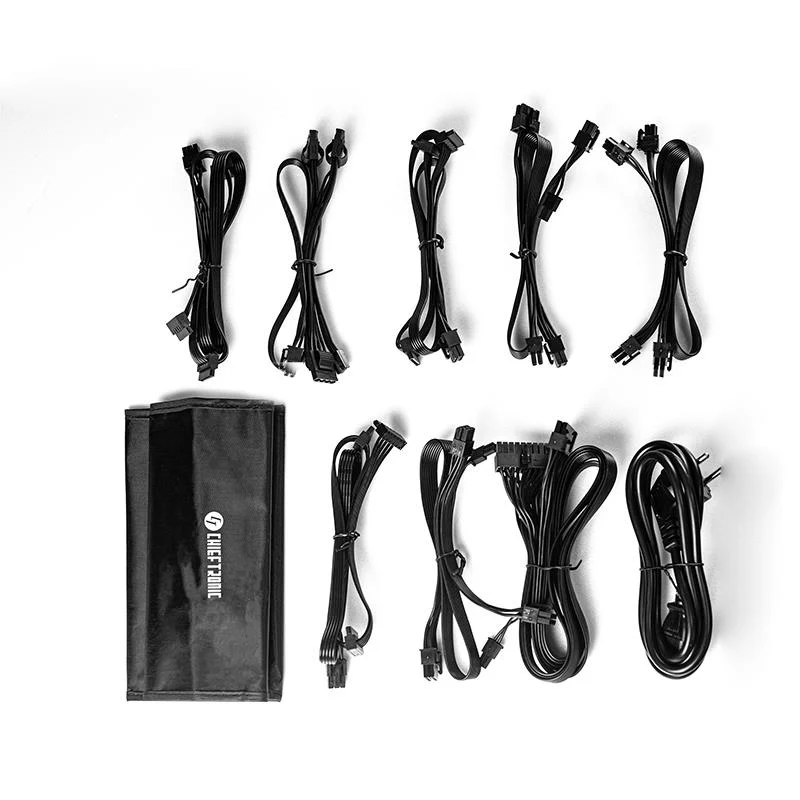

- Fully modular cable management
- Full-bridge LLC converter with DC-to-DC technology
- Low ripple and tight voltage regulation
Tehnilised andmed
Üldine
| Tootja |
Chieftec |
| Mudel |
PowerUp GPX-850FC |
Power
| AC input frequency |
47 – 63 Hz Hz |
| AC input voltage |
100 – 240 V V |
| Combined power (+12V) |
846 W W |
| Combined power (+3.3V) |
110 W W |
| Combined power (+5V) |
110 W W |
| Combined power (+5Vsb) |
12.5 W W |
| Combined power (-12V) |
3.6 W W |
| Input current |
12 A A |
| Max output current (+12V) |
70.5 A A |
| Max output current (+3.3V) |
20 A A |
| Max output current (+5V) |
20 A A |
| Max output current (+5Vsb) |
2.5 A A |
| Max output current (-12V) |
0.3 A A |
| Power Factor Correction (PFC) type |
Active |
| Power protection features |
Over current, Over power, Over voltage, Short circuit, Under voltage |
| Total power |
850 W W |

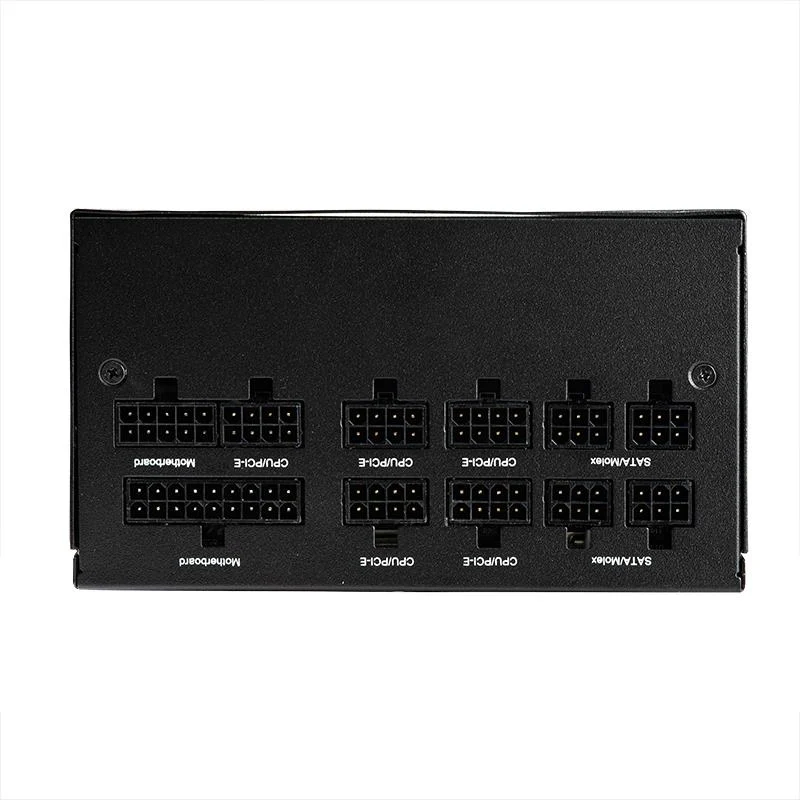

Ports & interfaces
| ATX power connector (20+4 pin) |
Yes |
| Cabling type |
Fully-Modular |
| CPU power cable length |
80 cm mm |
| CPU power connector (4+4 pin) |
Yes |
| Floppy drive power connector |
1 |
| Motherboard power cable length |
65 cm mm |
| Motherboard power connector |
20+4 pin ATX |
| Number of SATA power connectors |
9 |
| PCI Express power cable length |
65 cm mm |
| PCI Express power connectors (6+2 pin) |
6 |
| Peripheral (Molex) power cable length |
500,650,800,950 mm mm |
| Peripheral (Molex) power connectors (4-pin) |
3 |
| SATA power cable length |
500,650,800 mm mm |
Performance
| 80 PLUS certification |
80 PLUS Gold |
| ATX version |
2.53 |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
Design

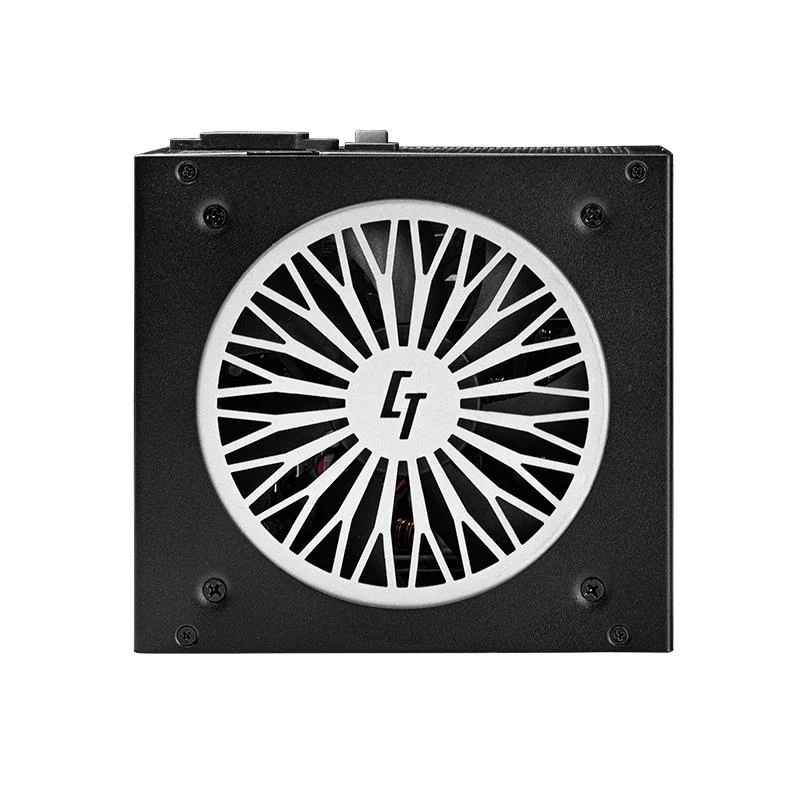

| Fan diameter |
12 cm mm |
| Fan location |
Top |
| Number of fans |
1 fan(s) fan(s) |

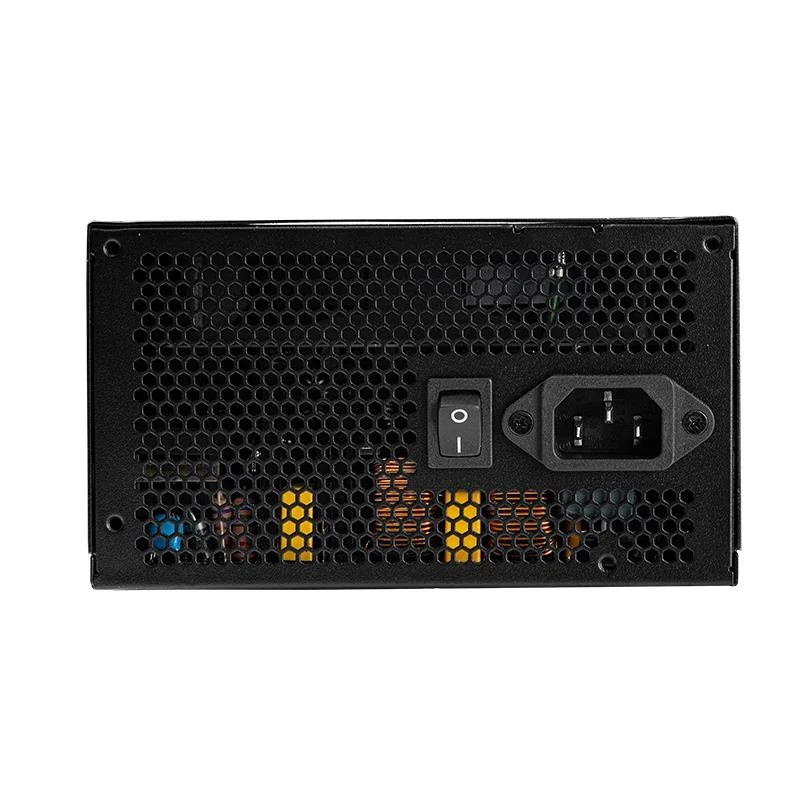

| On/off switch |
Yes |
| Product colour |
Black |
Weight & dimensions
| Depth |
140 mm mm |
| Height |
86 mm mm |
| Weight |
2.4 kg g |
| Width |
150 mm mm |
